Astralpool Motor Cooling Fan 40256 - Fasco Beige 750W, 1100W, 1500W Motors (Older CTX Pumps)

Astralpool Motor Cooling Fan 40256 - Fasco Beige 750W, 1100W, 1500W Motors (Older CTX Pumps)

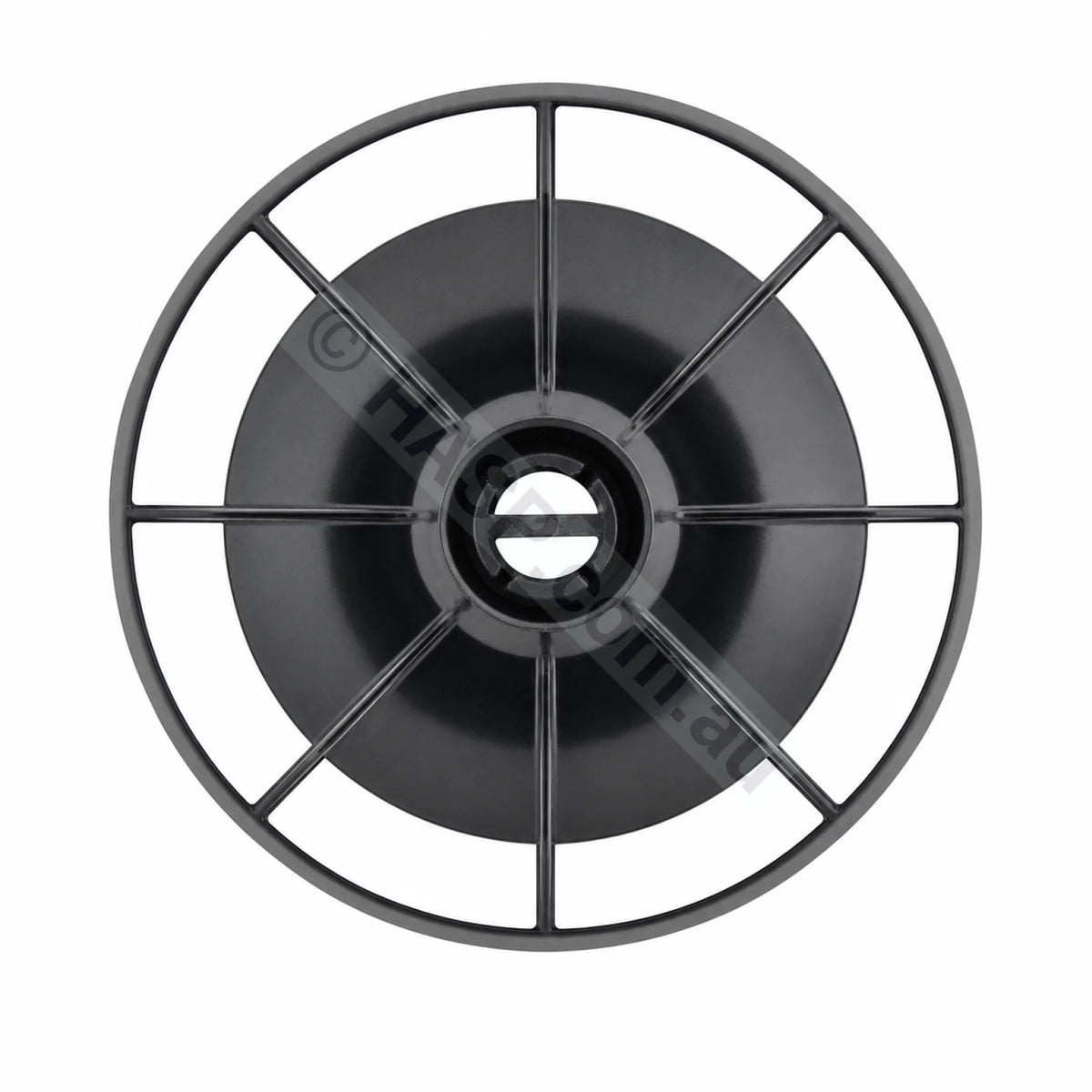

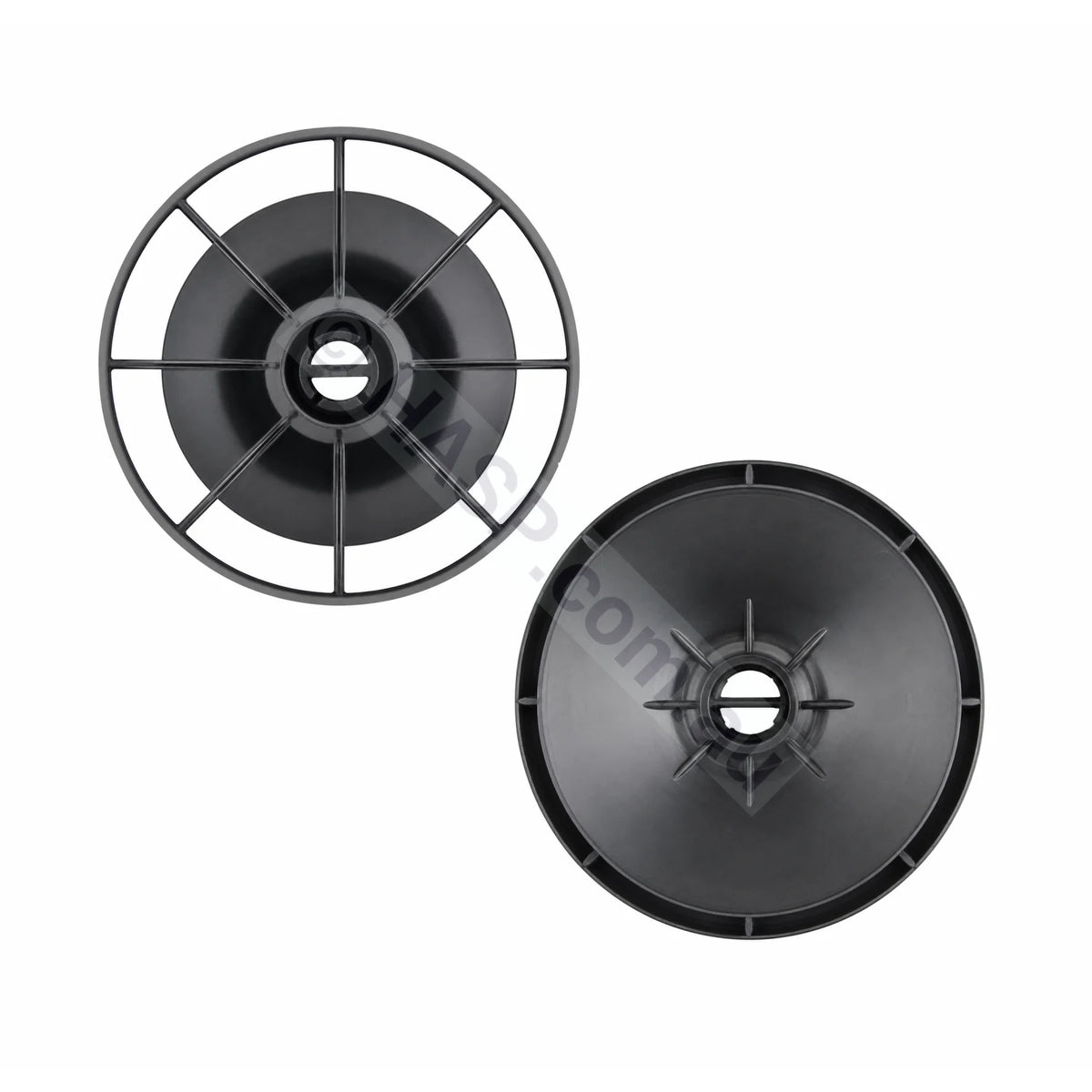

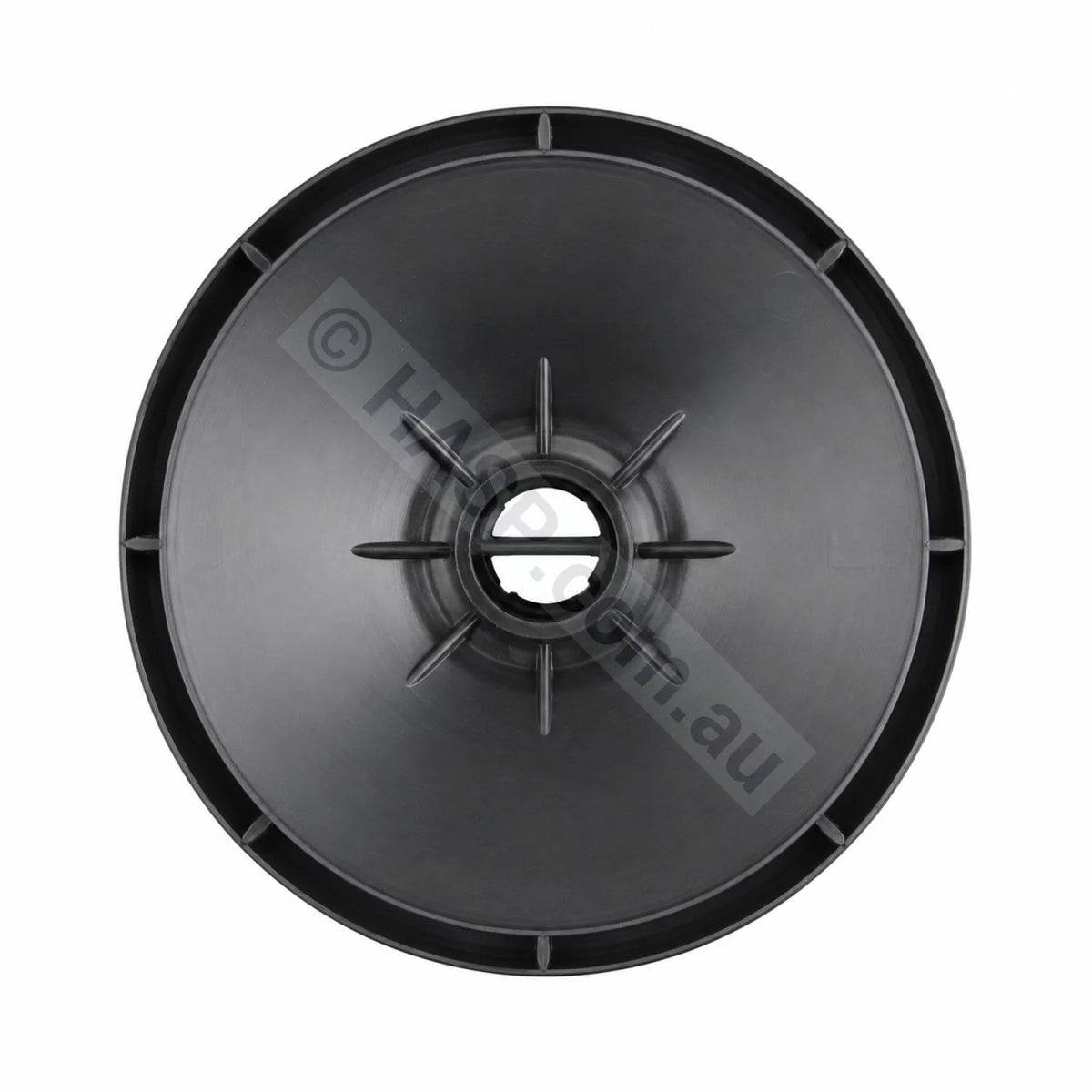

This is the genuine Astralpool Motor Cooling Fan, part number 40256, for the beige Fasco 750W, 1100W and 1500W motors. Fluidra's motor spare parts list describes it as Cooling Fan, Fasco, 750W, 1100W, 1500W (CTX older models). It sits under the Fasco fan cowl 40257. The current black Notos motors take a different fan, 40285. One fan per pump.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

Confirmed Compatibility

Listed by motor, because the fan is a motor part.

Fluidra describes the Fasco fan 40256 as for older CTX models, and the matching cowl 40257 as Fasco, Beige, 750W, 1100W, 1500W. Astralpool's pumps manual H0717800 lists motors 71313, 71314 and 71319 (black on Astralpool's BX list) (now SP71613, SP71614 and SP71619) for the CTX 280 to 500, FX 250 to 520 and single phase XP 1.0 to 2.0, and those take a different fan and cowl. Go by the motor fitted, not the pump badge.

Not this fan: black Notos 750W, 1100W and 1500W motors and the Viron pumps take 40285. CMG motors take 40183 with circlip 40209. Notos 3 HP and three-phase motors take 40275. The Fasco 2400W 3 HP motor takes fan 40263 (not stocked) under cowl 40262, the Fasco beige 560W motor takes 40251, and the Fasco BLDC motor takes 40269.

Ask first: beige 3 HP (2200W) motors, beige mini motors and any motor you are unsure of. Send us a photo of the motor, its data plate and the old fan.

Dimensions and Specifications

The Beige Fasco Fan Rule (rev. FBF-1.0)

Confirm this fan by the motor it came off:

1. Beige or black motor? A beige motor (71323, 71324 or 71329) takes this fan. A black Notos motor (71313, 71314 or 71319, now SP71613, SP71614 or SP71619) takes 40285 instead.
2. Check the wattage. Fluidra's description covers the 750W, 1100W and 1500W Fasco motors only. For a beige 3 HP (2200W) motor, ask first.
3. Look under the cowl. The fan sits on the rear of the motor shaft under the Fasco fan cowl 40257. Compare your old fan with this one, and replace the cowl too if it is cracked.
4. CMG or anything else? Ask first. CMG motors take 40183 with circlip 40209. For any other motor, send us a photo of the data plate and the old fan.

What the Cooling Fan Does

These pump motors are air cooled. The fan on the rear of the motor shaft draws air in through the cowl and pushes it along the motor body, and the cowl guides that air and keeps fingers and debris away from the spinning fan. Astralpool's Viron XT installation manual says the pump must have proper ventilation to prevent the motor overheating, that overheating due to lack of cooling voids the warranty, and lists poor airflow over the motor as a cause of the HI T over temperature fault. A single speed pump has no display to warn you that it is running hot.

The same manual says to check the surroundings for leaves and debris and, with the power off, to spray a surface insecticide around the control every three months, because ants and some insects are attracted to the warm, dry environment inside the enclosure.

Astralpool Motor Fan, Cowl and Clip Chart

Part numbers and descriptions are from Astralpool's pump spare parts lists, Fluidra's electric motor spare parts list and part descriptions, and Astralpool dealer listings (40263 and the 40284 560W description). "None listed" means no separate clip appears on those lists. "Ask us" means the lists do not show the part; send us a photo of the motor data plate and the old part.

Which Part Do I Need?

Related Fasco Motor Parts

• Fasco Fan Cowl, 750W to 1500W - 40257
• Fasco Capacitor Box Lid, 750W to 1500W - 40253
• Fasco Front Endshield - 40259 (discontinued on Fluidra's motor parts list)
• Notos Cooling Fan, 750W to 1500W and Viron - 40285
• CMG Cooling Fan - 40183
• Black Notos motor: 750W - SP71613 | 1100W - SP71614 | 1500W - SP71619
• Browse the full range: Astralpool Viron Parts | Astralpool and Zodiac Pump Spare Parts

Part Numbers and Cross-References

• Astralpool part number: 40256
• Fluidra motor spare parts list: Cooling Fan, Fasco, 750W, 1100W, 1500W (CTX older models)
• Motors: Beige Fasco 71323 (750W), 71324 (1100W) and 71329 (1500W)
• Goes with: Fasco fan cowl 40257, Fasco capacitor box lid 40253, Fasco front endshield 40259 (discontinued)
• Barcode (EAN / GTIN): 9343609038557
• Different fans: 40285 Notos 750W to 1500W and Viron, 40251 mini motor 71310 and Fasco beige 560W, 40263 Fasco 2400W 3 HP, 40269 Fasco BLDC, 40183 and 40184 CMG, 40275 Notos 3 HP and three-phase

Fitting Notes

Isolate the pump at the power point or switchboard before removing the cowl. Astralpool's pump manuals say the pump must be installed and serviced by a licensed electrician in accordance with AS/NZS 3000.

1. Remove the fan cowl from the rear of the motor.
2. Remove whatever holds the fan on the shaft and slide the old fan off, noting which way round it sits.
3. Fit the new fan the same way round and secure it as the old one was secured.
4. Turn the fan by hand to check it is seated and clears the cowl, then refit the cowl.

When to Replace

Astralpool's maintenance schedules give no service interval for the cooling fan. Replace it when blades are broken or missing, when the hub is cracked, when it no longer grips the shaft, or when the cowl is off for a motor, bearing or seal job and the fan shows damage.

Frequently Asked Questions

Which motors does the 40256 fan fit?
The Fasco 750W, 1100W and 1500W motors: Fluidra describes this fan as for older CTX models. Astralpool's 2014 CTX and BX spare parts lists and 2017 CX list number the beige 750W, 1100W and 1500W motors 71323, 71324 and 71329. One fan per pump.

Does 40256 fit a CTX with the black motor?
No. The black Notos motors (71313, 71314, 71319, now SP71613, SP71614 and SP71619) take 40285 with clip 40285C and cowl 40283.

How do I tell a beige Fasco motor from a black Notos motor?
By colour and the data plate number. Astralpool's spare parts lists give the beige motors as 71323 (750W), 71324 (1100W) and 71329 (1500W), and the black motors as 71313, 71314 and 71319, now SP71613, SP71614 and SP71619. If in doubt, send us a photo of the motor and its data plate.

Is the cowl included?
No. The Fasco fan cowl is 40257, sold separately.

Is this a genuine Astralpool part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and 40256 is the genuine Astralpool part, barcode 9343609038557.

Can I fit it myself?
Isolate the pump from power first. Astralpool's pump manuals say the pump must be installed and serviced by a licensed electrician in accordance with AS/NZS 3000. As with all of our products, it must be diagnosed and fitted by a qualified and experienced person.
