Astralpool IXI / Zodiac JXi Gas Valve - R0739300
Astralpool IXI / Zodiac JXi Gas Valve - R0739300 is temporarily out of stock and will ship as soon as it's available.
Astralpool IXI / Zodiac JXi Gas Valve - R0739300

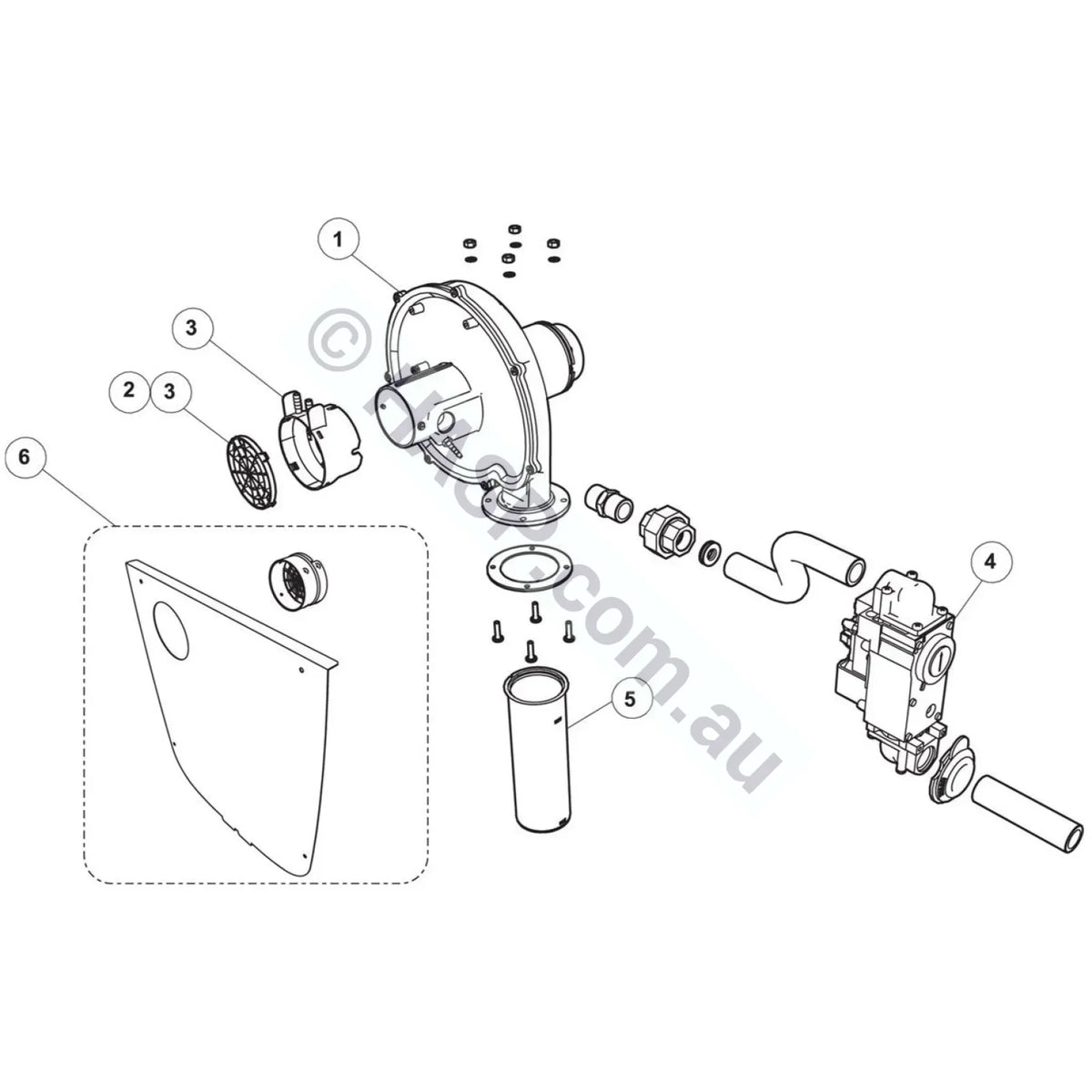

This is the genuine Zodiac gas valve, part number R0739300, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. The same part fits both heater sizes, the 200 and the 370. On the parts diagrams it is item 4 on the burner assembly (fan and gas valve) diagram.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
What This Part Does
The gas valve controls gas flow into the burner. It opens when the temperature control calls for heat and all safety controls enable operation, and it regulates gas pressure to -0.05 kPa (-0.2 in. water column) below the air pressure at the blower inlet. The Astralpool IXI manual notes that this regulation can't be achieved with common (positive pressure) gas valves (section 2.8).
It is item 4 on the JXi / IXI burner assembly (fan and gas valve) diagram, with the one part number, R0739300, for both heater sizes.
The Rating Plate Rule (rev. IXJ-1.0)
Identify the part by the heater it came from:
- Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
- Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
- Check the size. R0739300 is listed for both the 200 and the 370, so the heater size doesn't change the part.
- Match the diagram. On the burner assembly (fan and gas valve) diagram this part is item 4. The diagrams are on our IXI / JXi parts page.
Worked Example
Say the rating plate on your heater reads Astralpool IXI 370 and you need the gas valve. The IXI and the JXi share this part, and R0739300 covers both the 200 and the 370, so R0739300 is the part to order. A Zodiac JXi 200 takes the same R0739300.
Confirmed Compatibility
- Zodiac JXi: 200 and 370
- Astralpool IXI: 200 and 370
Part Numbers and Cross-References
- Zodiac / Astralpool part number: R0739300
- Barcode: 9317545020556
- Diagram item: 4 on the burner assembly (fan and gas valve) diagram
Other Burner Assembly Parts
- Item 1: Blower Assembly Kit (R0591100)
- Item 2: Air Intake Grate Kit (R0591200)
- Item 3: Blower Intake Orifice Kit, 370 (R0734102)
- Item 5: 200 Burner Kit (R0591702)
- Item 5: 370 Burner Kit (R0591705)
- Item 6: Direct Air Intake Orifice Kit (R0724600)
Fitting Notes From the Manual
A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.
- The heater must be installed and serviced by a gas fitter licensed and qualified in pool equipment, in accordance with AS/NZS 5601.
- Before opening the heater, turn the controller off, turn off all electrical power to the heater and shut off the external gas supply valve.
- Test all gas connections for leaks with a soap solution. Never use an open flame to test for leaks.
- Isolate the heater with its manual shut-off valve during any pressure test of the gas supply piping at 3.5 kPa or more. The manual cautions that permanent damage to the gas valve will occur if the installation procedures are not followed.
- Verify proper operation after servicing. Don't use the heater if any part has been under water; have a qualified service technician inspect it first.
Frequently Asked Questions
Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes. The Astralpool IXI and the Zodiac JXi use the same part number, R0739300, for the gas valve.
Does it fit both the 200 and the 370?
Yes. R0739300 is listed for both heater sizes, the 200 and the 370.
What gas pressures does the heater need?
Inlet supply pressure, measured with the heater running: natural gas 1.13 to 2.6 kPa, ULPG 1.0 to 3.5 kPa. The gas valve offset pressure is -0.05 kPa for both gas types (IXI manual, section 2.5).
Is it the same valve for natural gas and ULPG?
The IXI manual gives the same gas valve offset pressure for natural gas and ULPG heaters. To confirm the valve for your heater, send us the rating plate details: model, serial number and gas type.
Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0739300.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.
Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
Common search terms: Astralpool IXI Gas Valve, Zodiac JXi Gas Valve, R0739300, IXI 200 gas valve, JXi 200 gas valve, IXI 370 gas valve, JXi 370 gas valve, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
