Zodiac JXI GAS HEATERS Spare Parts

JXI GAS HEATERS

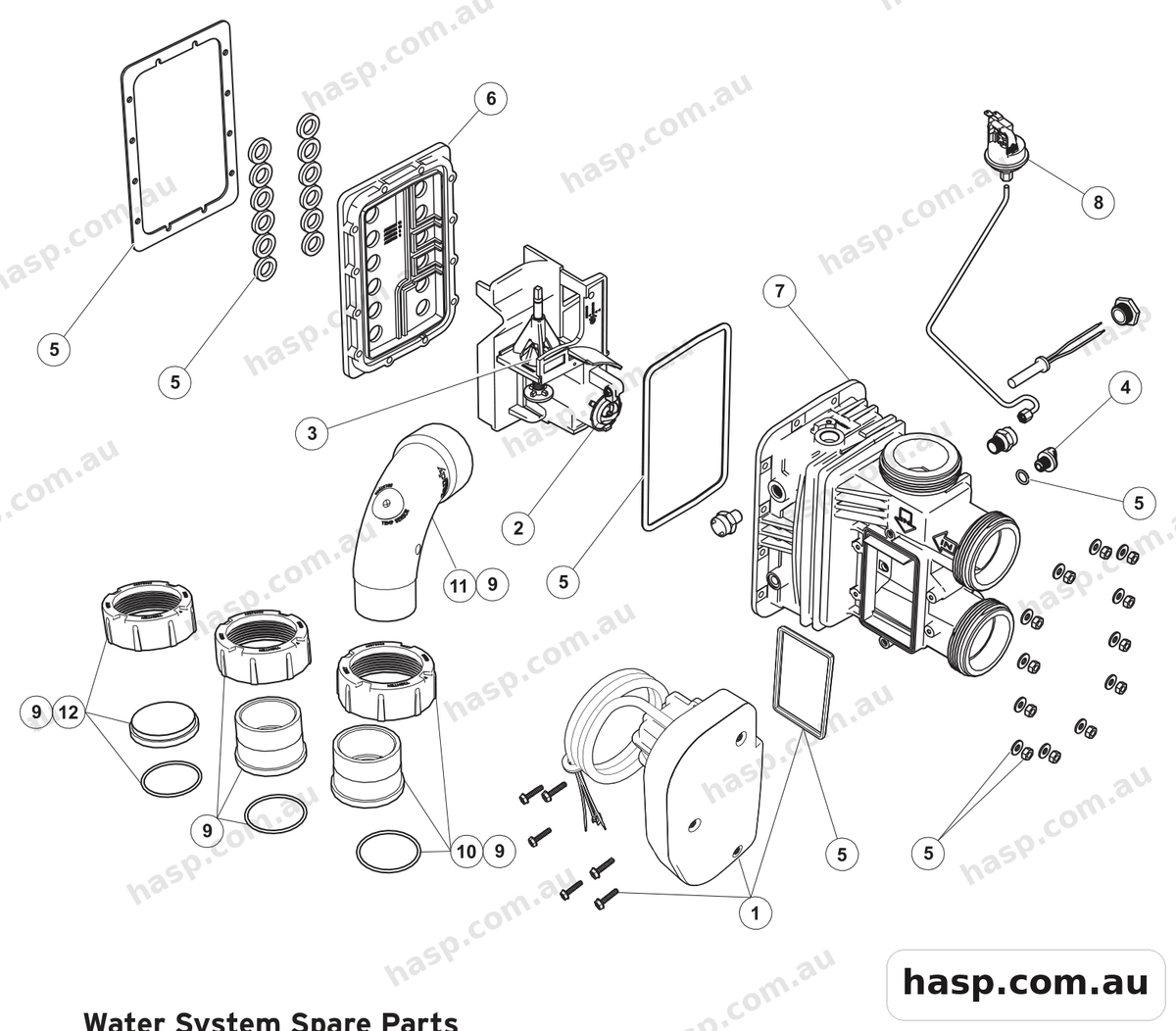

Zodiac JXI GAS HEATERS Spare Parts — Tap the diagram to enlarge. Plate 1 of 4. Zodiac catalogue page 208.

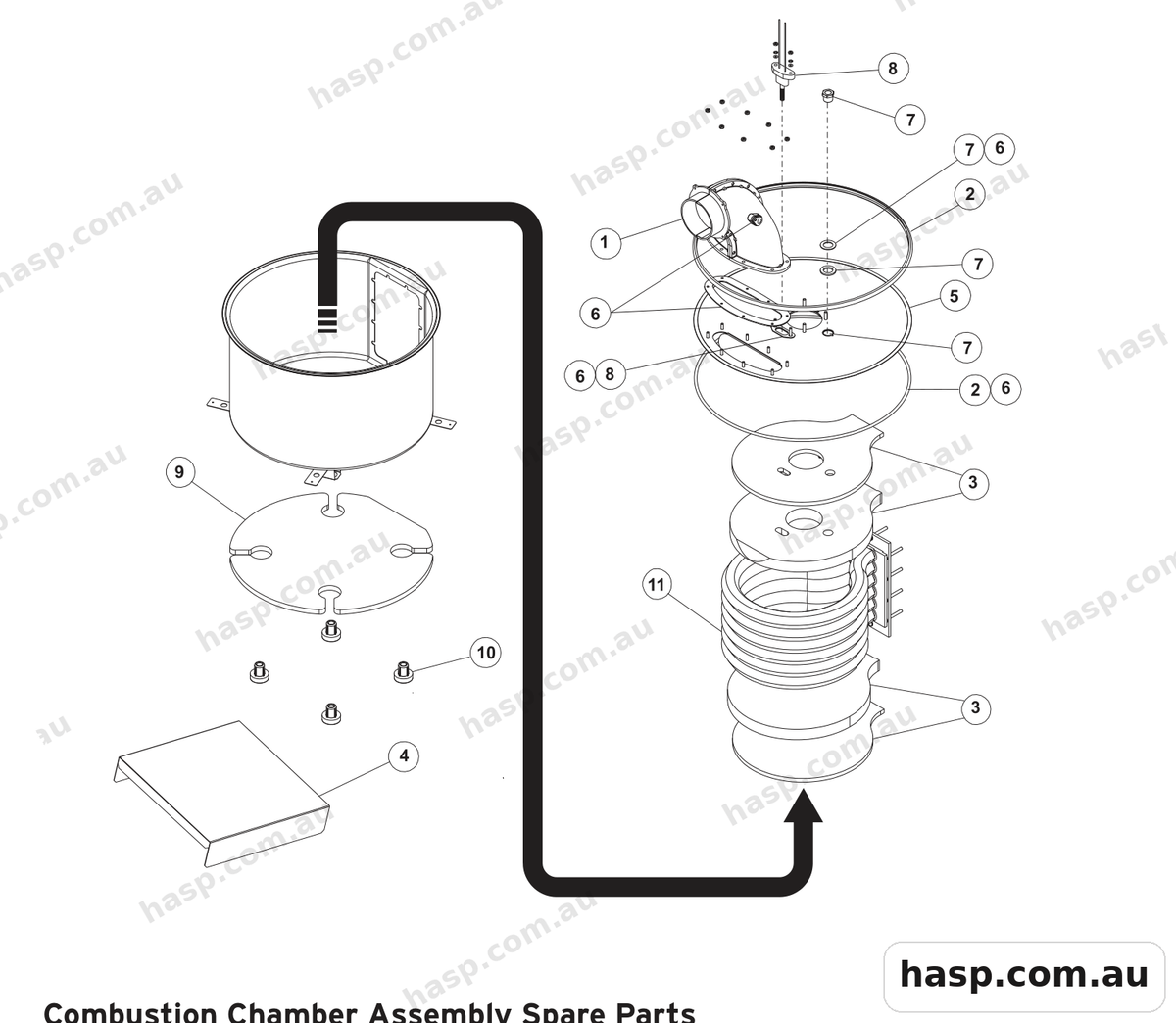

Zodiac JXI GAS HEATERS Spare Parts — Tap the diagram to enlarge. Plate 2 of 4.

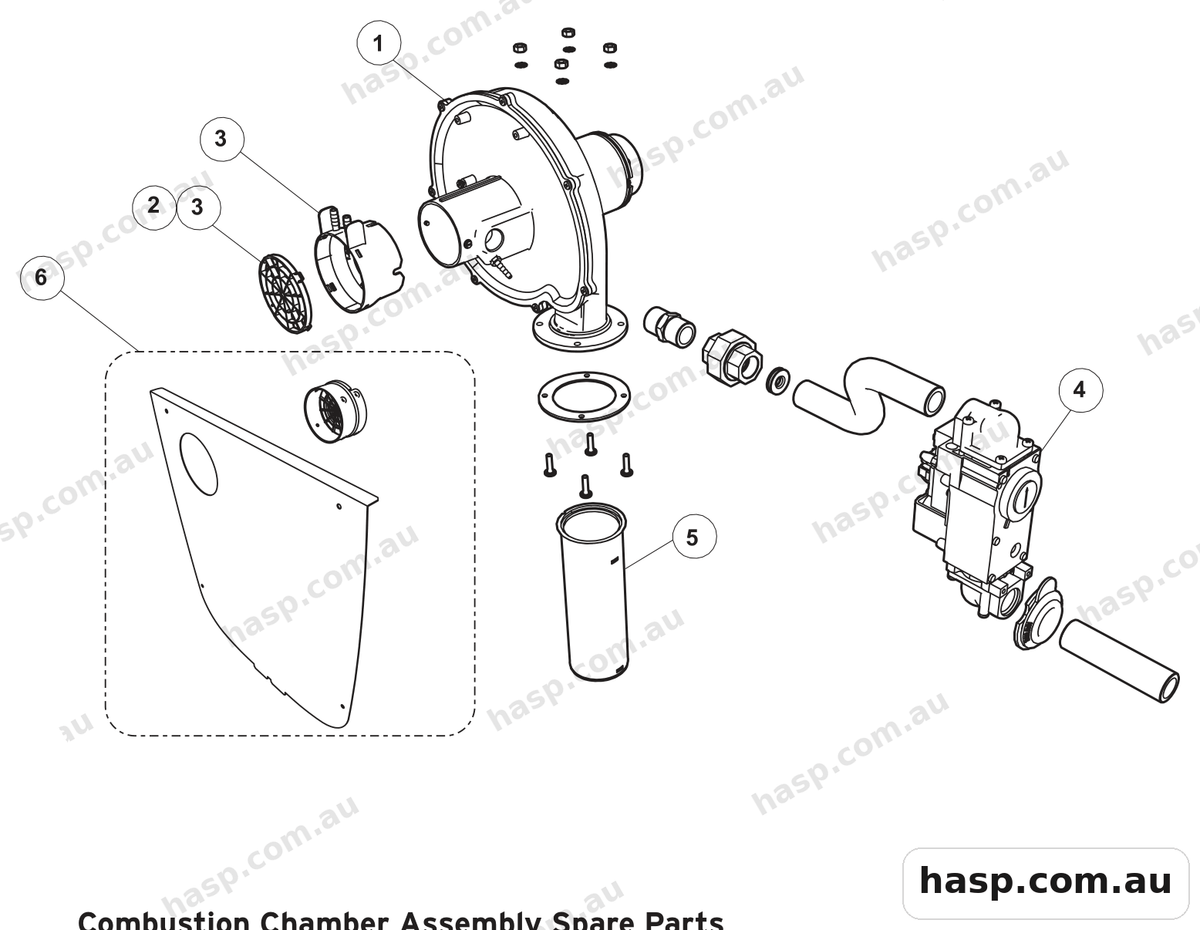

Zodiac JXI GAS HEATERS Spare Parts — Tap the diagram to enlarge. Plate 3 of 4.

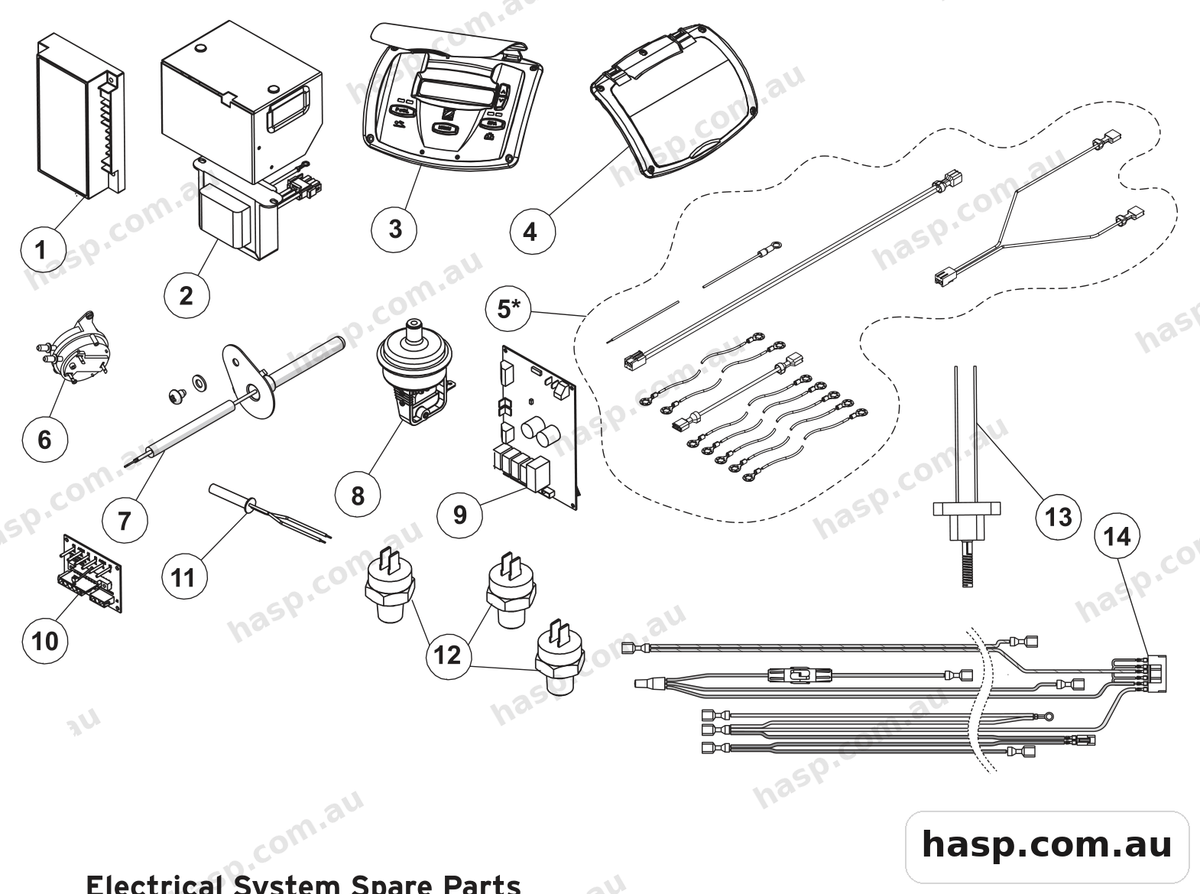

Zodiac JXI GAS HEATERS Spare Parts — Tap the diagram to enlarge. Plate 4 of 4.

3

Astralpool IXI / Zodiac JXi Refractory Kit (Internal) - R0590500JXi Refractory Kit, Internal JXi Combustion Chamber Shelf (set of 2: Models 200

R0590500 Qty 1 $234.00

4

Astralpool IXI / Zodiac JXi 200 Combustion Chamber Shelf (Set of 2) - R0590701260)

R0590701 Qty 1 $84.00

5

Astralpool IXI / Zodiac JXi Combustion Chamber Lid Kit - R0590800JXi Combustion Chamber Lid Kit

R0590800 Qty 1 $136.00

8

Zodiac Jandy LRZ HSI Hot Surface Igniter - R0457501JXi Ignitor Kit

R0457502 Qty 1 $385.00

11

Astralpool IXI / Zodiac JXi 200 Heat Exchanger Assembly - R0589402JXi 200 Heat Exchange Assembly

R0589402 Qty 1 $1,489.00

11

Astralpool IXI / Zodiac JXi 370 Heat Exchanger Assembly - R0589405JXi 370 Heat Exchange Assembly

R0589405 Qty 1 $2,479.00

3

Astralpool IXI / Zodiac JXi Refractory Kit (Internal) - R0590500JXi Refractory Kit, Internal JXi Combustion Chamber Shelf (set of 2: Models 200

R0590500 Qty 1 $234.00

4

Astralpool IXI / Zodiac JXi 200 Combustion Chamber Shelf (Set of 2) - R0590701260)

R0590701 Qty 1 $84.00

5

Astralpool IXI / Zodiac JXi Combustion Chamber Lid Kit - R0590800JXi Combustion Chamber Lid Kit

R0590800 Qty 1 $136.00

8

Zodiac Jandy LRZ HSI Hot Surface Igniter - R0457501JXi Ignitor Kit

R0457502 Qty 1 $385.00

11

Astralpool IXI / Zodiac JXi 200 Heat Exchanger Assembly - R0589402JXi 200 Heat Exchange Assembly

R0589402 Qty 1 $1,489.00

11

Astralpool IXI / Zodiac JXi 370 Heat Exchanger Assembly - R0589405JXi 370 Heat Exchange Assembly

R0589405 Qty 1 $2,479.00

1

Astralpool IXI / Zodiac JXi Blower Assembly Kit - R0591100JXi Blower Assembly Kit

R0591100 Qty 1 $500.00

2

Astralpool IXI / Zodiac JXi Air Intake Grate Kit - R0591200JXi Air Intake Grate Kit

R0591200 Qty 1 $69.00

3

Zodiac JXI 370 Blo Intake Orifice Kit R0734102JXi 370 Blower Intake Orifice Kit (Natural or Propane)

R0734102 Qty 1 $8.00

4

Astralpool IXI / Zodiac JXi Gas Valve - R0739300JXi Gas Valve

R0739300 Qty 1 $414.00

5

Astralpool IXI / Zodiac JXi 200 Burner Kit - R0591702JXi 200 Burner Kit

R0591702 Qty 1 $289.00

5

Astralpool IXI / Zodiac JXi 370 Burner Kit - R0591705JXi 370 Burner Kit

R0591705 Qty 1 $279.00

6

Astralpool IXI / Zodiac JXi Direct Air Intake Orifice Kit - R0724600Direct Air Intake Orifice Kit

R0724600 Qty 1 $419.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
