Astralpool IXI / Zodiac JXi 200 Combustion Chamber Shelf (Set of 2) - R0590701

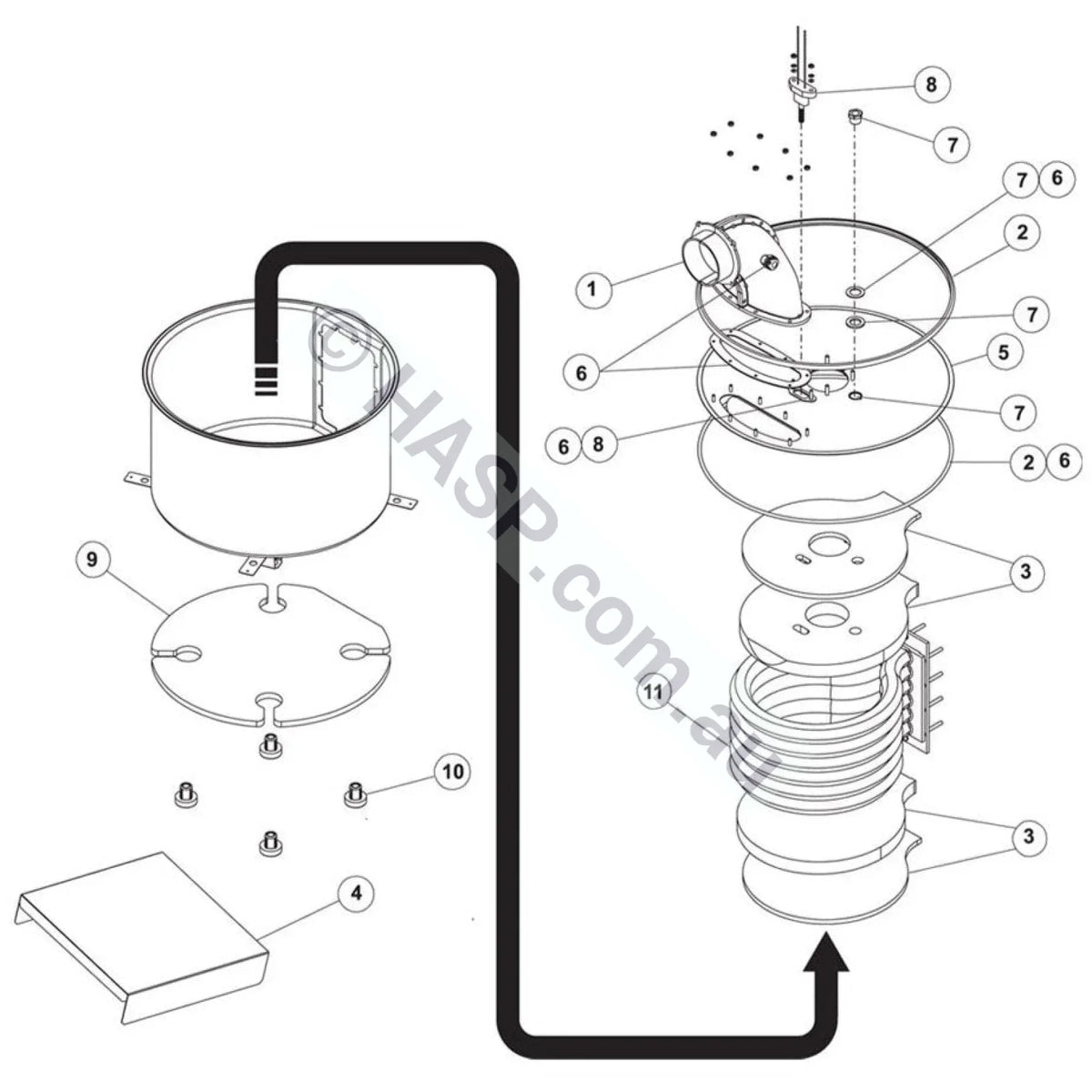

This is the genuine Zodiac combustion chamber shelf set, part number R0590701, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. It suits the 200 size only; Zodiac lists no combustion chamber shelf for the 370. On the parts diagrams it is item 4 on the combustion chamber diagram.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
What This Part Does
The combustion chamber shelf is item 4 on the JXi / IXI combustion chamber diagram. Zodiac's JXi parts list describes it as a set of 2 and lists R0590701 for the model 200, with no shelf listed (N/A) for the 370.
So this kit is for 200-size heaters only: the Zodiac JXi 200 and the Astralpool IXI 200.
The Rating Plate Rule (rev. IXJ-1.0)
Identify the part by the heater it came from:
- Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
- Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
- Check the size. This shelf set is for the 200 only. Zodiac's parts list shows no combustion chamber shelf for the 370.
- Match the diagram. On the combustion chamber diagram this part is item 4. The diagrams are on our IXI / JXi parts page.
Worked Example
Say the rating plate reads Astralpool IXI 370. Zodiac's parts list shows no combustion chamber shelf for the 370, so this kit isn't used on that heater. On an IXI 200 or a JXi 200, R0590701 is the shelf set to order.
Confirmed Compatibility
- Zodiac JXi: 200 only
- Astralpool IXI: 200 only
- Not used on: the 370 size (no shelf listed)
Which Part Do I Need?
| What you have | What to order |
|---|---|
| Astralpool IXI 200 or Zodiac JXi 200 | This shelf set, R0590701 |
| Astralpool IXI 370 or Zodiac JXi 370 | No combustion chamber shelf is listed for the 370 |
Part Numbers and Cross-References
- Zodiac / Astralpool part number: R0590701
- Barcode: 9317545024561
- Supplied as: a set of 2, as described in Zodiac's parts list
- Diagram item: 4 on the combustion chamber diagram
Other Combustion Chamber Parts
- Item 3: Refractory Kit, Internal (R0590500)
- Item 5: Combustion Chamber Lid Kit (R0590800)
- Item 8: Igniter Kit (R0457502)
- Item 11: 200 Heat Exchanger Assembly (R0589402)
- Item 11: 370 Heat Exchanger Assembly (R0589405)
Fitting Notes From the Manual
A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.
- The heater must be installed and serviced by a gas fitter licensed and qualified in pool equipment, in accordance with AS/NZS 5601.
- Before opening the heater, turn the controller off, turn off all electrical power to the heater and shut off the external gas supply valve.
- Test all gas connections for leaks with a soap solution. Never use an open flame to test for leaks.
- Verify proper operation after servicing. Don't use the heater if any part has been under water; have a qualified service technician inspect it first.
Frequently Asked Questions
Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes, in the 200 size. The Astralpool IXI 200 and the Zodiac JXi 200 use the same part number, R0590701.
Does it fit both the 200 and the 370?
No. R0590701 is for the 200 only. Zodiac's parts list shows no combustion chamber shelf for the 370.
Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0590701.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.
Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
Common search terms: Astralpool IXI 200 Combustion Chamber Shelf, Zodiac JXi 200 Combustion Chamber Shelf, R0590701, IXI 200 combustion chamber shelf set, JXi 200 combustion chamber shelf set, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
