Astralpool IXI / Zodiac JXi 370 Burner Kit - R0591705
Astralpool IXI / Zodiac JXi 370 Burner Kit - R0591705 is temporarily out of stock and will ship as soon as it's available.
Astralpool IXI / Zodiac JXi 370 Burner Kit - R0591705

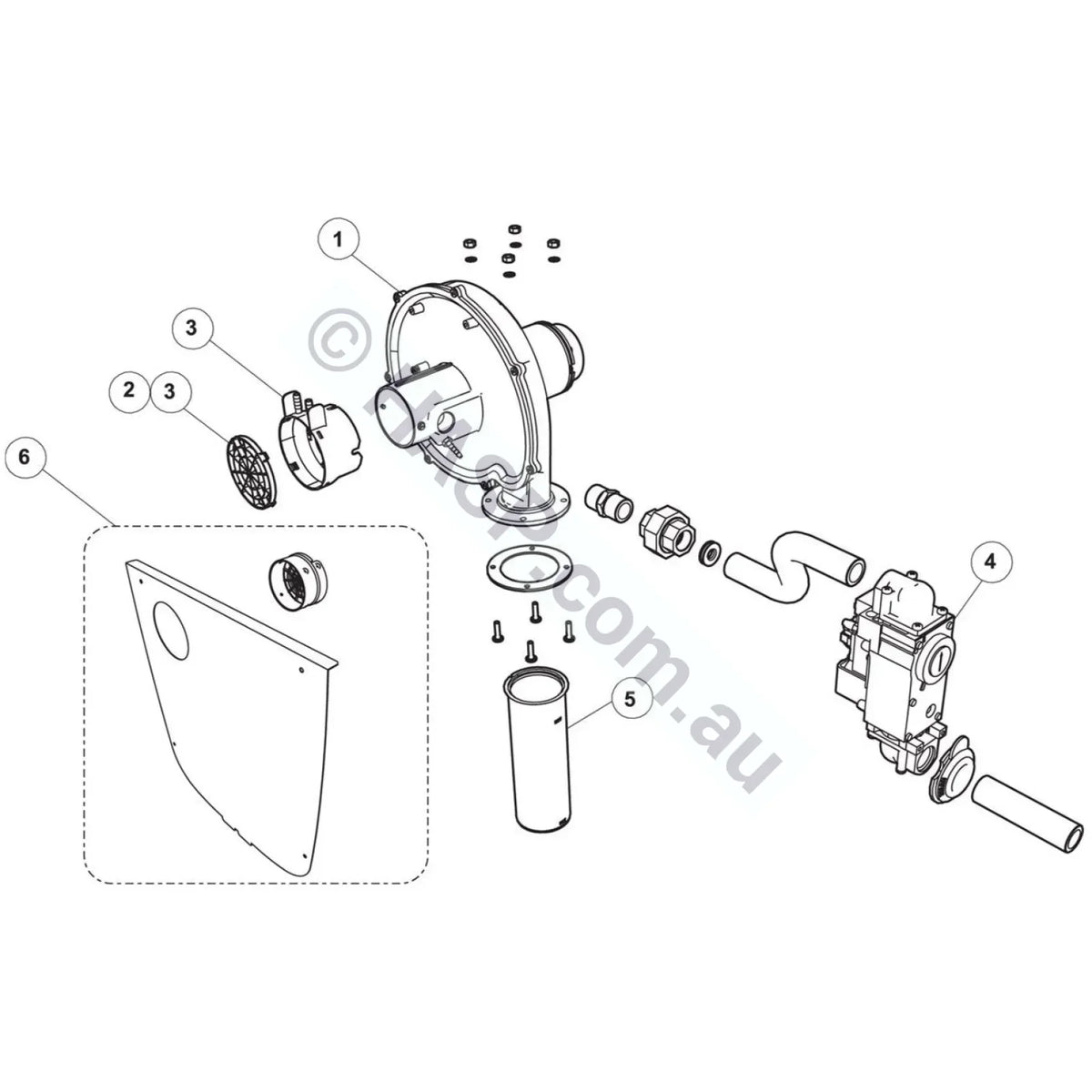

This is the genuine Zodiac burner kit, part number R0591705, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. It suits the 370 size only (Astralpool IXI 370 and Zodiac JXi 370). On the parts diagrams it is item 5 on the burner assembly (fan and gas valve) diagram.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
What This Part Does
The blower draws air and fuel through specially designed orifices, delivering a precise mixture to the burner, which is located inside the sealed combustion chamber. Water flows through the heat exchanger that surrounds the burner and takes up the heat (Astralpool IXI manual, section 2.4).
The burner kit is item 5 on the JXi / IXI burner assembly (fan and gas valve) diagram, and Zodiac lists one burner kit per heater size: R0591705 for the 370 and R0591702 for the 200. Each is listed for natural gas and LP models of that size.
The Rating Plate Rule (rev. IXJ-1.0)
Identify the part by the heater it came from:
- Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
- Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
- Check the size. This part is for the 370 only. If the rating plate says 200, order R0591702 instead.
- Match the diagram. On the burner assembly (fan and gas valve) diagram this part is item 5. The diagrams are on our IXI / JXi parts page.
Worked Example
Say the rating plate reads Zodiac JXi 370. The 370 takes R0591705 and the 200 takes R0591702, so R0591705 is the part to order. An Astralpool IXI 370 takes the same R0591705.
Confirmed Compatibility
- Zodiac JXi: 370 only
- Astralpool IXI: 370 only
- Not for: the 200 size, which takes R0591702
- Gas type: natural gas and LP models
Which Part Do I Need?
| What you have | What to order |
|---|---|
| Astralpool IXI 370 or Zodiac JXi 370 | This burner kit, R0591705 |
| Astralpool IXI 200 or Zodiac JXi 200 | 200 Burner Kit R0591702 |
Part Numbers and Cross-References
- Zodiac / Astralpool part number: R0591705
- Barcode: 9317545024387
- Jandy / Zodiac USA: the US Jandy JXi parts list uses the same number, R0591705
- Diagram item: 5 on the burner assembly (fan and gas valve) diagram
Other Burner Assembly Parts
- Item 1: Blower Assembly Kit (R0591100)
- Item 2: Air Intake Grate Kit (R0591200)
- Item 3: Blower Intake Orifice Kit, 370 (R0734102)
- Item 4: Gas Valve (R0739300)
- Item 5: 200 Burner Kit (R0591702)
- Item 6: Direct Air Intake Orifice Kit (R0724600)
Fitting Notes From the Manual
A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.
- The heater must be installed and serviced by a gas fitter licensed and qualified in pool equipment, in accordance with AS/NZS 5601.
- Before opening the heater, turn the controller off, turn off all electrical power to the heater and shut off the external gas supply valve.
- Test all gas connections for leaks with a soap solution. Never use an open flame to test for leaks.
- Verify proper operation after servicing. Don't use the heater if any part has been under water; have a qualified service technician inspect it first.
Frequently Asked Questions
Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes, in the 370 size. The Astralpool IXI 370 and the Zodiac JXi 370 use the same part number, R0591705.
Does it fit both the 200 and the 370?
No. R0591705 is for the 370 only. The 200 takes R0591702.
Does the burner kit change for ULPG?
No. Zodiac's parts list gives the same burner kit for natural gas and LP models of each size. The IXI manual says converting a heater to another gas type should only be done by a licensed professional, after contacting AstralPool for the proper instructions and conversion kit.
Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0591705.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.
Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
Common search terms: Astralpool IXI 370 Burner Kit, Zodiac JXi 370 Burner Kit, R0591705, IXI 370 burner kit, JXi 370 burner kit, Jandy R0591705, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
