Astralpool IXI / Zodiac JXi Direct Air Intake Orifice Kit - R0724600

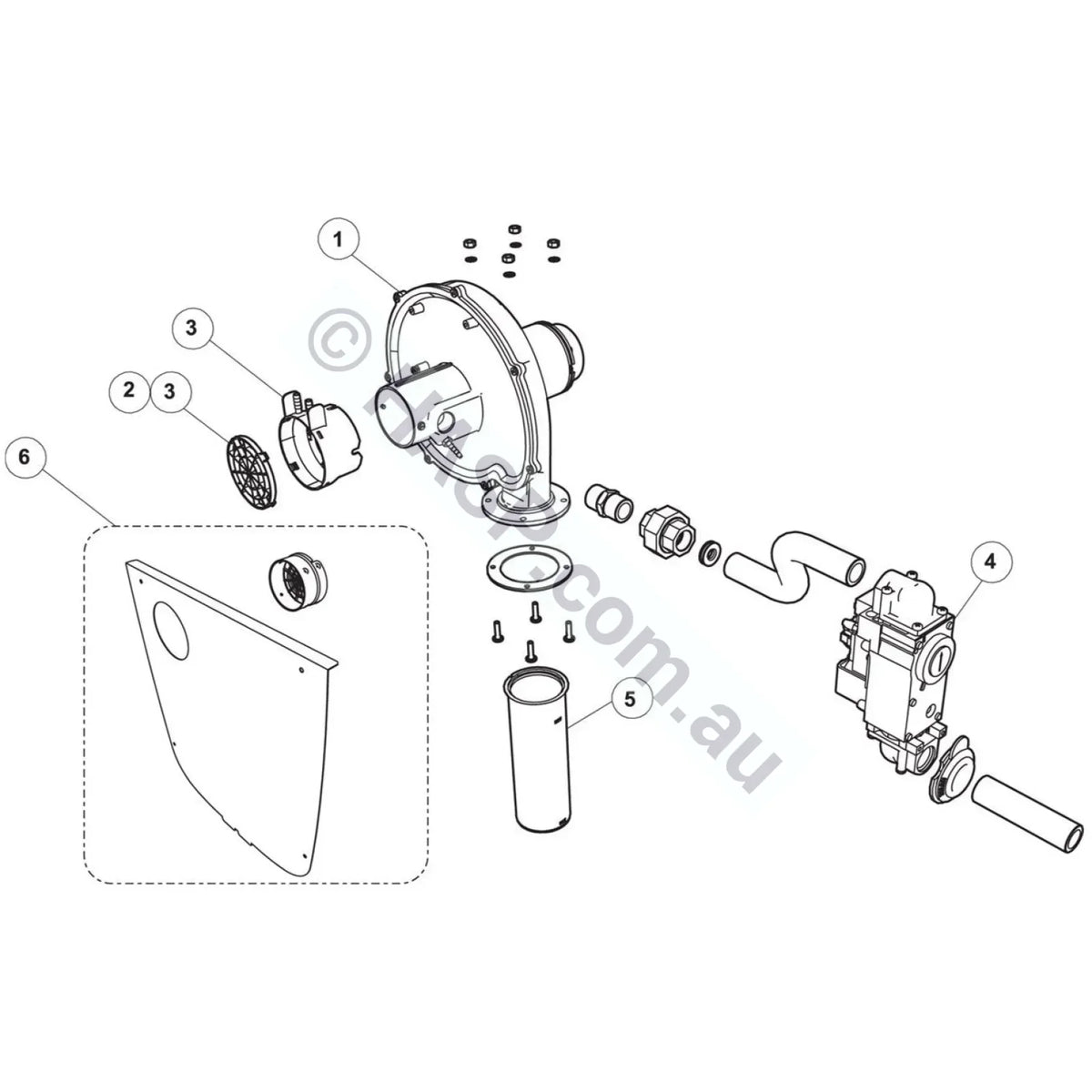

This is the genuine Zodiac direct air intake orifice kit, part number R0724600, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. The same part fits both heater sizes, the 200 and the 370. On the parts diagrams it is item 6 on the burner assembly (fan and gas valve) diagram.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
What This Part Does
In certain installations intake air needs to be supplied directly to the heater. For this the Astralpool IXI manual calls for the direct air conversion kit, R0724600 (section 4.3.2).
A total equivalent length of 15 m of 75 mm PVC tubing can bring intake air directly to the blower input, and each elbow counts as 3.6 m of that length. The manual's conversion steps remove the air orifice screen, fit the orifice adapter to the air orifice, secure the 75 mm PVC into the adapter, and fit the new rear panel over the PVC.
The Rating Plate Rule (rev. IXJ-1.0)
Identify the part by the heater it came from:
- Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
- Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
- Check the size. R0724600 is listed for both the 200 and the 370, so the heater size doesn't change the part.
- Match the diagram. On the burner assembly (fan and gas valve) diagram this part is item 6. The diagrams are on our IXI / JXi parts page.
Worked Example
Say the intake run from outside needs two elbows. Each elbow counts as 3.6 m, so the two use 7.2 m of the 15 m total equivalent length, leaving 7.8 m for straight 75 mm PVC. The same R0724600 kit is listed for both the 200 and the 370, on an Astralpool IXI or a Zodiac JXi.
Confirmed Compatibility
- Zodiac JXi: 200 and 370
- Astralpool IXI: 200 and 370
Part Numbers and Cross-References
- Zodiac / Astralpool part number: R0724600
- Barcode: 9317545024370
- Diagram item: 6 on the burner assembly (fan and gas valve) diagram
Other Burner Assembly Parts
- Item 1: Blower Assembly Kit (R0591100)
- Item 2: Air Intake Grate Kit (R0591200)
- Item 3: Blower Intake Orifice Kit, 370 (R0734102)
- Item 4: Gas Valve (R0739300)
- Item 5: 200 Burner Kit (R0591702)
- Item 5: 370 Burner Kit (R0591705)
Fitting Notes From the Manual
A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.
- The heater must be installed and serviced by a gas fitter licensed and qualified in pool equipment, in accordance with AS/NZS 5601.
- Before opening the heater, turn the controller off, turn off all electrical power to the heater and shut off the external gas supply valve.
- Test all gas connections for leaks with a soap solution. Never use an open flame to test for leaks.
- Follow the indoor and outdoor shelter requirements in section 4.3 of the manual, including combustion air, venting and clearances.
- Verify proper operation after servicing. Don't use the heater if any part has been under water; have a qualified service technician inspect it first.
Frequently Asked Questions
Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes. The Astralpool IXI and the Zodiac JXi use the same part number, R0724600, for the direct air intake orifice kit.
Does it fit both the 200 and the 370?
Yes. R0724600 is listed for both heater sizes, the 200 and the 370.
How far can the intake duct run?
A total equivalent length of 15 m of 75 mm PVC tubing, with each elbow counting as 3.6 m (IXI manual, section 4.3.2).
Do indoor installations also need a flue adaptor?
For indoor or outdoor shelter installations, the IXI manual converts the exhaust with a vent adapter: 150 mm (WJXI150IN) for the 200 and 200 mm (WJXI200IN) for the 370. See our IXI / JXi flue adaptors.
Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0724600.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.
Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
Common search terms: Astralpool IXI Direct Air Intake Orifice Kit, Zodiac JXi Direct Air Intake Orifice Kit, R0724600, IXI 200 direct air intake orifice kit, JXi 200 direct air intake orifice kit, IXI 370 direct air intake orifice kit, JXi 370 direct air intake orifice kit, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
