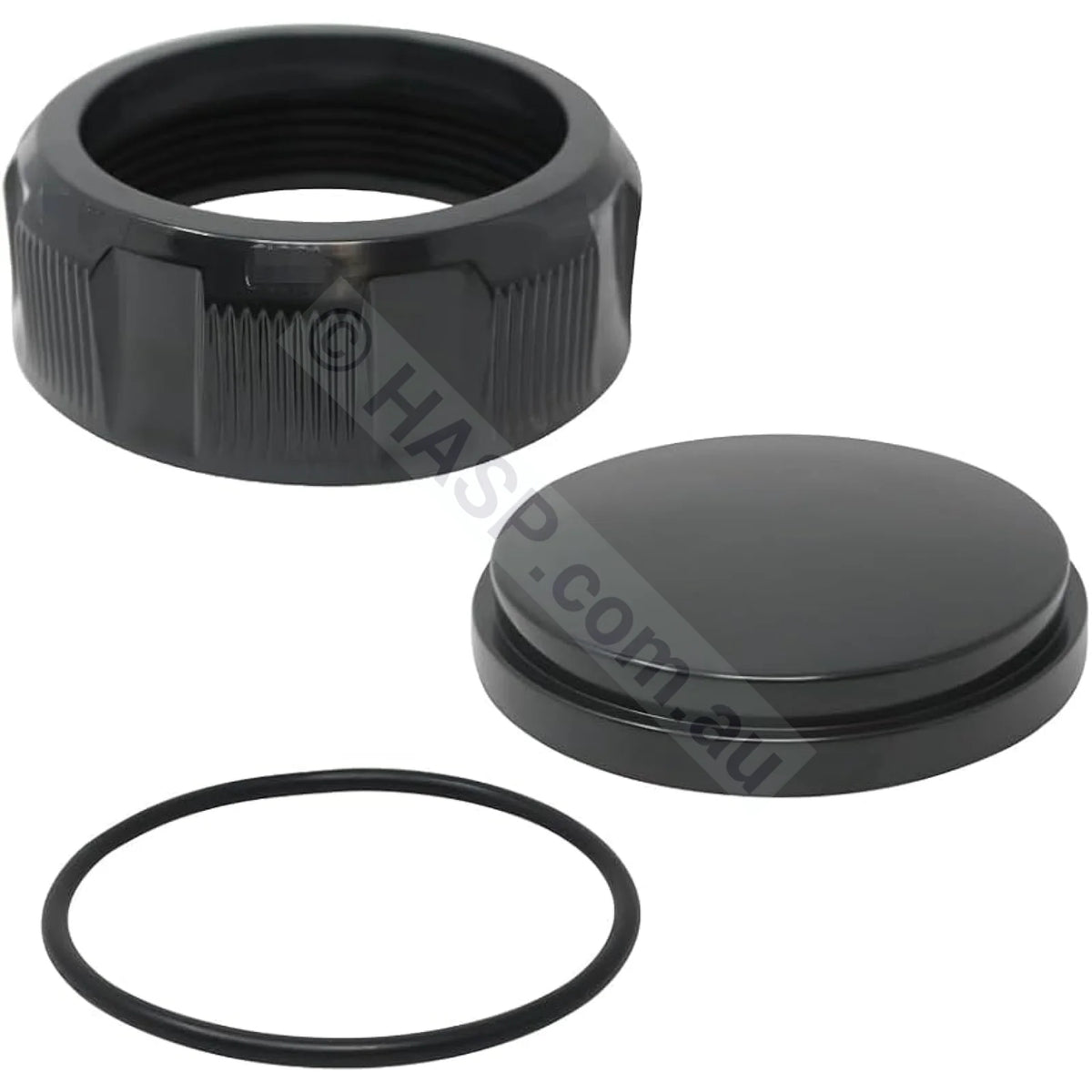

This is the genuine Zodiac drain cap assembly kit, part number R0523000, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. The same part fits both heater sizes, the 200 and the 370. On the parts diagrams it is item 12 on the water system diagram.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

What This Part Does

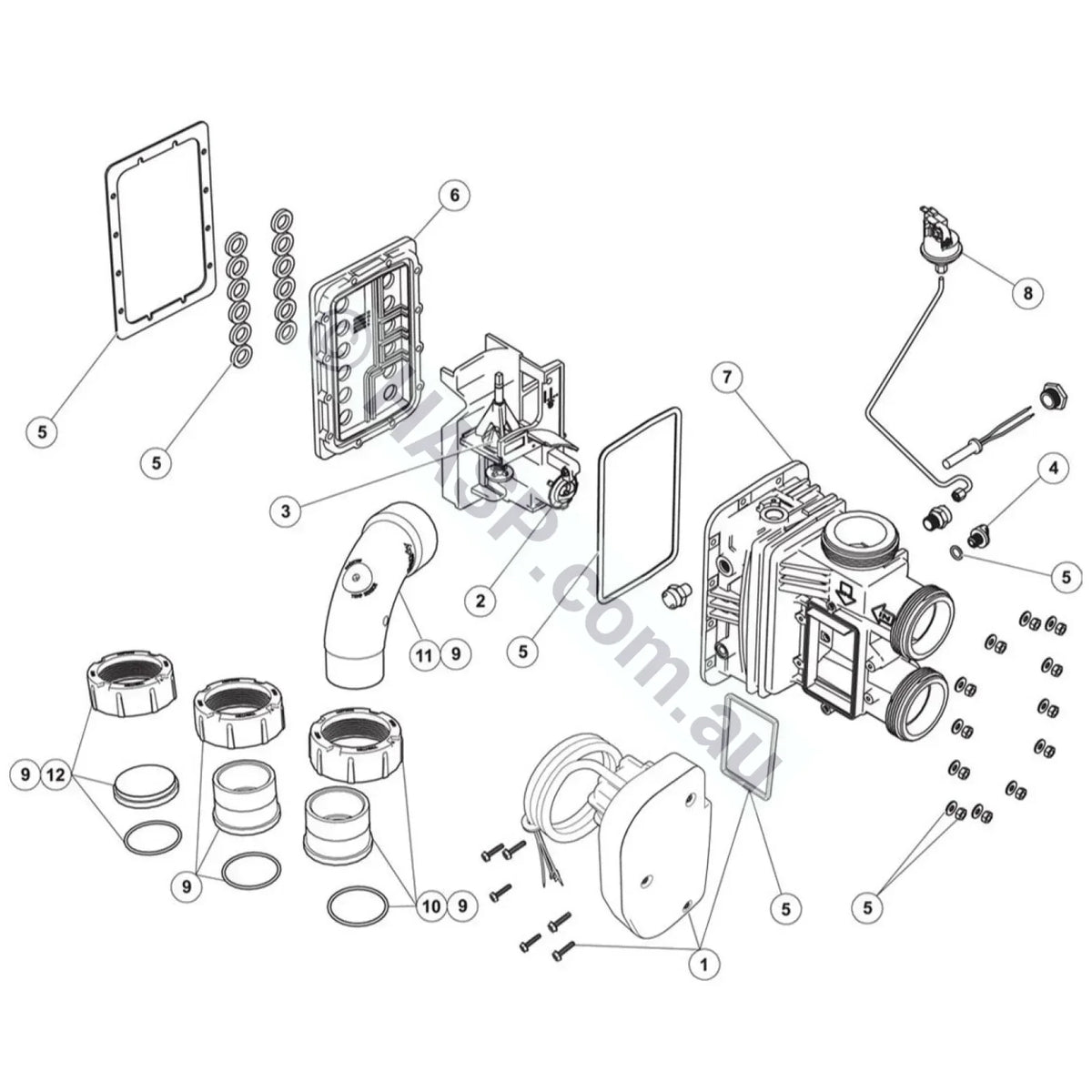

The drain cap assembly kit is item 12 on the JXi / IXI water system diagram, with the one part number, R0523000, for both heater sizes.

The heater's manifold has two inlets, a top inlet and a side inlet, and only one is plumbed. The Astralpool IXI manual has the union nut and drain cap, with its o-ring, installed on the unused inlet.

The Rating Plate Rule (rev. IXJ-1.0)

Identify the part by the heater it came from:

1. Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
2. Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
3. Check the size. R0523000 is listed for both the 200 and the 370, so the heater size doesn't change the part.
4. Match the diagram. On the water system diagram this part is item 12. The diagrams are on our IXI / JXi parts page.

Worked Example

Say the rating plate on your heater reads Astralpool IXI 370 and you need the drain cap assembly kit. The IXI and the JXi share this part, and R0523000 covers both the 200 and the 370, so R0523000 is the part to order. A Zodiac JXi 200 takes the same R0523000.

Confirmed Compatibility

• Zodiac JXi: 200 and 370
• Astralpool IXI: 200 and 370

Part Numbers and Cross-References

• Zodiac / Astralpool part number: R0523000
• Barcode: 9317545021904
• Jandy / Zodiac USA: the US Jandy JXi parts list uses the same number, R0523000
• Diagram item: 12 on the water system diagram

Other Water System Parts

• Item 1: VersaFlo Integrated Bypass (WG000016)
• Item 2: Thermal Regulator Valve (TRV)
• Item 3: Bypass Kit (R0589800)
• Item 4: Drain Plug Kit (R0446000)
• Item 5: Gasket & Seals Kit (R0589500)
• Item 6: 200 Manifold Backplate Kit (R0590002)
• Item 6: 370 Manifold Backplate Kit (R0590005)
• Item 7: 3 Port Manifold, No Backplate (R0590101)
• Item 8: Water Pressure Switch Kit
• Item 9: Goody Bag Kit (R0593500)
• Item 10: Universal Half Union Kit, needs two (R0522900)
• Item 11: Sweep Elbow AquaLink Temp Sensor (WSEAQL1001)

Fitting Notes From the Manual

A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.

1. Turn off all power to the heater at the breaker and turn off the main gas supply. Make sure the pump is off and will stay off for the whole job.
2. Seat each union o-ring properly and tighten union nuts hand tight only. Don't overtighten, and don't use pipe joint compound or tape.
3. Only nominal 50 mm PVC or CPVC may be connected to the heater's water connections.
4. Return all valves to their operating positions, restore power, run the pump and inspect carefully for leaks, then restore the gas supply and check for proper flow.

Frequently Asked Questions

Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes. The Astralpool IXI and the Zodiac JXi use the same part number, R0523000, for the drain cap assembly kit.

Does it fit both the 200 and the 370?
Yes. R0523000 is listed for both heater sizes, the 200 and the 370.

How tight should the drain cap be?
Hand tight only. The IXI manual says to make sure the o-ring is properly seated, not to overtighten, and not to use pipe joint compound or tape.

Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0523000.
