AstralPool IXI GAS HEATERS - WATER SYSTEM Spare Parts

IXI GAS HEATERS - WATER SYSTEM

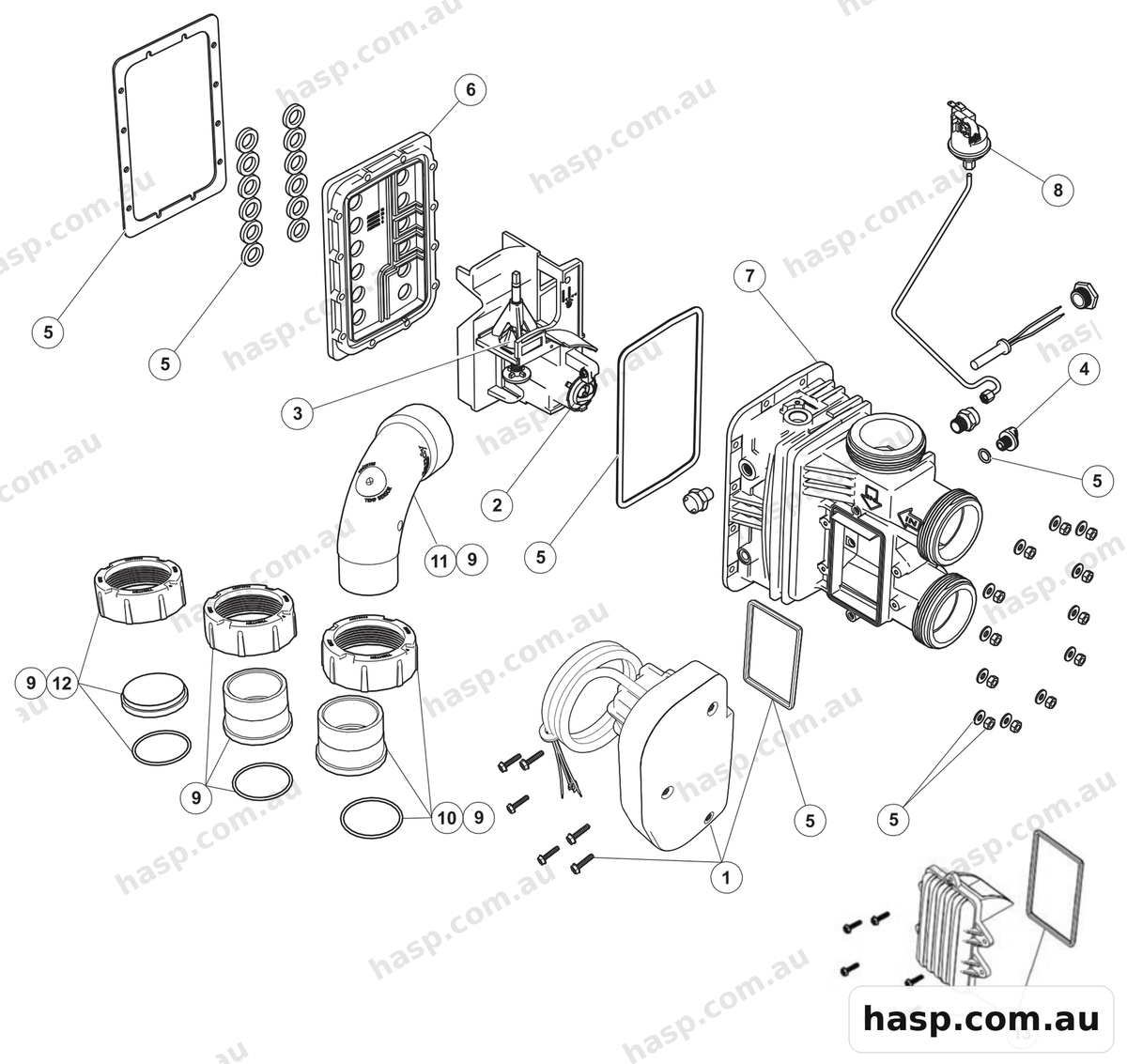

AstralPool IXI GAS HEATERS - WATER SYSTEM Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 98.

1

Astralpool IXI / Zodiac JXi VersaFlo Integrated Bypass - WG000016IXI VersaFlo Integrated Bypass (Optional Accessory, not included)

WG000016 Qty 1 $707.00

2

Zodiac JXI, Astralpool IXI, Pentair Mastertemp - Thermal RegulatorIXI Thermal Regulator Valve Kit (TRV)

R0589700 Qty 1 $138.00

3

Astralpool IXI / Zodiac JXi Bypass Kit - R0589800IXI Bypass Kit

R0589800 Qty 1 $44.00

4

Zodiac JXI / LRZ / Jandy Lite 2 Legacy - Drain Plugs (Pair)IXI Drain Plug Kit

R0446000 Qty 1 $6.00

5

Astralpool IXI / Zodiac JXi Gasket & Seals Kit - R0589500IXI Gasket and Seals Kit

R0589500 Qty 1 $115.00

6

Astralpool IXI / Zodiac JXi 200 Manifold Backplate Kit - R0590002IXI 200 Manifold Backplate Kit

R0590002 Qty 1 $81.00

6

Astralpool IXI / Zodiac JXi 370 Manifold Backplate Kit - R0590005IXI 370 Manifold Backplate Kit

R0590005 Qty 1 $60.00

7

Astralpool IXI / Zodiac JXi 3 Port Manifold (No Backplate) - R0590101IXI Manifold, 3 Port (no backplate included; must order separately)

R0590101 Qty 1 $242.00

8

Water Pressure Switch - Astralpool IXI, Zodiac, JXI, Pentair Mastertemp, Raypak - TecmarkIXI Water Pressure Switch Kit

R0457002 Qty 1 $51.00

9

Astralpool IXI / Zodiac JXi Goody Bag Kit - R0593500IXI Goody Bag Kit

R0593500 Qty 1 $233.00

10

Zodiac Jandy JXI / Astral IXI Gas Heater Unions - also FiltersIXI Universal Half Union Kit (1 Ea, requires 2 kits for full unit replacement)

R0522900 Qty 1 $39.00

11

Zodiac SWEEP ELBOWS JANDYIXI Sweep Elbow Aqualink® Temp Sensor

WSEAQL1001 Qty 1 $25.00

12

Astralpool IXI / Zodiac JXi Drain Cap Assembly Kit - R0523000IXI Drain Cap Assembly Kit

R0523000 Qty 1 $44.00

13

Astralpool IXI Access Door Kit R0589600Access Door Kit (Model 200 / 370)

R0589600 Qty 1 $41.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
