Astralpool IXI / Zodiac JXi 200 Manifold Backplate Kit - R0590002

Astralpool IXI / Zodiac JXi 200 Manifold Backplate Kit - R0590002

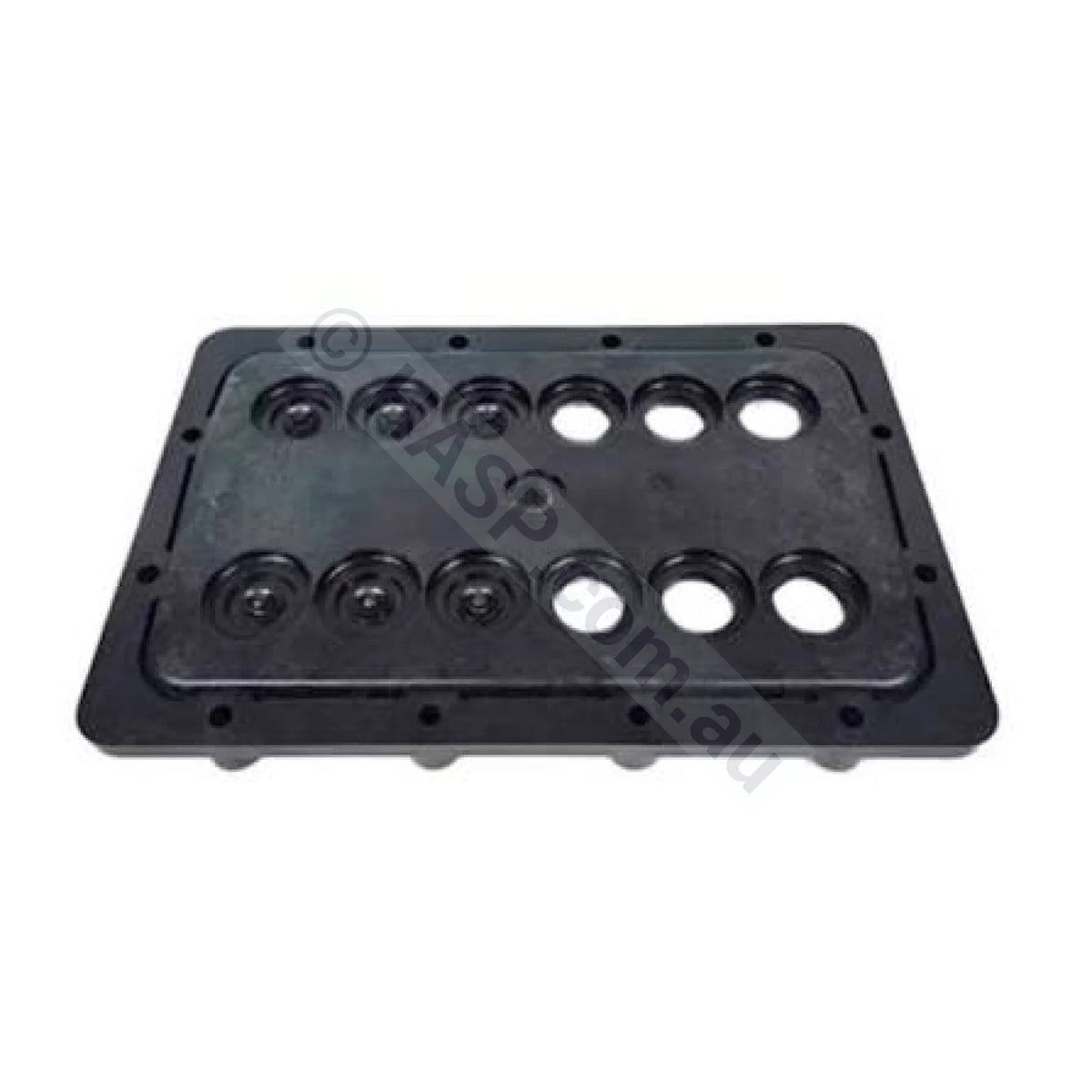

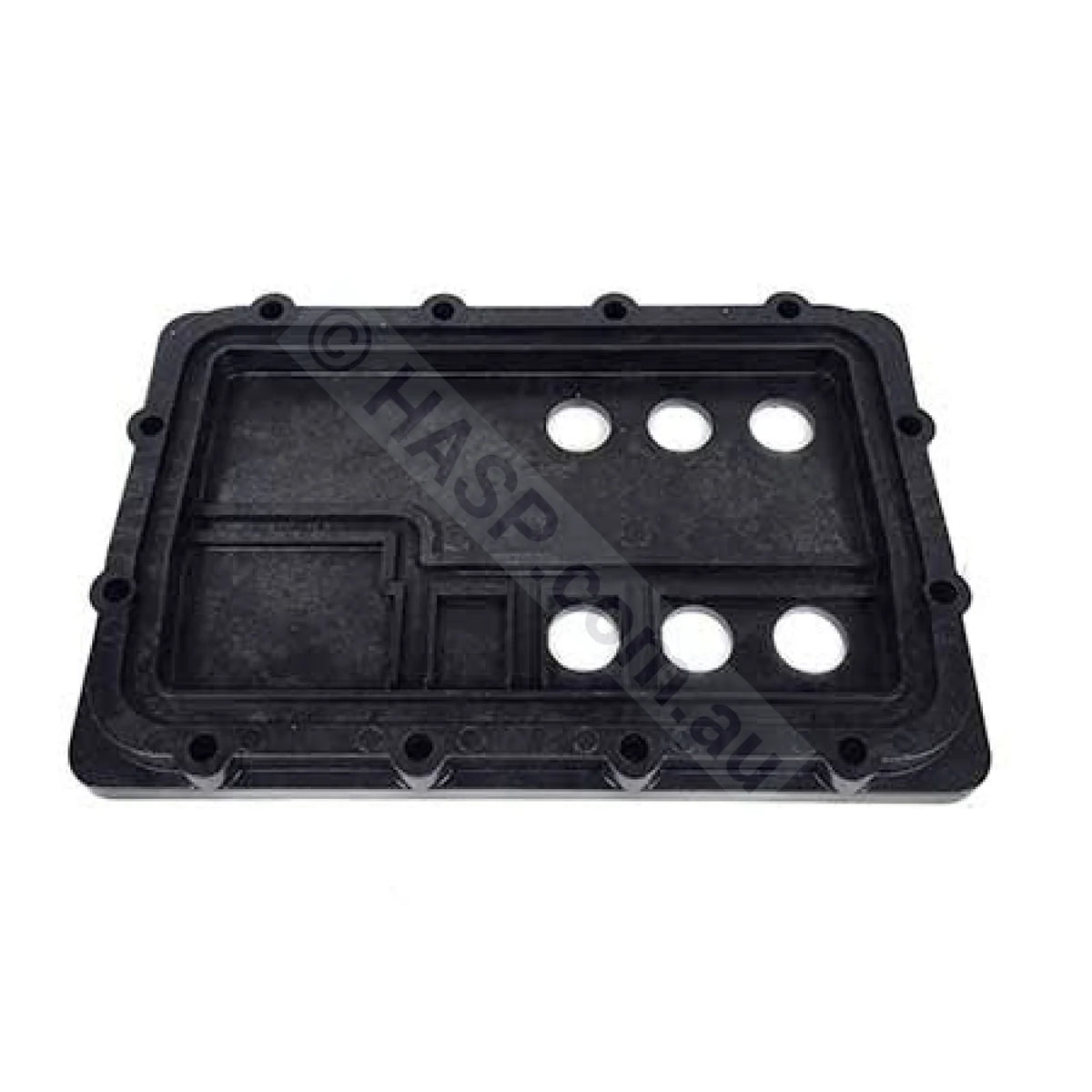

This is the genuine Zodiac manifold backplate kit, part number R0590002, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. It suits the 200 size only (Astralpool IXI 200 and Zodiac JXi 200). On the parts diagrams it is item 6 on the water system diagram.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

What This Part Does

The manifold backplate is item 6 on the JXi / IXI water system diagram, and Zodiac lists a different backplate for each heater size: R0590002 for the 200 and R0590005 for the 370.

The 3-port manifold (item 7, R0590101) is supplied without a backplate, so the backplate is ordered separately to suit the heater size.

The Astralpool IXI manual shows two header types, A and B. If you are replacing manifold parts, send us a photo of your header and we will confirm the parts suit it.

The Rating Plate Rule (rev. IXJ-1.0)

Identify the part by the heater it came from:

1. Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
2. Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
3. Check the size. This part is for the 200 only. If the rating plate says 370, order R0590005 instead.
4. Match the diagram. On the water system diagram this part is item 6. The diagrams are on our IXI / JXi parts page.
5. Check the header type. The Astralpool IXI manual shows two header types, A and B. Send us a photo of your header before ordering and we will confirm the part suits it.

Worked Example

Say the rating plate reads Zodiac JXi 200. The 200 takes R0590002 and the 370 takes R0590005, so R0590002 is the part to order. An Astralpool IXI 200 takes the same R0590002.

Confirmed Compatibility

• Zodiac JXi: 200 only
• Astralpool IXI: 200 only
• Not for: the 370 size, which takes R0590005

Which Part Do I Need?

Part Numbers and Cross-References

• Zodiac / Astralpool part number: R0590002
• Barcode: 9317545024417
• Jandy / Zodiac USA: the US Jandy JXi parts list uses the same number, R0590002
• Diagram item: 6 on the water system diagram

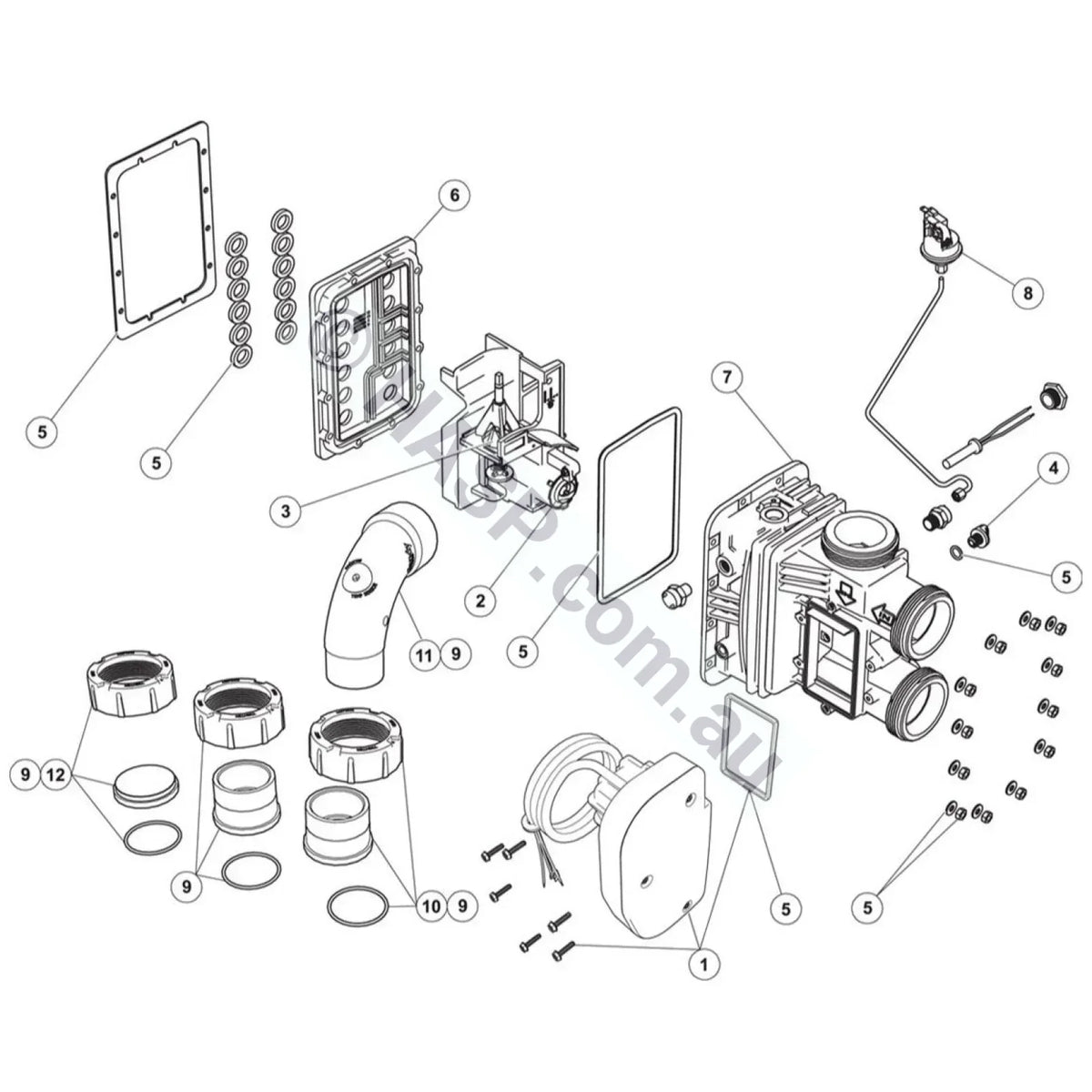

Other Water System Parts

• Item 1: VersaFlo Integrated Bypass (WG000016)
• Item 2: Thermal Regulator Valve (TRV)
• Item 3: Bypass Kit (R0589800)
• Item 4: Drain Plug Kit (R0446000)
• Item 5: Gasket & Seals Kit (R0589500)
• Item 6: 370 Manifold Backplate Kit (R0590005)
• Item 7: 3 Port Manifold, No Backplate (R0590101)
• Item 8: Water Pressure Switch Kit
• Item 9: Goody Bag Kit (R0593500)
• Item 10: Universal Half Union Kit, needs two (R0522900)
• Item 11: Sweep Elbow AquaLink Temp Sensor (WSEAQL1001)
• Item 12: Drain Cap Assembly Kit (R0523000)

Fitting Notes From the Manual

A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.

1. Turn off all power to the heater at the breaker and turn off the main gas supply. Make sure the pump is off and will stay off for the whole job.
2. Seat each union o-ring properly and tighten union nuts hand tight only. Don't overtighten, and don't use pipe joint compound or tape.
3. Only nominal 50 mm PVC or CPVC may be connected to the heater's water connections.
4. Return all valves to their operating positions, restore power, run the pump and inspect carefully for leaks, then restore the gas supply and check for proper flow.

Frequently Asked Questions

Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes, in the 200 size. The Astralpool IXI 200 and the Zodiac JXi 200 use the same part number, R0590002.

Does it fit both the 200 and the 370?
No. R0590002 is for the 200 only. The 370 takes R0590005.

Does the 3-port manifold come with a backplate?
No. The 3-port manifold, R0590101, is supplied without a backplate. Order the backplate for your heater size separately: R0590002 for the 200 or R0590005 for the 370.

Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0590002.

Manufacturer Catalogues, Diagrams & Part Numbers

Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.

Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
