AstralPool VIRON P600 PUMPS Spare Parts

  • VIRON P600 PUMPS
  • P600
AstralPool VIRON P600 PUMPS Spare Parts

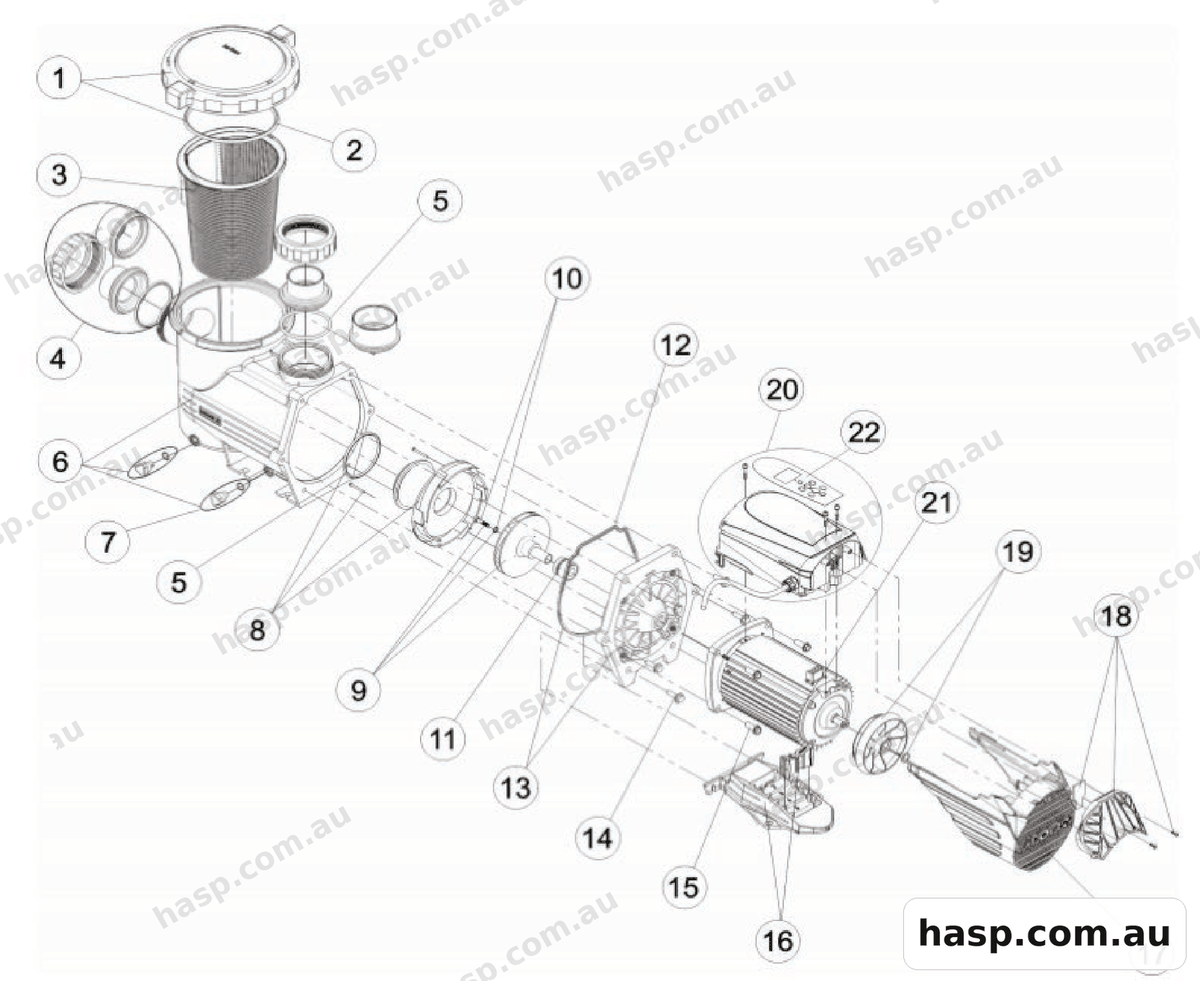

Tap the diagram to enlarge. AstralPool catalogue page 160.
1
Astralpool / Zodiac Lid Assembly & O Ringbx P600 Pump SP40069LID COMPLETE WITH O-RING
40069 Qty 1 $186.00
2
Astralpool O-Ring Lid BX, P300, P600 Pump 78106LID O-RING(TO 08-2017)
78106 Qty 1 $30.00
2
Astralpool / Zodiac O-Ring Suit BX Lid(from 09-17) 75076LID O-RING(FROM 09-2017)
75076 Qty 1 $30.00
3
Astralpool Basket XP/BX Pump 40066BASKET
40066 Qty 1 $86.00
4
Astralpool / Zodiac Component Bag - 65mm Pump TailPIPE FITTING COMPONENT BAG
78304 Qty 1 $43.00
5
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O-RING
78104 Qty 2 $8.00
7
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING FOR DRAIN PLUG
78103 Qty 2 $4.00
-
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG
7820702 Qty 2 $10.00
-
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O-RING
78104 Qty 1 $8.00
10
Astralpool / Zodiac Bolt Nylon LH Thread Impeller 78187IMPELLER RETAINING BOLT
78187 Qty 1 $2.00
-
Astralpool / Zodiac O-Ring BLDC Impeller BS109 78711O-RING
78711 Qty 1 $10.00
11
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL - BP02-USA-0191
PS3868 Qty 1 $28.00
12
Astralpool Pump Body O-ring / Gasket - Various - See ListingSQUARE O RING (SEAL PLATE)
70004 Qty 1 $48.00
13
Astralpool / Zodiac Seal Plate Ser 1 G Pearl 4009002SEAL PLATE
4009002 Qty 1 $224.00
15
Astralpool / Zodiac Bolt M8 X 30mm Ind Hex Sem 40150MOTOR RETAINING BOLT
40150 Qty 4 $6.00
16
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
-
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
17
Astralpool Viron Fan Cowl 70600 - Viron XT P320/P520 (All Series), Viron eVo P320/P600, Viron P280/P300/P600MOTOR PLASTICFAN COWL
70600 Qty 1 $72.00
18
Astralpool / Zodiac Cover Rear Viron Evo RJ12 70603CONTROLLER REAR COVER
70603 Qty 1 $21.00
-
Astralpool / Zodiac Screw 8G X 1/2 Stainless Steel 40234REAR COVER RETAINING SCREWS
40234 Qty 2 $2.00
19
Astralpool Motor Cooling Fan 40285 - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX 1.0/1.5/2.0, FX 250/290/340/520, XP 1.0/1.5/2.0 (Notos Motor)MOTOR COOLING FAN
40285 Qty 1 $33.00
-
Astralpool Cooling Fan Retaining Clip 40285C - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX, FX, XP (Notos Motor)RETAINING CLIP –COOLING FAN
40285C Qty 1 $6.00
20
Astralpool Controller Box BLDC 2 HP 21482CONTROLLER
21482 Qty 1 $1,459.00
21
Astralpool BLDC 2.0 HP Pump Motor 71422 - Viron eVo P600 Variable Speed PumpMOTOR
71422 Qty 1 $2,301.00
22
Astralpool Label Viron BLDC Prem Control LABEL311CONTROLLER LABEL
LABEL311 Qty 1 $77.00
NOT SHOWN
Astralpool / Zodiac Component Bag - 65mm Pump TailPIPE FITTING COMPONENT BAG
78304 Qty 1 $43.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
