AstralPool VIRON P320 PUMPS Spare Parts

  • VIRON P320 PUMPS
  • P320
AstralPool VIRON P320 PUMPS Spare Parts

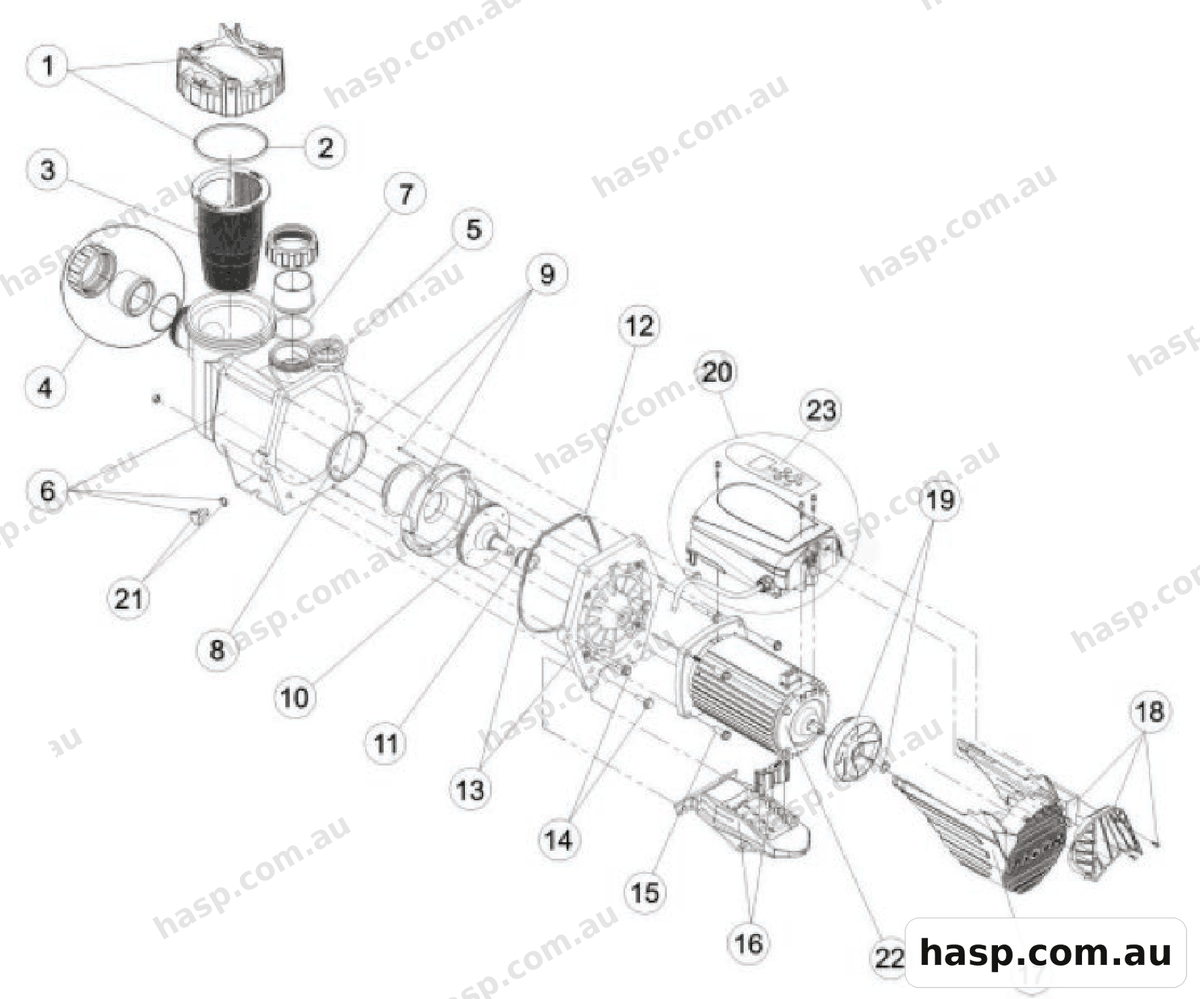

Tap the diagram to enlarge. AstralPool catalogue page 159.
1
Astralpool Lid Assembly - CTX, Viron XTLID COMPLETE WITH O-RING
SP40089 Qty 1 $149.00
2
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006LID O-RING
70006 Qty 1 $21.95
3
Astralpool Pump Basket - CTX, E-Series, VironBASKET
40065 Qty 1 $67.00
4
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303PIPE FITTING COMPONENT BAG
78303 Qty 1 $165.00
5
Astralpool Pump Check Valve AssemblyCHECK VALVE ASSEMBLY
598770 Qty 1 $24.00
6
Astralpool Volute (Wet End) - CTX Series 2, Aug 2014 40097PUMP WET END
40097 Qty 1 $116.00
7
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING
70003 Qty 2 $6.90
8
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O-RING FOR DIFFUSER
78104 Qty 1 $8.00
9
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER
40071A Qty 1 $12.00
10
Astralpool / Hurlcon Impeller P280 P320 eVo FX290 E290 CTX360 40060FIMPELLER
40060F Qty 1 $79.00
NOT SHOWN
Astralpool / Zodiac Bolt Nylon LH Thread Impeller 78187IMPELLER RETAINING BOLT
78187 Qty 1 $2.00
NOT SHOWN
Astralpool / Zodiac O-Ring BLDC Impeller BS109 78711O-RING
78711 Qty 1 $10.00
11
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL - BP02-USA-0191
PS3868 Qty 1 $28.00
12
Astralpool Pump Body O-ring / Gasket - Various - See ListingO RING (SEAL PLATE)
70022 Qty 1 $48.00
13
Astralpool Seal Plate - CTX Series 2, Aug 2014 40098SEAL PLATE
40098 Qty 1 $228.00
14
Astralpool Seal Plate Bolt M8 x 50mm with 16mm Washer - CTX / Viron / E-Series 78772SEAL PLATE TO WETEND BOLTS
78772 Qty 6 $5.00
16
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
16
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
17
Astralpool Viron Fan Cowl 70600 - Viron XT P320/P520 (All Series), Viron eVo P320/P600, Viron P280/P300/P600MOTOR PLASTICFAN COWL
70600 Qty 1 $72.00
18
Astralpool / Zodiac Cover Rear Viron Evo RJ12 70603CONTROLLER REAR COVER
70603 Qty 1 $21.00
18
Astralpool / Zodiac Screw 8G X 1/2 Stainless Steel 40234REAR COVER RETAINING SCREWS
40234 Qty 2 $2.00
19
Astralpool Motor Cooling Fan 40285 - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX 1.0/1.5/2.0, FX 250/290/340/520, XP 1.0/1.5/2.0 (Notos Motor)MOTOR COOLING FAN
40285 Qty 1 $33.00
19
Astralpool Cooling Fan Retaining Clip 40285C - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX, FX, XP (Notos Motor)RETAINING CLIP –COOLING FAN
40285C Qty 1 $6.00
20
Astralpool Controller BLDC 1 HP 21483CONTROLLER
21483 Qty 1 $1,099.00
21
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG
7820702 Qty 1 $10.00
21
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 2 $4.00
22
Astralpool BLDC 1.0 HP Pump Motor 71420 - Brushless DC Variable Speed MotorMOTOR
71420 Qty 1 $2,178.00
23
Astralpool Label Viron BLDC Prem Control LABEL311CONTROLLER LABEL
LABEL311 Qty 1 $77.00
NOT SHOWN
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303PIPE FITTING COMPONENT BAG
78303 Qty 1 $165.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
