AstralPool VIRON P320 & P520 XT Spare Parts

  • VIRON P320 & P520 XT
  • P320
  • P520
AstralPool VIRON P320 & P520 XT Spare Parts

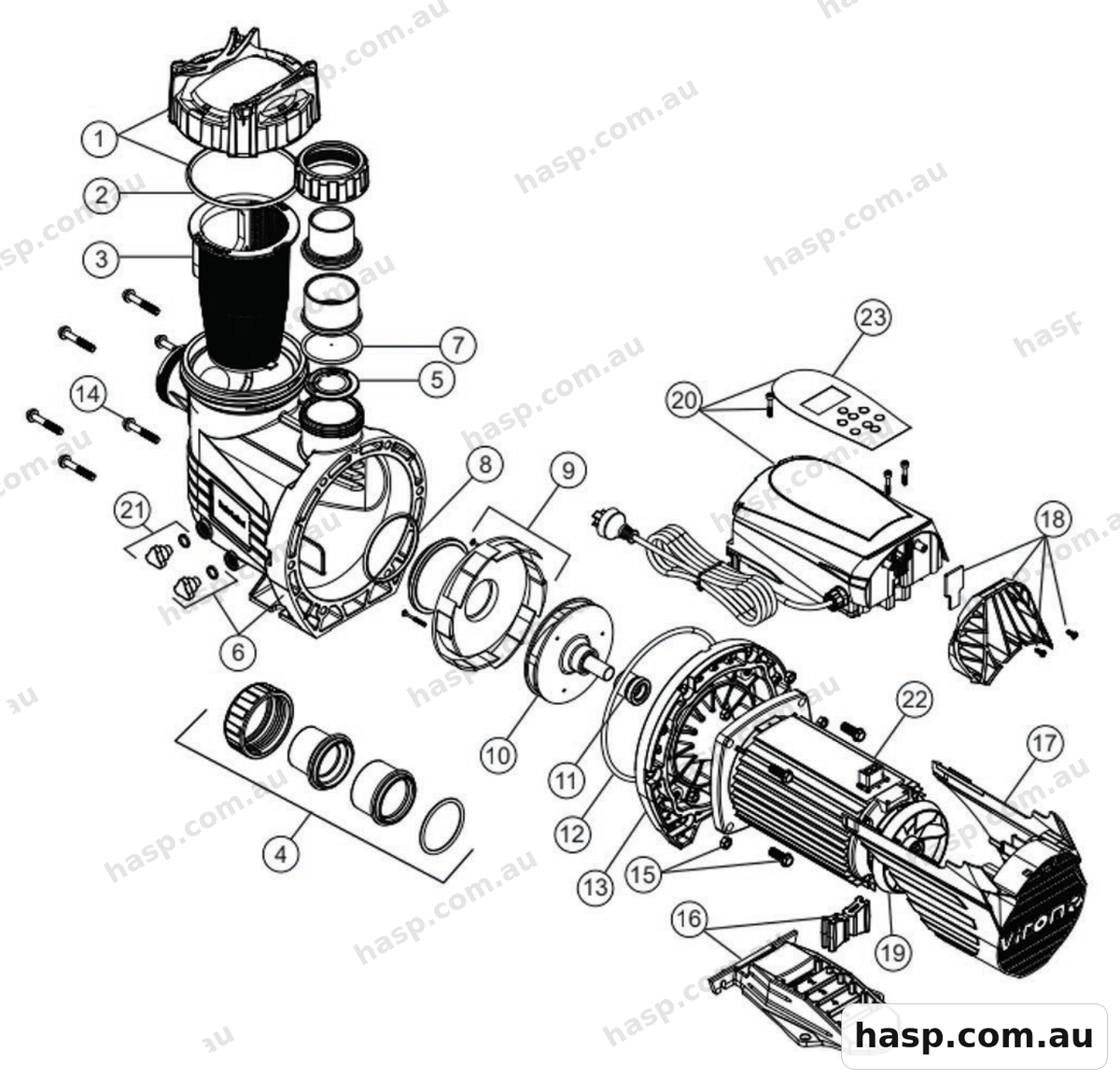

Tap the diagram to enlarge. AstralPool catalogue page 157.
1
Astralpool Lid Assembly - CTX, Viron XTLID COMPLETE WITH O-RING
SP40089 Qty 1 $149.00
2
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006LID O-RING
70006 Qty 1 $21.95
3
Astralpool Pump Basket - CTX, E-Series, VironBASKET
40065 Qty 1 $67.00
4
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303PIPE FITTING COMPONENT BAG
78303 Qty 1 $165.00
5
Astralpool Pump Check Valve AssemblyCHECK VALVE ASSEMBLY
598770 Qty 1 $24.00
6
Astralpool Volute (Wet End) - CTX / E-Series MkII, Nov 2020 SP40031WET END-SERIES 3
SP40031 Qty 1 $116.00
7
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING
70003 Qty 2 $6.90
8
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O-RING FOR DIFFUSER
78104 Qty 1 $8.00
9
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER – XT 320
40071A Qty 1 $12.00
9
Astralpool Diffuser Large - CTX 500 / 610, Viron XT P520, BX 40071BDIFFUSER – XT 520
40071B Qty 1 $97.00
10
Astralpool Impeller Viron XT P320 40060XIMPELLER – P320
40060X Qty 1 $79.00
10
Astralpool Impeller for Viron XT P520 - 40060Z - All VariantsIMPELLER – P520
40060Z Qty 1 $79.00
11
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL
PS3868 Qty 1 $28.00
12
Astralpool Pump Body O-ring / Gasket - Various - See ListingO RING (SEAL PLATE)
70030 Qty 1 $48.00
13
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE-SERIES 3
SP40030 Qty 1 $74.00
14
Astralpool / Zodiac Bolt M8 X 57mm 16mm Washer 40175SEAL PLATE TO WETEND BOLTS
40175 Qty 6 $2.00
15
Astralpool / Zodiac Motor Foot Bolt M10 x 25 Hex Washer Head 40173MOTOR RETAINING BOLT
40173 Qty 4 $3.00
16
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
-
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
17
Astralpool Viron Fan Cowl 70600 - Viron XT P320/P520 (All Series), Viron eVo P320/P600, Viron P280/P300/P600MOTOR PLASTICFAN COWL
70600 Qty 1 $72.00
-
Astralpool / Zodiac Cover Rear Viron Evo RJ12 70603CONTROLLER REAR COVER
70603 Qty 1 $21.00
-
Astralpool / Zodiac Gasket Viron Evo Pump RJ12 70562RJ12 GASKET
70562 Qty 1 $5.00
19
Astralpool Motor Cooling Fan 40285 - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX 1.0/1.5/2.0, FX 250/290/340/520, XP 1.0/1.5/2.0 (Notos Motor)MOTOR COOLING FAN
40285 Qty 1 $33.00
-
Astralpool Cooling Fan Retaining Clip 40285C - Viron XT, eVo P320/P600, CTX 280/360/400/500, BX, FX, XP (Notos Motor)RETAINING CLIP – COOLING FAN
40285C Qty 1 $6.00
20
Astralpool Controller Viron P320C & Label SP21488CONTROLLER – P320C XT
21488 Qty 1 $933.00
20
Astralpool Controller Viron P520C BT SP21489CONTROLLER – P520C XT
21489 Qty 1 $1,057.00
21
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG
7820702 Qty 2 $10.00
-
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 2 $4.00
22
Astralpool Viron XT P320 Pump Motor with Slinger SP71660 - Viron P320 XT and P320C XTMOTOR – P320C XT
SP71660 Qty 1 $1,336.00
22
Astralpool Viron XT P520 Pump Motor with Slinger SP71662 - Viron P520 XT and P520C XTMOTOR – P520C XT
SP71662 Qty 1 $1,425.00
23
Astralpool Label Viron BLDC Prem Control LABEL311CONTROLLER LABEL
LABEL311 Qty 1 $77.00
NOT SHOWN
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303PIPE FITTING COMPONENT BAG
78303 Qty 1 $165.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
