Spanet SV Mini 1 Controller Only — 15amp Control Box

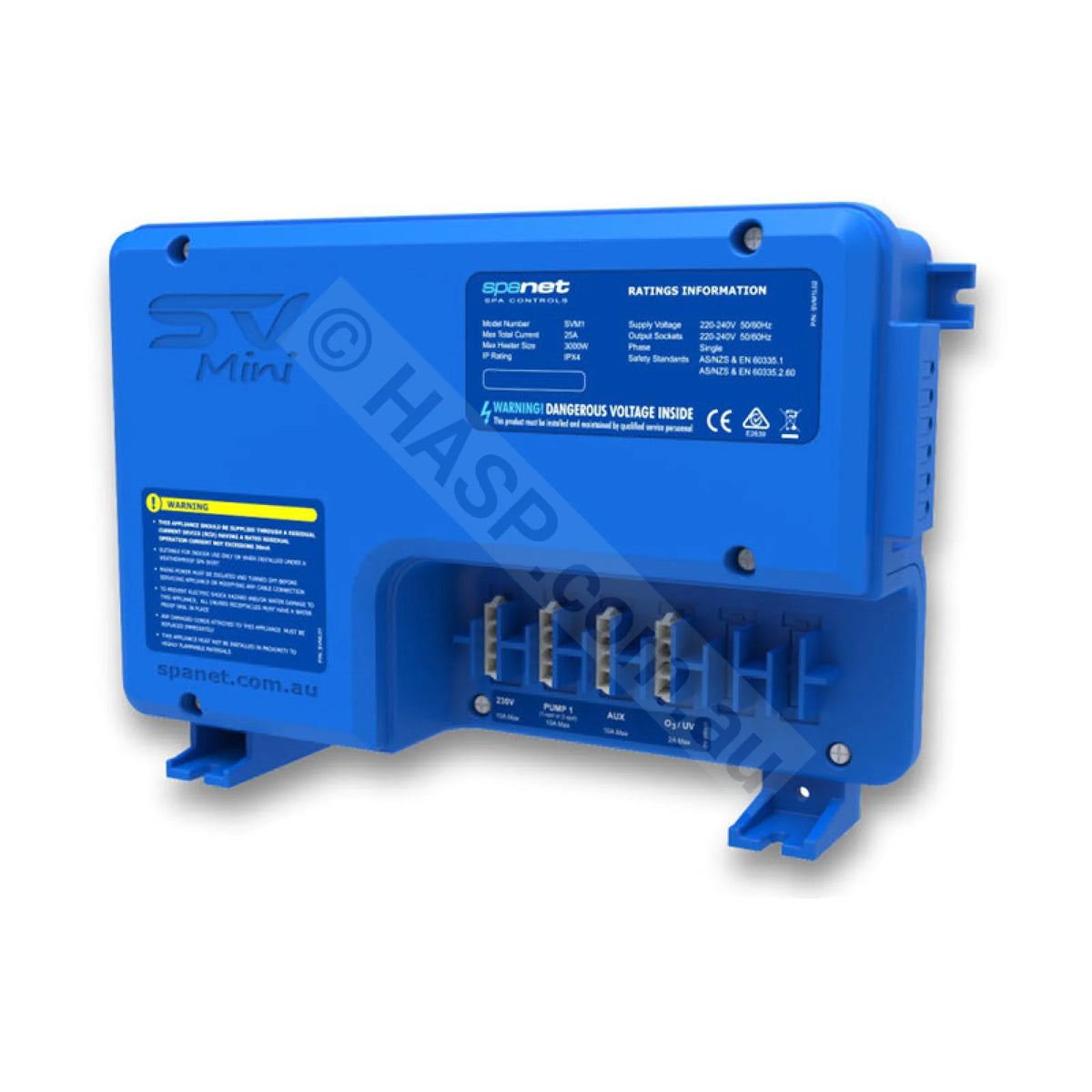

The SpaNet PowerSMART SV Mini 1 control box on its own, fitted with a 3m lead and a 15 amp plug. This is the electronics enclosure only — the remote heater and the touchpad are separate items and are not included. Order this when the original SV Mini 1 box has failed, been water damaged or been hit by a surge, and the heater, touchpad, pumps and light are all still serviceable.

• Physically Stocked, unlike most 'drop-shipping' websites.
• Shipped from VIC, NSW, WA, QLD

15amp or 10amp? Match it to the heater

The SV Mini 1 comes in two supply configurations. The difference is the plug and lead fitted to the box, and that decides the heater size the circuit can carry. Check the rating label on your existing remote heater before ordering.

A 15 amp plug has a larger earth pin than a 10 amp plug and will not fit a standard 10 amp outlet. A 15 amp outlet on a dedicated circuit is required — confirm the spa's existing supply before ordering.

What the SV Mini 1 can run

The SV Mini 1 is the single-pump member of the SV Mini family. Its 230V outlets are:

• PUMP 1 — circulation pump, 1-speed pump or 2-speed pump. This is the pump that must push water through the heater.
• AUX — one 1-speed jet pump or one blower. Not both.
• O3/UV — constant 230V outlet, intended for an ozone or UV sanitiser.

If your spa runs two or three jet pumps plus a blower, the SV Mini 1 is the wrong size — step up to the SV Mini 2 or the SpaNet SV3.

Low voltage ports

• 1 x touchpad port
• 1 x light port — SpaNet SV series LED lights only (2.5" or 5")
• 1 x heat pump port — plug-and-play to an SV series heat pump
• 1 x WiFi port — for the SV SmartLINK module

Features

• In-heater temperature sensor
• Maximum set temperature 41°C
• Dynamic Thermal Tuning — the thermostat point adapts to the spa and its environment to cut demand heat cycling
• Smart Filtration — recognises filtration that happens during heating and trims the programmed cycles accordingly. Daily runtime programmable from 1 to 24 hours
• Auto daily sanitise cycle — runs pumps and blower in sequence to purge lines and sanitise the full water volume
• Programmable sleep timer
• Programmable load shedding
• Heat pump interface
• WiFi ready for SV SmartLINK and the SpaLINK app (iOS and Android)

Specifications

• Model: SpaNet SV Mini 1 (SVM1)
• Part number: SN-SVM1-15A
• Supply: 230-240V AC, 1 phase, 50/60Hz
• Supply lead: 3m, 15 amp plug fitted
• Suits remote heater: 2.0kW or 3.0kW
• Maximum controller load: 25A
• Control box: approx. 315mm W x 210mm H x 85mm D
• Heater and touchpad: not included

Spa control systems this replaces

The SV Mini 1 is SpaNet's standard retrofit for small and mid-size spas running one filtration pump plus one accessory. It is commonly fitted in place of:

• SpaNet XS-2000 (obsolete and no longer supported)
• Davey Spa-Quip (SpaQuip) SP400 and similar single-pump packs
• Ampac / Pulsar SQ series and Monarch-era controls
• Gecko MicroSpa and U-Class packs on single-pump spas
• SpaPro and WWDG single-pump control systems where the original board is no longer available
• Unbranded and OEM-rebadged packs on Sapphire, Oasis, Vortex, Alpine, Sunrans and similar imported spas, provided the pump count matches

A retrofit is not a like-for-like swap. Pump cordsets, the touchpad cut-out and the light will usually all need attention — see the parts list below.

Parts you may also need

• SV Mini remote heater to match this 15amp box: 2.0kW or 3.0kW
• SV Mini 1 rectangular touchpad or the SV Mini 1 bone touchpad
• Touchpad adaptor facia — covers the old touchpad hole on a retrofit
• Overmoulded AMP cordsets — 3-wire for 1-speed pumps, blowers and ozone; 4-wire for 2-speed pumps
• SV Mini heater barrel union
• SV SmartLINK WiFi module
• SpaNet SV LED lights: 2.5" / 63mm, 5", or light only
• Prefer the complete package? See the SV Mini 1 retrofit kit with heater and touchpad included.

Questions we get asked

Does this include the heater?
No. The SV Mini 1 uses a remote heater that plugs into the control box, and it is sold separately. This 15amp box pairs with the 2.0kW or 3.0kW heater.

Does it include a touchpad?
No. SV Mini 1 touchpads are 6-button and are ordered separately in rectangular or bone.

Can I plug a 15 amp lead into a normal power point?
No. The 15 amp plug has a wider earth pin and requires a 15 amp outlet on its own circuit. If the spa only has a 10 amp supply, the 10amp version with a 1.5kW heater is the correct choice.

Can I use my existing spa light?
Only if it is a SpaNet SV series LED light. Older 2-wire lights and other brands will not run from the SV Mini light port. If you have an older SpaNet round-pin light plug it can be re-terminated to RJ — see the SpaNet tech note. Otherwise fit a new SV series light.

Will a SV Mini 2 touchpad work on this?
No. The SV Mini 1 takes the 6-button touchpad; the SV Mini 2 takes the 8-button. They are not interchangeable.

My old system had two jet pumps and a blower. Will this work?
No. The SV Mini 1 has one auxiliary outlet. You need the SV Mini 2 or an SV3.

Is the board repairable instead?
Sometimes. We offer a spa controller repair assessment for SpaNet Mini 1, Mini 2, SV2, SV3 and SV4 systems.

SV Mini installation and user manual. Confirm the product is correct before ordering. Contact us if unsure.

Common search terms

Spanet SV Mini 1 controller only, SN-SVM1-15A, SVM1, SV Mini 1 control box, Spanet mini control box 15 amp, Spanet SV Mini 1 replacement controller, XS-2000 replacement controller, Spanet mini 1 pack, Spanet spa controller box, PowerSMART SV Mini 1, SpaPro control box replacement, WWDG spa control box.

To be fitted by a licensed, qualified and experienced person.
