Hayward SP1107A Vac Plate (Vacuum Plate)
Hayward SP1107A Vac Plate (Vacuum Plate) is temporarily out of stock and will ship as soon as it's available.
Hayward SP1107A Vac Plate (Vacuum Plate)
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

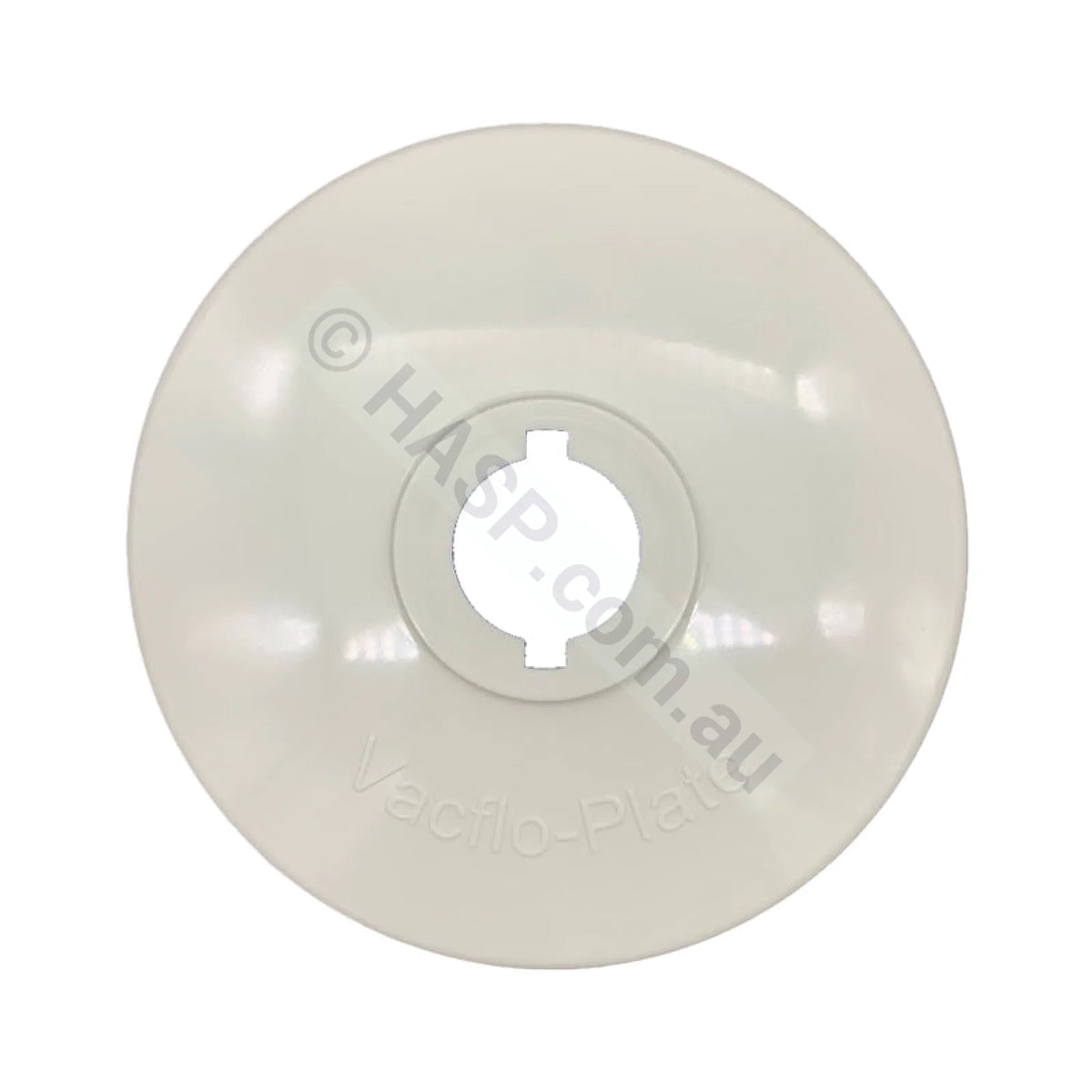

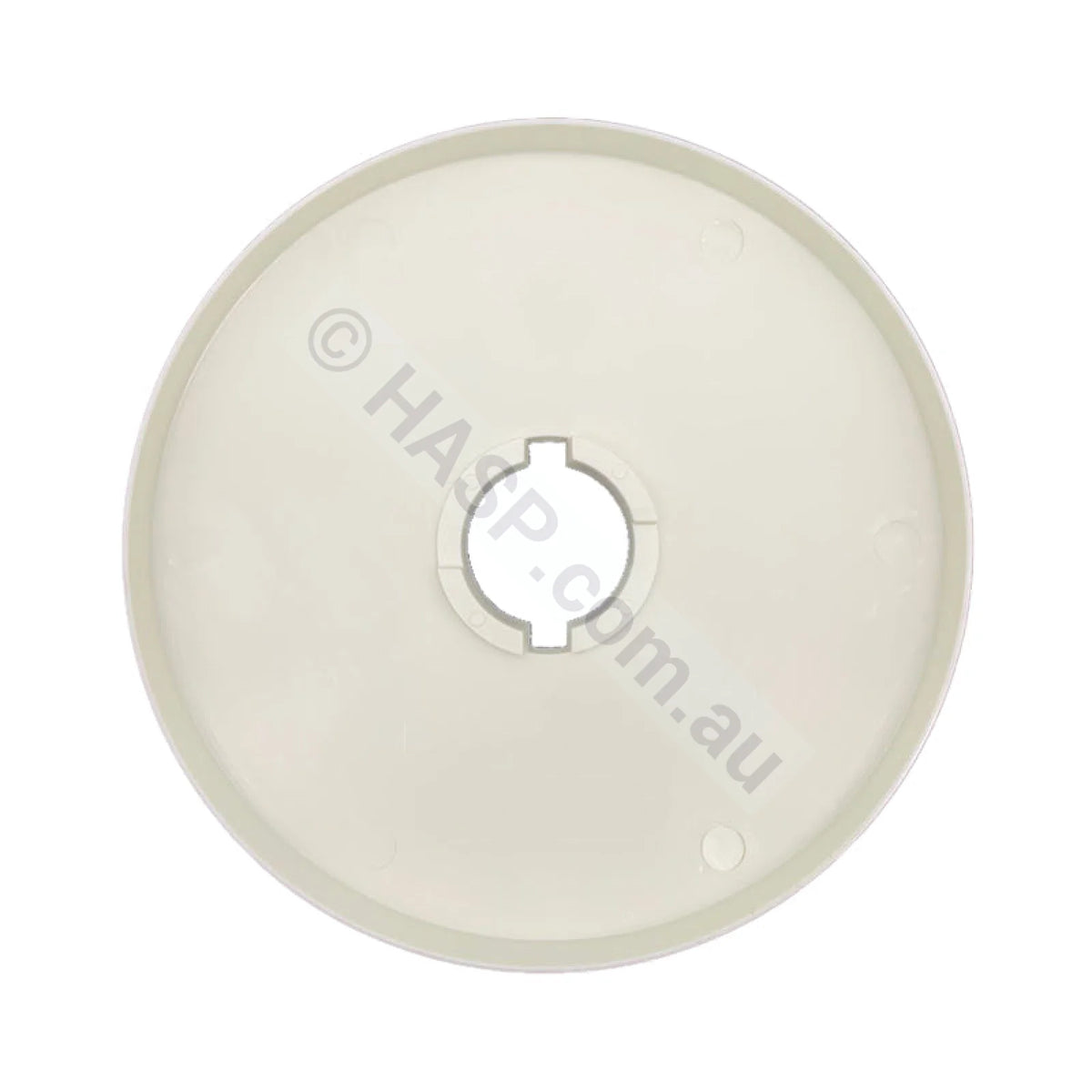

Vac plate (vacuum plate) to suit the Hayward SP1107A, the plate from the Hayward SP11071 Skim-Vac II. It sits over the skimmer basket so a manual vacuum or suction cleaner hose can draw through the skimmer. Round plate, 7 1/4 inch (185mm) across with a 40mm centre hole, for the Hayward SP1089 Dyna-Skim front-access skimmer. The centre hole is notched for the Hayward twist-lock 90 degree elbow (SPX1088H), which takes both 32mm and 38mm hoses and is sold separately as Vac Plate Elbow 90 Degree PA-379. No gasket is used.
Check before ordering: Hayward lists the SP1070, SP1075, SP1082, SP1084 and SP1085 skimmers with the straight-adapter SP1107 or SP1106 Skim-Vac II rather than this elbow version, so confirm with us before ordering for those models. The smaller 152mm SP1104A plate PA-470 suits the SP1090, SP1091 and SP1092. Measure the old plate across its widest point: this one is about 185mm.
Product details
- Product: Hayward SP1107A Vac Plate (Vacuum Plate)
- Part number: PA-471
- Type: skimmer box vac plate (vacuum plate)
- Diameter: approx. 185mm (7 1/4 inch)
- Centre hole: 40mm, notched for the twist-lock elbow
- Hose connection: via Hayward twist-lock elbow SPX1088H (PA-379), 32mm and 38mm hose
- Gasket: none
- Fits: Hayward SP1089 Dyna-Skim skimmer (front access)
- Cross reference: Hayward SP1107A, SP-1107-A, SPX1107A (plate of the SP11071 Skim-Vac II), HABCO H471
See the full range of pool vac plates (vacuum plates).
Confirm product is correct before ordering. Contact us if unsure.
Common search terms: Hayward SP1107A vac plate, Hayward SP1107 vacuum plate, SP-1107-A, SP11071 skim vac II plate, Hayward SP1089 vac plate, Dyna-Skim vacuum plate, 7 1/4 inch Hayward vac plate, 185mm vac plate, pa-471, WWDG SpaPro.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
