Hayward SP1104 Vac Plate (Vacuum Plate)
Hayward SP1104 Vac Plate (Vacuum Plate) is temporarily out of stock and will ship as soon as it's available.
Hayward SP1104 Vac Plate (Vacuum Plate)
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

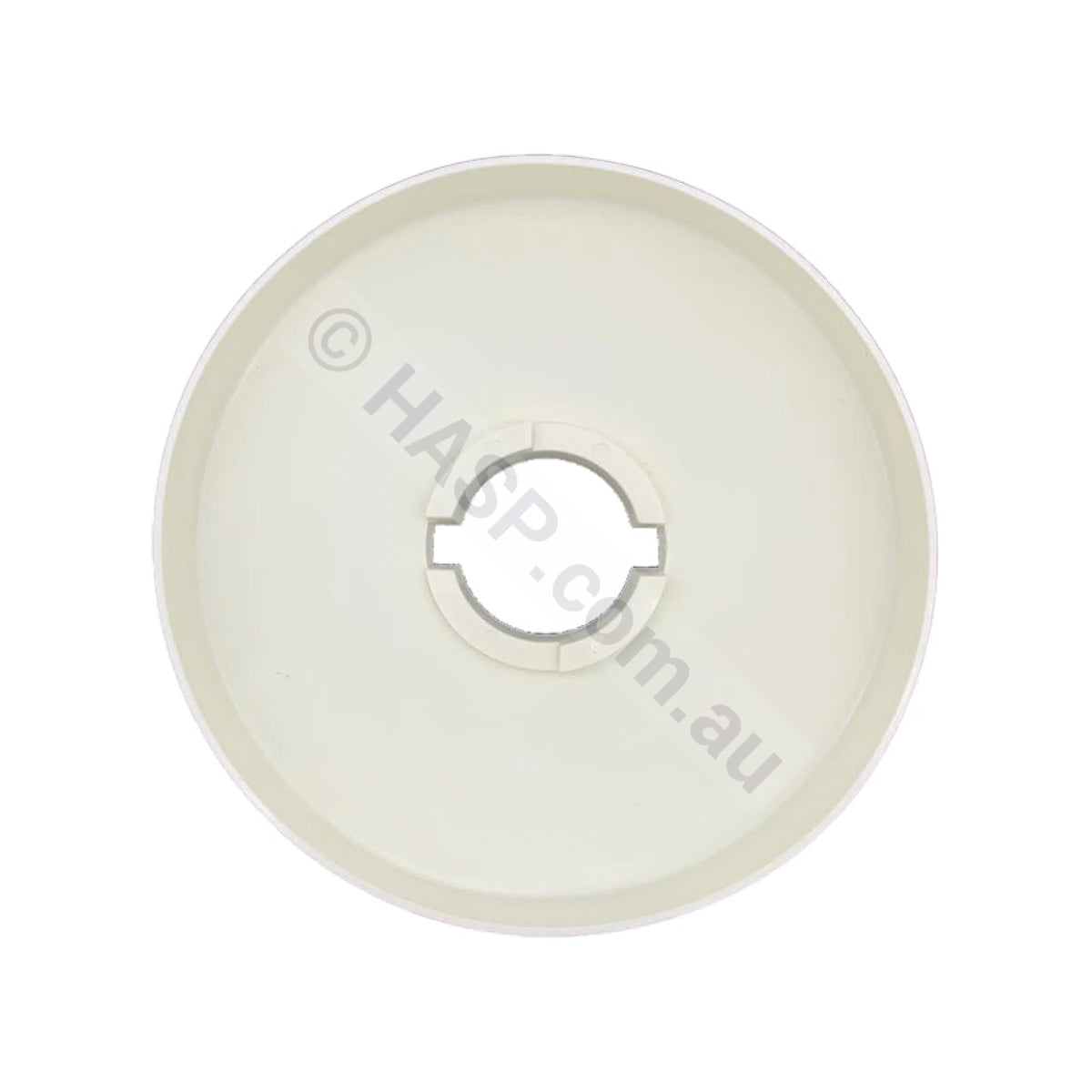

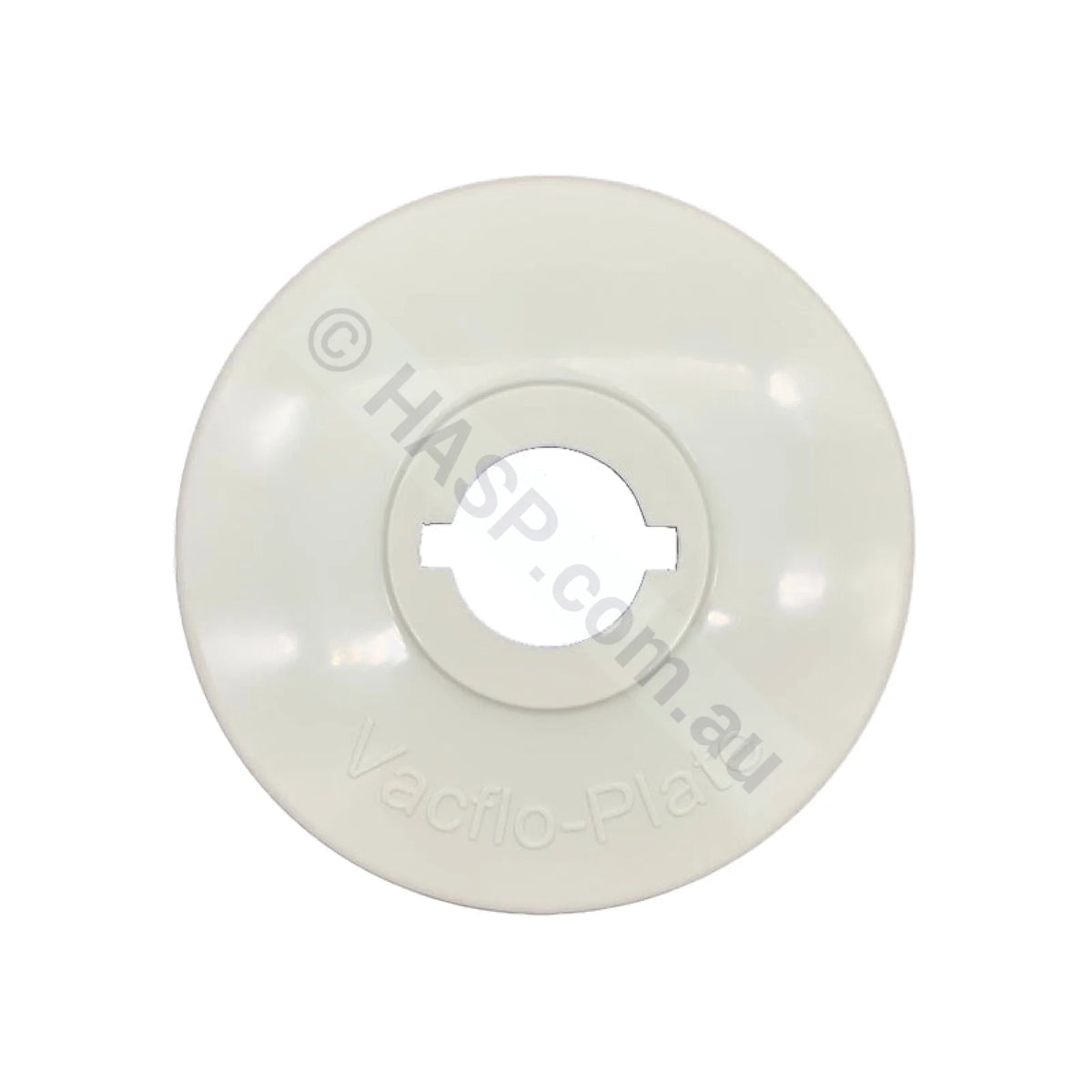

Vac plate (vacuum plate) to suit the Hayward SP1104A, the plate from the Hayward SP11041 Skim-Vac. A vac plate sits over the skimmer basket so a manual vacuum or suction cleaner hose can draw through the skimmer. This is the small 6 inch (152mm) round plate for the Hayward Dyna-Skim above-ground skimmers SP1090, SP1091 and SP1092. The hose does not fit the plate directly: it connects through the Hayward twist-lock 90 degree elbow (SPX1088H), which takes both 32mm and 38mm hoses and is sold separately as Vac Plate Elbow 90 Degree PA-379. No gasket is used.
Check before ordering: the Hayward SP1089 skimmer takes the larger 185mm SP1107A plate PA-471, and Hayward lists the SP1070, SP1082, SP1084 and SP1085 skimmers with the straight-adapter SP1107 or SP1106 Skim-Vac II, not this plate. Match the skimmer model first, then measure the old plate across its widest point: this one is about 152mm.
Product details
- Product: Hayward SP1104 Vac Plate (Vacuum Plate)
- Part number: PA-470
- Type: skimmer box vac plate (vacuum plate)
- Diameter: approx. 152mm (6 inch)
- Hose connection: via Hayward twist-lock elbow SPX1088H (PA-379), 32mm and 38mm hose
- Gasket: none
- Fits: Hayward Dyna-Skim SP1090, SP1091, SP1092 above-ground skimmers (front access); Hayward's earlier sheet also lists the top-cover SP1096, SP1097 and SP1098
- Cross reference: Hayward SP1104A, SP-1104-A (plate of the SP11041 Skim-Vac), HABCO H470
See the full range of pool vac plates (vacuum plates).
Confirm product is correct before ordering. Contact us if unsure.
Common search terms: Hayward SP1104 vac plate, Hayward SP1104A vacuum plate, SP-1104-A, SP11041 skim vac plate, Hayward Dyna-Skim vac plate, SP1090 vac plate, SP1091 vacuum plate, SP1092 skimmer plate, 6 inch Hayward vac plate, 152mm vac plate, pa-470, WWDG SpaPro.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
