Onga Balboa 2381 1HP w/ 1.3kW Heater - Heated Spa Bath Pump - B-23810100

Onga Balboa 2381 1HP w/ 1.3kW Heater - Heated Spa Bath Pump - B-23810100

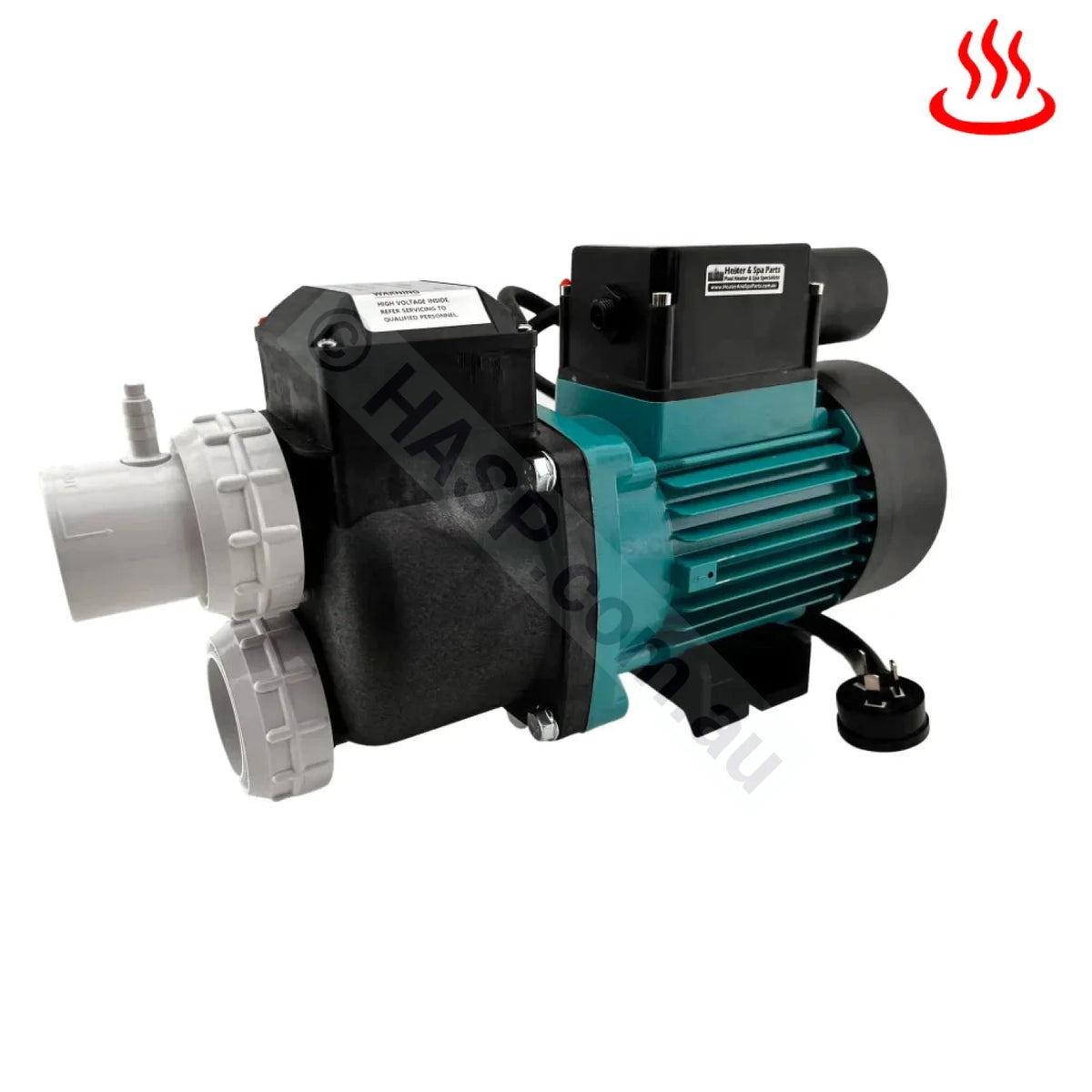

Onga Balboa 23810100 - 2381 Heated w/ Air Switch. Hot Spa Pump 1hp with 1.3kW (1300W) heater element. Made in the USA. Comes complete with unions and an in-built air switch. This pump will run approximately 4-6 jets. Originally were under the Onga brand, but now are Balboa. The pumps are the same.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

• This pump is activated by an air button. View air buttons.
• If you have an electronic touchpad, please refer to this page.

Balboa spa bath pumps are one of the quietest in the industry. They offer maximum energy efficiency for lower operating costs, as well as no water retention for perfect hygiene, water resistant enclosures, and multiple levels of safety for your peace of mind.

The Balboa Pumps provide excellent hydraulic performance in a compact and extremely quiet design. Designed to circulate hot water in (whirlpool) spa baths, not spas, these pumps incorporate a special internal design to ensure the pump self drains eliminating the build up of unhygienic/stale water.

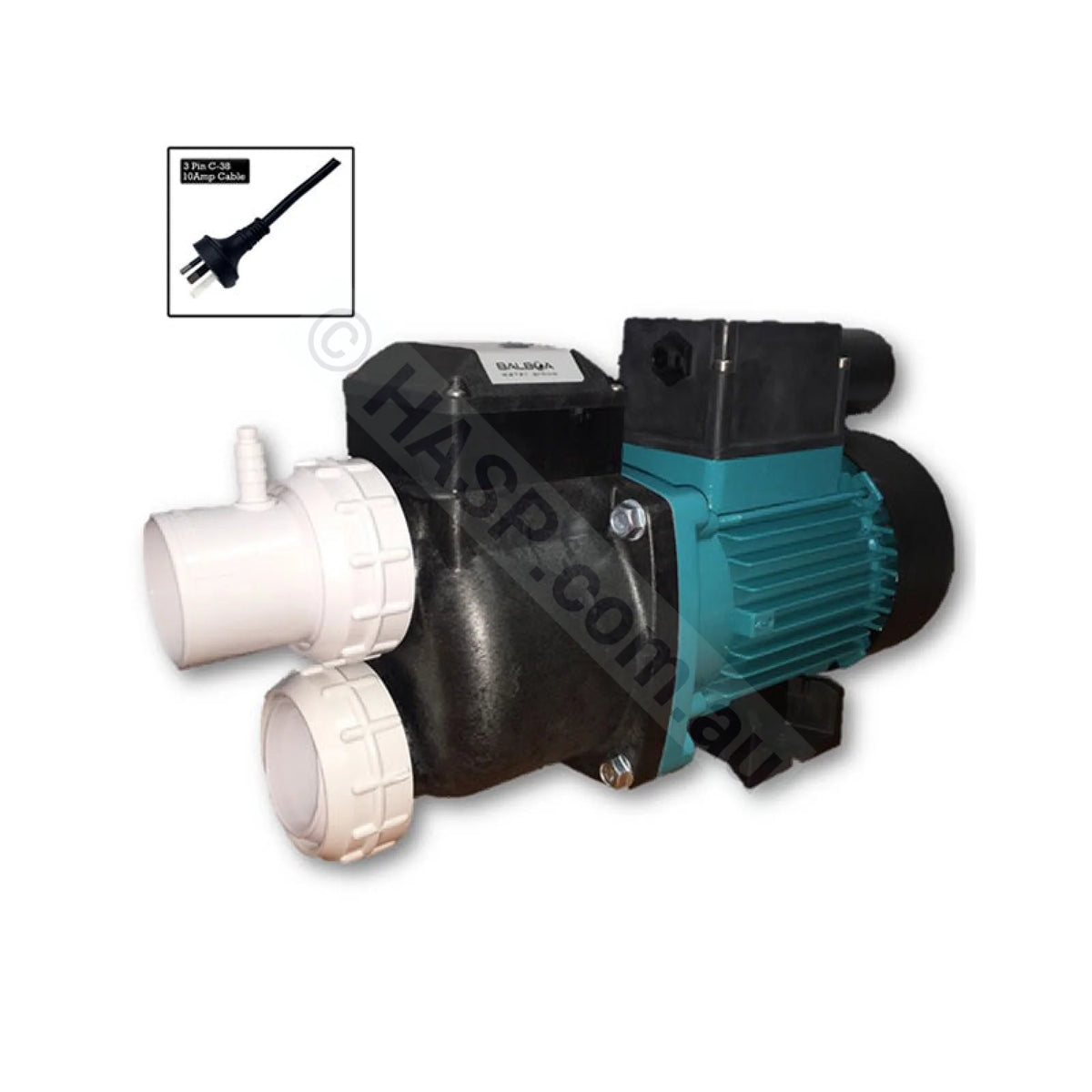

Hydromassage Hot spa pump with unions and Air Switch.

Specifications:

• Maximum total head: 12.0m
• IP Rating: IP55
• Inlet and outlet: 40mm PVC Pressure Barrel Union
• Maximum Ambient Temperature: 55°C
• Maximum Water Temperature: 70°C (capable of pumping 70°C, but not recommended for spa bath use)
• Primary heating temperature cut-out: 40°C
• Secondary "safety" heater cut-out: 45°C
• Noise: 65 dBa at 1 metre
• For Spa Bath use only
• Balboa Bath Pump Instruction Manual
• Installation Manual & Diagrams

More Info:

• 220-240V
• Compact Design
• Highly efficient motor
• Self draining Volute
• TEFC IPX5 Design
• AU / NZ Certification
• Quiet Operation

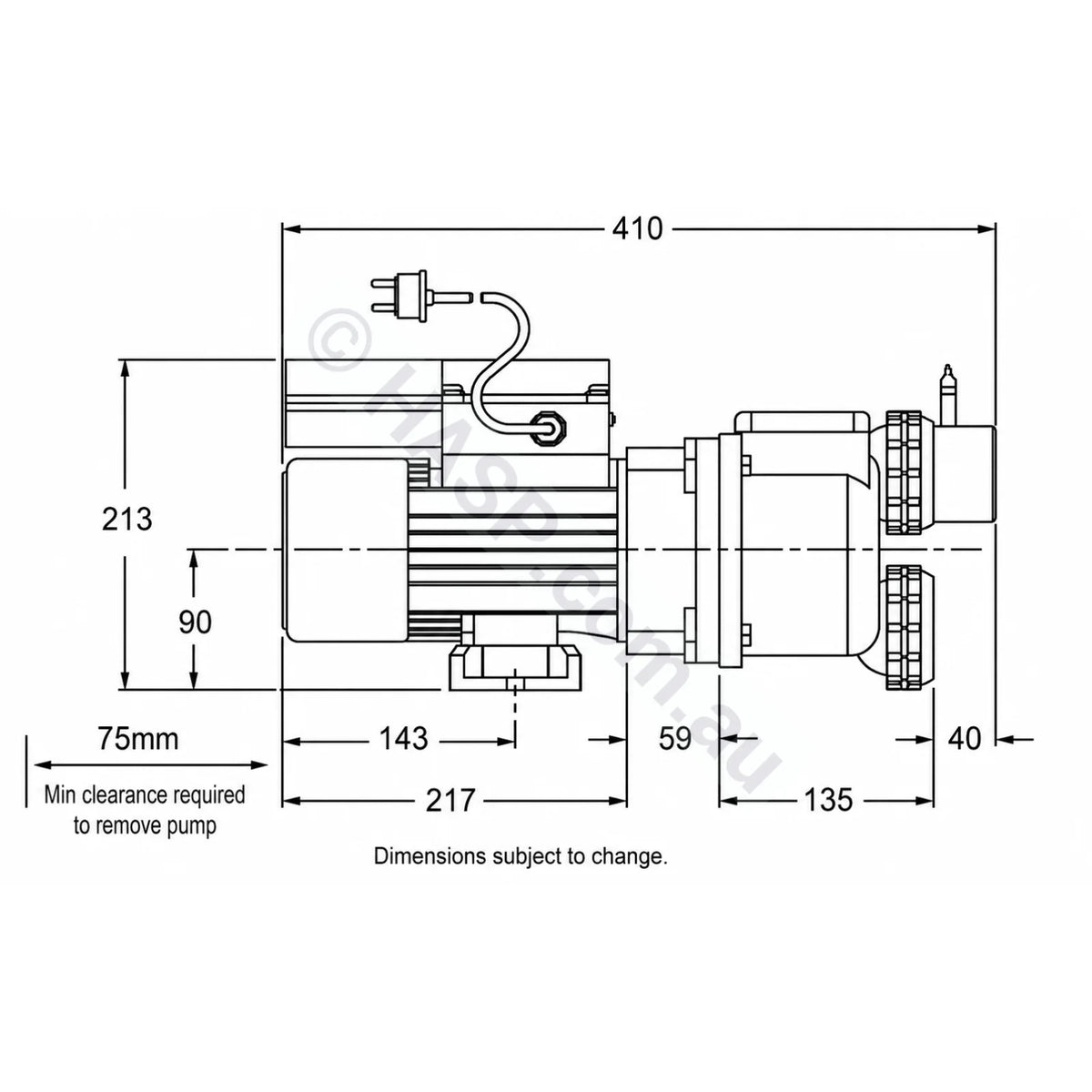

Pump size: (not including unions)

H:23 x L: 36 x W: 17cm

Installation Notes:

• Read the Balboa Bath Pump Instruction Manual (PDF) before you start. The notes below are a summary of the key points only.
• For spa bath use only where it is drained after use. Not for standalone spas, permanently-filled spas, chemically-treated water, or any other application.
• Not self-priming. The casing has to be flooded before starting, so the pump suction inlet must sit higher than the bath suction fitting.
• Mount it solid, level, rigid and vibration free, and bolt the pump down to reduce vibration and pipe stress.
• Allow at least 102cm clearance for motor ventilation. Without it the motor overheats and the pump stops.
• The fittings are ABS. Some PVC jointing compounds are not compatible with ABS, so check the solvent cement before gluing.
• Barrel unions are hand tight only. No wrenches, no thread tape, no pipe compound.
• Keep it out of the weather. A protective cover is required if the pump is installed outside.
• Runs from a dedicated 10 Amp power socket. An earth leakage or residual current device must be fitted.
• 6 metres of non-kink air tube is supplied for the air button connection.

Operation:

• Fill the bath to at least 50mm above the jets before switching on. Never run the pump dry.
• Press the air button to start. Press it again to stop.
• Fill with cold to lukewarm water. Water already above 40°C can leave the heating element inactive, and the over-temperature sensor can trip while the bath is filling.
• The heater only operates while the pump is running at normal operating pressure. A built-in pressure sensor stops the element working without flow.
• A pre-set thermostat holds the water to a maximum of 40°C, interlocked to a secondary upper limit cut-out.

Warranty: Covered by our Warranty Policy.

Specifications taken from the Balboa Water Group 200 Series Mechanical Hydromassage Pumps owner's manual, document 40693 Rev D.
