Astralpool IXI / Zodiac JXi Power Interface Harness - R0457702
Astralpool IXI / Zodiac JXi Power Interface Harness - R0457702 is temporarily out of stock and will ship as soon as it's available.
Astralpool IXI / Zodiac JXi Power Interface Harness - R0457702
This is the genuine Zodiac power interface harness, part number R0457702, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. The same part fits both heater sizes, the 200 and the 370. On the parts diagrams it is item 14 on the electrical system diagram.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
What This Part Does

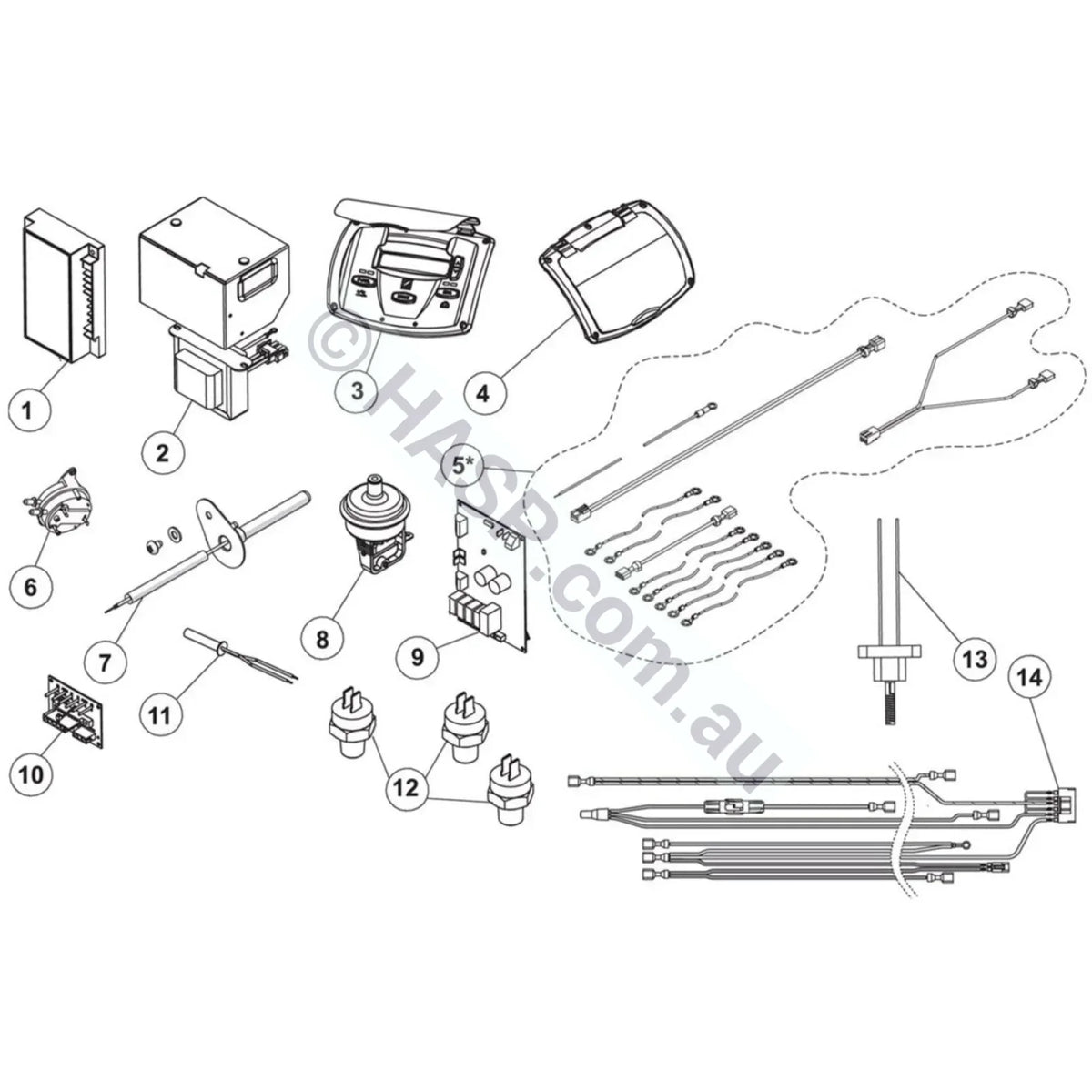

The power interface harness is item 14 on the JXi / IXI electrical system diagram, with the one part number, R0457702, for both heater sizes.
It is listed separately from the wiring harness kit (item 5) on the same diagram. Label every wire before disconnecting anything: the IXI manual warns that wiring errors can cause improper and dangerous operation.
The Rating Plate Rule (rev. IXJ-1.0)
Identify the part by the heater it came from:
- Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
- Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
- Check the size. R0457702 is listed for both the 200 and the 370, so the heater size doesn't change the part.
- Match the diagram. On the electrical system diagram this part is item 14. The diagrams are on our IXI / JXi parts page.
Worked Example
Say the rating plate on your heater reads Astralpool IXI 370 and you need the power interface harness. The IXI and the JXi share this part, and R0457702 covers both the 200 and the 370, so R0457702 is the part to order. A Zodiac JXi 200 takes the same R0457702.
Confirmed Compatibility
- Zodiac JXi: 200 and 370
- Astralpool IXI: 200 and 370
Part Numbers and Cross-References
- Zodiac / Astralpool part number: R0457702
- Barcode: 9317545024509
- Diagram item: 14 on the electrical system diagram
Other Electrical System Parts
- Item 1: Ignition Control Kit (R0456901)
- Item 2: Transformer Kit (R0456301)
- Item 3: User Interface Kit (R0591901), obsolete
- Item 6: Air Pressure Switch Kit (R0456400)
- Item 7: Flue Temp Sensor (R0719401)
- Item 8: Water Pressure Switch Kit
- Item 9: Power Interface Board, PIB (R0719503)
- Item 10: Power Distribution Board, PDB (R0458101)
- Item 11: Temperature Sensor Kit (R0456500)
- Item 12: High Limit Temperature Sensors Kit (R0592301)
- Item 13: Igniter Kit (R0457502)
Fitting Notes From the Manual
A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.
- Electrical work must be done by a licensed electrician. Turn off all power to the heater at the breaker before starting.
- Access is through the heater's front panel: remove its four screws to expose the electrical raceway, which releases and swings free for service.
- Label all wires before disconnecting them. The manual warns that wiring errors can cause improper and dangerous operation.
- Verify proper operation after servicing. Don't use the heater if any part of its control system has been under water; have a qualified service technician inspect it and replace any affected part.
Frequently Asked Questions
Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes. The Astralpool IXI and the Zodiac JXi use the same part number, R0457702, for the power interface harness.
Does it fit both the 200 and the 370?
Yes. R0457702 is listed for both heater sizes, the 200 and the 370.
Is this the main wiring harness?
No. The electrical diagram lists the wiring harness kit (item 5) separately from the power interface harness (item 14, R0457702).
Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0457702.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.
Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.
Common search terms: Astralpool IXI Power Interface Harness, Zodiac JXi Power Interface Harness, R0457702, IXI 200 power interface harness, JXi 200 power interface harness, IXI 370 power interface harness, JXi 370 power interface harness, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
