Astralpool IXI / Zodiac JXi Ignition Control Kit (Ignition Module) - R0456901

Astralpool IXI / Zodiac JXi Ignition Control Kit (Ignition Module) - R0456901

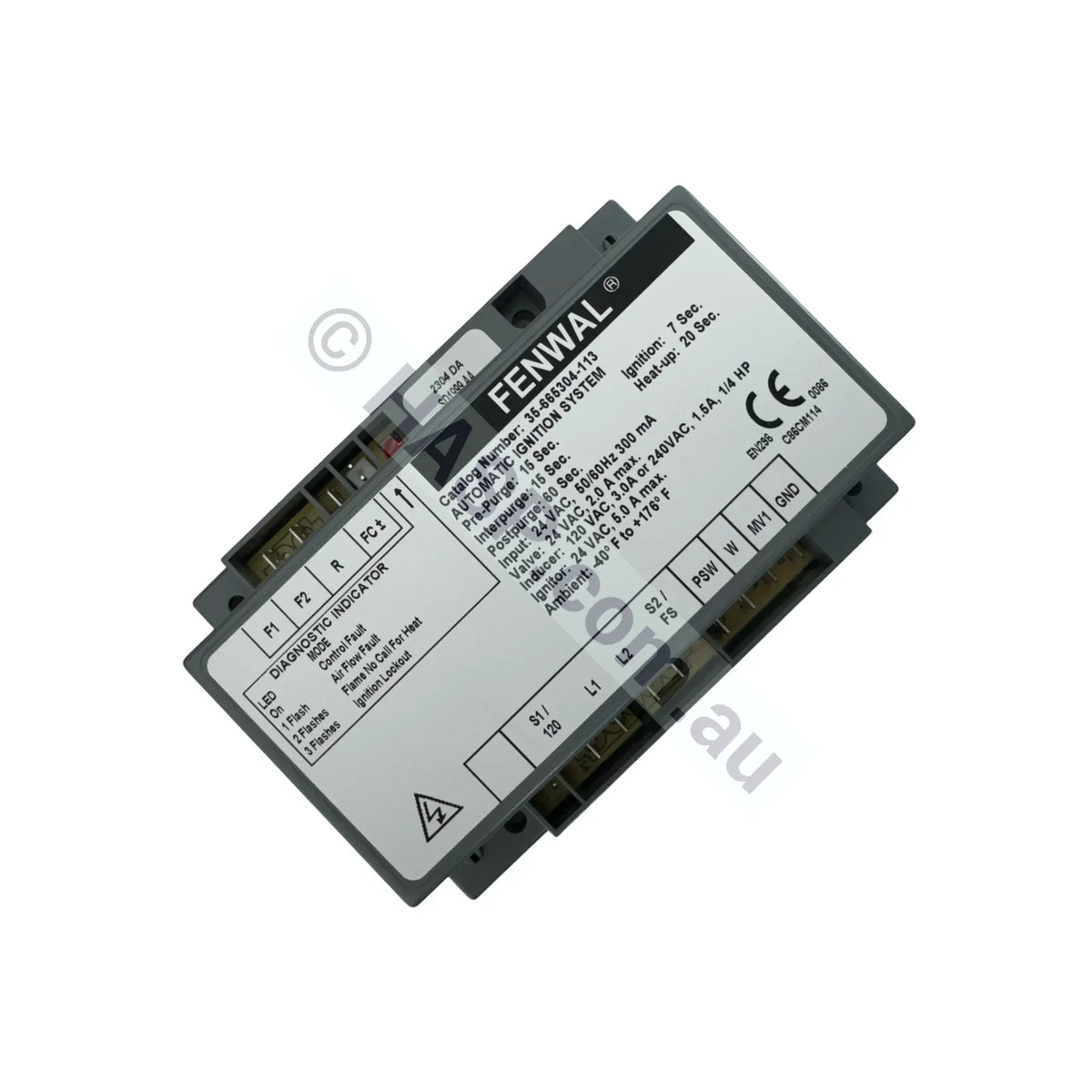

This is the genuine Zodiac ignition control kit, part number R0456901, for Astralpool IXI and Zodiac JXi gas pool and spa heaters. The same part fits both heater sizes, the 200 and the 370. On the parts diagrams it is item 1 on the electrical system diagram.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

What This Part Does

The ignition control provides energy for ignition, monitors flame quality and controls the gas valve. On a call for heat the blower runs first to purge the combustion chamber, then power is applied to the hot surface igniter. When ignition temperature is reached the gas valve opens and ignition occurs, and once a stable flame is detected the igniter powers down. If stable flame is not detected, the control closes the gas valve to prevent further gas release (Astralpool IXI manual, section 2.8).

If ignition is unsuccessful, or the flame fails in normal operation, the heater post-purges and tries two more times. After three unsuccessful attempts it shuts down, shows an ignition fault and automatically tries again after one hour (sections 2.8 and 9.4.1). The manual's troubleshooting section also lists the ignition control service LED codes.

The ignition control is reached through the heater's default front panel, together with the transformer, power interface board and voltage selector board.

The Rating Plate Rule (rev. IXJ-1.0)

Identify the part by the heater it came from:

1. Find the rating plate. It is inside the heater, on the outside of the combustion chamber, and shows the model number, serial number and gas type. Zodiac's JXi manual says these are needed to identify the correct part.
2. Check the badge. Astralpool IXI and Zodiac JXi heaters use the same part number for this part, so either badge is fine.
3. Check the size. R0456901 is listed for both the 200 and the 370, so the heater size doesn't change the part.
4. Match the diagram. On the electrical system diagram this part is item 1. The diagrams are on our IXI / JXi parts page.

Worked Example

Say the rating plate on your heater reads Astralpool IXI 370 and you need the ignition control kit. The IXI and the JXi share this part, and R0456901 covers both the 200 and the 370, so R0456901 is the part to order. A Zodiac JXi 200 takes the same R0456901.

Confirmed Compatibility

• Zodiac JXi: 200 and 370
• Astralpool IXI: 200 and 370

Part Numbers and Cross-References

• Zodiac / Astralpool part number: R0456901
• Barcode: 9317545022352
• Diagram item: 1 on the electrical system diagram

Other Electrical System Parts

• Item 2: Transformer Kit (R0456301)
• Item 3: User Interface Kit (R0591901), obsolete
• Item 6: Air Pressure Switch Kit (R0456400)
• Item 7: Flue Temp Sensor (R0719401)
• Item 8: Water Pressure Switch Kit
• Item 9: Power Interface Board, PIB (R0719503)
• Item 10: Power Distribution Board, PDB (R0458101)
• Item 11: Temperature Sensor Kit (R0456500)
• Item 12: High Limit Temperature Sensors Kit (R0592301)
• Item 13: Igniter Kit (R0457502)
• Item 14: Power Interface Harness (R0457702)

Fitting Notes From the Manual

A summary for the qualified technician doing the job. It does not replace the manufacturer's manual.

1. Electrical work must be done by a licensed electrician. Turn off all power to the heater at the breaker before starting.
2. Access is through the heater's front panel: remove its four screws to expose the electrical raceway, which releases and swings free for service.
3. Label all wires before disconnecting them. The manual warns that wiring errors can cause improper and dangerous operation.
4. Verify proper operation after servicing. Don't use the heater if any part of its control system has been under water; have a qualified service technician inspect it and replace any affected part.

Frequently Asked Questions

Does it fit the Astralpool IXI as well as the Zodiac JXi?
Yes. The Astralpool IXI and the Zodiac JXi use the same part number, R0456901, for the ignition control kit.

Does it fit both the 200 and the 370?
Yes. R0456901 is listed for both heater sizes, the 200 and the 370.

How do I reset the heater after an ignition fault?
The IXI manual resets the three ignition attempts by turning the control off and back on, then selecting Pool or Spa. If the heater still won't light, have a qualified technician diagnose it before replacing parts.

Where is the ignition control?
Behind the heater's default front panel, with the transformer, power interface board and voltage selector board. The front panel comes off with four screws to expose the electrical raceway.

Is this a genuine part?
Yes. Heater and Spa Parts is an authorised Fluidra (Astralpool and Zodiac) dealer and warranty agent, and this is the genuine R0456901.

Manufacturer Catalogues, Diagrams & Part Numbers

Need exploded views, spare part numbers, product numbers or diagrams? See the manufacturer catalogues: Zodiac Catalogue 2026 | Astralpool Catalogue 2026. The exploded diagrams for these heaters, with every IXI / JXi part we list, are on our Astralpool IXI / Zodiac JXi Gas Heater Parts page.

Before ordering: confirm this part is correct for your equipment. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person.

Common search terms: Astralpool IXI Ignition Control Kit, Zodiac JXi Ignition Control Kit, R0456901, IXI 200 ignition control kit, JXi 200 ignition control kit, IXI 370 ignition control kit, JXi 370 ignition control kit, IXI gas heater parts, JXi heater parts, WWDG SpaPro.
