Astralpool / Hurlcon V Clamp Bolt - Multiport Valve, RX180, RX280, RX320, RX360, RX400, RX500 - 4020001

Name: Astralpool / Hurlcon V Clamp Bolt - Multiport Valve, RX180, RX280, RX320, RX360, RX400, RX500 - 4020001
Brand: Astralpool
SKU: 4020001
Price: 3.00 AUD
Availability: InStock

FREE SHIPPING OVER $149 (T&Cs)

$3.00

Tax included Shipping calculated at checkout.

Don't Guess - Ask Us!

Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.

Delivery and Shipping Info

Free Shipping over $149 for most products. Choose Express Post where available for fastest shipping!

Free, Flat Rate & Express Post Shipping Information.

Warranty Information

Warranty Information Here

Astralpool / Hurlcon V Clamp Bolt - Multiport Valve, RX Sand Filters - 4020001

We keep these physically in stock for fast shipping or local pick-up, unlike most drop-shipping websites.
Shipped from VIC, NSW, WA, QLD

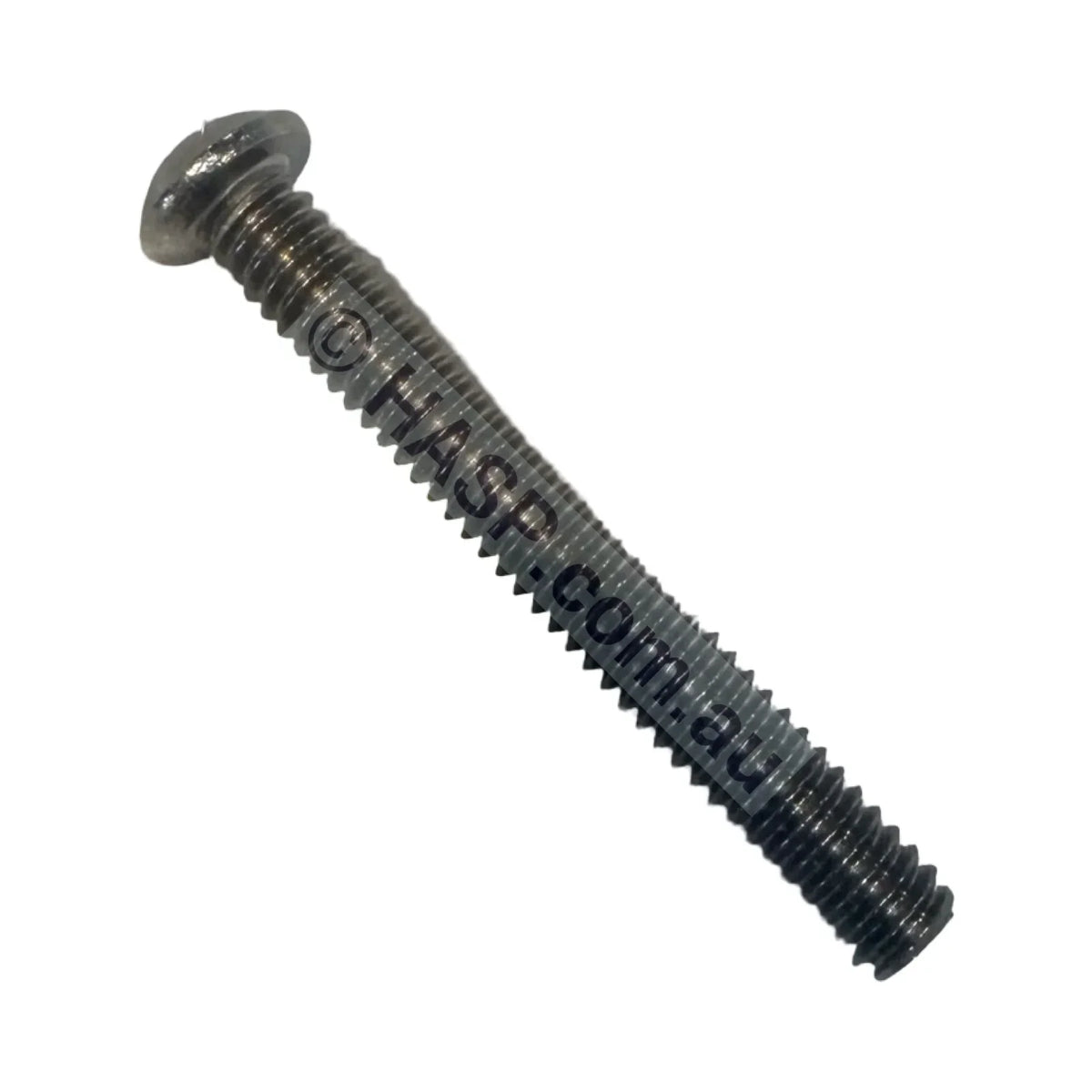

Genuine Astralpool 4020001 bolt, item 14 on the RX multiport valve diagram. It draws the two halves of the V clamp set together so the multiport valve is pulled down onto the tank body O-ring. Sold individually.

Which Filters This Suits

Astralpool / Hurlcon RX sand filters: RX180, RX280, RX320, RX360, RX400 and RX500.
Used with V clamp set 75010, which is supplied with the complete 40mm valve 76032 and the complete 50mm valve 76033.

If you are not certain, send us photos of your existing clamp and bolt along with the filter model label and we will confirm which one you need.

When to Replace It

The bolt has corroded and can no longer be tightened or undone.
The head has rounded off, or the bolt had to be cut out to free the clamp.
The thread is stripped and the clamp will not pull up tight.

Check the tank body O-ring, 75058, while the clamp is off. Always shut the pump down and release filter pressure before loosening the clamp bolt.

Specifications

Part number: 4020001
Diagram reference: item 14, RX multiport valve
Position: joins the two halves of the multiport valve V clamp
Sold as: single bolt
Filter family: Astralpool / Hurlcon RX sand filters
Brand: Astralpool / Hurlcon (Fluidra)
Barcode: 9343609002602

Related RX Multiport Valve Parts

Frequently Asked Questions

What is the 4020001 bolt for?
It is the bolt that closes the V clamp set holding the multiport valve to the filter tank. It is item 14 on the RX parts diagram.

Does it come with the V clamp set?
Order this bolt separately if yours is corroded, rounded off or has been cut out.

How many do I need?
One bolt per V clamp set. Order the quantity that matches the number of clamps you are refitting.

Can I use a hardware store bolt instead?
We supply the genuine Astralpool bolt because the clamp relies on the correct length and thread to pull up square. A substitute that is too long or too short can distort the clamp or leave the joint leaking.
