SpaTouch 2T SQ by Balboa - Colour Touchscreen Control Panel - 147mm x 107mm - Obsolete (No Longer Available)

SpaTouch 2T SQ by Balboa - Colour Touchscreen Control Panel - 147mm x 107mm - Obsolete (No Longer Available)

Limited to stock on hand. Once sold out, replaced with Spatouch 2 here.

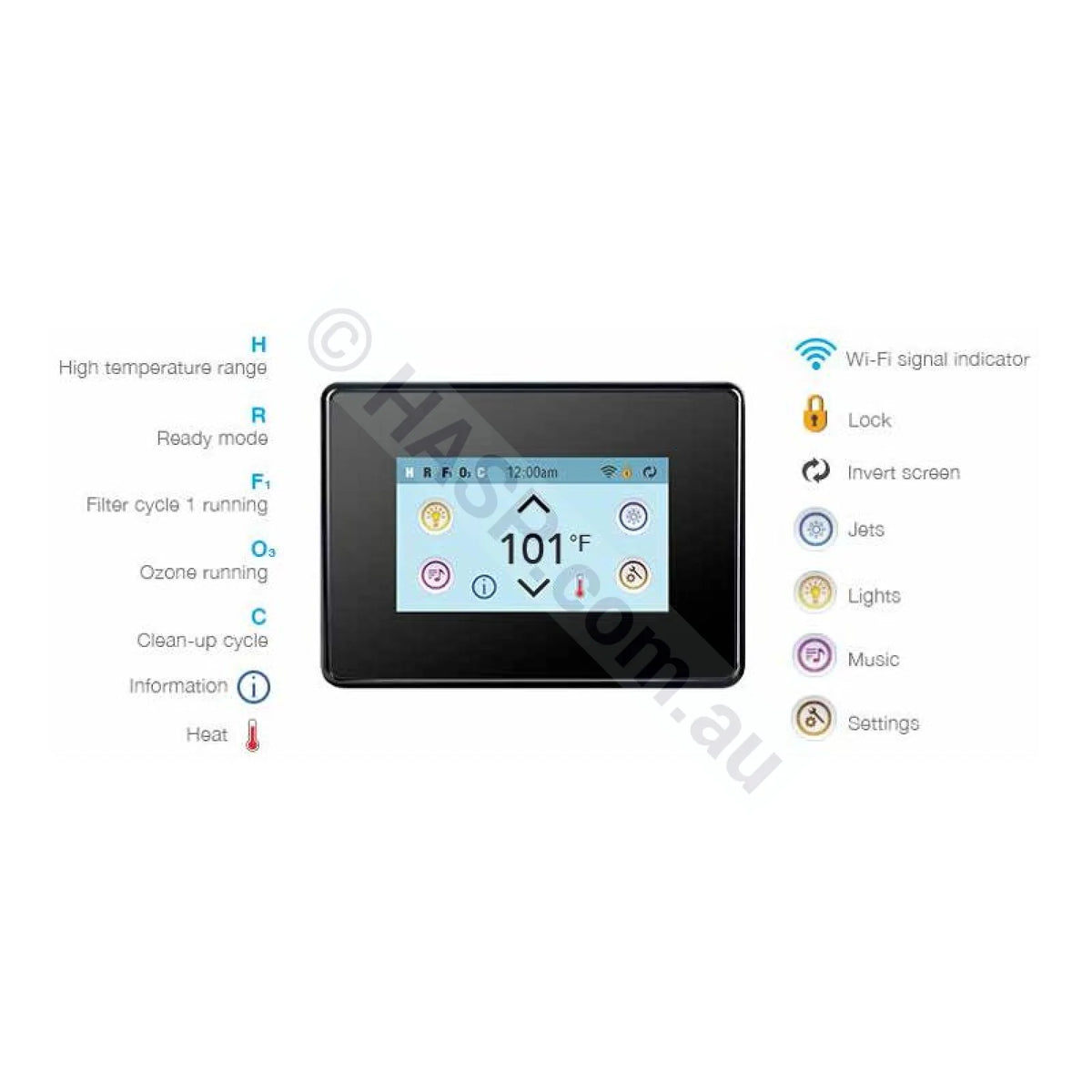

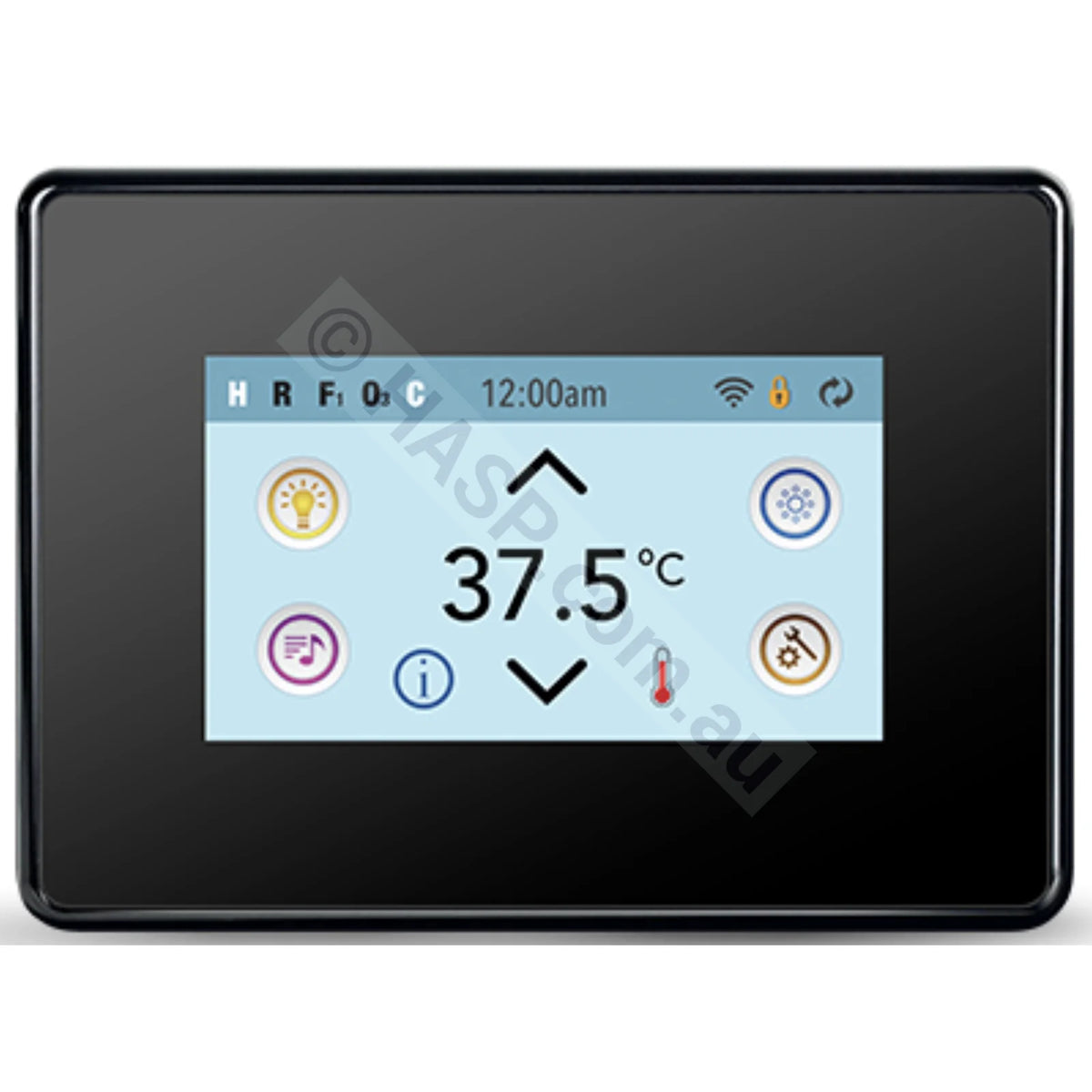

Balboa SpaTouch 2T SQ Black Touchscreen Touchpad. Used with Balboa BP series spa controllers. Comes with 4-pin adaptor. Old touchpads may be plugged into a 4-to-6 pin adaptor. Touchpad can be plugged directly into a 4-pin socket on PCB without the 6-pin adaptor found in some BP controllers.

Compatible with:

• BP200 G1, G2 and G3
• BP600
• BP601
• BP6013 G1, G2 and G3
• BP2100 G1, G2 and G3
• Note: Older Balboa BBA Audio systems are no longer compatible with new touchpads. As a result, you will lose audio functions with any new touchpad.

Dimensions:

• Touchpad: 146mm x 116mm
• Hole cutout: 123mm x 82mm
• Glass: 5mm

Important: Touchpad Installation & Warranty

Incorrect installation and physical damage are common causes of touchpad failure. To maximise service life:

• Pressure: Do not install where the spa cover can press against the screen, or where users may stand, fall or lean heavily on it. Avoid repeatedly pressing the screen too hard.

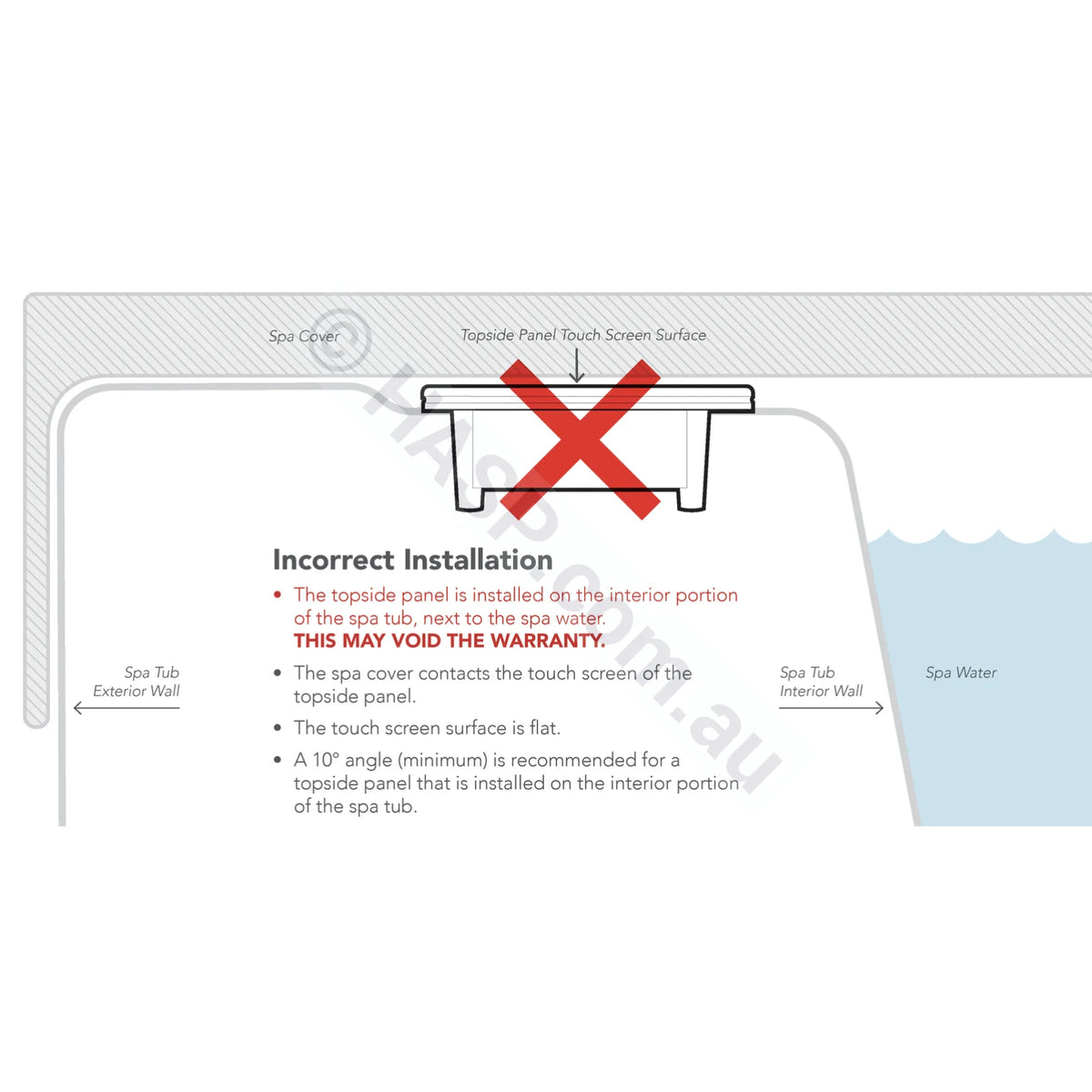

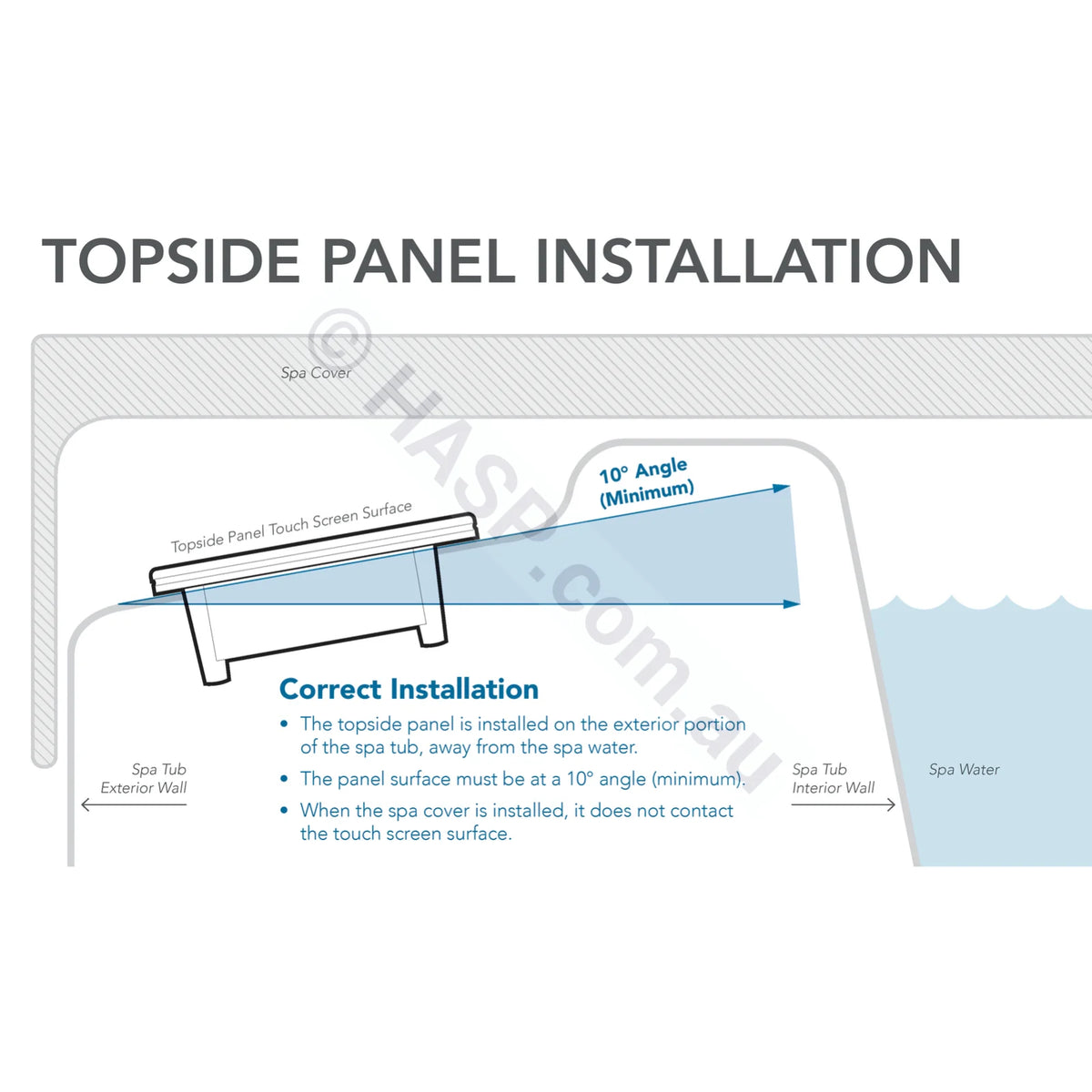

• Water exposure: Balboa recommends mounting the touchpad on the exterior portion of the spa shell, angled away from the water. If mounted internally, the panel face must still be angled away from the water. Flat mounting or angling towards the water is not recommended.
• UV / Sunlight exposure: Avoid prolonged exposure to harsh, direct sunlight wherever practical. Cover touchpad when in sunlight for long periods.
• Existing installations: Some spa manufacturers fitted these touchpads in unsuitable positions against Balboa's specifications. Scroll through images and refer to manual for more information.

Warranty: Damage caused by excessive pressure, incorrect installation, UV exposure or water ingress is not considered a manufacturing defect. Warranty coverage is subject to the manufacturer's conditions

• The spa cut-out hole may need modification when replacing older obsolete touchpads.
• User / Installation Manual

Note: Updated Touchpad Construction

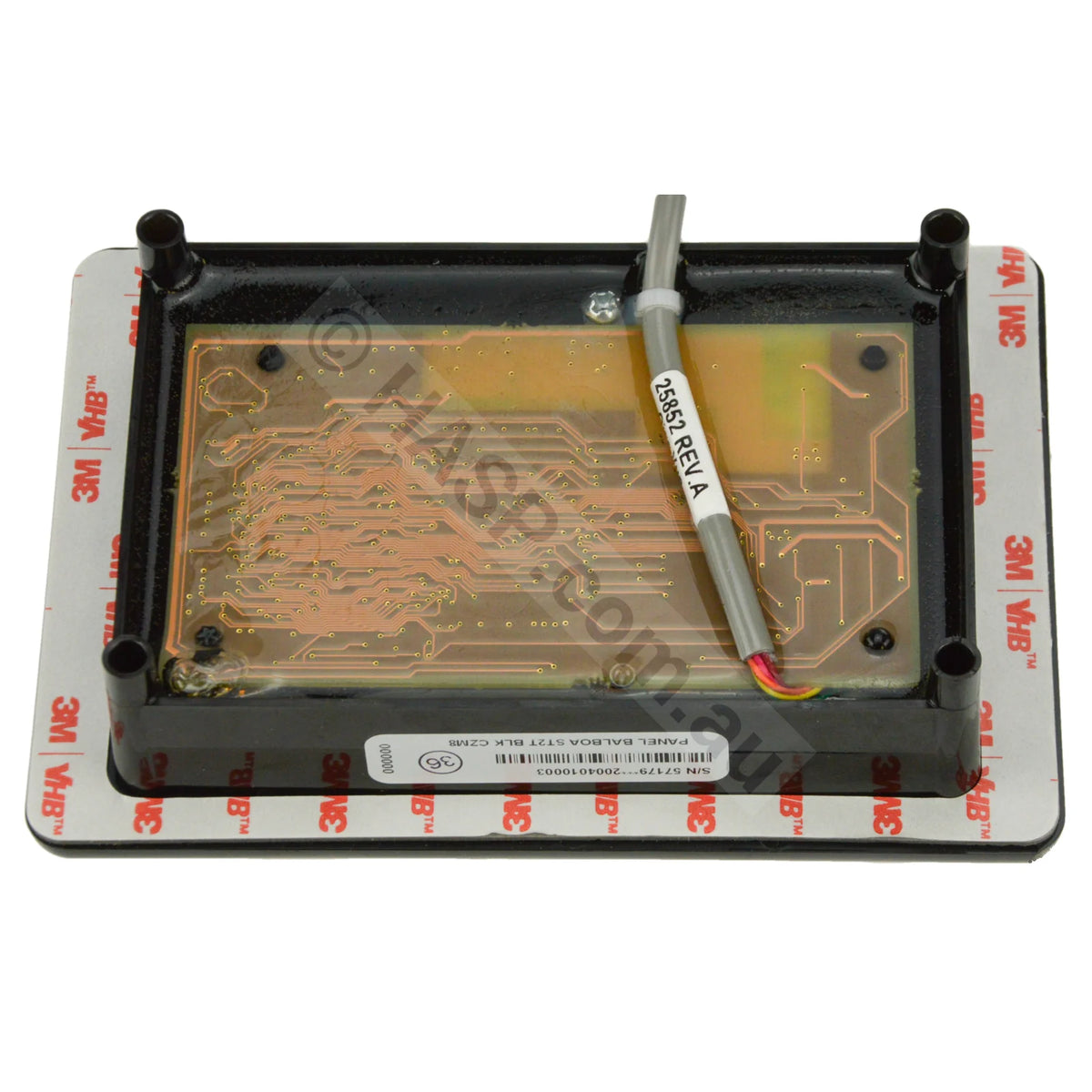

Older Balboa SpaTouch touchpads may have featured a solid plastic rear backing. Newer touchpads are no longer manufactured this way and instead feature a conformal potting gel.

This gel may appear uneven or imperfectly smooth. This is normal and does not indicate a manufacturing defect.

The gel provides a secondary moisture barrier, supplementing the harder protective coating already applied to the circuit board (PCB). This change in construction does not affect the touchpad's intended operation.

B-57179, B-57329 SpaTouch2 / SpaTouch 2 / Spa Touch 2 / Spa Touch 2T
