Spatex Joyonway P68B123 Spa Pack II with PB562 Capacitive Touch 2.4" colour touchpad - 3.0kw heater w/ Wifi

Supercedes older P25B85 controllers with PB554 touchpad.

Joyonway P68B123 Wi-Fi Spa Control Pack with 2.0kW or 3.0kW Heater & Colour Touchpad

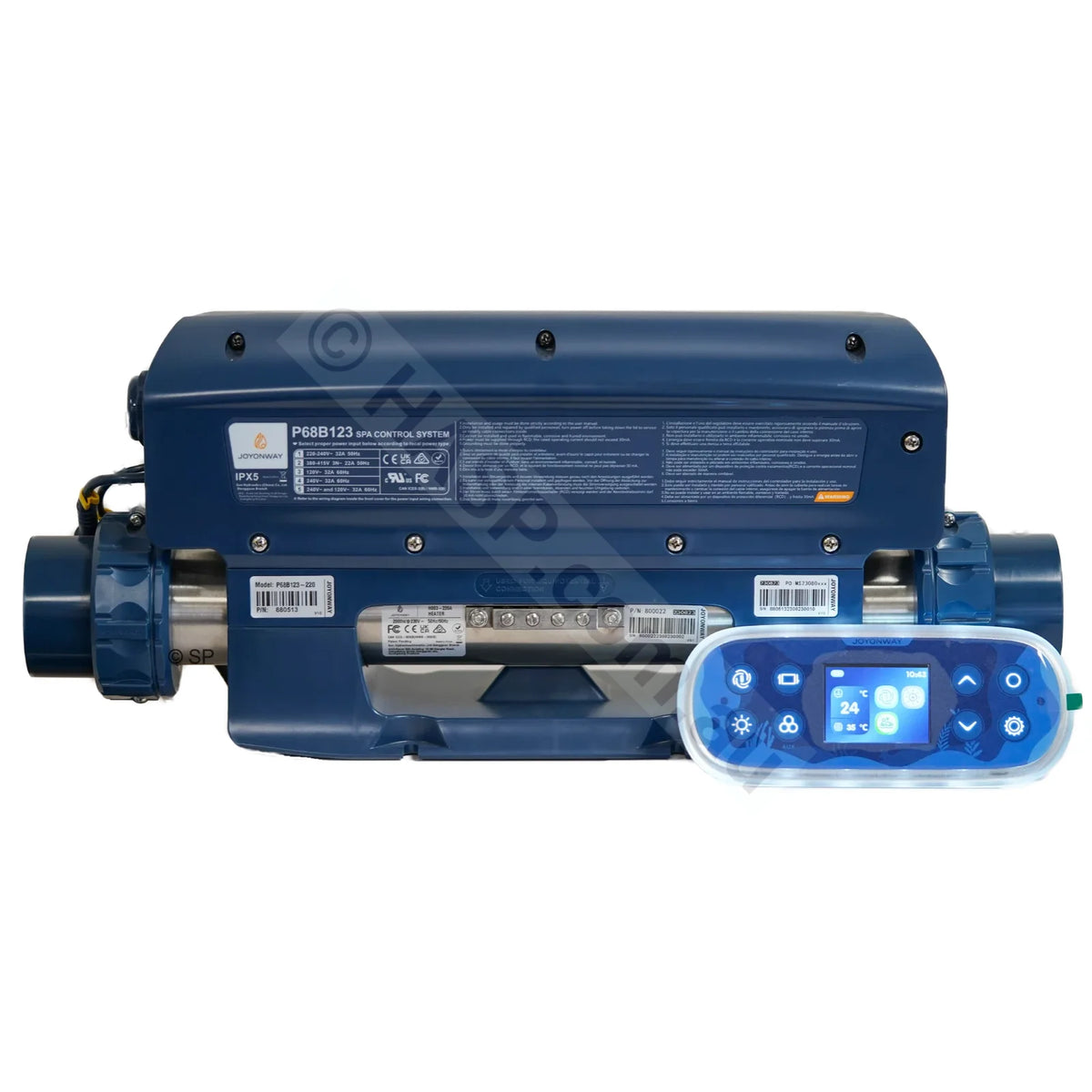

The Joyonway P68B123 Spa Control Pack is a Wi-Fi enabled spa controller with an integrated 2.0kW or 3.0kW electric heater, colour LCD touchpad and smartphone App control. It can operate a range of portable spa and hot tub equipment including a 2-speed jet pump, circulation pump, second jet pump or air blower, ozone system and spa lighting.

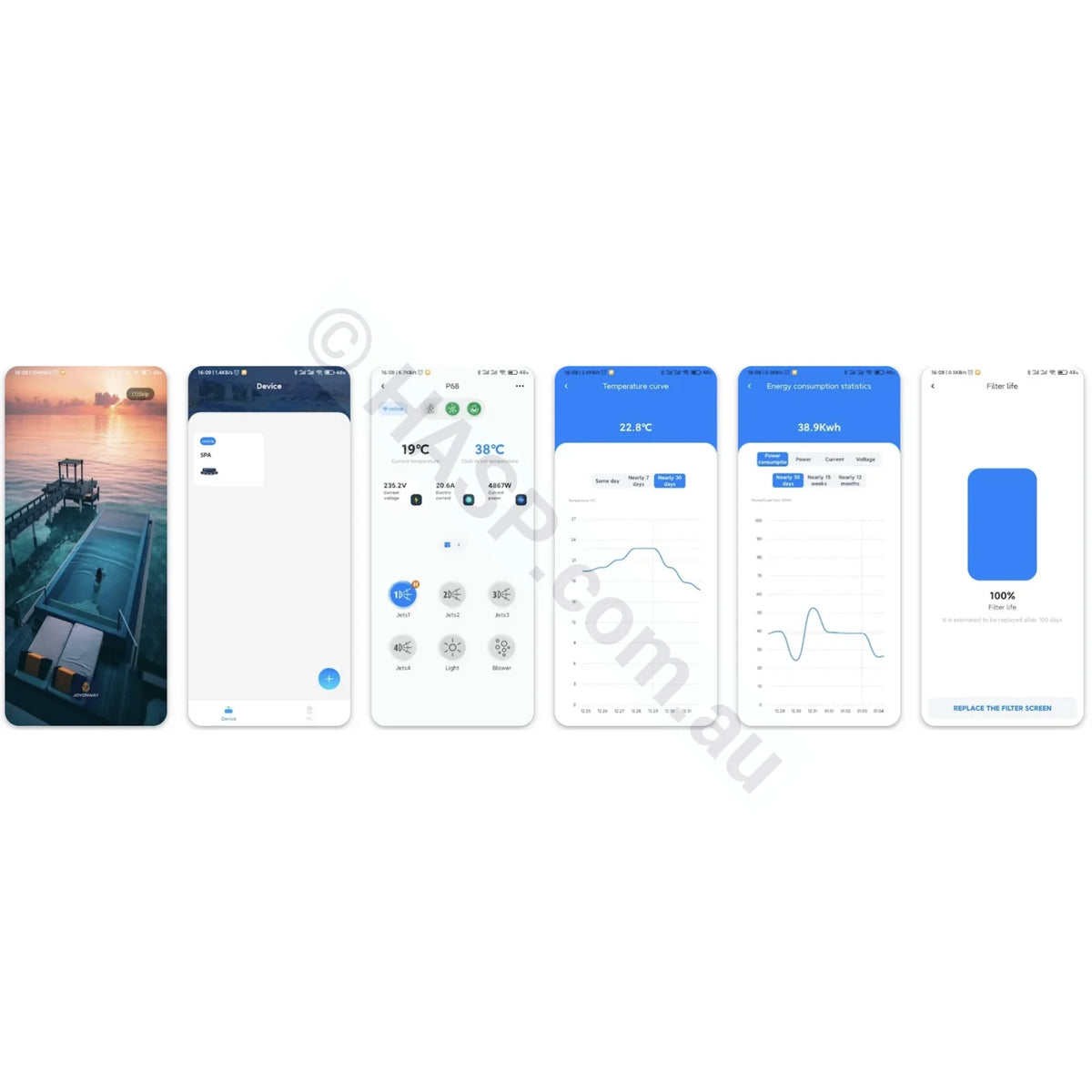

Built-in Wi-Fi: The integrated Wi-Fi transceiver allows compatible spa functions to be controlled and monitored from a smartphone App. Adjust spa settings remotely and view real-time energy consumption information.

Download the compatible App from the Apple App Store or Google Play. See the QR code shown in the product images for App download information.

Key Features

Built-in Wi-Fi for smartphone App control
Control and monitor your spa remotely
Real-time energy consumption detection and display
Integrated 2.0kW or 3.0kW spa heater
2.4-inch colour LCD display with 320 × 240 pixel resolution
Capacitive touch controls requiring only a light touch
IPX5 rated control system
Compatible with standard On/Off spa lighting or RGB spa lighting
316L stainless steel heater tube
Incoloy 825 heating element for corrosion resistance
Supports multiple pump and circulation configurations
9-language touchpad display

Wi-Fi & Smartphone App Control

The Joyonway P68B123 includes its Wi-Fi transceiver within the control system, eliminating the need for a separate external Wi-Fi module. Once correctly configured, compatible functions can be accessed through the smartphone App.

The system also provides real-time energy consumption information, allowing spa owners to monitor electrical usage through the controller.

Equipment the P68B123 Can Control

The Joyonway P68B123 can be configured to control:

Jet Pump 1: 2-speed pump
Alternative Pump 1 configuration: 1-speed jet pump plus circulation pump
Auxiliary output: Air blower or Jet Pump 2
Ozone generator
Spa lighting: On/Off or RGB compatible

Important: The controller programming must be correctly configured before connecting any 2-speed pump. Incorrect output configuration can damage connected equipment.

Electrical Specifications

Supply Voltage	220-240V AC
Frequency	50/60Hz
Supply	Single phase
Maximum Supply Rating	15A-32A depending on installation/configuration
Heater	3.0kW or 2.0kW
Jet Pump Output	10A maximum load
Circulation Pump Output	2.5A maximum load
Blower / Jet Pump 2 Output	10A maximum load
Light Output	12V, 1A maximum load

316L Stainless Steel Spa Heater

The integrated 2.0kW or 3.0kW heater uses a 316L stainless steel heater tube with a passive surface treatment for improved corrosion resistance.

Inside the heater is an Incoloy 825 heating element, selected for its corrosion-resistant properties. The element is positioned toward the bottom of the heater tube and faces downward. This design helps keep the element immersed when water flow or water level through the heater tube is reduced, helping reduce the possibility of dry firing.

Colour Capacitive Touchpad

The supplied spa touchpad uses capacitive touch controls rather than conventional mechanical push buttons. Only a light touch is required to operate the controls.

The 2.4-inch colour LCD screen has a resolution of 320 × 240 pixels and supports nine display languages:

English
French
German
Spanish
Portuguese
Swedish
Norwegian
Finnish
Dutch

Dimensions

Spa Control Pack	380mm wide × 205mm high × 100mm deep
Touchpad	188mm × 77mm
Touchpad Height Above Spa Shell	Approximately 7mm
Required Touchpad Cut-Out	167mm × 58mm with rounded ends
Touchpad Lead	1800mm

Installation & Configuration

This is a configurable spa control system and must be set up to suit the pumps, circulation system, lighting and other equipment connected to the spa.

Do not connect a 2-speed pump until the controller has been programmed for the correct pump configuration. The electrical supply, controller configuration and connected equipment must all be suitable for the installation.

Electrical installation and connection must be carried out by a suitably licensed electrician in accordance with applicable Australian electrical requirements.

Before Ordering

Please ensure the Joyonway P68B123 is suitable for your spa's electrical supply, pump configuration, equipment loads, touchpad cut-out and installation requirements before ordering. Do not select a replacement spa controller solely by appearance or physical dimensions.

To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.

This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.

Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.

Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.

Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:

Imperial Name	Metric Name	Pipe Diameter (OD)
1/2"	15mm	~21.2–21.5 mm
3/4"	20mm	~26.6–26.9 mm
1"	25 mm	~33.4–33.7 mm
1.5"	40 mm	~48.1–48.4 mm
2"	50 mm	~60.2–60.8 mm
2.5"	65 mm	~75.2–75.5 mm

To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions^1.

º Internal diameters vary slightly by manufacturer and class.
¹ Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.

Understanding Plumbing Sizes & Nominal Measurements

Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.

Quick example: A 2" / 50 mm fitting is named for the pipe it connects to, but the pipe’s actual outside diameter (OD) is approx. 60.3 mm (typically ~60.2–60.5 mm in AS/NZ pressure pipe).

Another example: a 2” / 50mm o-ring may refer to a barrel union, etc that suits 50mm pipe. Eg: a “50mm Balboa Gasket” refers to a heater gasket that measure 74mm across, but suits a Balboa barrel union made for 50mm pipe (and the 50mm pipe does not measure 50mm either!)

Why pipe sizes don’t match the measurements

The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.

Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.

How to Measure Pipe Correctly

Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).

Important: For pool/spa work, most plumbing uses Pressure Pipe (AS/NZ standards) — not DWV. Always check OD and the pipe class against your equipment specifications.

Hose & Tube Dimensions

Common flexible hose sizes used in pool/spa systems (approximate IDs).

Imperial Name	Metric Name	Inside Diameter (ID)
3/8"	9–10 mm	~9 mm
3/4"	19 mm	~19 mm

BSP – British Standard Pipe Thread Sizes

BSP thread names are also nominal. The thread OD will not equal the nominal name.

BSP Thread Size Naming	Outside Diameter (mm / inch)	TPI
1/16" BSP	7.7 mm / 0.304"	28
1/8" BSP	9.7 mm / 0.383"	28
1/4" BSP	13.16 mm / 0.518"	19
3/8" BSP	16.66 mm / 0.656"	19
1/2" BSP / 15 mm	20.99 mm / 0.825"	14
5/8" BSP	22.99 mm / 0.902"	14
3/4" BSP / 20 mm	26.44 mm / 1.041"	14
7/8" BSP	30.20 mm / 1.189"	14
1" BSP / 25 mm	33.25 mm / 1.309"	11
1-1/4" BSP	41.91 mm / 1.650"	11
1-1/2" BSP / 40 mm	47.80 mm / 1.882"	11
2" BSP / 50 mm	59.61 mm / 2.347"	11
2-1/4" BSP	65.71 mm / 2.587"	11
2-1/2" BSP	75.18 mm / 2.960"	11
3" BSP	87.88 mm / 3.460"	11
4" BSP	113.03 mm / 4.450"	11
5" BSP	138.43 mm / 5.450"	11
6" BSP	163.83 mm / 6.450"	11
