Spa Power 1000 Replacement Kit #1 - 1.5/2.0/3.0kw Heaters

FREE SHIPPING OVER $149 (T&Cs)

$1,671.00

Tax included Shipping calculated at checkout.

SpaNET Mini 2 - SV Spa Control System and Wifi Option - SV Mini 2 (Model)

1.5kW - SpaNET Mini 2 SV 2.0kW - SpaNET Mini 2 SV 3.0kW - SpaNET Mini 2 SV

Don't Guess - Ask Us!

Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.

Delivery and Shipping Info

Free Shipping over $149 for most products. Choose Express Post where available for fastest shipping!

Free, Flat Rate & Express Post Shipping Information.

Warranty Information

Warranty Information Here

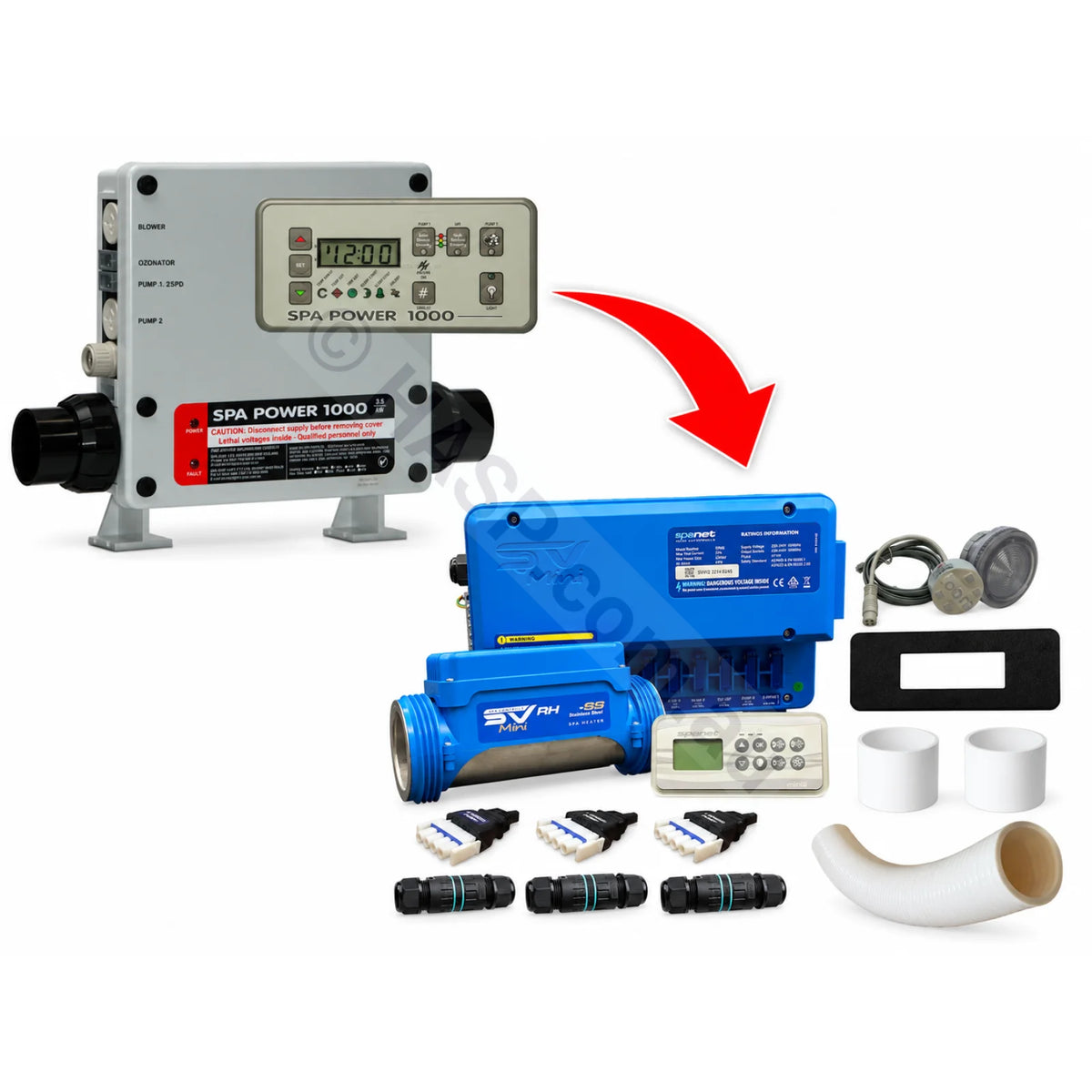

SpaQuip SP1000 Replacement Control Kit

A basic replacement kit for obsolete SpaQuip SP1000 control systems originally fitted with heaters up to 3.5 kW. Note: If your existing system has a 4.0-6.0 kW heater, this kit can still be used, however the supplied heater has a lower output and heating times will be slower. If you require higher-output heating, please contact us for suitable replacement options.

Kit Includes

SpaNET Mini SV2 control system
Touchpad Fascia to cover old touchpad hole
Touchpad
Heater
LED colour-changing Spa light - 2.5"
1x 2-speed AMP cable + 2x 1-speed AMP cables -- for pumps, blower, etc
IP68 cord adaptors
50mm plumbing couplings
400mm 50mm Spaflex flexible PVC

In some installations, additional plumbing fittings or components may be required. The supplied light may also need to be fitted or adapted to suit the existing spa.

Important Installation Information

There is no like-for-like replacement available for the obsolete SpaQuip SP1000 system. Plumbing and electrical modifications will be required when converting to the SpaNET system.

This is one of the most common replacement systems used by spa technicians when replacing obsolete SpaQuip SP1000 equipment.

Installation must be carried out by a suitably qualified person, such as a licensed electrician.

To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.

This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.

Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.

Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.

Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:

Imperial Name	Metric Name	Pipe Diameter (OD)
1/2"	15mm	~21.2–21.5 mm
3/4"	20mm	~26.6–26.9 mm
1"	25 mm	~33.4–33.7 mm
1.5"	40 mm	~48.1–48.4 mm
2"	50 mm	~60.2–60.8 mm
2.5"	65 mm	~75.2–75.5 mm

To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions^1.

º Internal diameters vary slightly by manufacturer and class.
¹ Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.

Understanding Plumbing Sizes & Nominal Measurements

Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.

Quick example: A 2" / 50 mm fitting is named for the pipe it connects to, but the pipe’s actual outside diameter (OD) is approx. 60.3 mm (typically ~60.2–60.5 mm in AS/NZ pressure pipe).

Another example: a 2” / 50mm o-ring may refer to a barrel union, etc that suits 50mm pipe. Eg: a “50mm Balboa Gasket” refers to a heater gasket that measure 74mm across, but suits a Balboa barrel union made for 50mm pipe (and the 50mm pipe does not measure 50mm either!)

Why pipe sizes don’t match the measurements

The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.

Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.

How to Measure Pipe Correctly

Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).

Important: For pool/spa work, most plumbing uses Pressure Pipe (AS/NZ standards) — not DWV. Always check OD and the pipe class against your equipment specifications.

Hose & Tube Dimensions

Common flexible hose sizes used in pool/spa systems (approximate IDs).

Imperial Name	Metric Name	Inside Diameter (ID)
3/8"	9–10 mm	~9 mm
3/4"	19 mm	~19 mm

BSP – British Standard Pipe Thread Sizes

BSP thread names are also nominal. The thread OD will not equal the nominal name.

BSP Thread Size Naming	Outside Diameter (mm / inch)	TPI
1/16" BSP	7.7 mm / 0.304"	28
1/8" BSP	9.7 mm / 0.383"	28
1/4" BSP	13.16 mm / 0.518"	19
3/8" BSP	16.66 mm / 0.656"	19
1/2" BSP / 15 mm	20.99 mm / 0.825"	14
5/8" BSP	22.99 mm / 0.902"	14
3/4" BSP / 20 mm	26.44 mm / 1.041"	14
7/8" BSP	30.20 mm / 1.189"	14
1" BSP / 25 mm	33.25 mm / 1.309"	11
1-1/4" BSP	41.91 mm / 1.650"	11
1-1/2" BSP / 40 mm	47.80 mm / 1.882"	11
2" BSP / 50 mm	59.61 mm / 2.347"	11
2-1/4" BSP	65.71 mm / 2.587"	11
2-1/2" BSP	75.18 mm / 2.960"	11
3" BSP	87.88 mm / 3.460"	11
4" BSP	113.03 mm / 4.450"	11
5" BSP	138.43 mm / 5.450"	11
6" BSP	163.83 mm / 6.450"	11
