Astralpool Colour Display Screen for Inverter Heat Pumps 95005-310565
Astralpool Colour Display Screen for Inverter Heat Pumps 95005-310565 is temporarily out of stock and will ship as soon as it's available.

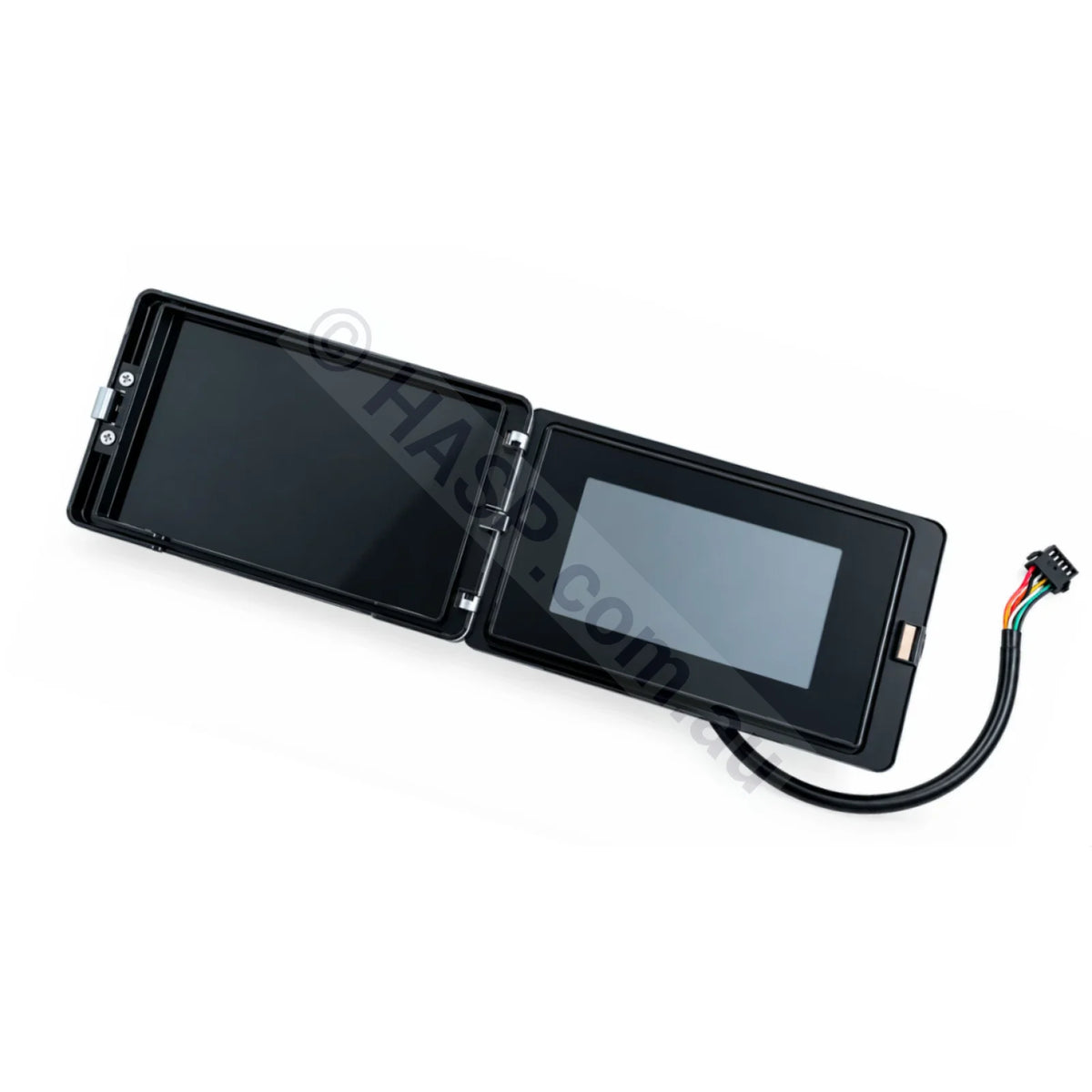

Genuine Astralpool colour display screen for inverter heat pumps — the front control panel used to set water temperature, select heating, cooling or auto mode, run the timers, and read operating status and fault codes.
Part Number: 95005-310565
- Brand: Astralpool (Fluidra)
- Part type: Heat pump colour display / control panel — genuine replacement
Used On
Fitted to Astralpool inverter heat pumps. Astralpool uses more than one colour display across the inverter range — other codes such as 95005-310500 and 95005-310569 appear in the spare parts diagrams for other models — so "colour display" on its own does not identify the part, and the same screen may be used on several heat pumps.
Order this listing only if your existing screen carries part number 95005-310565.
Check The Number On The Back Of Your Existing Display
Remove your existing display and read the part number printed on the back:
- If it reads 95005-310565, this is the correct part.
- If it reads anything else, send us a photo of the label along with your heat pump model and serial number, and we will identify it.
If you cannot get to the back of the screen, send us photos of the heat pump's rating plate and the front of the display and we will confirm before you order.
Common Reasons For Replacement
- Blank, dead or partially lit screen
- Faded, discoloured or delaminating LCD
- Unresponsive or intermittent touch keys
- Communication fault between the display and the main control board
- Water ingress or corrosion behind the panel
The display and the main control board are separate parts. Confirm which has failed before ordering — a fault shown on the screen is not always a fault in the screen.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Manufacturer Catalogues, Diagrams & Part Numbers: Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogue below.
Important Before Ordering
Please ensure you are ordering correctly. Confirm this part is suitable before you order: read the part number from the component you are replacing, check it against the manufacturer catalogue above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels.
You will need a suitably qualified and experienced person to fit this part. In some cases a manufacturer-trained technician is required to diagnose and install it. Heat pump electronics are easily damaged by incorrect wiring, incorrect settings, or an underlying fault that has not been diagnosed, and damage caused this way is not covered by warranty.
These parts cannot be exchanged or returned for change of mind.
This is a special-order item.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
