Saltmate Self Clean PCB for RP20, RP30, RP40
Saltmate Self Clean PCB for RP20, RP30, RP40 is temporarily out of stock and will ship as soon as it's available.
Saltmate Self Clean PCB - also suits Saltmate-rebrands.

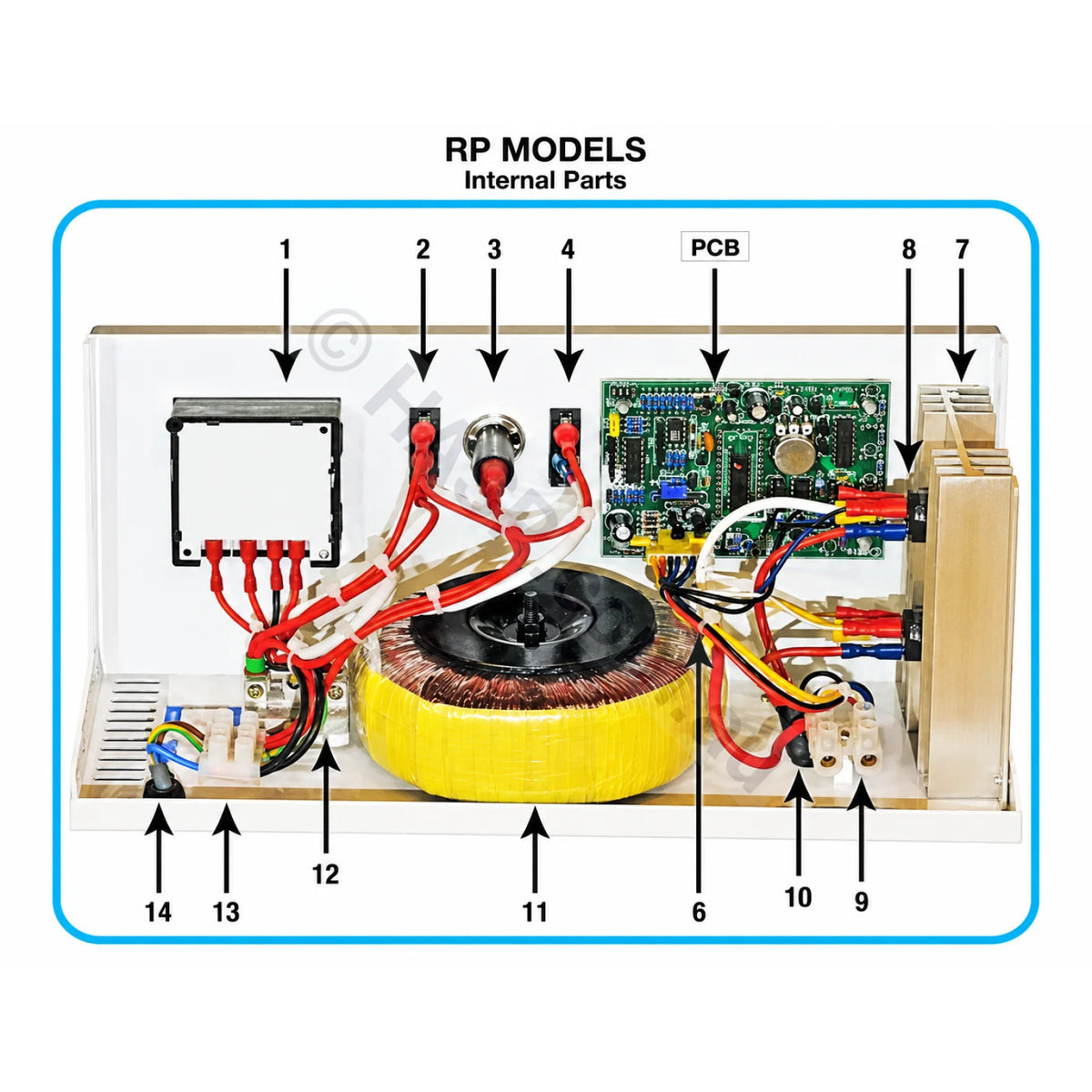

Genuine Saltmate Self Clean PCB, part number SM0102 - the replacement printed circuit board for the Saltmate RP Deluxe Auto-Clean series chlorinator powerpack. As well as chlorine output, the timeclock and the safety circuits, this board drives the reverse-polarity self-cleaning cycle that keeps calcium off the cell plates. Supplied as a populated, tested board. Made in Australia.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Compatibility List
This part fits the following Saltmate models:
- Saltmate RP20
- Saltmate RP30
- Saltmate RP40
How to Identify Your Board
- Confirm the unit is self-cleaning. This board is only used where the chlorinator reverses polarity to clean the cell automatically.

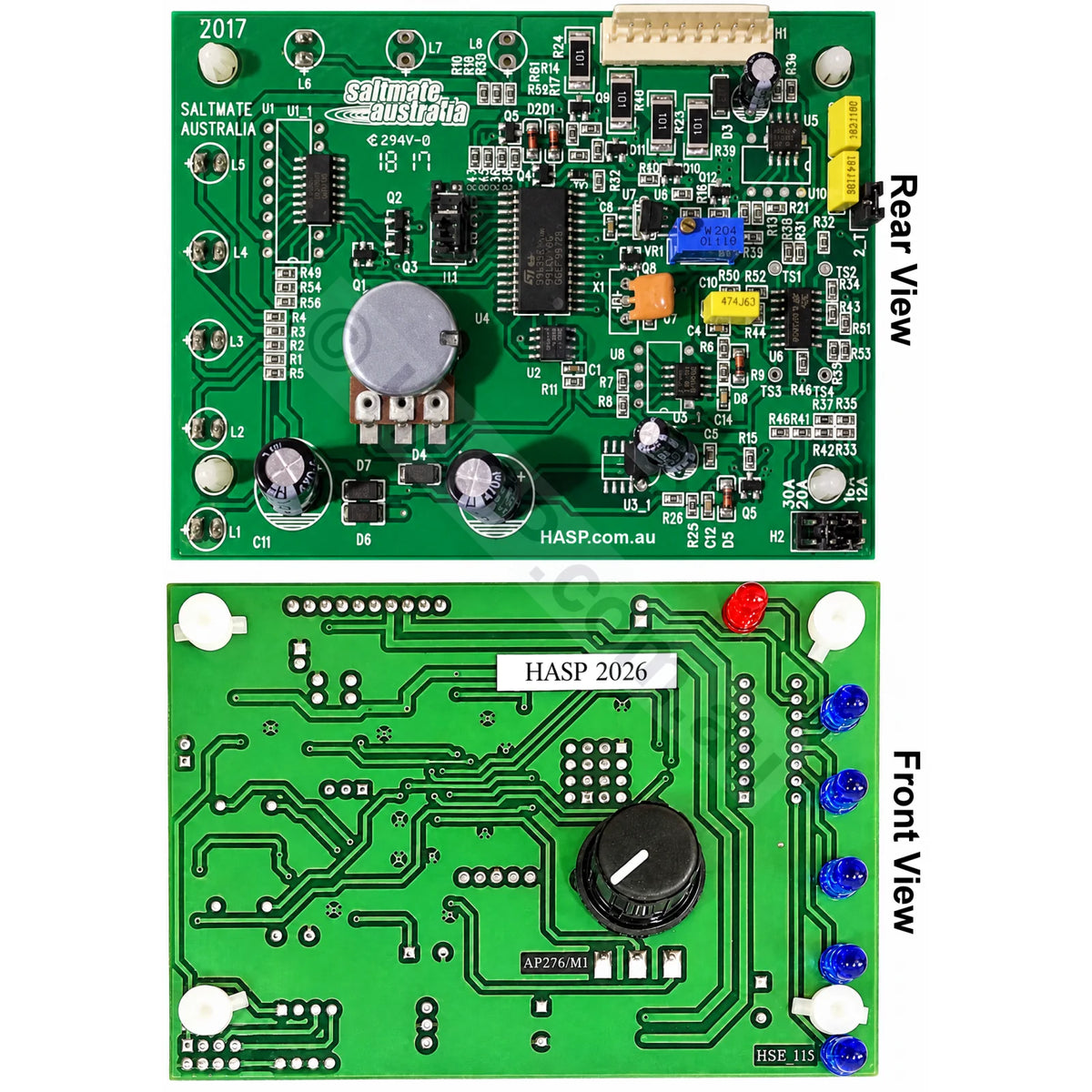

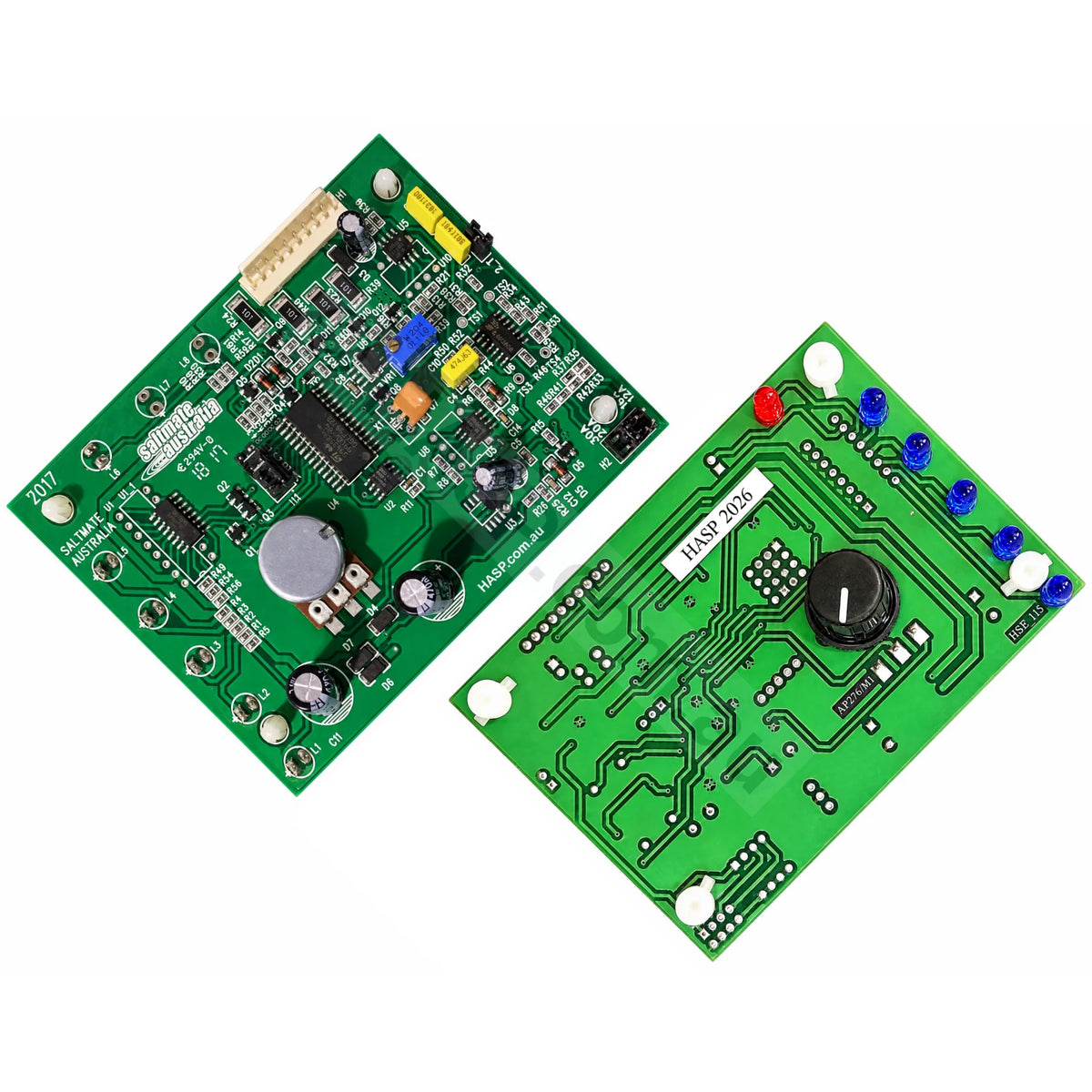

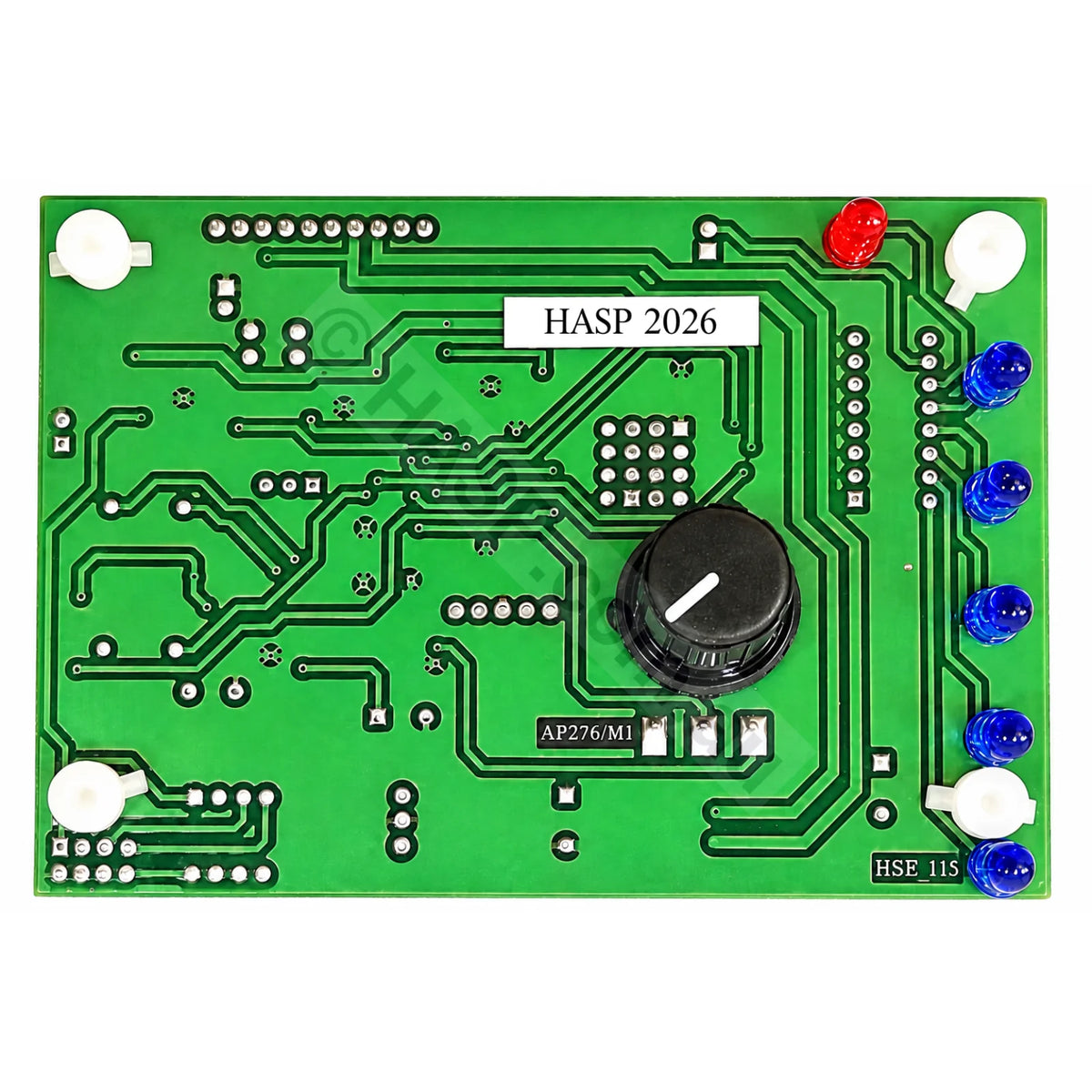

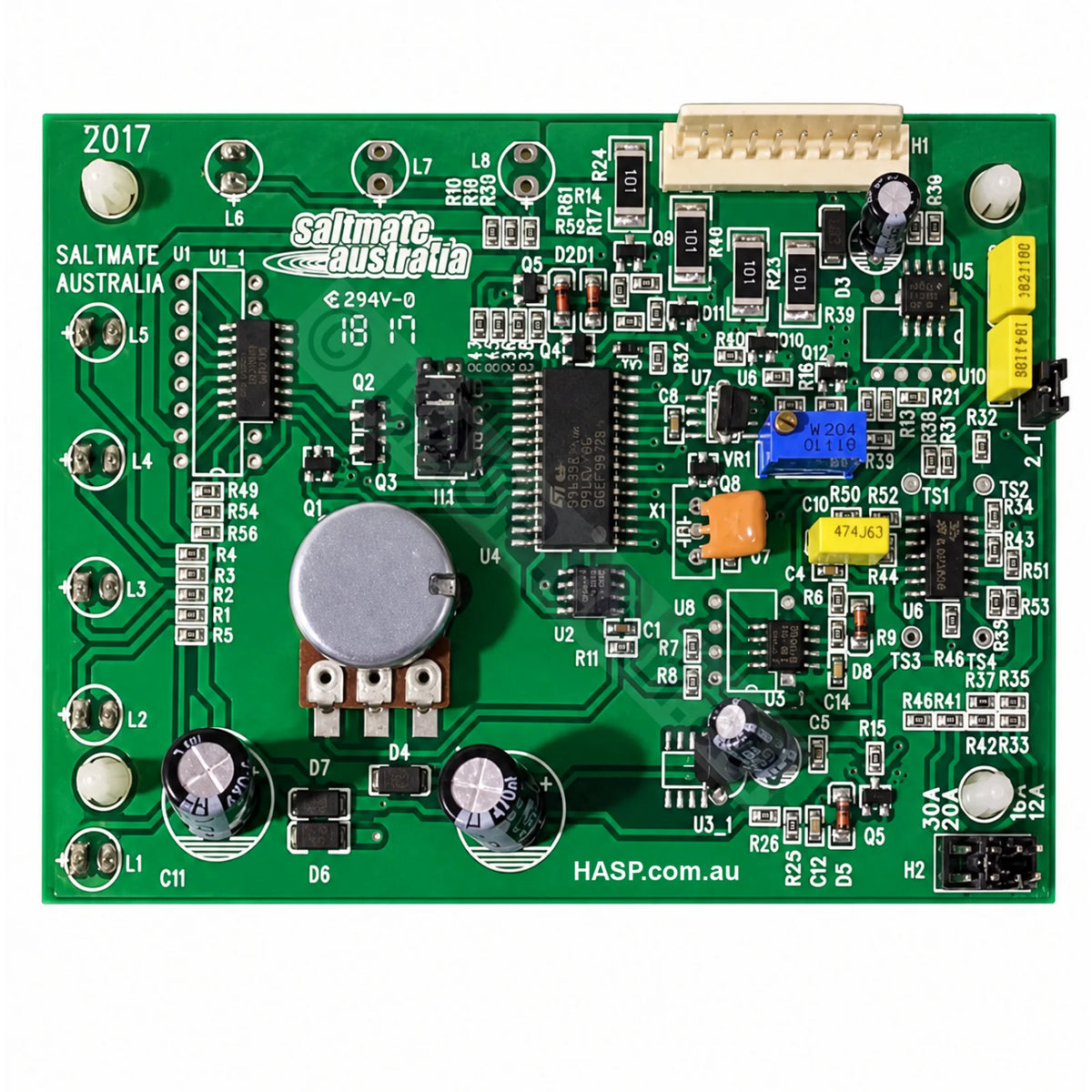

- Compare PCB to yours.
Supplied as Board Only
This is the populated, tested printed circuit board only. Cables, the transformer, the cell and the housing are not included. Reuse the loom from your existing powerpack, and replace any cable that is heat-damaged or corroded rather than refitting it.
Installation - To be installed by a qualified person only.
Ensure dip switches and/or jumper plugs are set the same as your existing PCB, or contact us with your model number to set.
Handle with care during replacement to avoid static discharge or damage to connectors.
Please Note - Consumable Item
Saltmate classes printed circuit boards as consumable items. Because a board can be damaged instantly by incorrect installation, incorrect polarity or an underlying fault that has not been diagnosed, PCBs are supplied on the basis that they are correctly identified and professionally fitted. Confirm the diagnosis and the model before you order.
Before You Order
- Read the model badge on your Saltmate powerpack and match it to the list above
- Compare your existing part against the product photos
- Confirm the fault has been correctly diagnosed - salt level and cell condition should be checked first
- If anything does not match, send us photos of the powerpack, the model label and the existing part and we will confirm it before you buy
Common search terms: Saltmate self clean PCB, Saltmate SM0102, SM0102 PCB, Saltmate RP PCB, RP20 PCB, RP30 PCB, Saltmate reverse polarity board, Saltmate auto clean circuit board, Saltmate self cleaning chlorinator board, Saltmate spare parts, WWDG SpaPro.
Manufacturer Manual & Documentation
Need wiring details, operating instructions, fault codes or full specifications? See the Saltmate operating manual (covers Auto-Clean, Standard and Pool Light models) and the Saltmate specification tables.
Before ordering: confirm this part is correct for your equipment. Check the model badge on your powerpack, seek professional assistance, or contact us with photos of your existing unit, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person. Electrical work must be carried out by a licensed electrician.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
