Saltmate SMT120 Chlorinator Complete

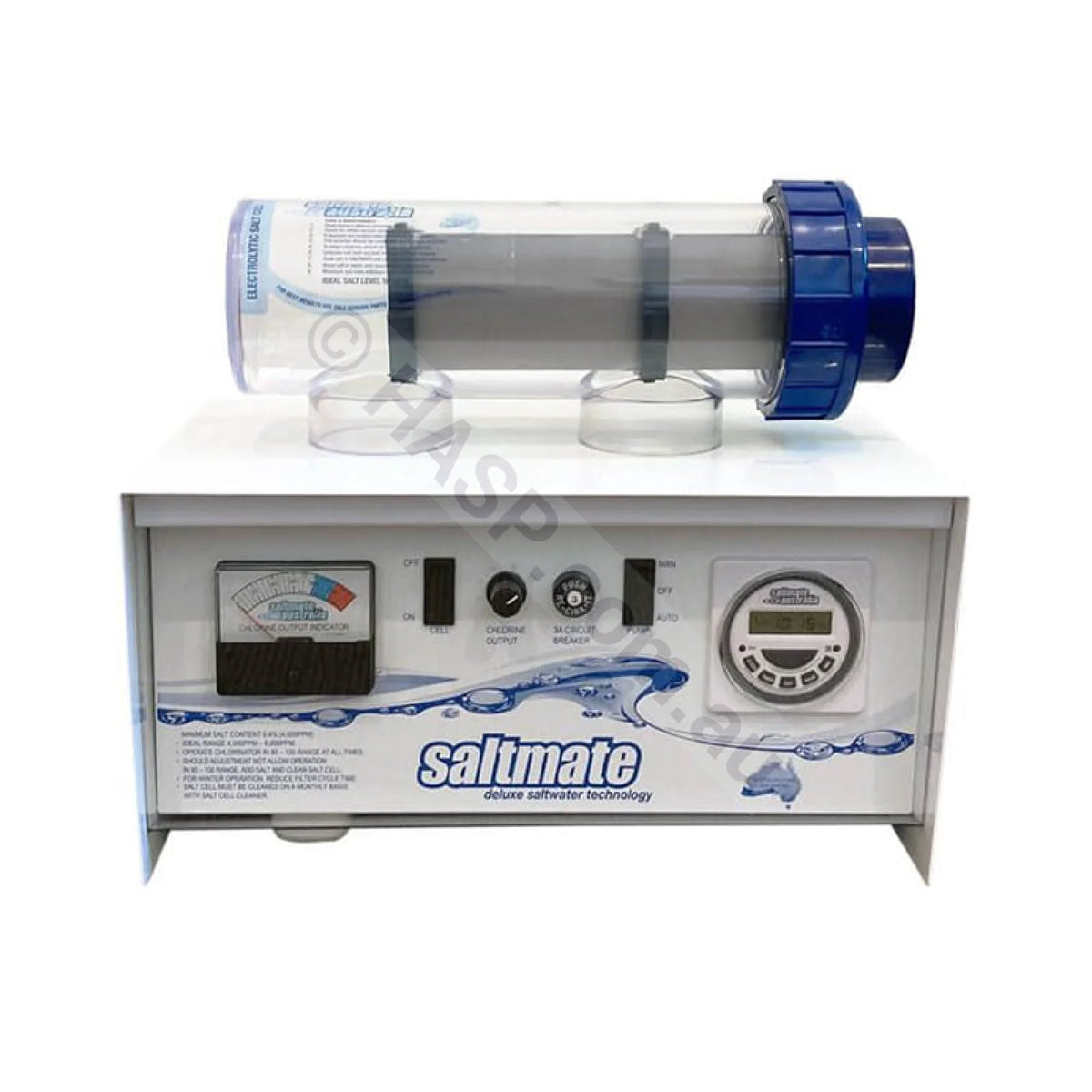

The Saltmate SMT120 is a complete Australian-made saltwater chlorinator from the Deluxe Standard range, supplied as a full unit with powerpack, electrolytic cell and cell housing. It produces 28g/hr of chlorine and suits pools up to 80,000 litres. Saltmate Australia has manufactured saltwater chlorination equipment in Australia since 1988.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Specifications
- Model: Saltmate SMT120
- Series: Deluxe Standard
- Chlorine output: 28g/hr
- Maximum pool size: Up to 80,000 litres
- Cell cleaning: Manual cell cleaning
- Plumbing: Suits 40mm and 50mm pressure pipe
- Power input: 240V, 50Hz
- Casing: Water-resistant, IP34 rated
- Timeclock: Digital, with battery backup
- Salt compatibility: Standard salt and mineral salt blends
- Country of manufacture: Australia
Features
- Automatic saltwater chlorination
- Compatible with both traditional salt and mineral salt blends
- Digital timeclock with battery backup
- Adjustable chlorine control
- Chlorine output monitor
- Solid-plate electrolytic cell with high flow rate design
- Water-resistant casing, IP34 rated
- Over-salt protection and overload protection
- Resettable circuit breaker
- Cell safety gas trap
- Cell on/off control
- Flow-sensitive safety switch
- Optional pool light transformer
- Designed and manufactured in Australia
The 5000 ppm Rule (rev. SALT-1.0)
Salt level is what determines how long a Saltmate cell lasts. Before you replace a cell or a powerpack, work through this:
- Test the salt level before adjusting anything. Take a water sample to a pool shop or use a reliable salt test. Saltmate's ideal operating range is 5000-6000 ppm.
- Never run below 4000 ppm. Running a Saltmate chlorinator with less than 4000 ppm of salt in the pool will destroy the electrolytic cell. Low salt is the single most common cause of premature cell failure and is not covered as a manufacturing fault.
- Top up salt before increasing the output dial. If chlorine production has dropped, check salt level and cell condition first. Winding the output up on a low-salt pool accelerates cell damage rather than fixing it.
- Re-test after heavy rain, backwashing or topping up. Dilution drops salt concentration. Re-test seasonally and after any significant water change, and do not neglect testing through winter.
What's Included
- 1 x Saltmate SMT120 powerpack with digital timeclock and battery backup
- 1 x Saltmate SMT120 electrolytic cell
- 1 x clear cell housing with unions to suit 40mm / 50mm pressure pipe
Replacement Cell for This Model
The electrolytic cell is a consumable and will need replacing periodically. The replacement cell for this unit is the Saltmate SMT120 Replacement Cell - search our site for "Saltmate SMT120 Replacement Cell" rather than replacing the whole chlorinator.
Warranty
Saltmate chlorinators are covered by the manufacturer's express warranty: 2 years full warranty on the powerpack and electrolytic cell, followed by a further 3 years pro rata warranty on the electrolytic cell. Warranty is provided by Saltmate Australia Pty Ltd. Cell damage caused by running below 4000 ppm salt, incorrect installation or chemical imbalance is not a manufacturing fault.
Frequently Asked Questions
What size pool does the Saltmate SMT120 suit?
Up to 80,000 litres, producing 28g/hr of chlorine.
Is the SMT120 self-cleaning?
No. The Standard SMT range uses a manual-clean cell. If you want self-cleaning, look at the Saltmate RP Auto-Clean range.
What salt level does it need?
The ideal range is 5000-6000 ppm. Never run it below 4000 ppm - doing so will destroy the electrolytic cell.
Will it work with mineral salts?
Yes. Saltmate chlorinators are compatible with both traditional pool salt and mineral salt blends.
What pipe size does it plumb into?
The cell housing suits 40mm and 50mm pressure PVC pipe.
Do I need an electrician to install it?
The chlorinator plugs into a suitable outlet, but any hard wiring or new circuit work must be done by a licensed electrician. Plumbing should be done by a competent person.
Common search terms: Saltmate SMT120, Saltmate SMT120 chlorinator, Saltmate SMT120 complete, salt water chlorinator 28g/hr, Saltmate SMT120 powerpack, Australian made salt chlorinator, WWDG SpaPro.
Manufacturer Manual & Documentation
Need wiring details, operating instructions, fault codes or full specifications? See the Saltmate operating manual (covers Auto-Clean, Standard and Pool Light models) and the Saltmate specification tables.
Before ordering: confirm this part is correct for your equipment. Check the model badge on your powerpack, seek professional assistance, or contact us with photos of your existing unit, model details, serial numbers and any labels. As with all products, this must be diagnosed and fitted by a qualified and experienced person. Electrical work must be carried out by a licensed electrician.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
