Waterco Vac Plate (Vacuum Plate)
Waterco Vac Plate (Vacuum Plate) is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info
Delivery and Shipping Info
Free Shipping over $149 for most products. Choose Express Post where available for fastest shipping!
Warranty Information
Warranty Information
Waterco Vac Plate (Vacuum Plate)
Waterco Vac Plate (Vacuum Plate) is temporarily out of stock and will ship as soon as it's available.
Waterco Vac Plate (Vacuum Plate)
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

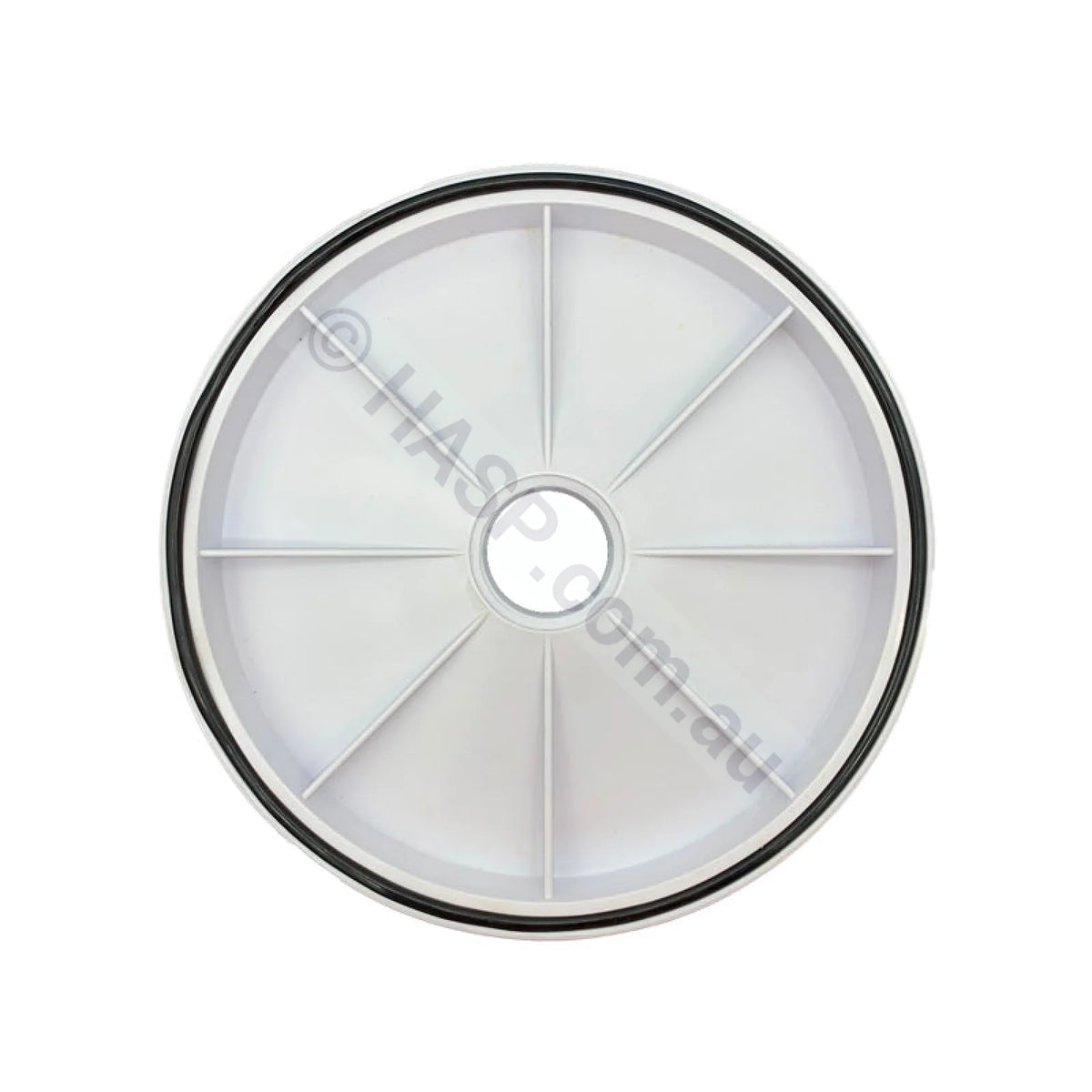

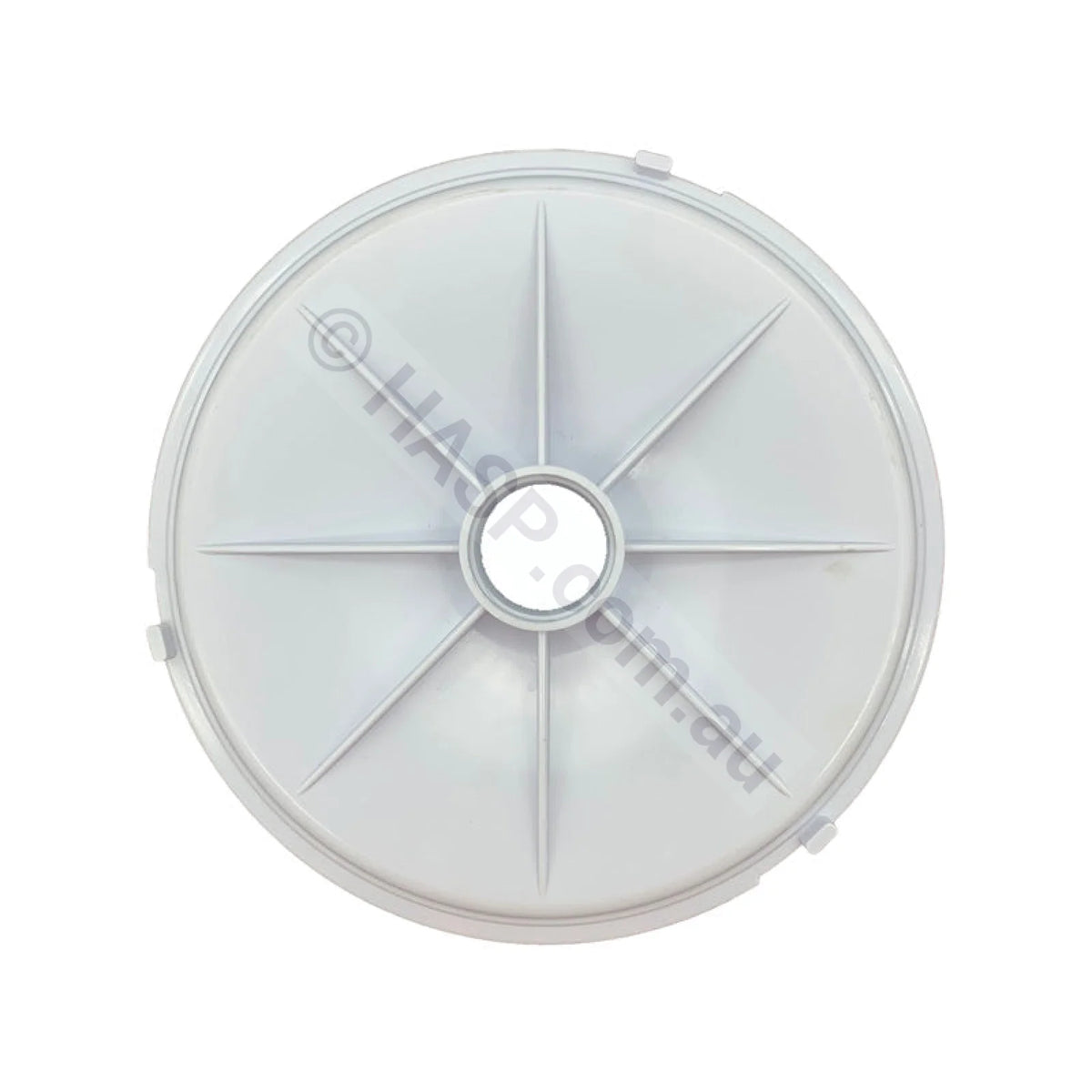

Vac plate (vacuum plate) to suit the Waterco S75 skimmer box, both the earlier press-fit S75 and the S75 MK2 lock-down, and the Fulflo and Nally skimmers that share the same plate. The three lugs locate on the lugs inside the skimmer body and a quarter turn locks the plate down over the basket. Approx. 270 to 275mm across (suppliers quote this pattern between those figures) with a threaded centre port for the vacuum hose; Waterco specifies a standard 40mm (1 1/2 inch) male threaded plug to blank the port when not vacuuming. Equivalent to the Waterco 62408 three-lug vacuum plate.
Check before ordering: count the lugs on the old plate. Four lugs means the Waterco Supaskimmer lock-down plate (Waterco 624084), which is a different part. The O-ring for the S75 plate is Waterco 62468.
Product details
- Product: Waterco Vac Plate (Vacuum Plate)
- Part number: PA-523
- Type: skimmer box vac plate (vacuum plate)
- Diameter: approx. 270 to 275mm
- Lugs: 3 lock-down lugs, quarter-turn fit
- Centre port: threaded; takes a standard 40mm (1 1/2 inch) male threaded plug
- Fits: Waterco S75 (press-fit and MK2 lock-down), Fulflo and Nally skimmer boxes
- Not for: Waterco Supaskimmer (4-lug plate, Waterco 624084)
- O-ring part number: Waterco 62468
- Cross reference: Waterco 62408, HABCO H523
See the full range of pool vac plates (vacuum plates).
Confirm product is correct before ordering. Contact us if unsure.
Common search terms: Waterco vac plate, Waterco vacuum plate, Waterco S75 vac plate, S75 MK2 vacuum plate, Nally vac plate, Fulflo vacuum plate, Waterco 62408, 3 lug vacuum plate, 270mm vac plate, 275mm vac plate, pa-523, WWDG SpaPro.
