Latch Assembly for Quiptron Vac Plate (Vacuum Plate)
Latch Assembly for Quiptron Vac Plate (Vacuum Plate) is temporarily out of stock and will ship as soon as it's available.
Latch Assembly for Quiptron Vac Plate (Vacuum Plate)
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

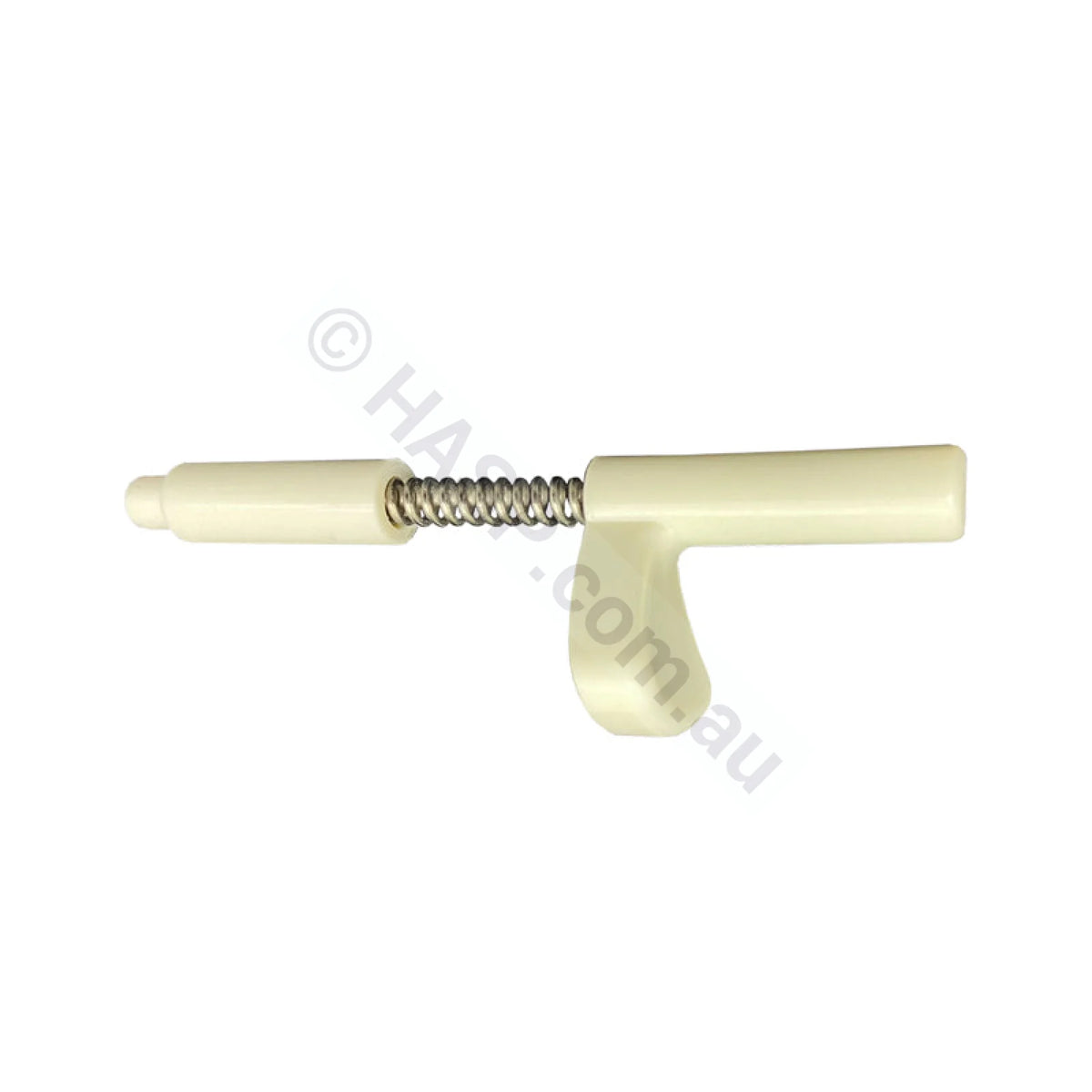

Spring-loaded latch assembly for the Quiptron skimmer vac plate (vacuum plate) and the Quiptron spring-loaded weir door. The Quiptron plate locks into the skimmer with a fixed pin on one side and this spring latch on the other, which stops the plate lifting or twisting when the vacuum hose pulls on it. The same latch is used on the Quiptron weir door. Stainless steel spring. Equivalent to the Pentair / Onga Quiptron latch assembly 5315400. Suits the Quiptron Vac Plate PA-514.
Check before ordering: this latch is for the Quiptron (Pentair / Onga) skimmer vac plate and weir door. Confirm your plate is the Quiptron pattern, with a fixed pin on one side and a spring latch on the other, before ordering.
Product details
- Product: Latch Assembly for Quiptron Vac Plate (Vacuum Plate)
- Part number: PA-518
- Type: spring-loaded latch assembly for vac plate (vacuum plate) and weir door
- Spring: stainless steel
- Fits: Quiptron (Pentair / Onga) skimmer vac plate and weir door
- Cross reference: Pentair / Onga 5315400 latch assembly, HABCO H518
See the full range of pool vac plates (vacuum plates).
Confirm product is correct before ordering. Contact us if unsure.
Common search terms: Quiptron vac plate latch, Quiptron vacuum plate latch assembly, Quiptron latch clip, Quiptron spring latch, Quiptron weir door latch, Quiptron lock pin, Onga 5315400, Pentair Quiptron latch, pa-518, WWDG SpaPro.
