85mm - Balboa / Pentair Micro Cyclone Jet - Twin Roto Pulse - Large Face - Obsolete (No Longer Available)

85mm - Balboa / Pentair Micro Cyclone Jet - Twin Roto Pulse - Large Face - Obsolete (No Longer Available)

Obsolete - Other Balboa / Pentair Micro Cyclone jets are listed here (interchangeable).

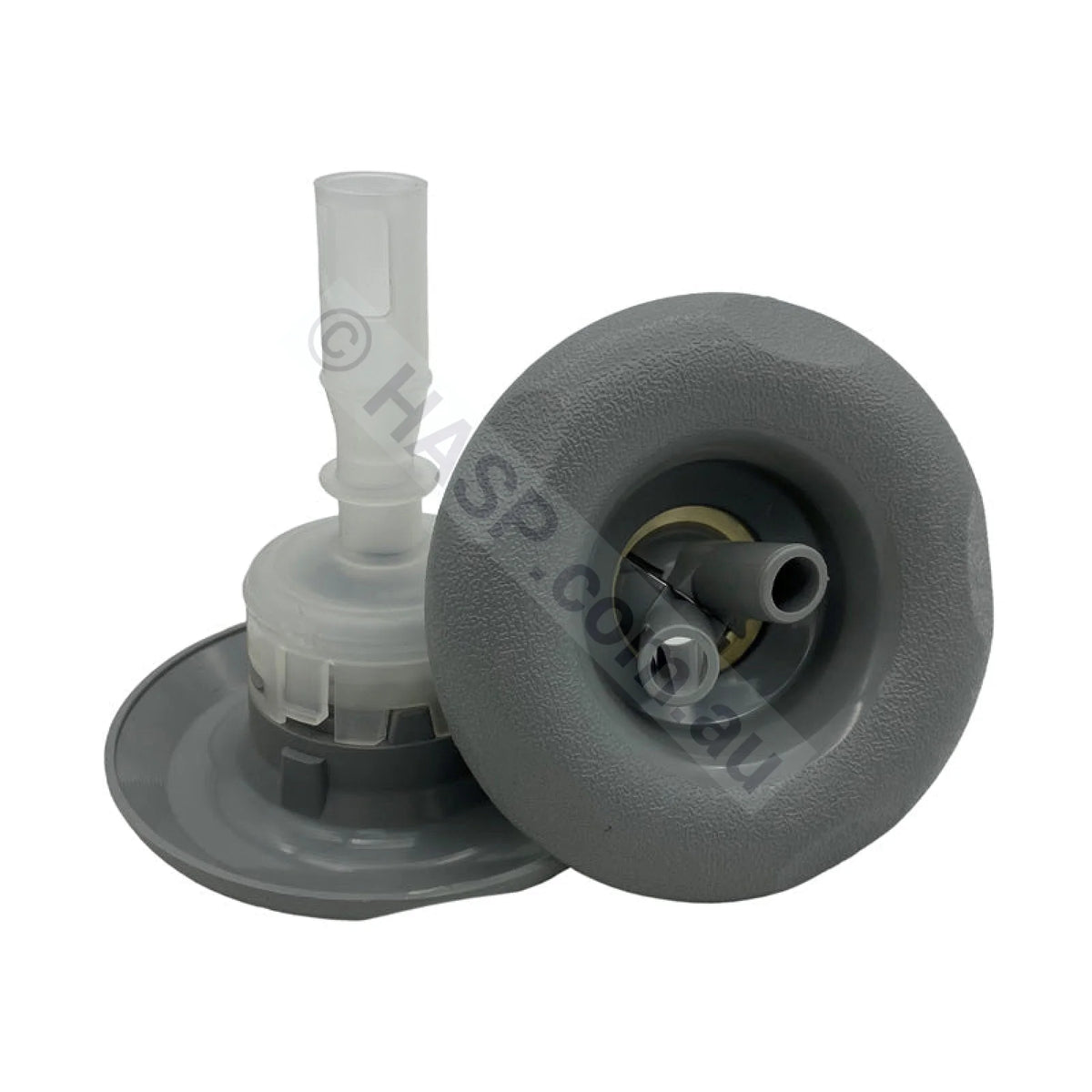

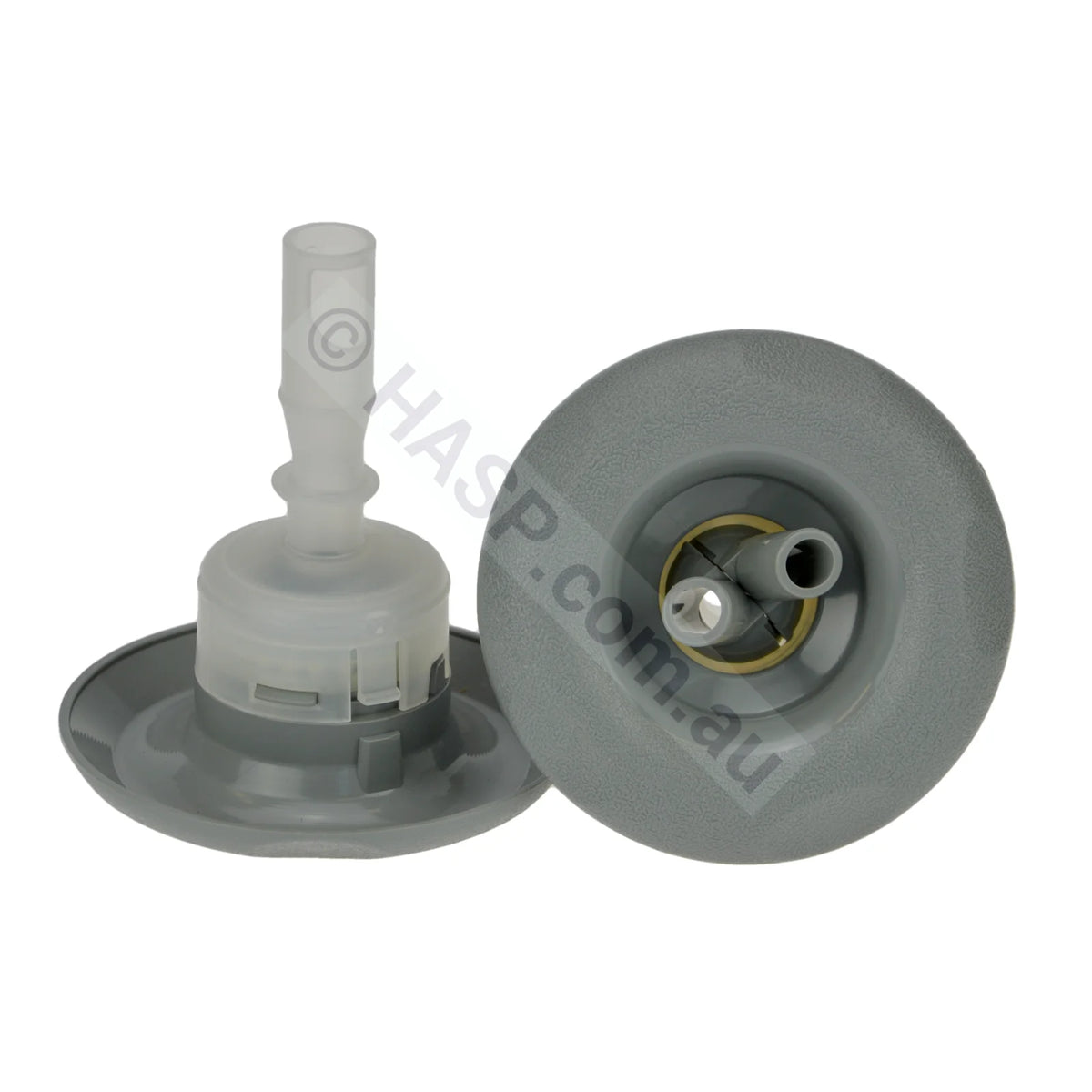

Balboa / Pentair Micro Cyclone spa jet with a 85mm face, approx 90mm long. Large face. Twin roto pulse, gray. Common on LA Spas, Monarch Spas and Maax Spas, among others.

Specifications

• Range: Balboa / Pentair Micro Cyclone
• Face diameter: 85mm (large face)
• Length: Approx 90mm
• Nozzle: Twin roto pulse
• Face: Large face, gray
• Supplied as: Jet internal only, jet body not included
• Part number: B-9650WW

The Face-Size Rule (rev. JET-1.0)

Balboa / Pentair Cyclone jets come in three sizes that do not swap between each other. Identify yours before ordering:

1. Measure the face. Measure straight across the outside face of the jet you are replacing, not the hole in the spa shell.
2. Match the face to the range. About 75mm, or about 85mm on large face versions, is Micro Cyclone. About 90mm, or about 108mm on large face versions, is Luxury Cyclone. About 125-127mm is Cyclone.
3. Pick the nozzle style. Directional is a fixed, aimable nozzle. Roto or Roto Swirl spins. Twin Roto Pulse, Dual Pulse and Twin Spin use twin rotating nozzles for a pulsing massage.
4. Rule out lookalikes. Hurricane jets used in Spa Industries built spas look similar at 125mm but are a different range. If you are unsure, send us a photo of the face and the back of the jet.

Before You Order

• Measure the face diameter of your existing jet and compare it with the specifications above
• Compare your existing jet against the product photos
• If the jet body in the spa shell is cracked or leaking, the Balboa / Pentair Micro Cyclone Jet Body is listed separately
• If you are unsure, contact us with photos of the jet face, the back of the jet and the spa brand and model

As with all products, this must be diagnosed and fitted by a qualified and experienced person.

Frequently Asked Questions

Will this fit my spa?
It suits spas fitted with Balboa / Pentair Micro Cyclone jets with a face of about 85mm. These are common on LA Spas, Monarch Spas and Maax Spas, among others. Measure your existing jet face to confirm.

What is the difference between 75mm and 85mm Micro Cyclone jets?
The 85mm versions are large face jets. Match the face size of the jet you are replacing.

Can I swap this for a different Micro Cyclone nozzle style?
Yes. Balboa / Pentair Micro Cyclone jets of the same face size fit the same jet body, so you can change between directional, roto and pulse styles.

Is this the same as a Pentair jet?
Pentair spa jets are now manufactured by Balboa. This particular model is no longer available, so choose a current jet from the same range.

Does this include the jet body?
No. This is the jet internal only. The jet body that stays in the spa shell is listed separately.

Common search terms: 85mm - Balboa / Pentair Micro Cyclone Jet - Twin Roto Pulse - Large Face, Balboa / Pentair Micro Cyclone jet, Pentair Micro Cyclone jet, Balboa Micro Cyclone jet, 85mm spa jet, Monarch spa jet, LA Spas jet, Maax spa jet, WWDG SpaPro.

Note: Pentair spa jets are now manufactured by Balboa.
