Madimack InverElite V4 33kW Pool Heat Pump

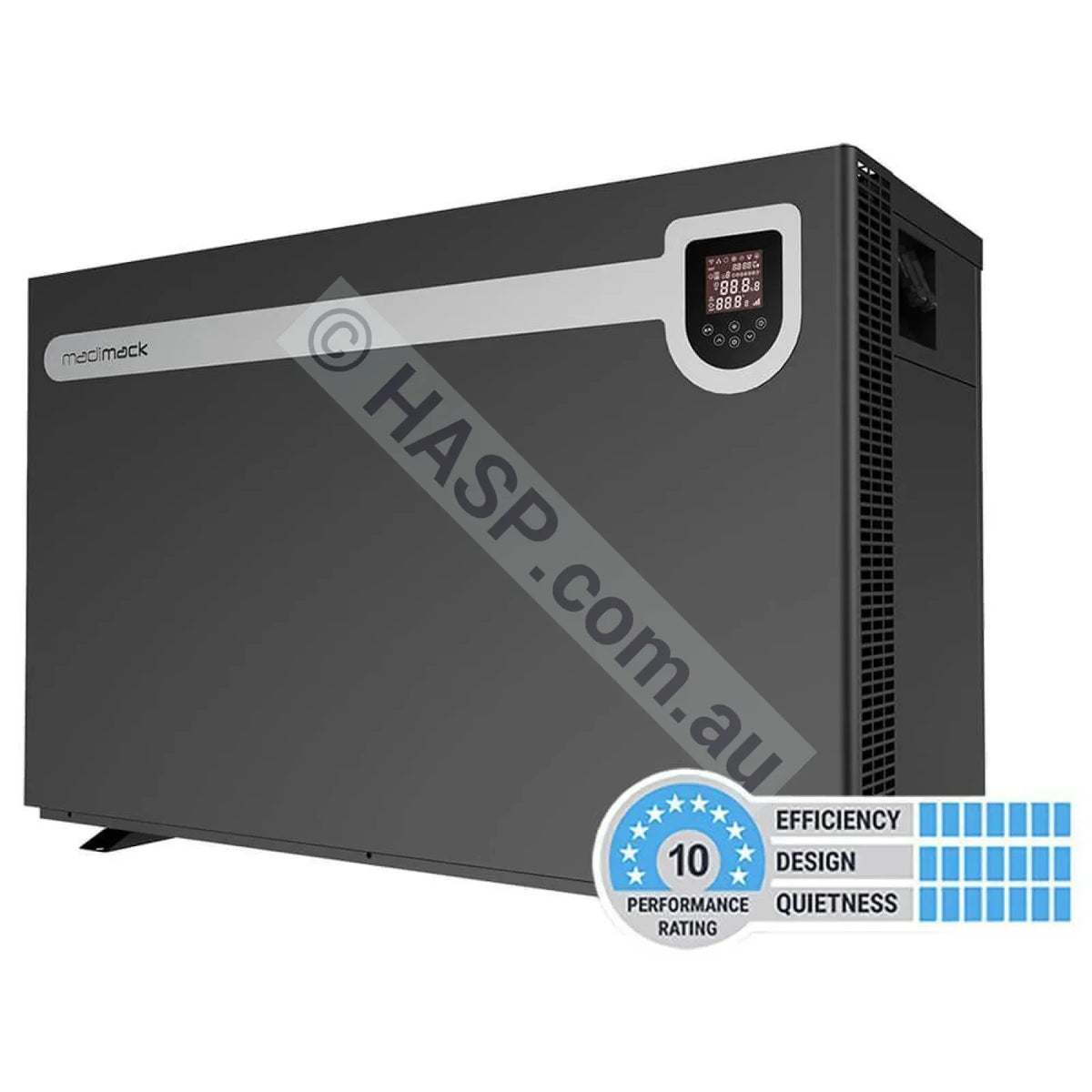

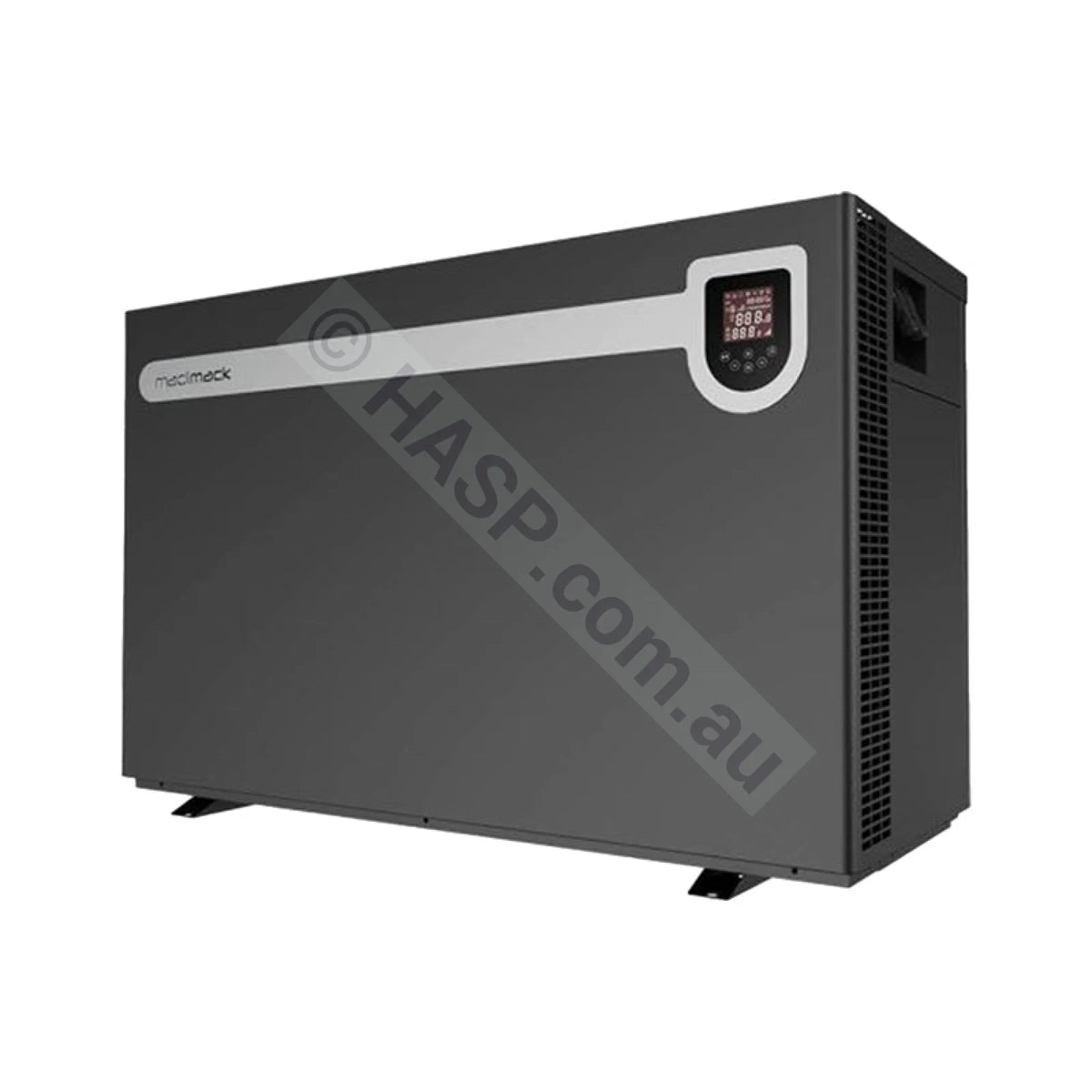

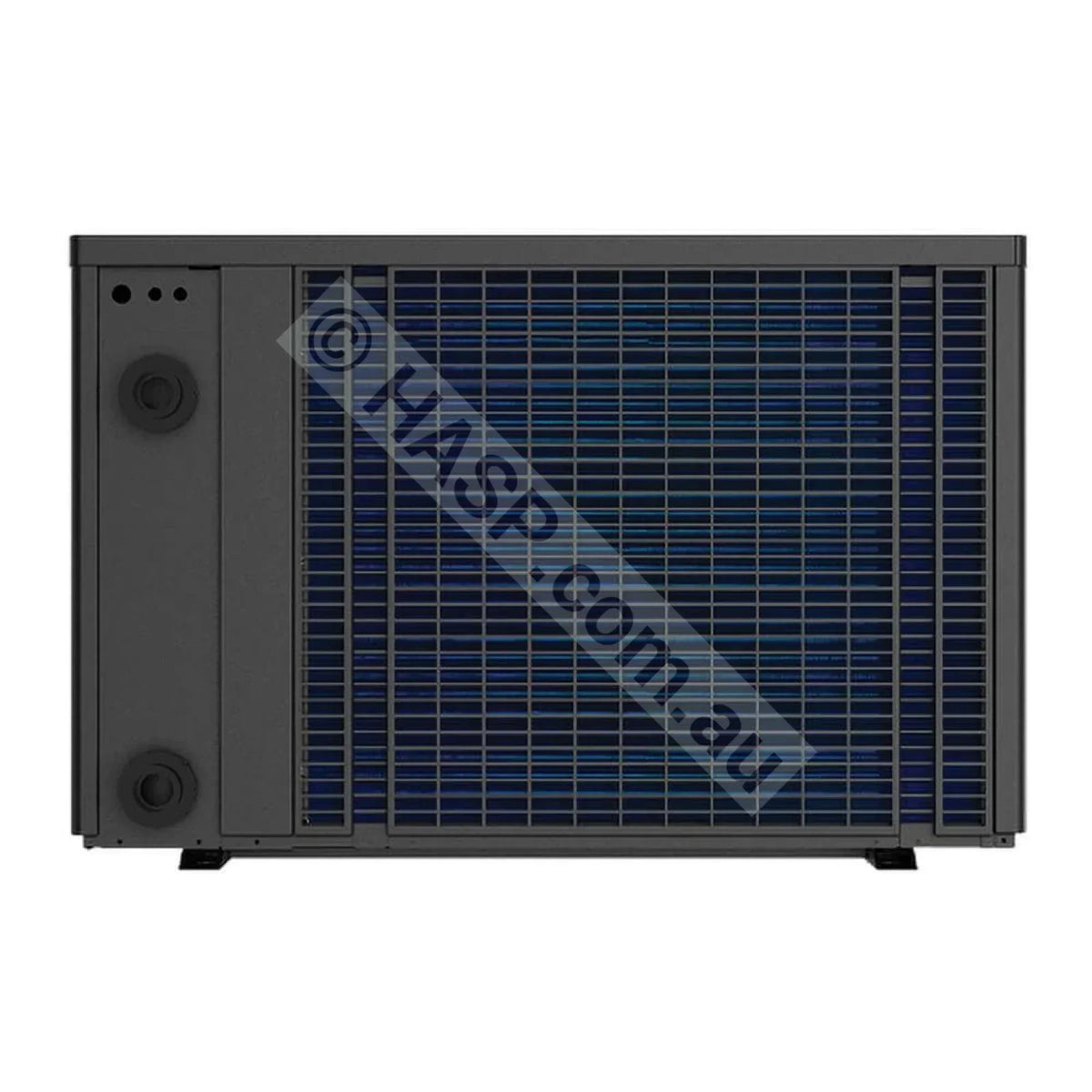

The Madimack InverElite V4 33kW is a full-inverter pool heat pump sized for extra-large residential and light commercial pools. A peak COP of 20.3 and triple-layered sound insulation make it one of the most efficient and quietest heat pumps available in Australia, running as low as 38.2 dB(A) at one metre. It suits large pools, swim schools and resort installations that still have a single-phase supply.
- RRP $14,585.00 is the manufacturer's recommended retail price.
- Warranty: Madimack's published schedule for the InverELITE V4 is 7 years parts, 15 years compressor and 25 years heat exchanger, plus 1 year on-site labour. Registration within 30 days of installation is required.
- Australian Consumer Law guarantees apply to every purchase, on top of any manufacturer warranty.
- FREE SHIPPING on all Madimack products over $149.00
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Documentation: Specification Sheets & Updated Manuals | Up-to-Date Madimack Recommended Retail Prices

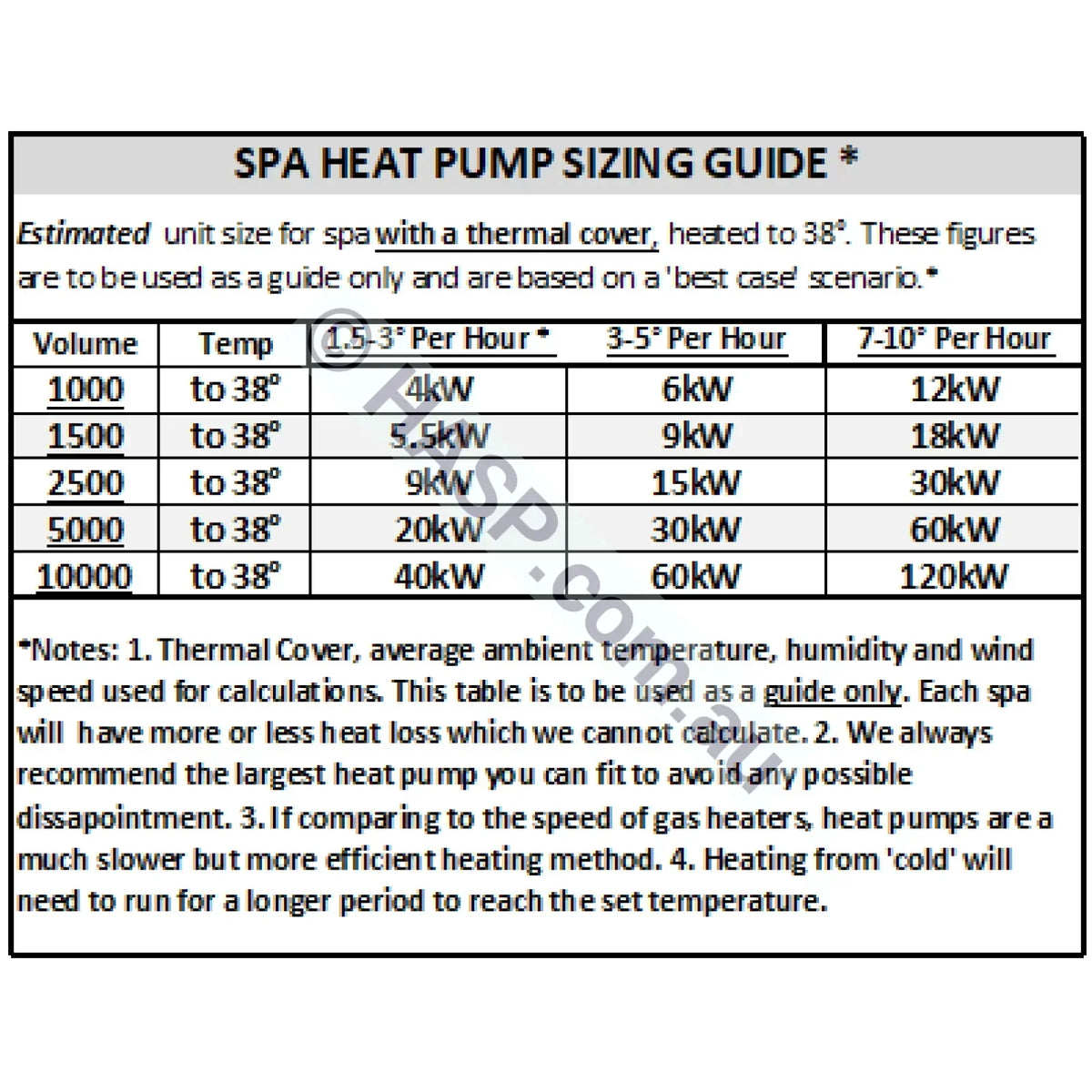

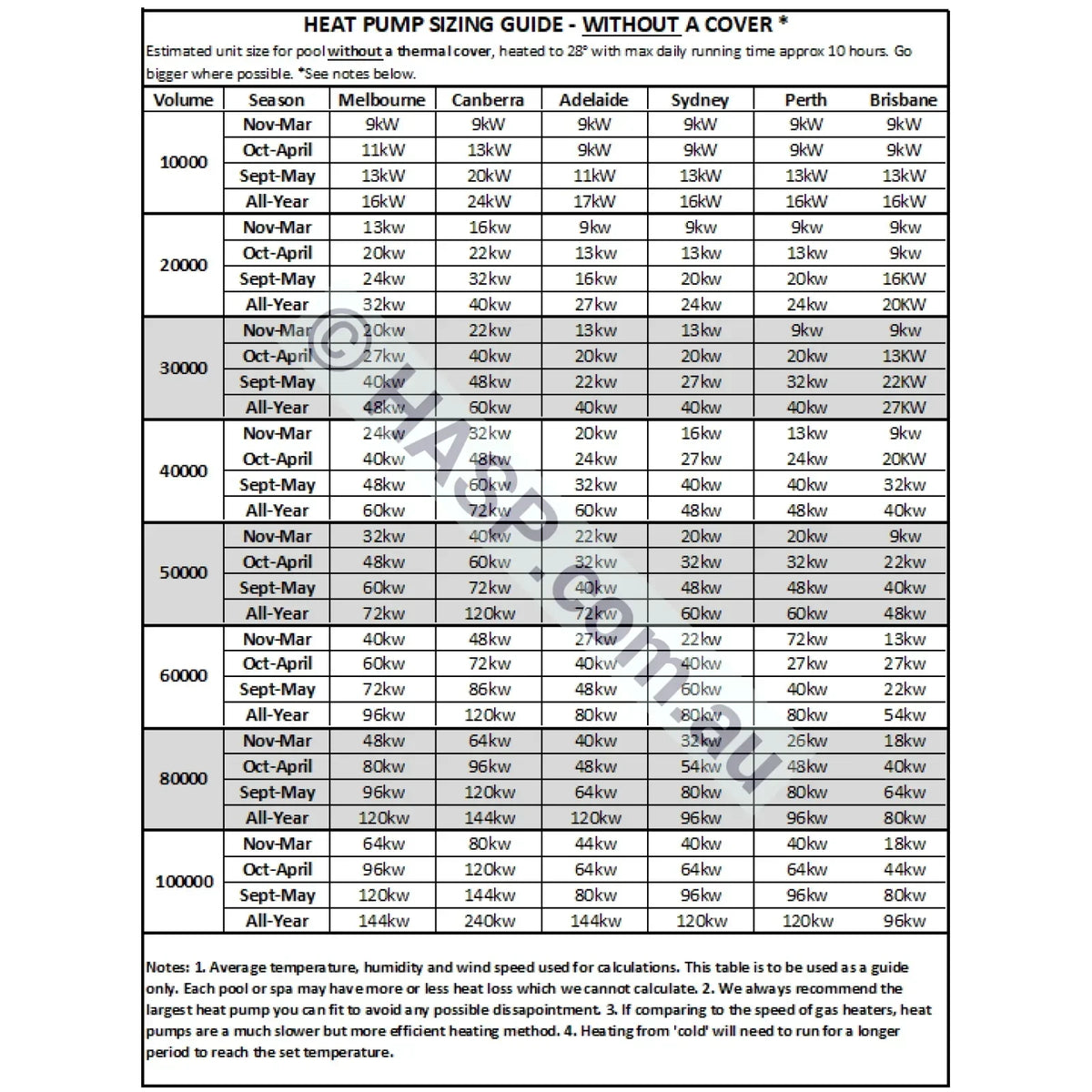

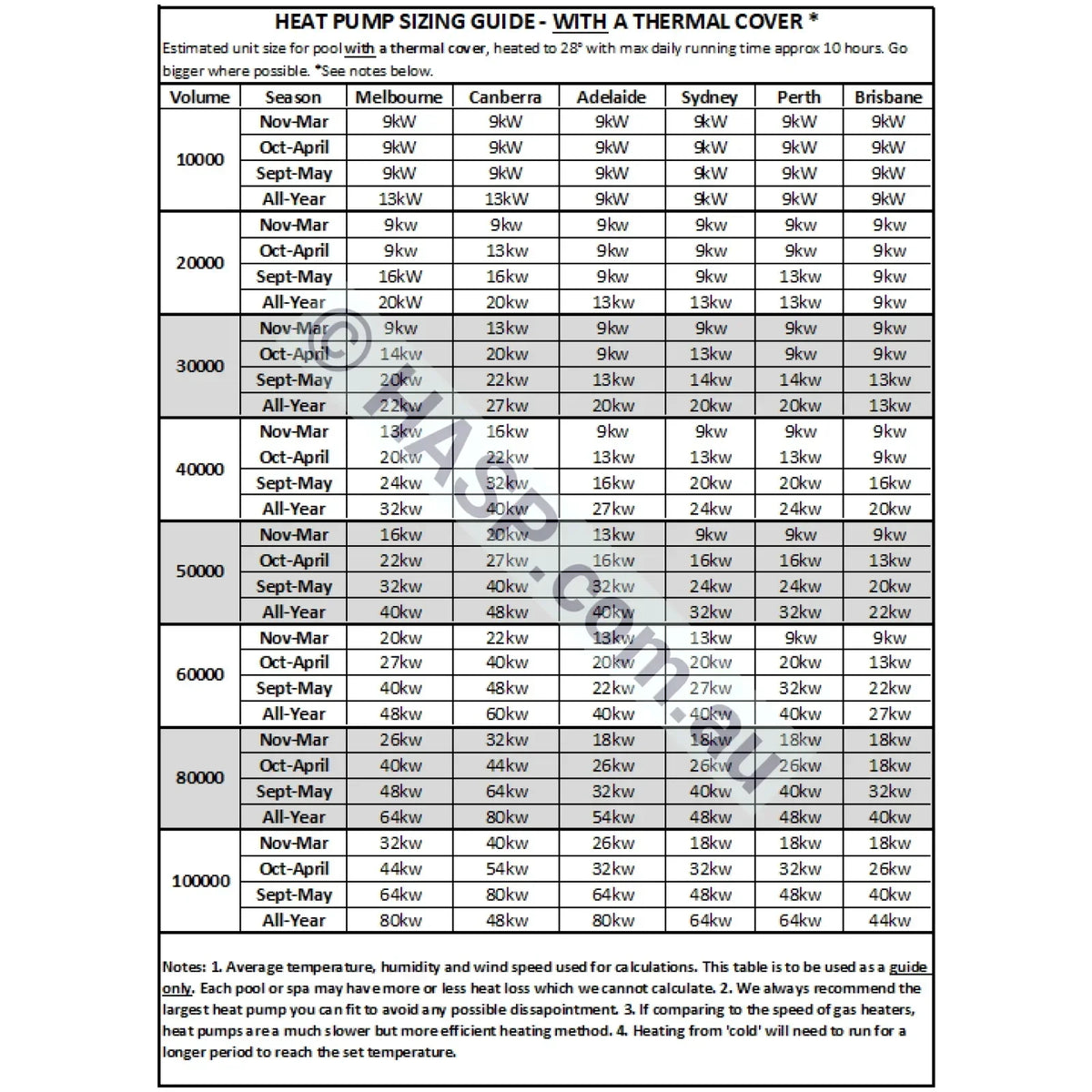

Sizing: View the Madimack Pool Heat Pump Sizing Chart to match an output to your pool volume, or contact our team for a recommendation.
Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
Choose Your Size: InverElite V4 Range
The InverElite V4 is available in 9 outputs. This page is for the 33kW model. View other sizes:
Unsure which size is right for your pool? Check the sizing chart linked above, or contact our team for a recommendation.
Key Specifications
- Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 33.0 kW
- Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 22.7 kW
- COP Range (warm conditions): 20.3~7.1
- COP Range (cool conditions): 8.0~5.2
- Cooling Capacity (Air 35°C / Water 28°C): 15.4 kW
- Rated Input Power: 0.52~4.37 kW
- Rated Input Current: 2.26~19.0 A
- Sound Level at 1 m: 38.2~48.7 dB(A)
- Sound Level at 10 m: 18.2~28.7 dB(A), whisper-quiet
- Recommended Water Flow: 180 L/min
- Power Supply: 230V / 1-Phase
- Electrical Connection: Hard Wired
- Net Dimensions (L × W × H): 1310 × 514 × 945 mm
- Refrigerant: R32
- Water Connection: 40 mm
- Operating Air Temperature: -20°C to 43°C
- Temperature Set Range: 5°C to 40°C
- Compressor: Twin-Rotary Mitsubishi DC
- Casing: Marine-grade aluminium alloy
Why Choose the InverELITE V4?

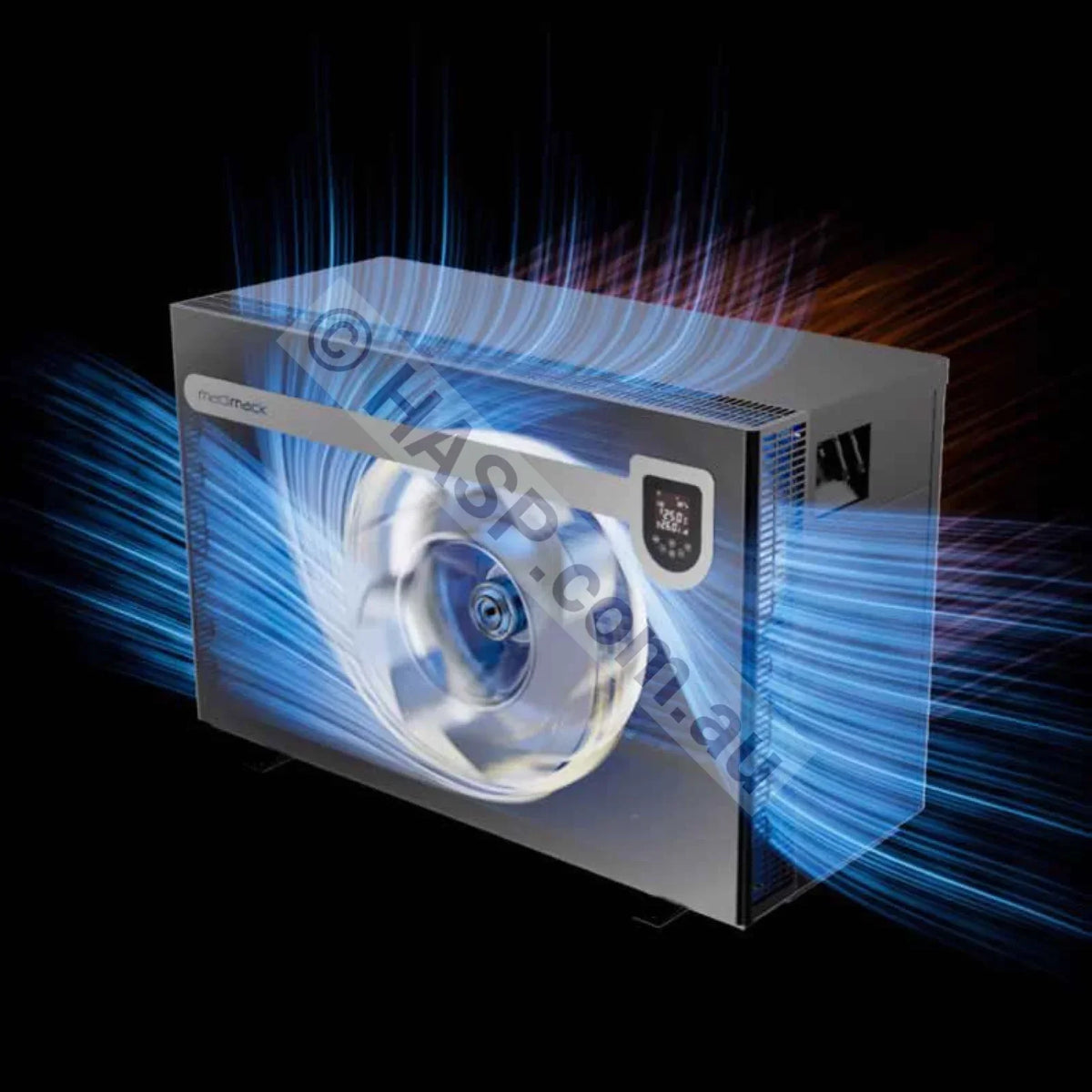

World's First 3D Airflow Ventilation: a 3-directional ventilation system that reduces the installation space required while improving efficiency and performance.

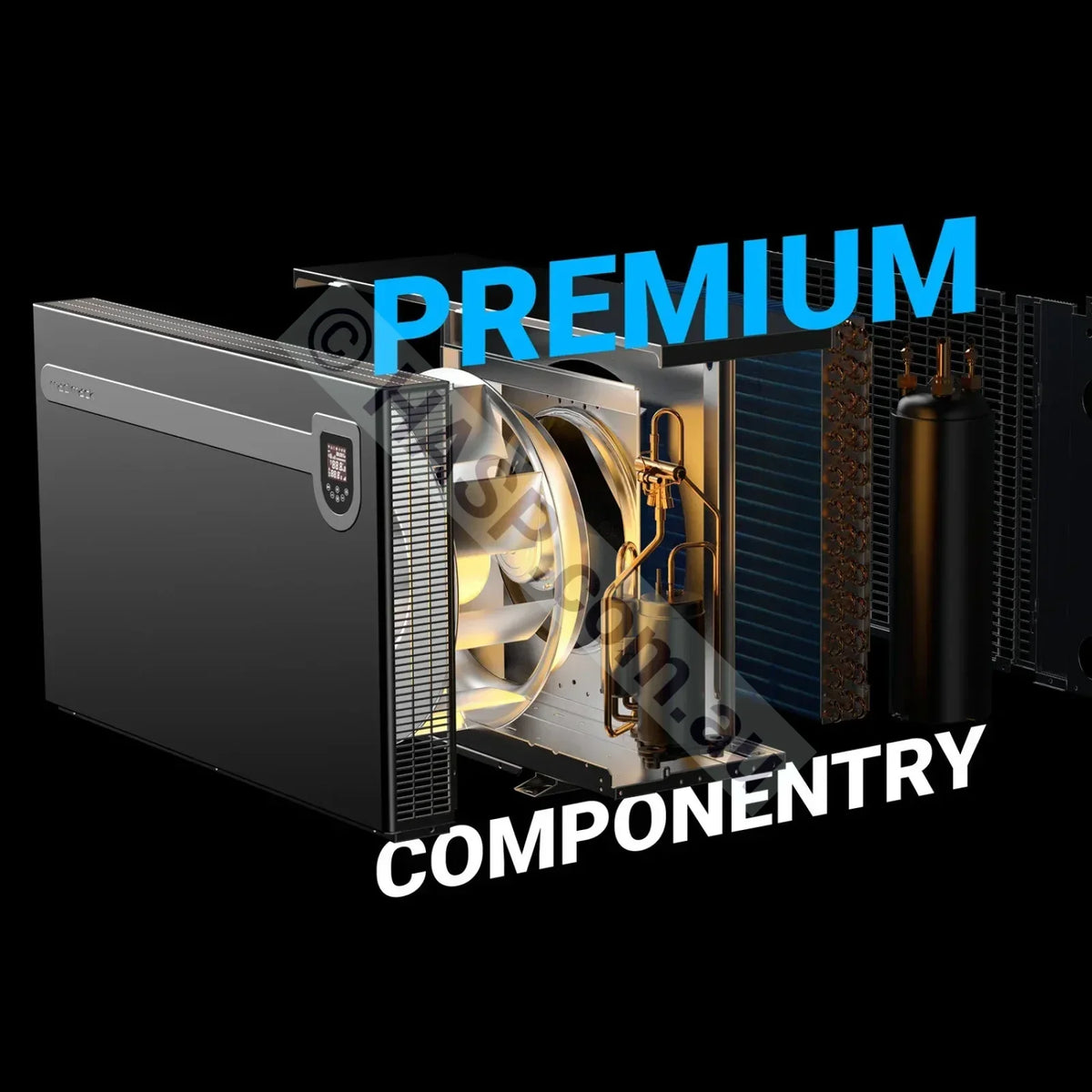

Twin-Rotary Mitsubishi DC Compressor: rapid heat-up times paired with a commercial-grade centrifugal fan for exceptional power-to-performance efficiency.
Whisper-Quiet Operation: triple-layered sound insulation of condensed fibre, foam and a metal jacket makes the V4 the quietest heat pump available.
Marine-Grade Protection: a corrosion-resistant aluminium alloy jacket built for harsh Australian conditions.
Quick and Easy Installation: universal external quick-connect plugs simplify the install, and external universal controls let multiple devices connect seamlessly.
User-Friendly Digital Display: a sleek display with advanced features for effortless control and monitoring.

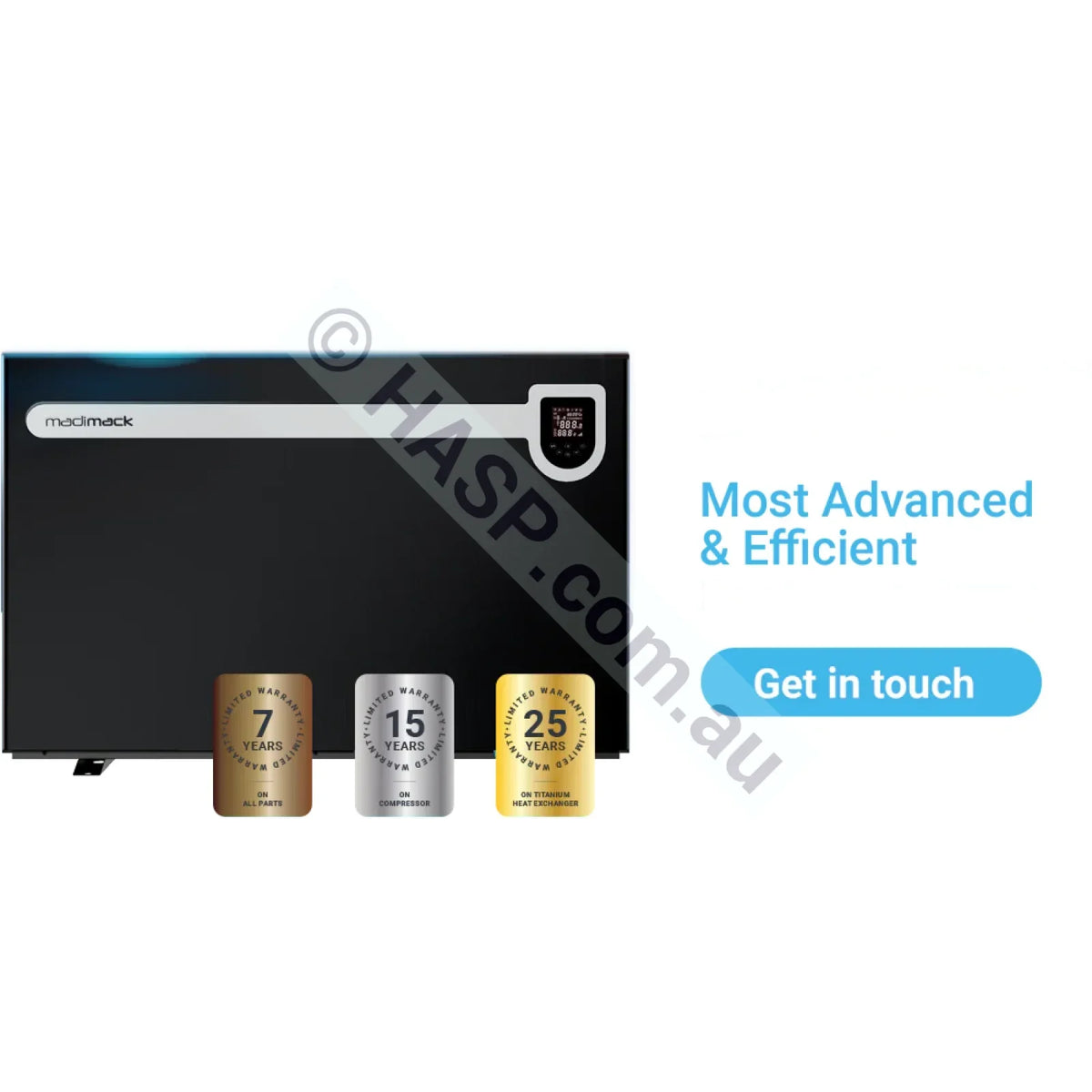

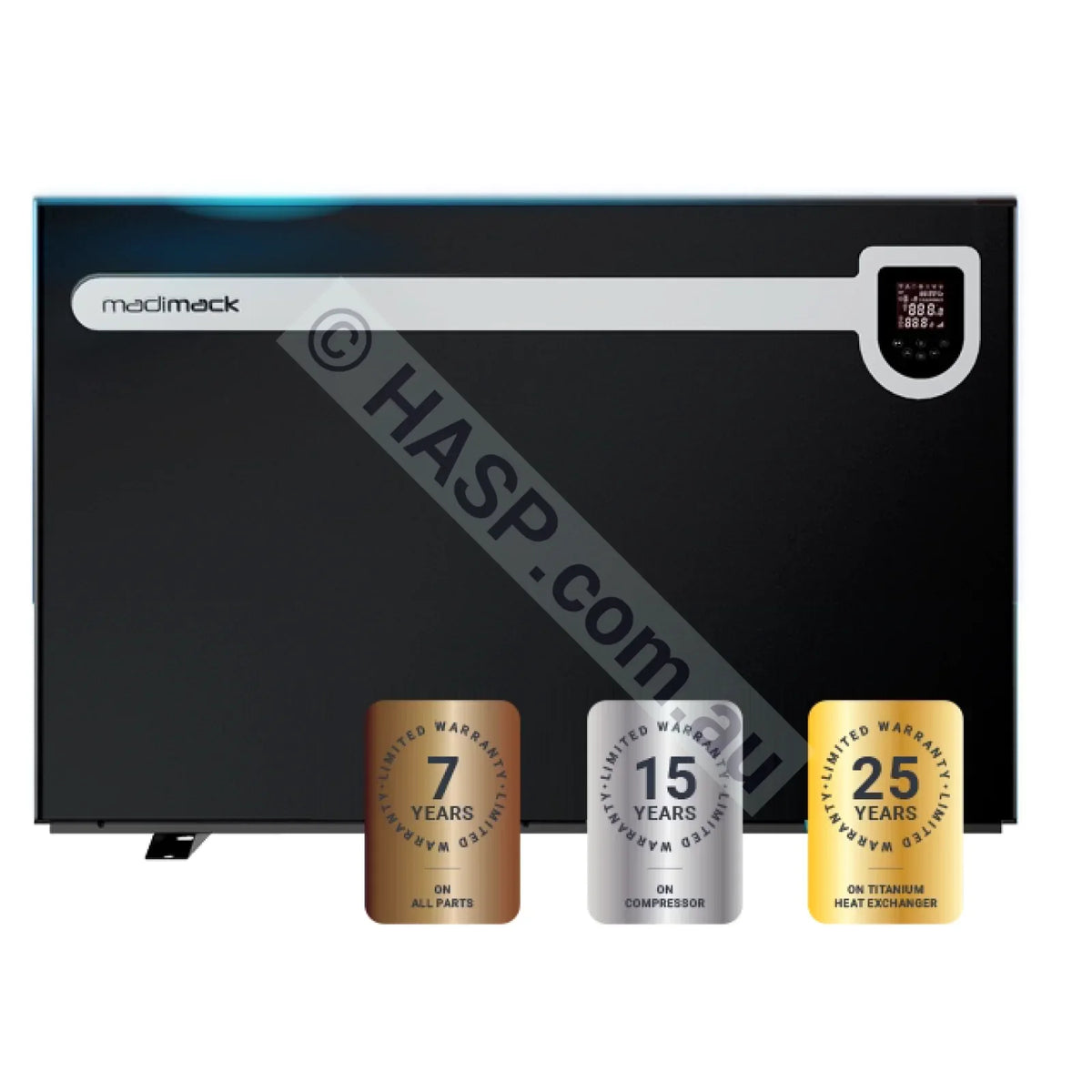

Warranty
- 7 years on all parts
- 15 years on the compressor
- 25 years on the heat exchanger
- 1 year on-site labour
Registration within 30 days of installation is required. Australian Consumer Law guarantees apply to every purchase, on top of any manufacturer warranty. Refer to Madimack's Warranty Schedule for full terms and conditions.
Frequently Asked Questions
What pool size does the InverElite V4 33kW suit?
The 33kW output is sized for extra-large residential and light commercial pools. Match the output to your pool volume using the Madimack sizing chart linked above, or contact our team with your pool dimensions.
How quiet is it?
Sound output is 38.2 to 48.7 dB(A) measured at 1 metre, falling to 18.2 to 28.7 dB(A) at 10 metres. The triple-layered sound insulation is what keeps it this quiet.
Can it heat the pool in winter?
Yes. It operates in air temperatures from -20°C to 43°C and delivers 22.7 kW at 15°C air with 26°C water, at a COP of 8.0 to 5.2. The temperature set range is 5°C to 40°C.
Does it need three-phase power?
No. The 33kW model runs on 230V single phase, drawing 2.26 to 19.0 A. It is hard wired rather than supplied with a plug, so a licensed electrician is needed to connect it. Only the 41kW model requires three phase.
What water flow does it need?
Recommended water flow is 180 L/min, through a 40 mm water connection.
What does the warranty cover?
Madimack's published schedule for the InverELITE V4 is 7 years on parts, 15 years on the compressor and 25 years on the heat exchanger, plus 1 year on-site labour. Registration within 30 days of installation is required, and Australian Consumer Law guarantees apply on top of it.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
