Madimack InverECO Plus 28kW Pool Heat Pump
Madimack InverECO Plus 28kW Pool Heat Pump is temporarily out of stock and will ship as soon as it's available.
Madimack InverECO Plus 28kW Pool Heat Pump
The InverECO Plus 28kW is the largest model in Madimack's entry-level inverter heat pump range, sized for extra-large residential and small commercial pools. It delivers the highest peak COP in the series at 11.0, and reverse-cycle operation heats the water in the cooler months and cools it in summer. WiFi control is standard, and this model is hard wired rather than plug connected.
- RRP $10,178.01 is the manufacturer's recommended retail price.
- Warranty: Madimack's published schedule for the InverECO Plus is 25 years heat exchanger, 5 years compressor and 3 years parts, plus 1 year on-site labour. Registration within 30 days of installation is required.
- Australian Consumer Law guarantees apply to every purchase, on top of any manufacturer warranty.
- FREE SHIPPING on all Madimack products over $149.00
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Documentation: Specification Sheets & Updated Manuals | Up-to-Date Madimack Recommended Retail Prices

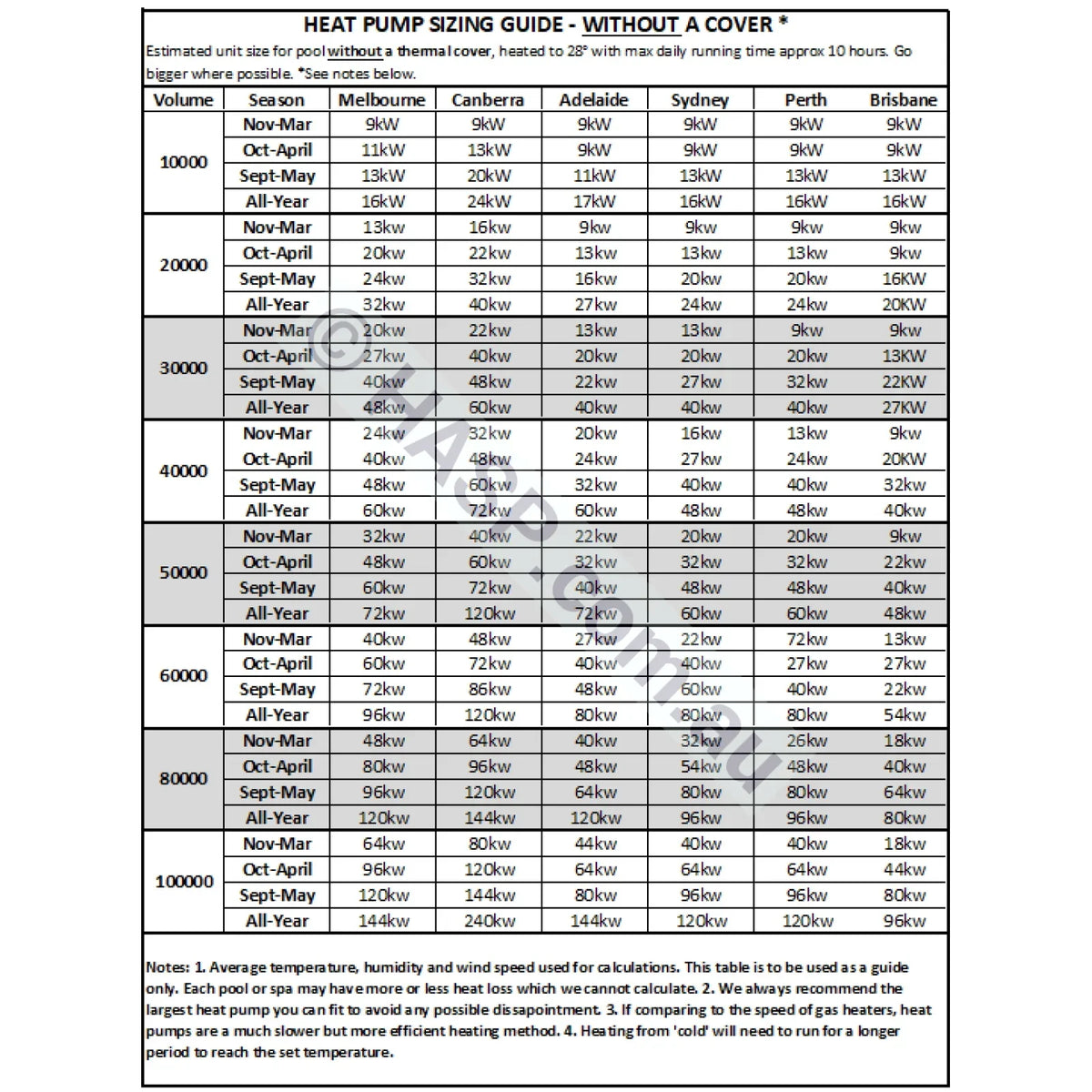

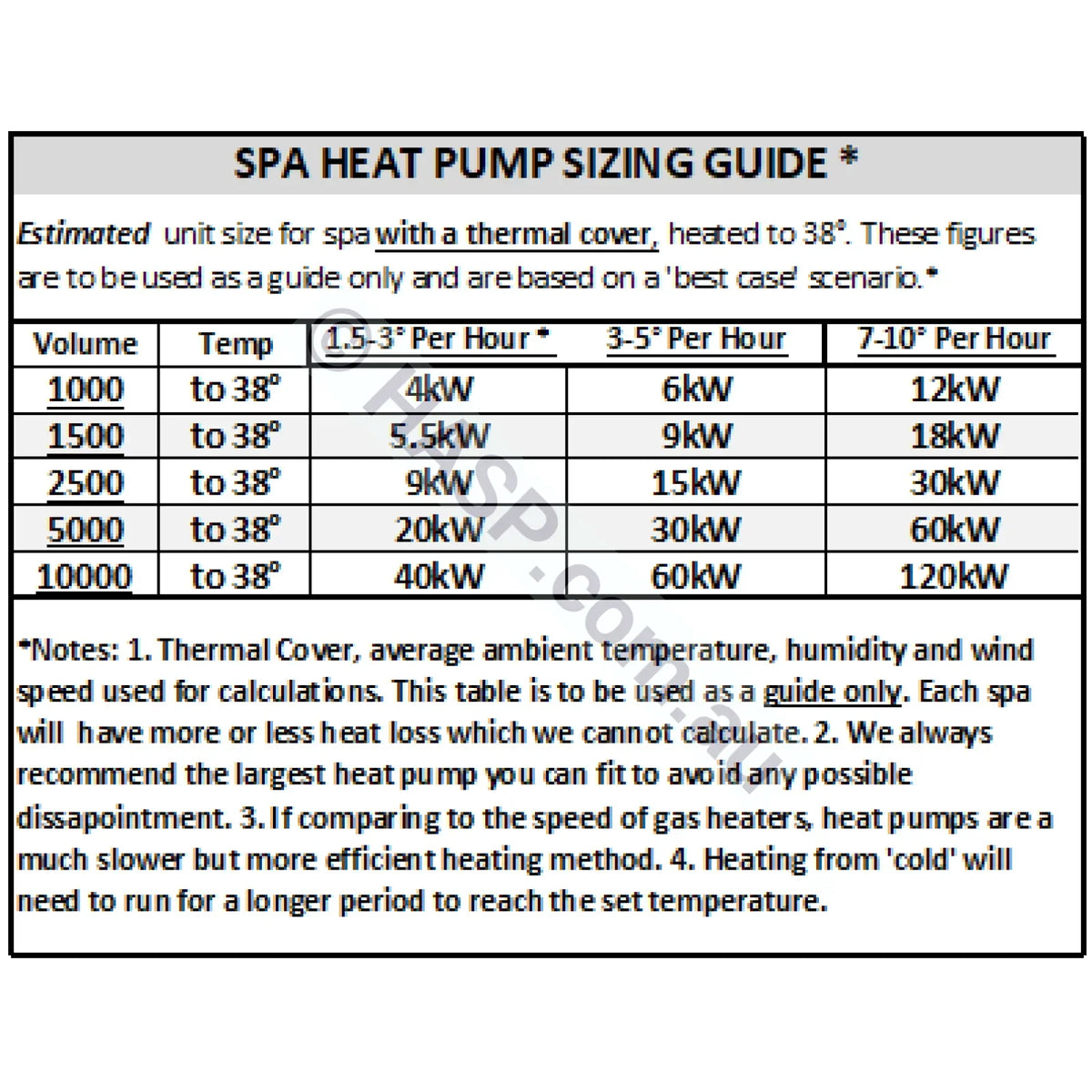

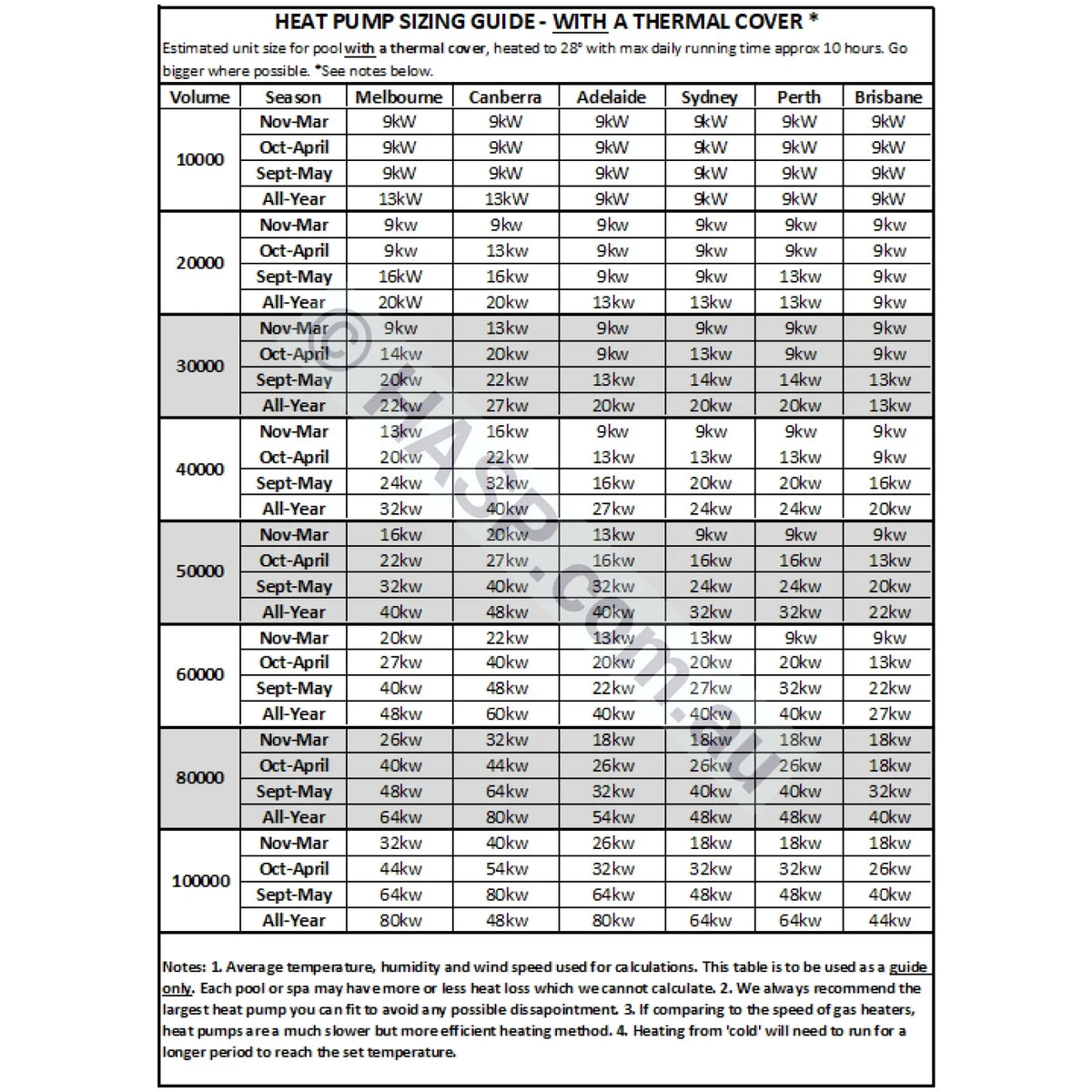

Sizing: View the Madimack Pool Heat Pump Sizing Chart to match the model to your pool volume, or contact our team for a recommendation.
Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
Choose Your Size: InverECO Plus Range
The InverECO Plus is available in 6 sizes. This page is for the 28kW model. View other sizes:
Key Specifications
- Model code: ECO PLUS 280
- Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 28.0 kW
- Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 19.5 kW
- COP Range (warm conditions): 11.0~6.3
- COP Range (cool conditions): 6.5~4.4
- Cooling Capacity (Air 35°C / Water 28°C / 80% humidity): 10.8 kW
- Rated Input Power: 0.89~4.43 kW
- Rated Input Current: 3.87~19.3 A
- Maximum Input Current: 23.5 A
- Sound Level at 1 m: 48.6~60.5 dB(A)
- Sound Level at 10 m: 28.6~40.5 dB(A)
- Recommended Water Flow: 180 L/min
- Power Supply: 230V / 1-Phase / 50Hz
- Electrical Connection: Hard Wired
- Net Weight: 68 kg
- Net Dimensions (L × W × H): 991 × 420 × 757 mm
- Water Connection: 40 mm
- Refrigerant: R32
- Operating Air Temperature: -5°C to 43°C
- Temperature Set Range: 12°C to 40°C
- Compressor: Full Stepless DC
- Heat Exchanger: Twisted Titanium
- Casing: Anti-corrosion ABS
Why Choose the InverECO Plus?
- InverMAC inverter technology: the full stepless DC compressor and inverter fan adjust output continuously, saving up to 66% on running costs against traditional pool heating and up to 20% against on/off heat pumps.
- WiFi control standard: set the pool temperature and timers from anywhere in the Madimack app, with no optional extras to buy.
- Heating and cooling: reverse-cycle operation warms the pool in cooler months and cools it down in summer.
- Twisted titanium heat exchanger: suitable for salt, mineral and chlorinated pools.
- Anti-corrosion ABS casing: slim and weather-resistant, built to last in coastal and high-salt environments.
- Active defrost: maintains performance in cold climates down to -5°C ambient air temperature.
- R32 refrigerant: lower global warming potential than legacy refrigerants, with more efficient heat transfer.
- TüV Rheinland certified: independently certified for performance and safety.
Warranty
- 25 years on the heat exchanger
- 5 years on the compressor
- 3 years on parts
- 1 year on-site labour
Registration within 30 days of installation is required. Australian Consumer Law guarantees apply on top of the manufacturer warranty. Refer to Madimack's Warranty Schedule for full terms and conditions.
Frequently Asked Questions
What pool size does the 28kW InverECO Plus suit?
It delivers 28.0 kW of heating at 27°C air and 27°C water, the largest output in the range, which suits extra-large residential and small commercial pools. Use the Madimack sizing chart linked above to match the model to your pool volume.
How much does it cost to run?
Running cost depends on your pool, climate and target temperature. This model has the highest peak COP in the series at 11.0 and draws 0.89 to 4.43 kW, and Madimack rates the InverMAC system at up to 66% less than traditional pool heating and up to 20% less than on/off heat pumps.
Does it plug in or need hard wiring?
The 28kW is hard wired, unlike the 9kW and 13kW models, which use a 10A plug. It runs on 230V single-phase 50Hz with a maximum input current of 23.5 A, so a licensed electrician is required for the connection.
What water flow does it need?
Madimack recommends 180 L/min through a 40 mm water connection, so check your pump and plumbing can deliver that flow.
Can it cool the pool as well as heat it?
Yes. It is reverse-cycle, with 10.8 kW of cooling at 35°C air and 28°C water, and a temperature set range of 12°C to 40°C.
What does the warranty cover?
Madimack's published schedule for the InverECO Plus is 25 years on the heat exchanger, 5 years on the compressor and 3 years on parts, plus 1 year on-site labour. Registration within 30 days of installation is required.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
