Madimack EliteClear Media / Sand Filter - 26"
Madimack EliteClear Media / Sand Filter - 26" is temporarily out of stock and will ship as soon as it's available.

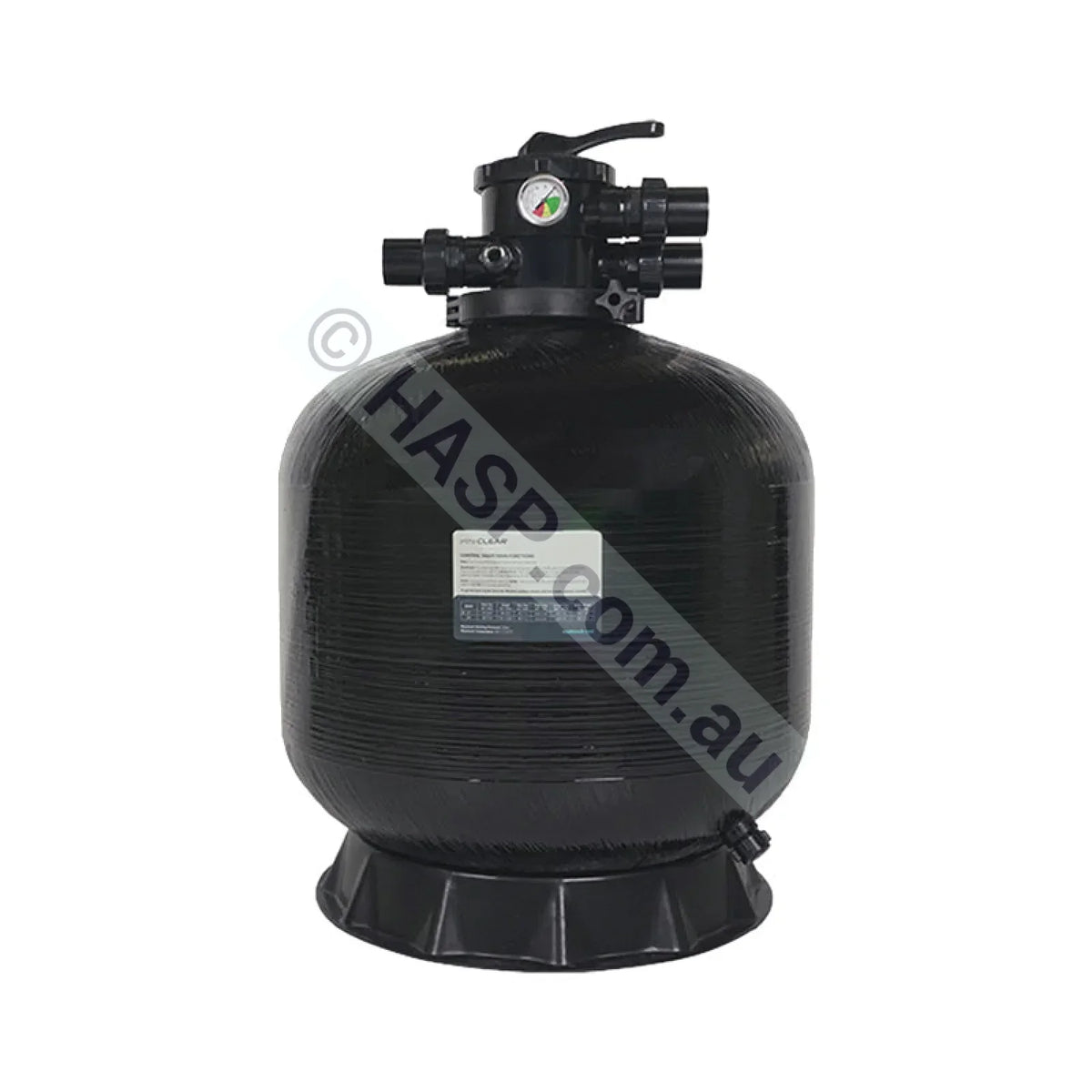

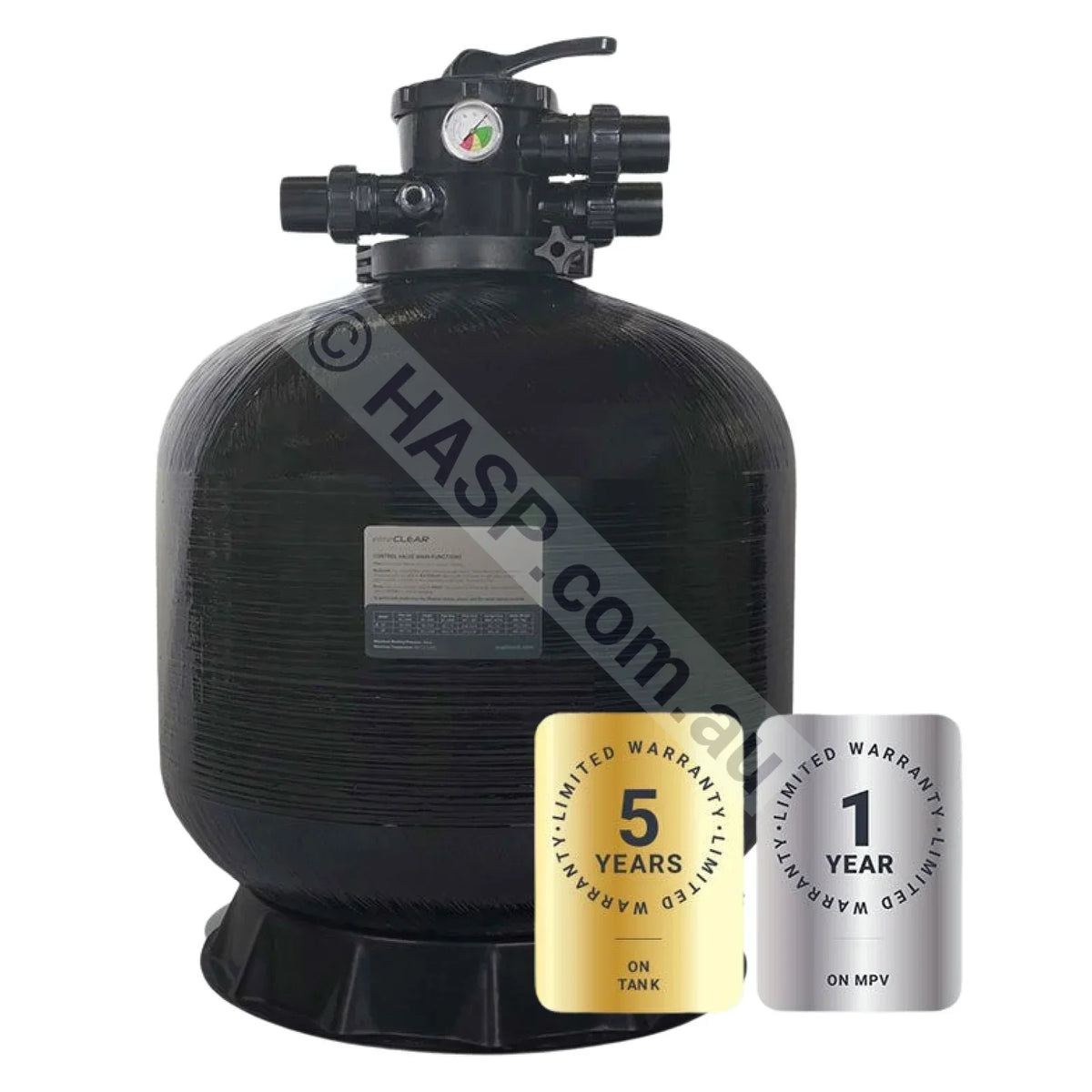

Madimack EliteCLEAR Pool Media (Glass or Sand) Filter – 26"
Crystal-clear water, lower running resistance, and easy maintenance.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
- Corrosion-resistant tank with UV-resistant coating
- Low-resistance hydraulics for energy-efficient filtration
- Simple backwash via multiport valve
- Compatible with sand or EcoBLEND glass media
- Size: 26" (AU model)
Why EliteCLEAR
- Cleaner water: Captures debris before it recirculates, helping keep water clear and protecting pumps and heaters.
- Lower pump load: Optimised internal design reduces restriction, supporting better flow and efficiency.
- Built for Australian conditions: Corrosion-resistant tank with a UV-resistant outer coating.
- Easy routine maintenance: Straightforward backwash and rinse using the multiport valve.

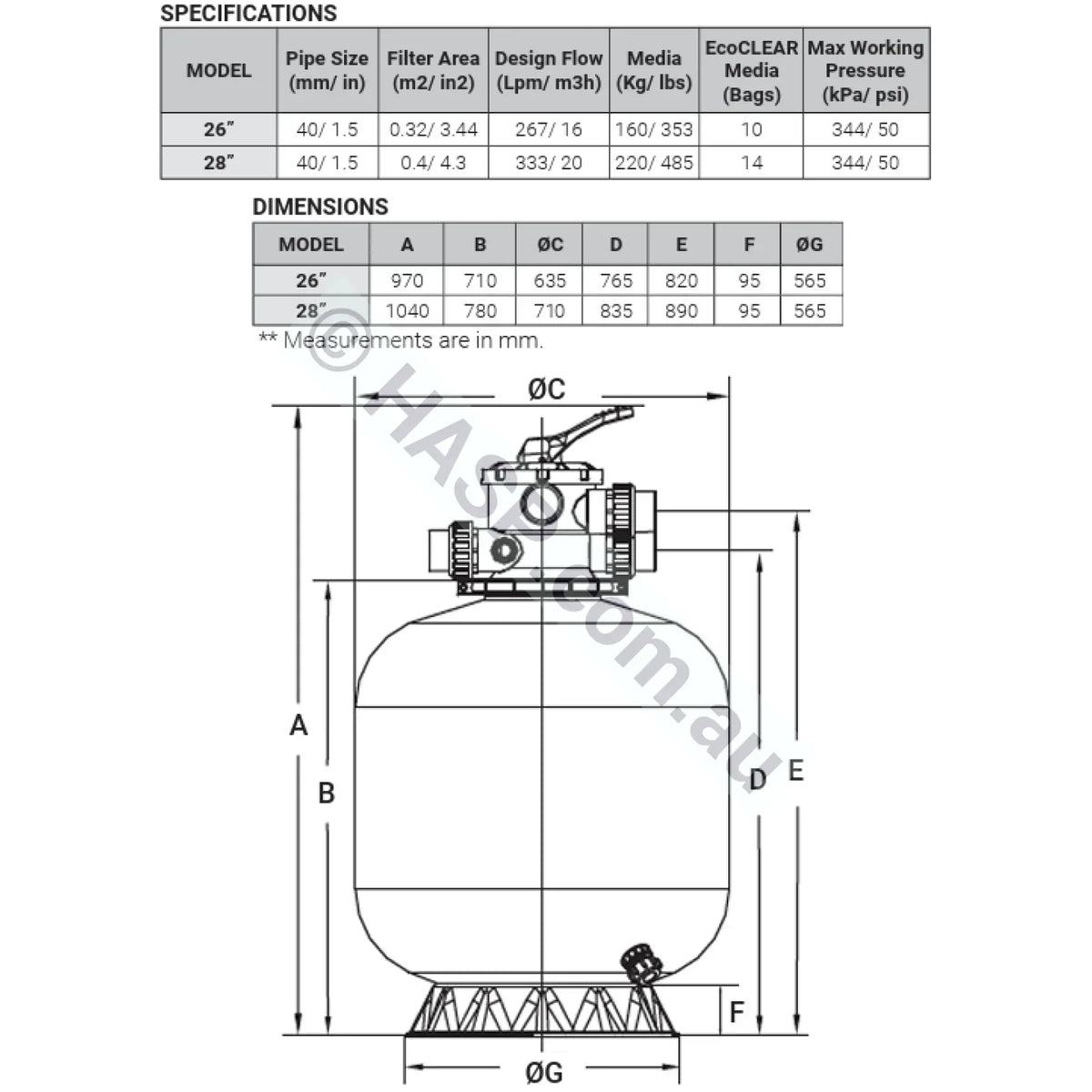

Model Details
| Model | Filter Type | Valve | Media Options | Typical Use |
|---|---|---|---|---|
| EliteCLEAR 26" | Media filter (sand / glass) | Multiport (Filter / Backwash / Rinse / Waste / Closed) | Sand or EcoBLEND glass media | Residential pools |
Note: AU documentation lists EliteCLEAR sizes as 26" and 28". Always size the filter to your pool and pump flow rate.
What’s Included
- EliteCLEAR filter tank and base
- Multiport valve assembly
- Pressure gauge and standard fittings
- Owner / installation manual
Plumbing & Setup Notes
- Use suitable unions and reducer/adaptor fittings to match your existing pipe size.
- Install on a level pad with drainage and enough clearance for valve operation and servicing.
- Backwash to waste in accordance with local regulations.
Read the manual before installation. Incorrect installation can reduce performance and may affect warranty.
Maintenance Basics
- Monitor the pressure gauge and backwash when pressure rises or flow drops.
- After backwash, use “Rinse” to resettle the media before returning to “Filter”.
- Periodically inspect unions and the multiport valve seal for leaks.
FAQs
Is EliteCLEAR a sand filter or a cartridge filter?
EliteCLEAR (AU) is a media filter designed for sand or glass media. Madimack also sells cartridge filters in some markets, so always refer to the AU manual for this model.
Which media is recommended?
EcoBLEND glass media is commonly used for performance and longevity. Sand is also suitable if preferred.
How do I maintain warranty?
Keep your proof of purchase, follow the installation manual, and register the product if required by Madimack’s warranty terms.
Downloads
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
