Astralpool Halo Chlorinator Cooling Fan SP76224

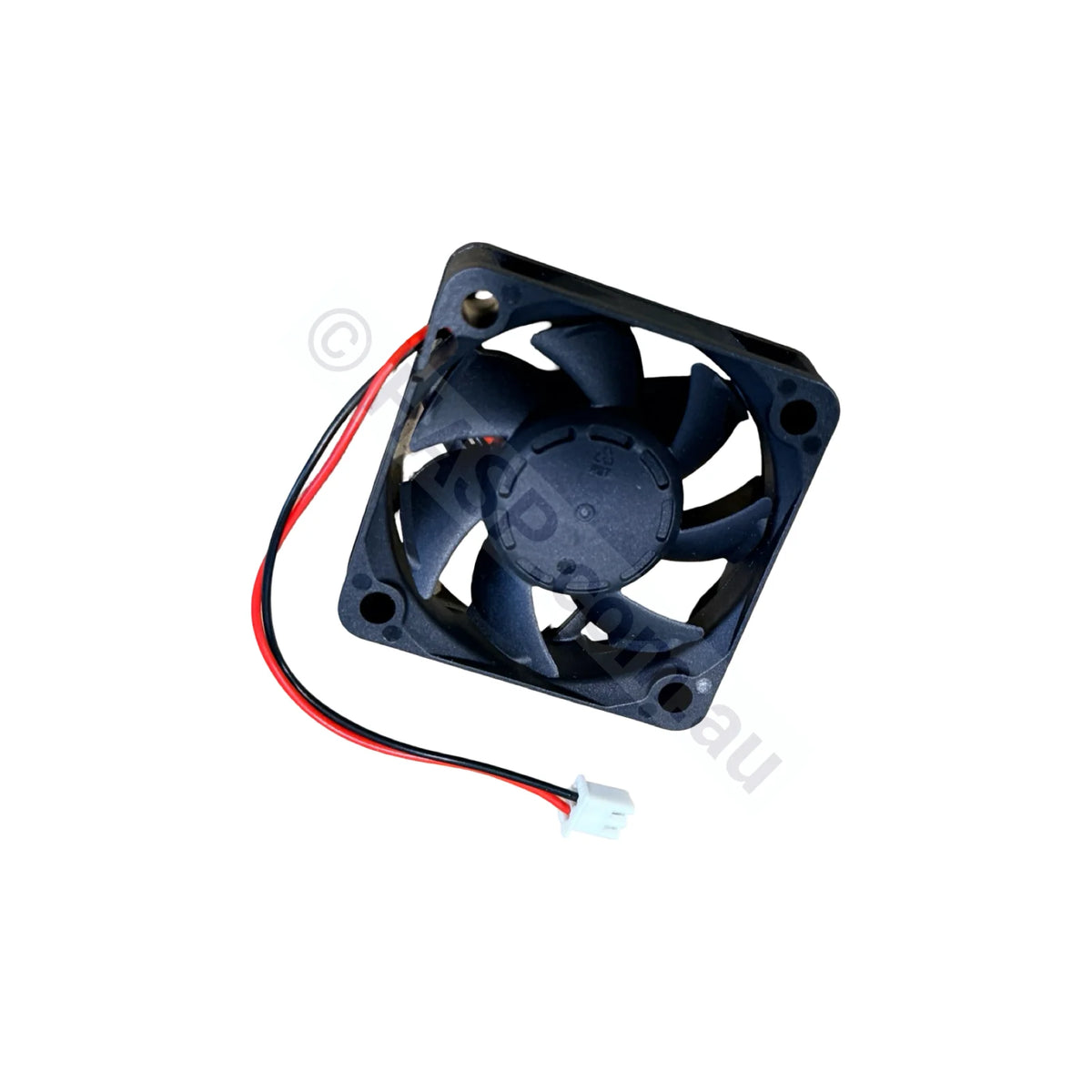

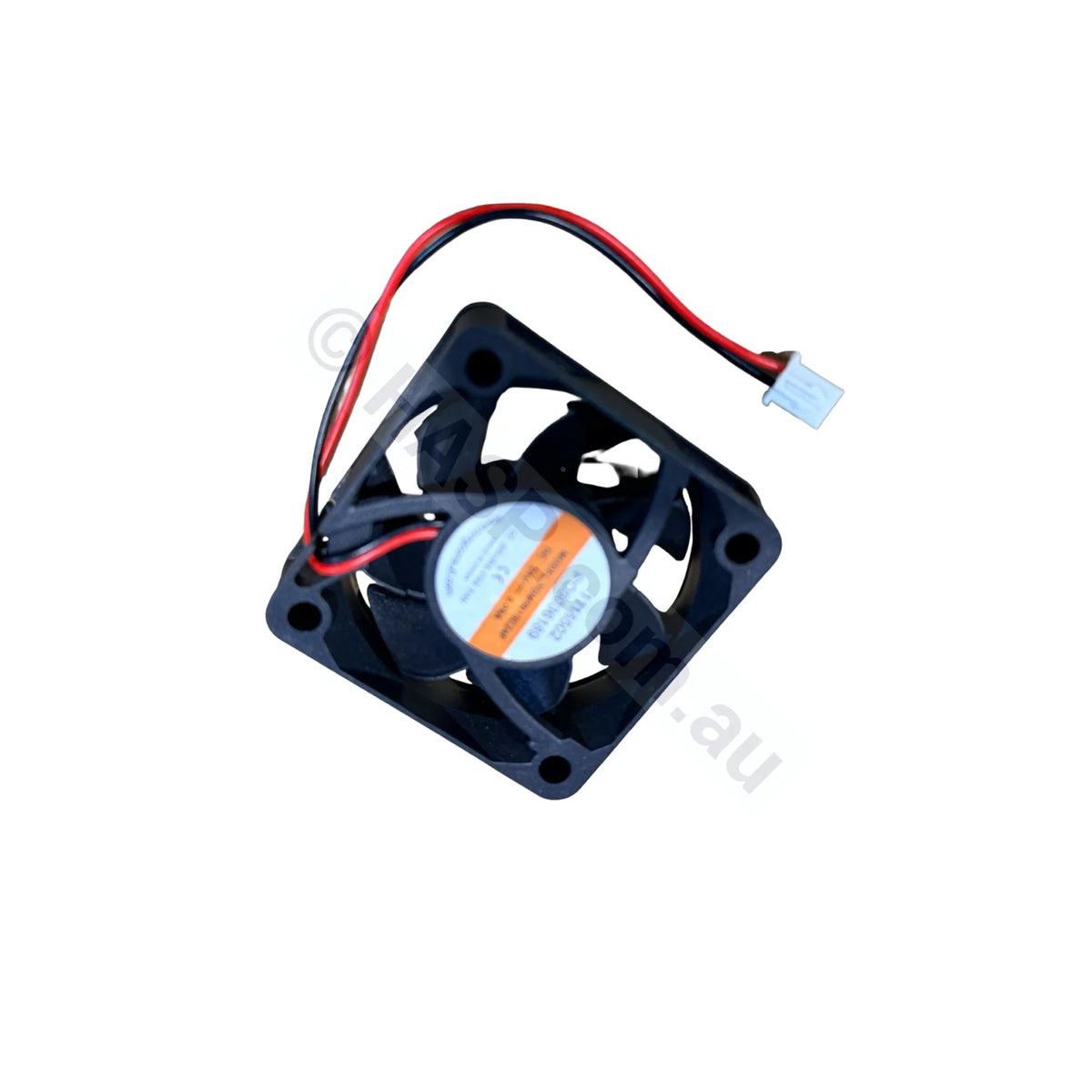

Genuine Astralpool SP76224 cooling fan for the controller (power pack) of the Astralpool Halo salt chlorinator. The fan moves air through the controller enclosure to help keep the electronics cool.
- Genuine Authorised Fluidra Dealer & Warranty Agent
- We carry more spare parts than anyone.
Suits the following chlorinators
- Astralpool Halo 18 (20385)
- Astralpool Halo 25 (20386)
- Astralpool Halo 35 (20387)
- Astralpool Halo 45 (20388)
Also known as Halo Chlor and the Halo Connect System. The same fan is used across all four sizes. For Halo Pure low salt models, contact us to confirm fitment before ordering.
Which fan do I need?
Astralpool chlorinator controllers use different cooling fans. Match the fan to your model:
- Halo: SP76224 (this part)
- Viron and Viron eQuilibrium: 2030037 (buy here)
- VX series and E-Series E35: 76223 (contact us)
When to replace it
- Grinding, rattling or buzzing noise from the fan
- Blades cracked, chipped, loose or wobbling
- Fan will not turn freely by hand with the controller switched off and unplugged
- Ants, insects, dirt or debris packed into the fan or the vents
Keeping the controller cool
Astralpool's Halo manual notes the controller is vented so the electronics can cool in extreme warm temperatures. It recommends mounting the controller 1 metre above the ground, preferably out of direct sunlight.
The manual also warns that ants and other insects can be attracted to the warm, dry enclosure. It recommends a surface insecticide spray on the surfaces around the controller, repeated every three months or as necessary, and states that damage caused by insect ingress is not covered by warranty.
Specifications
- Part number: SP76224
- Type: Controller cooling fan
- Suits: Astralpool Halo 18, 25, 35 and 45 chlorinators
- Brand: Astralpool, a Fluidra brand
Frequently Asked Questions
Will this fit my Viron or eQuilibrium?
No. Viron and Viron eQuilibrium chlorinators use cooling fan 2030037. Buy the Viron fan here.
Is it the same fan for the Halo 18, 25, 35 and 45?
Yes. One fan, SP76224, is used across all four Halo sizes.
My Halo is still under warranty. Should I buy this?
Contact us first. We are an authorised Fluidra warranty agent, and a fault on a unit under warranty should be assessed before any part is replaced.
Can I fit it myself?
The Halo controller runs on mains power. This part must be diagnosed and fitted by a qualified and experienced person, with the controller switched off and unplugged before the enclosure is opened.
Related Halo parts
- SP12799 - WiFi antenna, RP-SMA male fit (buy here)
- SP714001 - Viron / eQuilibrium / Halo cell cable (buy here)
See the full range of genuine Astralpool and Zodiac chlorinator cells and electrodes.
Before ordering
Confirm this part is correct for your equipment before ordering. Use the catalogue below, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers and any labels.
As with all products, this must be diagnosed and fitted by a qualified and experienced person. Warranty details are on our warranty information page.
Manufacturer Catalogues, Diagrams & Part Numbers

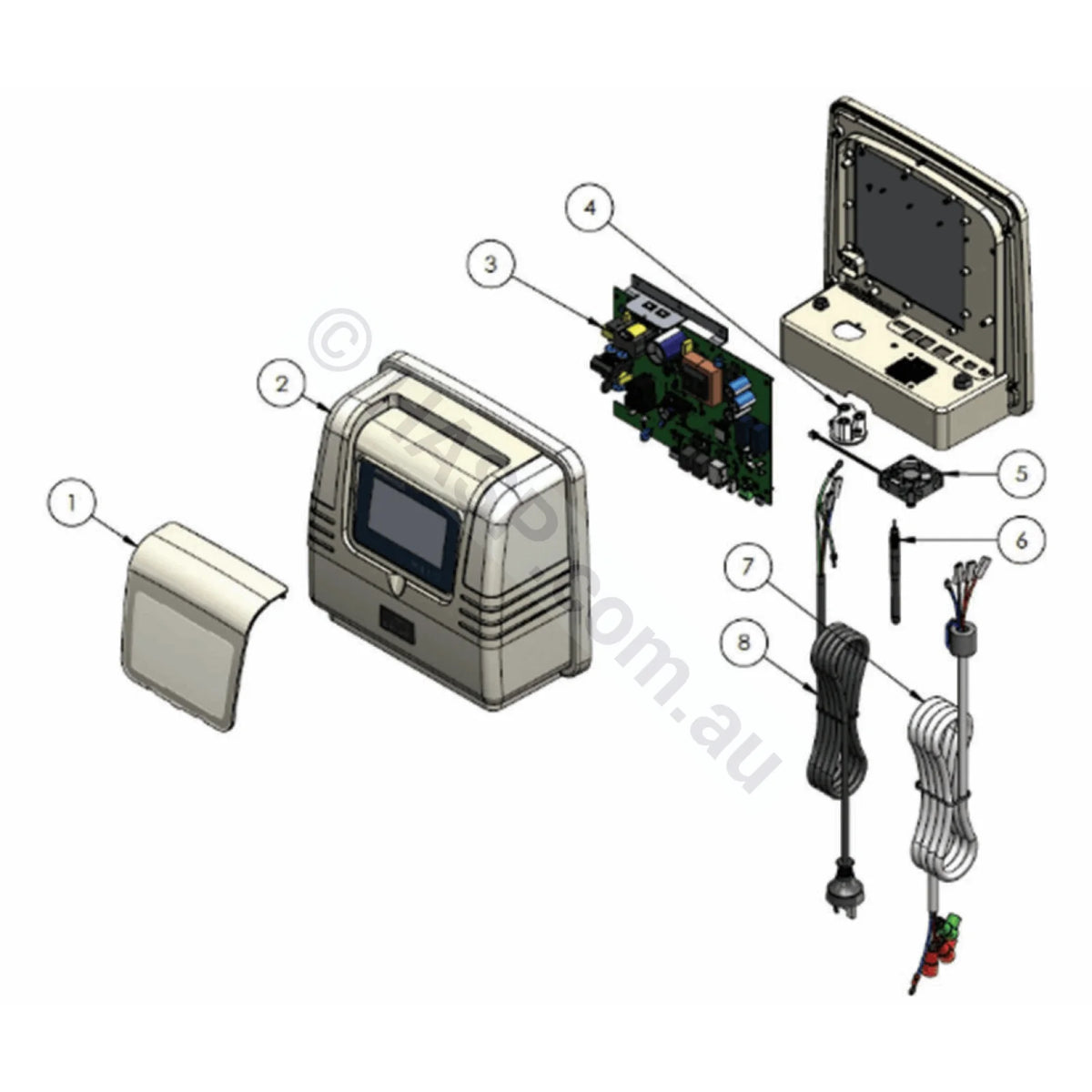

Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
Common search terms: Astralpool SP76224, SP 76224, 76224, Halo cooling fan, Halo chlorinator fan, Halo controller fan, Halo power pack fan, Halo Chlor fan, Astral Halo fan, Fluidra Halo fan, WWDG SpaPro.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
