Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info
Delivery and Shipping Info
Free Shipping over $149 for most products. Choose Express Post where available for fastest shipping!
Warranty Information
Warranty Information
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact is temporarily out of stock and will ship as soon as it's available.
Gecko Aeware in.k1001 Colour Touchscreen Touchpad - Compact
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

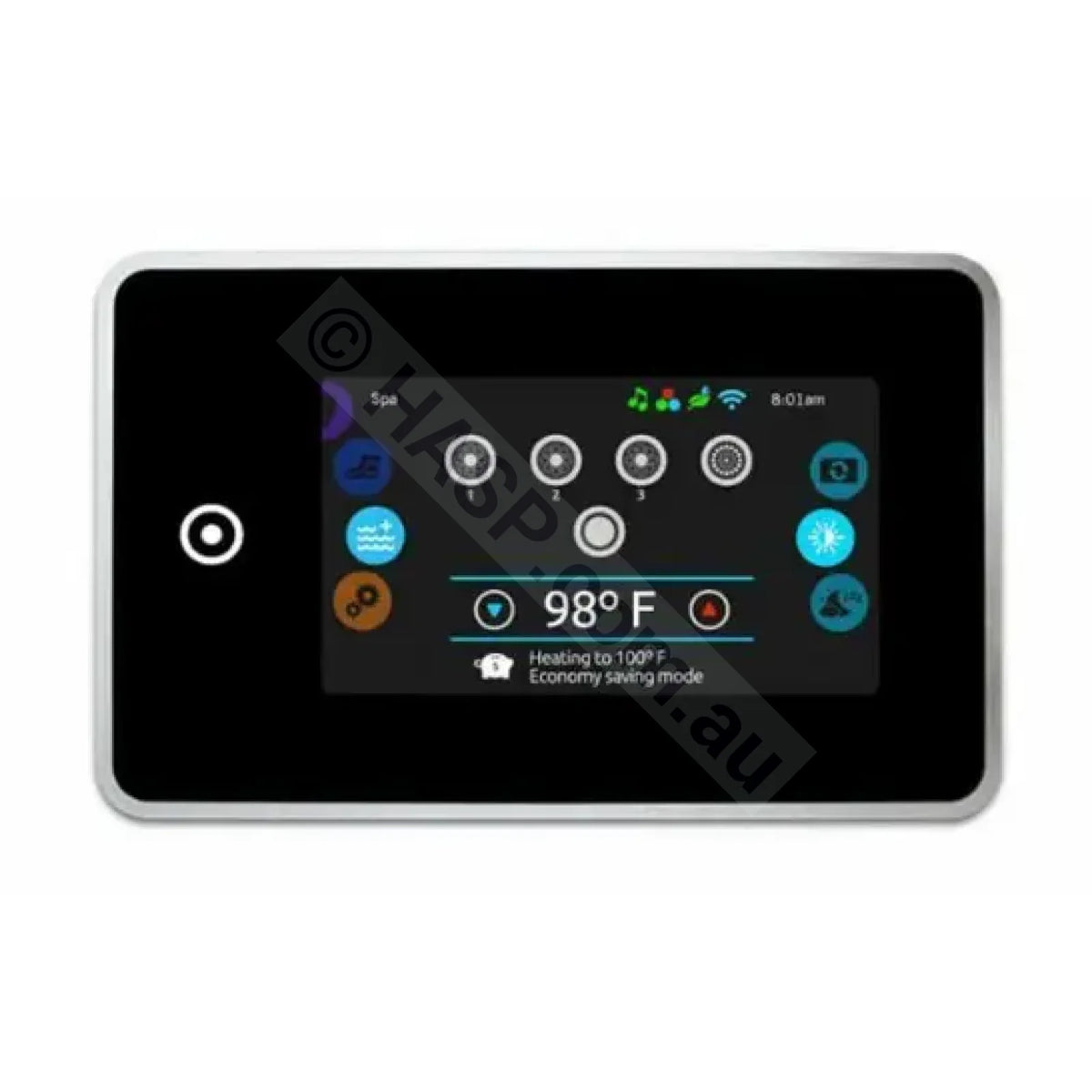

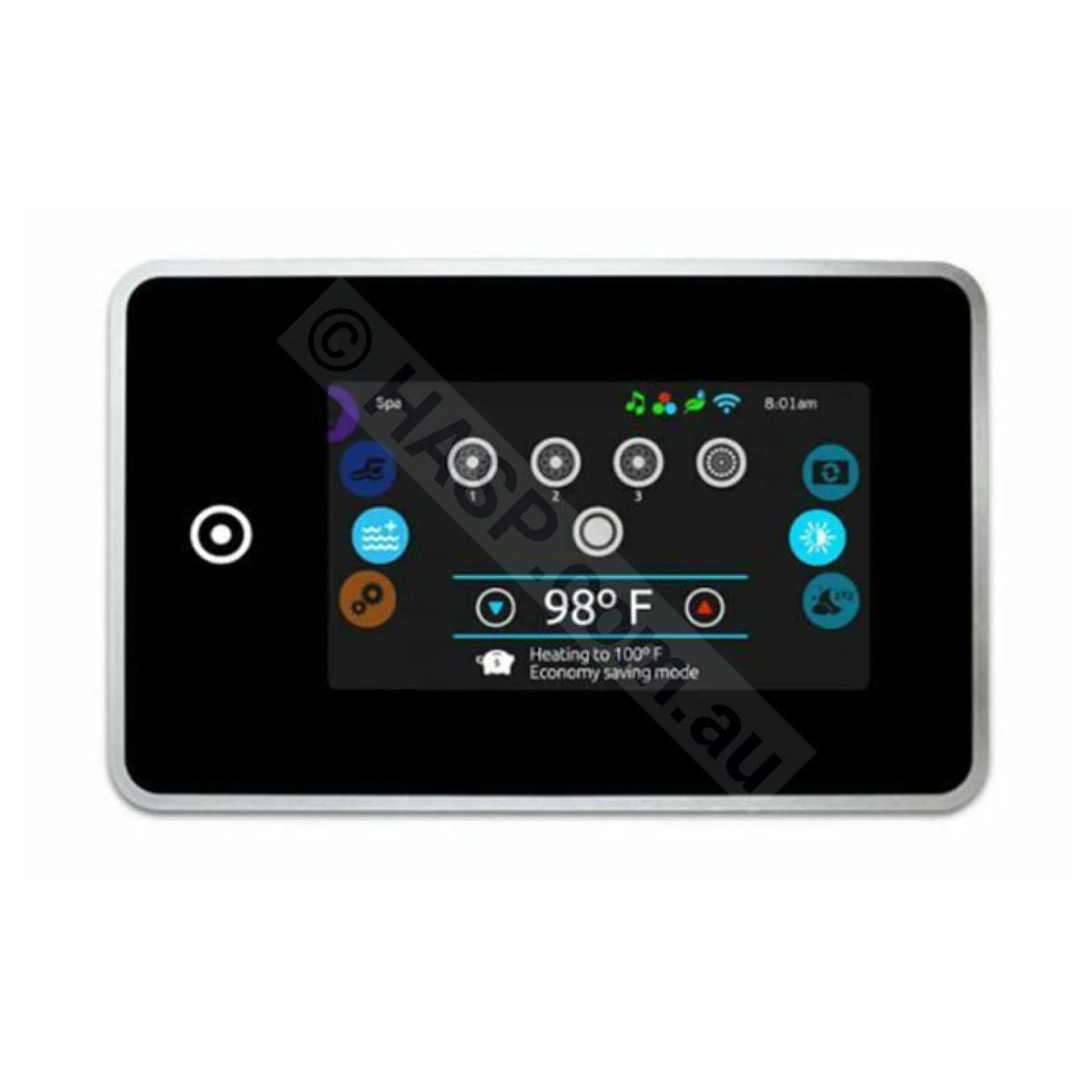

Gecko Aeware in.k1001 / in.k1001+ Colour Touchscreen Spa Touchpad to suit Gecko Aeware in.y series control systems (commonly in.ye and in.yt). A premium 4.3" capacitive colour touchscreen interface designed for fast, modern spa control and programming.
- Display: 4.3" colour capacitive touch screen (256K colours)
- Processor: 400MHz
- Lead length: 3m
What it does
- Controls spa functions, options and programming (depending on your spa pack configuration)
- Supports economy “water care” scheduling in half-hour blocks with weekly repeat
- Includes “weekender mode” style programming for users who only want heating on weekends
- Audio control note: stereo/audio functions only work if your spa has a separate in.stream2 audio system installed
Compatibility
- Designed for Gecko Aeware Y-series control systems (commonly in.ye and in.yt)
- Also used with some Gecko X-series systems (for example in.xe)
- Important: Please confirm your spa pack model and connector type before ordering
Dimensions (check before ordering)
| Face size | Length: 16cm (approx 157-160mm) Width: 10cm (approx 99-100mm) Depth: 4cm |
| Hole cut-out size | Length: 14cm (approx 138-140mm) Width: 8cm (approx 80mm) |
| Lead length | 3m |
Important: Touchpad Installation & Warranty
Incorrect installation and physical damage are common causes of touchpad failure. To maximise service life:

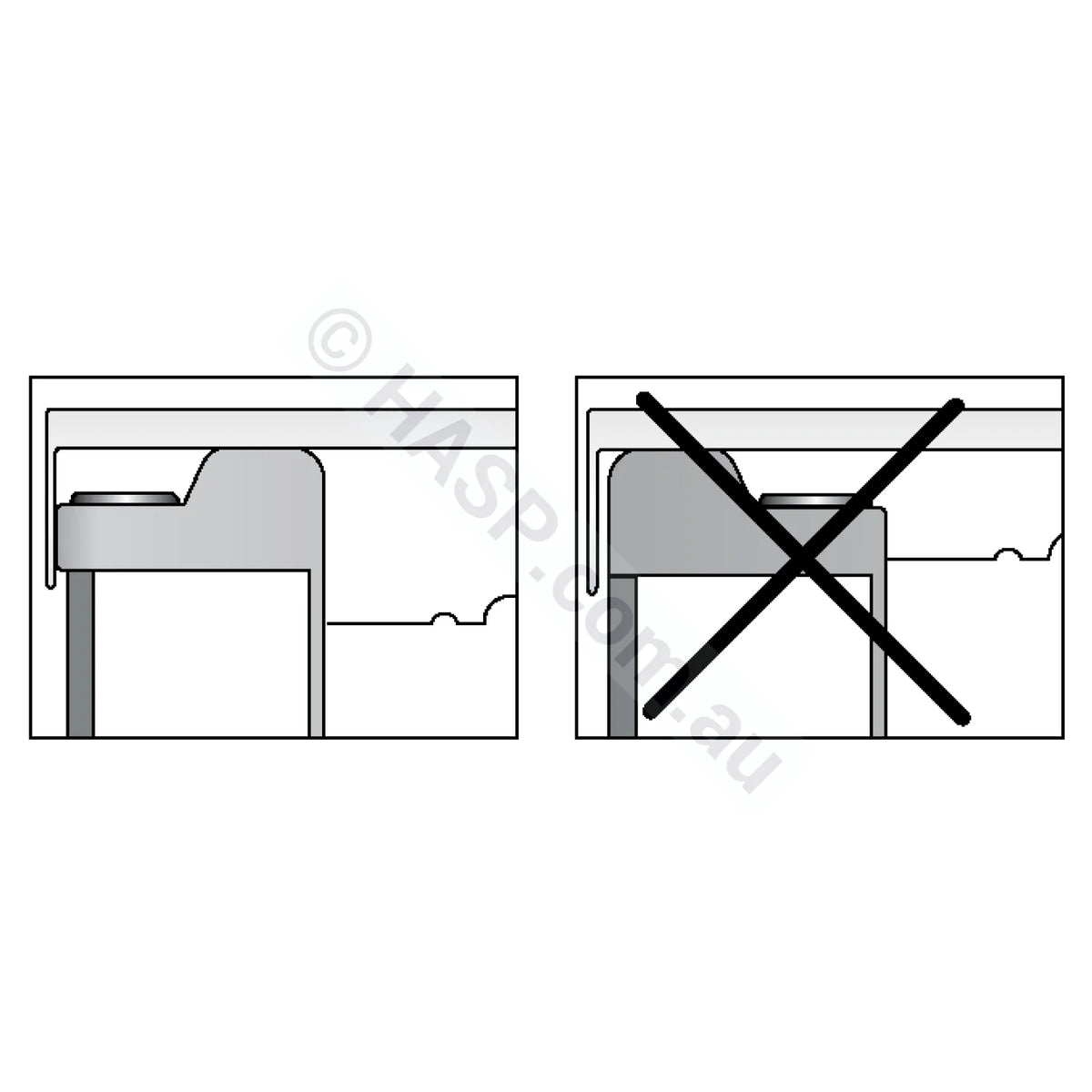

- Pressure: Do not install where the spa cover can press against the screen, or where users may stand, fall or lean heavily on it. Avoid repeatedly pressing the screen too hard.
- Water exposure: Gecko recommends mounting the touchpad on the exterior portion of the spa shell, angled away from the water. If mounted internally, the panel face must still be angled away from the water. Flat mounting or angling towards the water is not recommended.
- UV / Sunlight exposure: Avoid prolonged exposure to harsh, direct sunlight wherever practical. Cover touchpad when in sunlight for long periods.
- Existing installations: Some spa manufacturers fitted these touchpads in unsuitable positions against Gecko's specifications. Scroll through images and refer to manual for more information.
Warranty: Damage caused by excessive pressure, incorrect installation, UV exposure or water ingress is not considered a manufacturing defect. Warranty coverage is subject to the manufacturer's conditions
- The rear gasket helps prevent water ingress. If the gasket is damaged, reseal appropriately to prevent water getting behind the mounting surface, and do not enclose the rear of the unit in a way that lets water collect behind it.
- in.k1000 Techbook / Installation Manual
Part numbers
- 0607-008087
- G-0607-008087
- 0607-008087 (Gecko Aeware)
Warranty
- 2 Years (return to us)
Notes
- “in.k1001” and “in.k1001+” are commonly used naming variants in the market. If you’re replacing an existing keypad, match your current model/part number and cut-out size.
- If you’re unsure, send us a photo of your current touchpad and a photo of the spa pack label so we can confirm compatibility.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
