Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Inverter 8, 12, 18kW Heat Pumps 72200452
Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Inverter 8, 12, 18kW Heat Pumps 72200452 is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Invert...
Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Inverter 8, 12, 18kW Heat Pumps 72200452 is temporarily out of stock and will ship as soon as it's available.

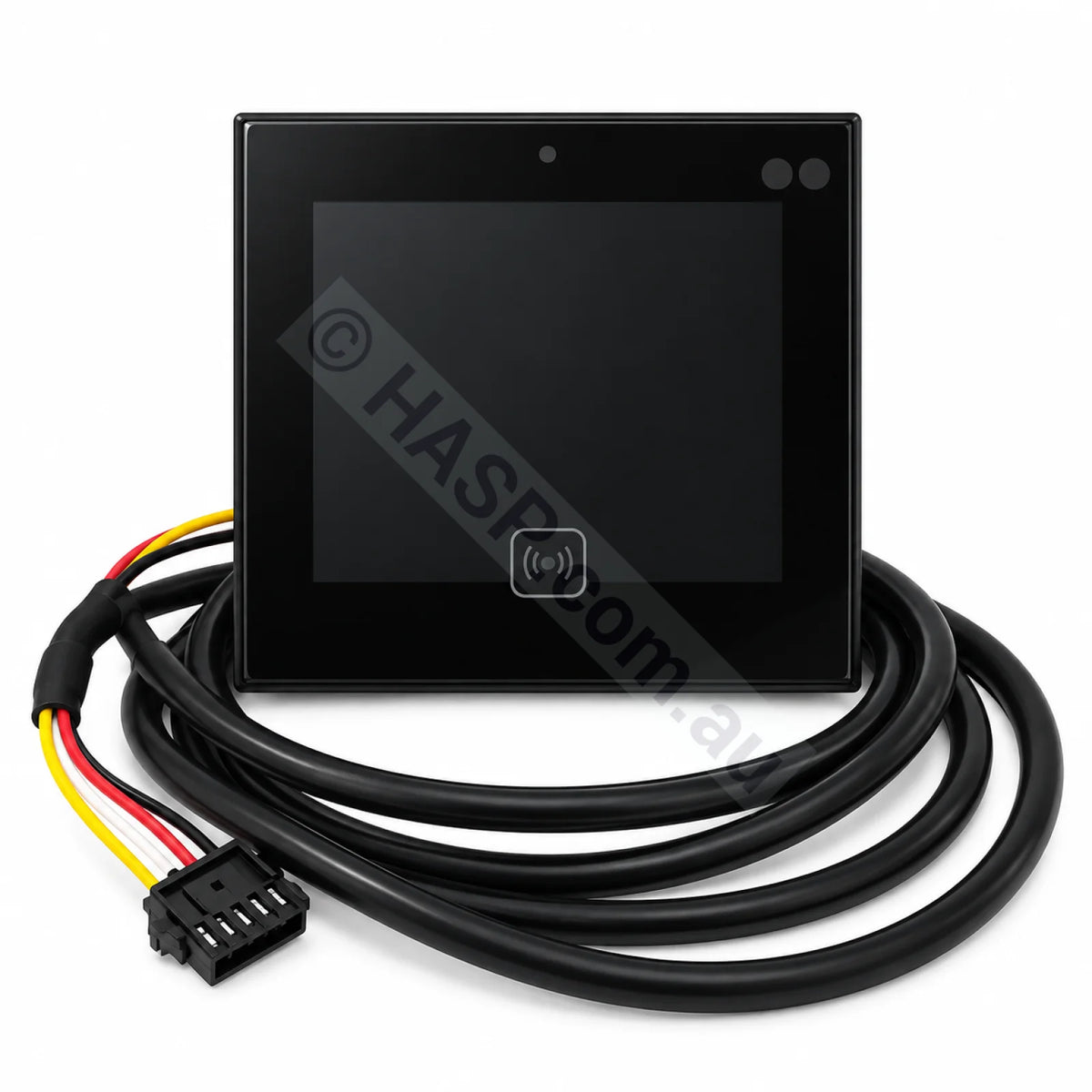

Genuine Astralpool heat pump display — the front control panel / wired controller used to set water temperature, select heating, cooling or auto mode, run the timers, and read operating status and fault codes.
Part Number: 72200452
- Brand: Astralpool (Fluidra)
- Part type: Heat pump display / control panel — genuine replacement
Used On
ECOLite Inverter range:
- WH000641 — ECOLite Inverter 12kW
- WH000642 — ECOLite Inverter 16kW
- WH000643 — ECOLite Inverter 18kW
ECO Inverter range (superseded):
- 78567 — ECO Inverter 8kW
- 78568 — ECO Inverter 12kW
- 78596 — ECO Inverter 18kW
Not listed for the ECOLite Inverter 24kW (WH000655). Contact us before ordering if you have a 24kW unit.

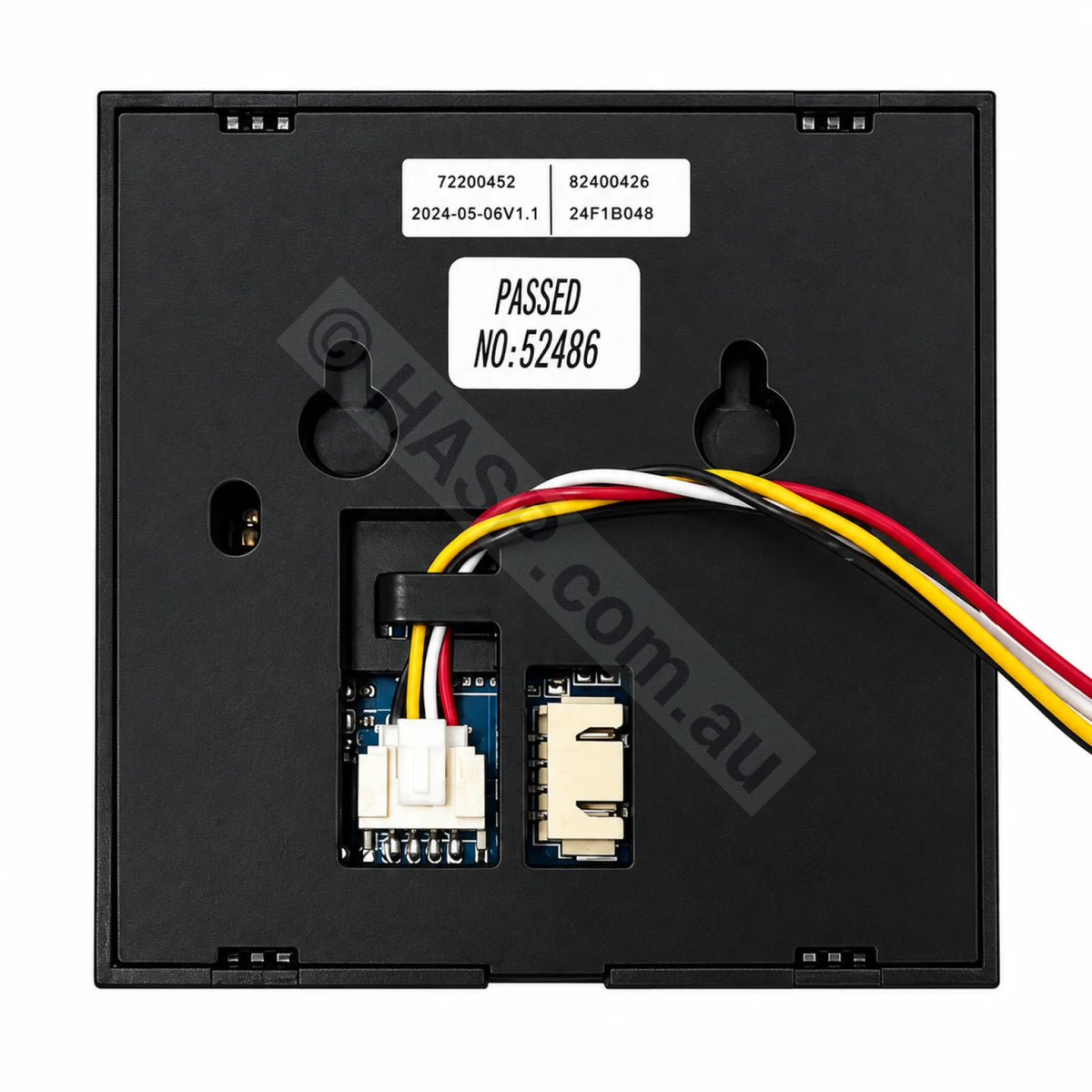

Check The Number On The Back Of Your Existing Display
Astralpool lists two different displays against the ECO Inverter 8kW (78567) and 12kW (78568), so the heat pump model number alone is not enough to identify the right part. Remove your existing display and read the part number printed on the back of it:
- 72200452 — this listing. Suits the ECOLite Inverter 12kW, 16kW and 18kW, and the ECO Inverter 8kW, 12kW and 18kW.
- 72200077 — Astralpool Display Screen 72200077. Suits the ECO Inverter 7kW (78566), 8kW (78567), 12kW (78568) and 78568-II.
If the number on the back does not match either part, send us a photo of the label and we will identify it.
Common Reasons For Replacement
- Blank, dead or partially lit screen
- Missing or faded display segments
- Unresponsive or intermittent keys
- Communication fault between the display and the main control board
- Water ingress or corrosion behind the panel
The display and the main control board are separate parts. Confirm which has failed before ordering — a fault shown on the screen is not always a fault in the screen.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Special Order Item
Manufacturer Catalogues, Diagrams & Part Numbers: Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogue below.
Important Before Ordering: Please ensure you order correctly. Confirm this product is suitable before ordering. Use the catalogue above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers, and any labels.
As with all products, these must be diagnosed and fitted by a qualified and experienced person. This is a special-order item.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
