BWT LSC-50 Salt Water Chlorinator - Self Cleaning 50g/hr

BWT LSC-50 Salt Water Chlorinator - Self Cleaning 50g/hr

Long Life Cell design with up to 25 percent more cell life, 1 percent output adjustment, auto-pilot mode and a 5 year warranty.

• We keep these physically in stock, unlike most drop-shipping websites.

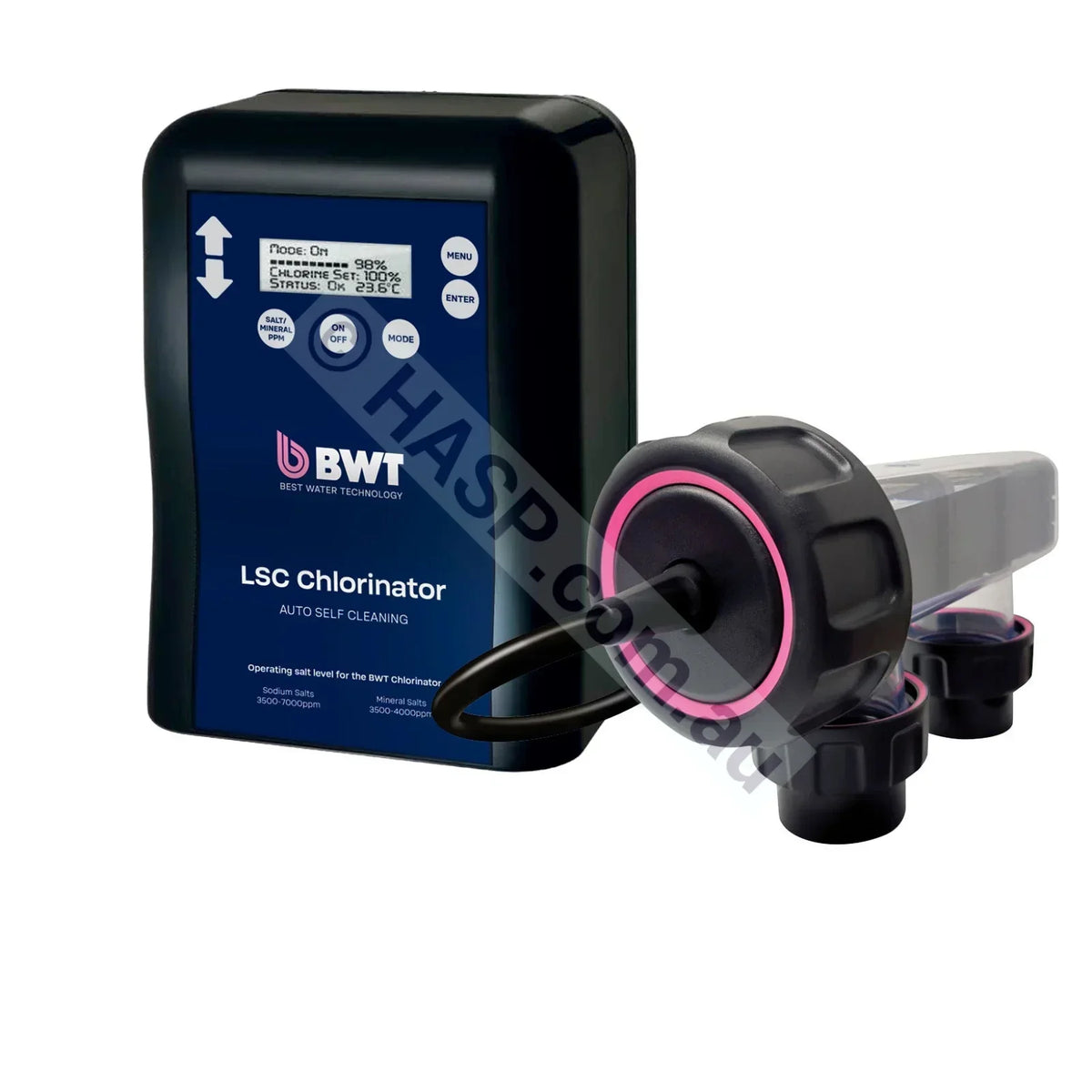

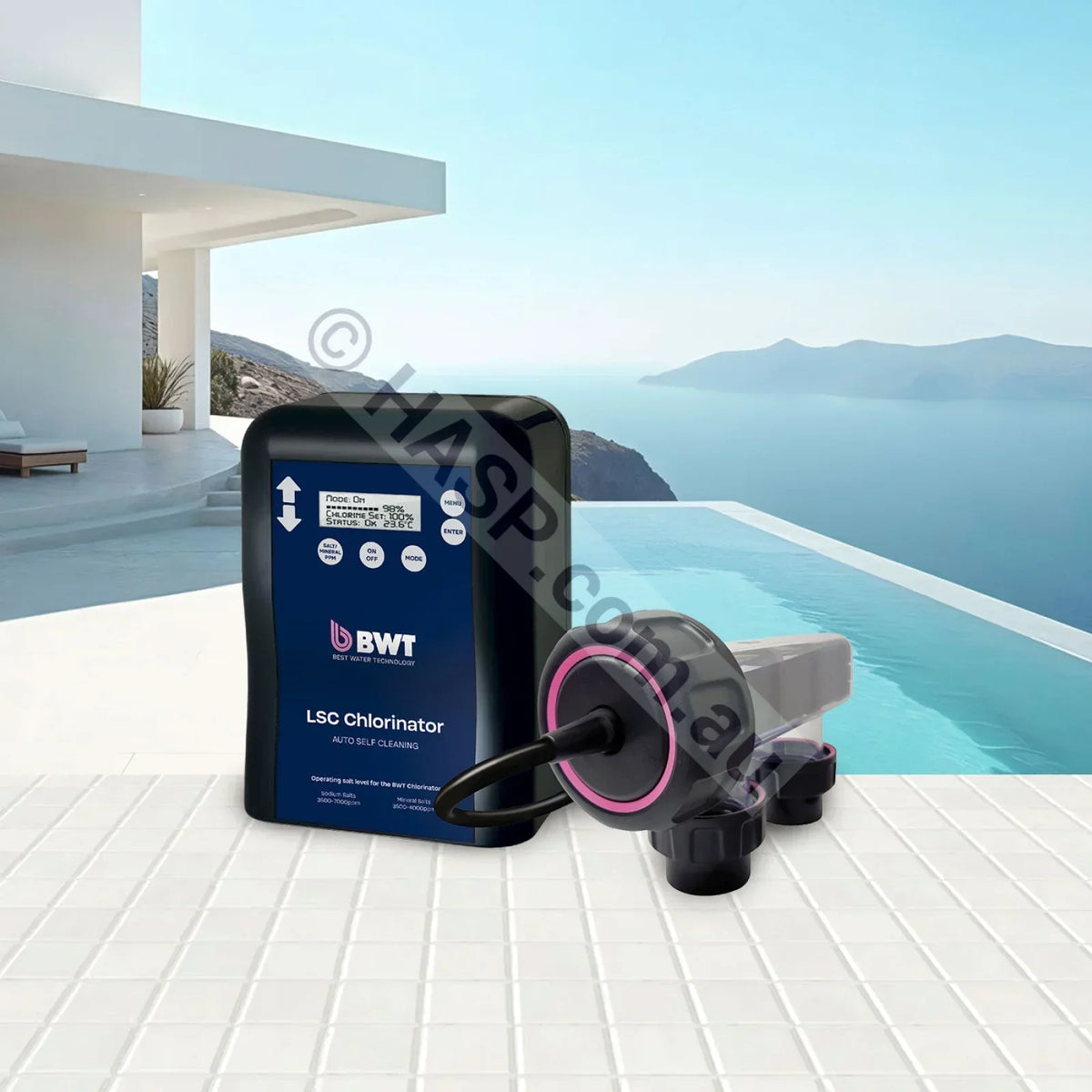

The BWT LSC-50 is a straightforward, well built salt chlorinator for pools that do not need full automation. It is built around the Long Life Cell concept - an extra-large cell running at lower current density, which BWT rates for up to 25 percent longer cell life than a conventional cell of the same output. Automatic self cleaning is fitted across every model in the range.

The onboard micro-computer makes it a set-and-forget unit, with a back-lit LCD, output adjustable in one percent steps, auto-pilot mode and a multi-function timer that runs both the chlorinator and the filter pump.

Where the Diamond Mineraliser adds pool and spa automation, valve control and app connectivity, the LSC concentrates on doing the sanitising job reliably and simply. The LSC-50 produces 50 g/hr of chlorine and suits pools up to 100,000 litres in hot climates.

Key Features

• Long Life Cell - extra-large cell at lower current density for up to 25 percent longer cell life
• Automatic self cleaning on all models
• Smart micro-computer controller system
• Precision output adjustment - chlorine output settable to 1 percent
• Back-lit digital LCD display and easy to use menu
• Auto-pilot mode - set and forget operation
• Intuitive navigation buttons and multi-function timer
• High salt / mineral indicator with automatic power reduction when levels are too high
• Salt and mineral level test function
• Run dry pump protection
• Water temperature reading displayed on screen
• Super chlorinate mode for high use periods
• Backwash function for sand filters
• Spa mode - automatically resets chlorine output to 10 percent
• Super capacitor backup on the timer - no batteries to replace

Model Output and Recommended Pool Size

The BWT LSC range runs from 15 g/hr to 100 g/hr. See the full BWT LSC range to compare models.

Operating Modes

The MODE button steps through the available operating modes:

• ON - continuous operation
• TIMER - runs to the programmed timer blocks
• SUPERCHLORINATE - maximum output to recover water quality
• BOOST - short term output increase
• SPA - automatically resets output to 10 percent for spa volumes
• BACKWASH - suspends chlorination during sand filter backwash

Timer Setup

The timer screen shows a 24 hour block display. Use the up and down buttons to move the cursor above or below each block, then press ENTER to toggle that block between:

• Blank - no operation
• C - chlorinator and pump operation
• P - pump only operation

This lets you run the filter pump without chlorine production during periods where circulation is wanted but sanitiser output is not.

Salt Levels

• Sodium salt: 3,000 - 7,000 ppm
• Mineral salts: 3,500 - 4,000 ppm

Warranty

• 5 years - power pack
• 5 years or 12,000 hours - cell

Sizing Guidance

Chlorinator sizing is driven by pool volume, water temperature, bather load and how many hours a day the filter pump runs. The maximum pool size above assumes hot climate conditions. If your pool sits at the top of a model range, or you run short filtration hours, step up to the next output size rather than running a smaller unit at 100 percent all season - a cell held flat out will wear out well before its rated life.

Note: This product must be installed and serviced by a qualified pool equipment technician or licensed professional. We carry more spare parts than anyone.

Manufacturer Brochures, Manuals & Part Numbers

Need specifications, cell part numbers, wiring detail or more product information? See the manufacturer documents: BWT LSC Chlorinator Brochure | LSC Chlorinator Instruction Manual
