Balboa SpaTouch 4 - with WiFi - 144mm x 100mm
Balboa SpaTouch 4 Touchpad - Touchscreen with Built-In WiFi
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD

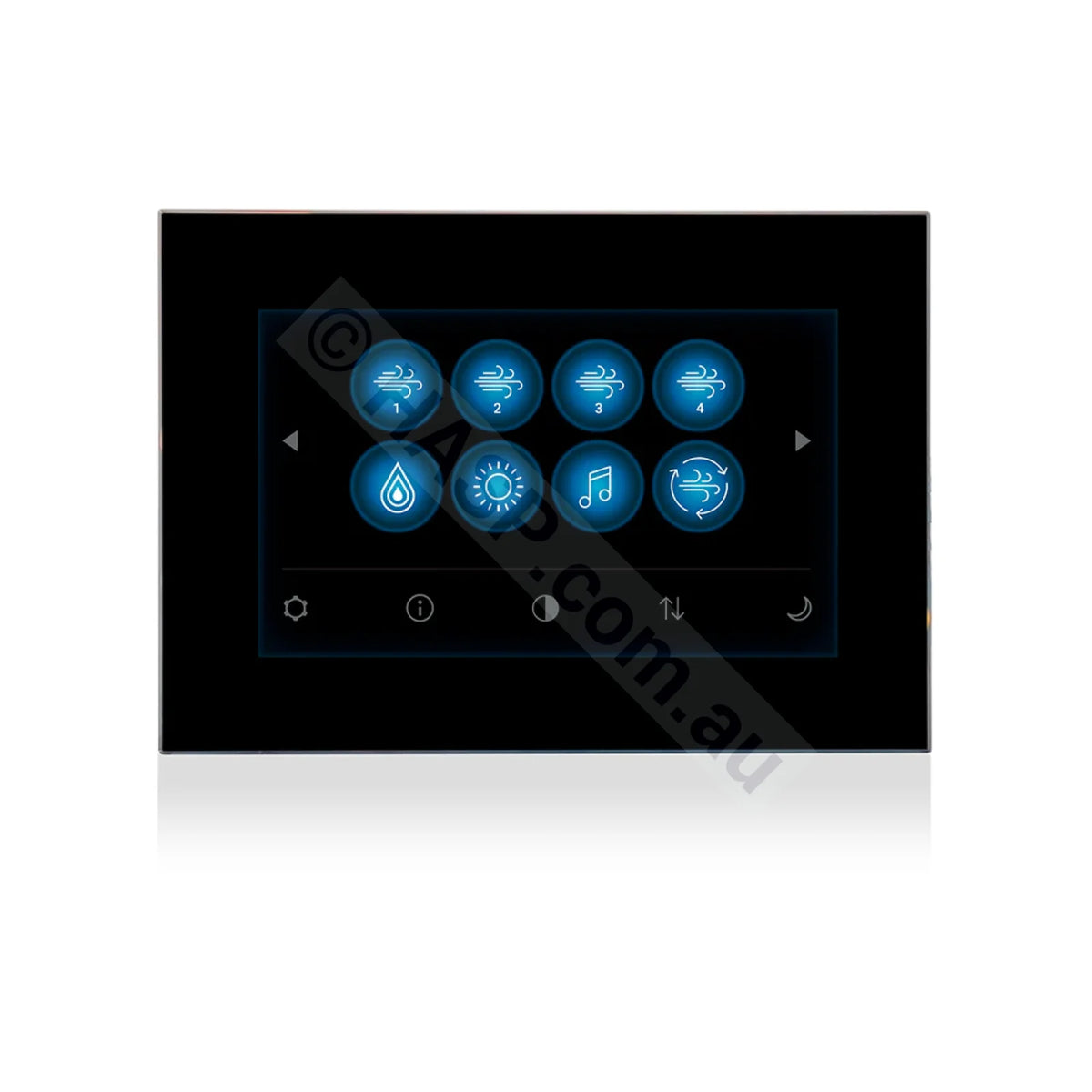

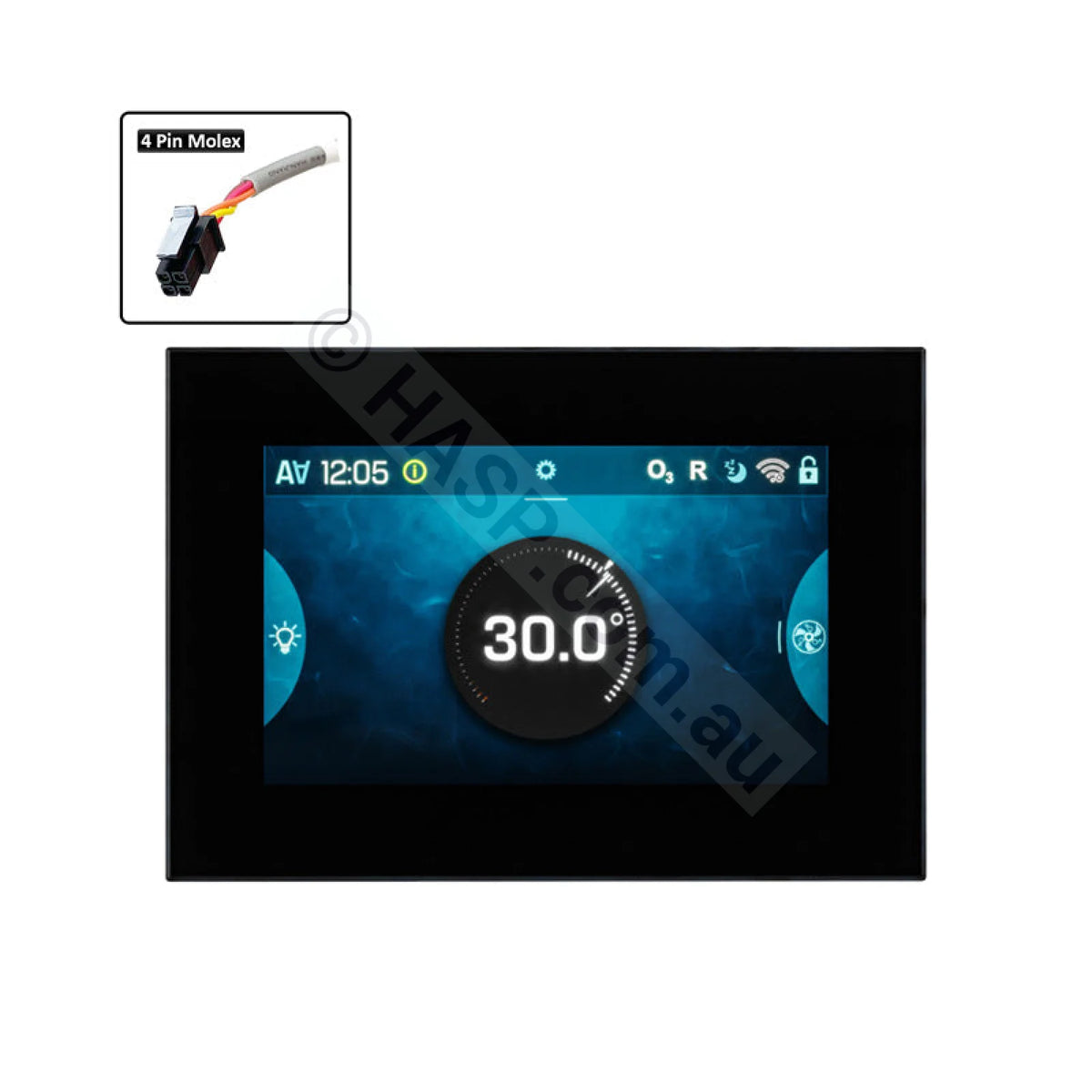

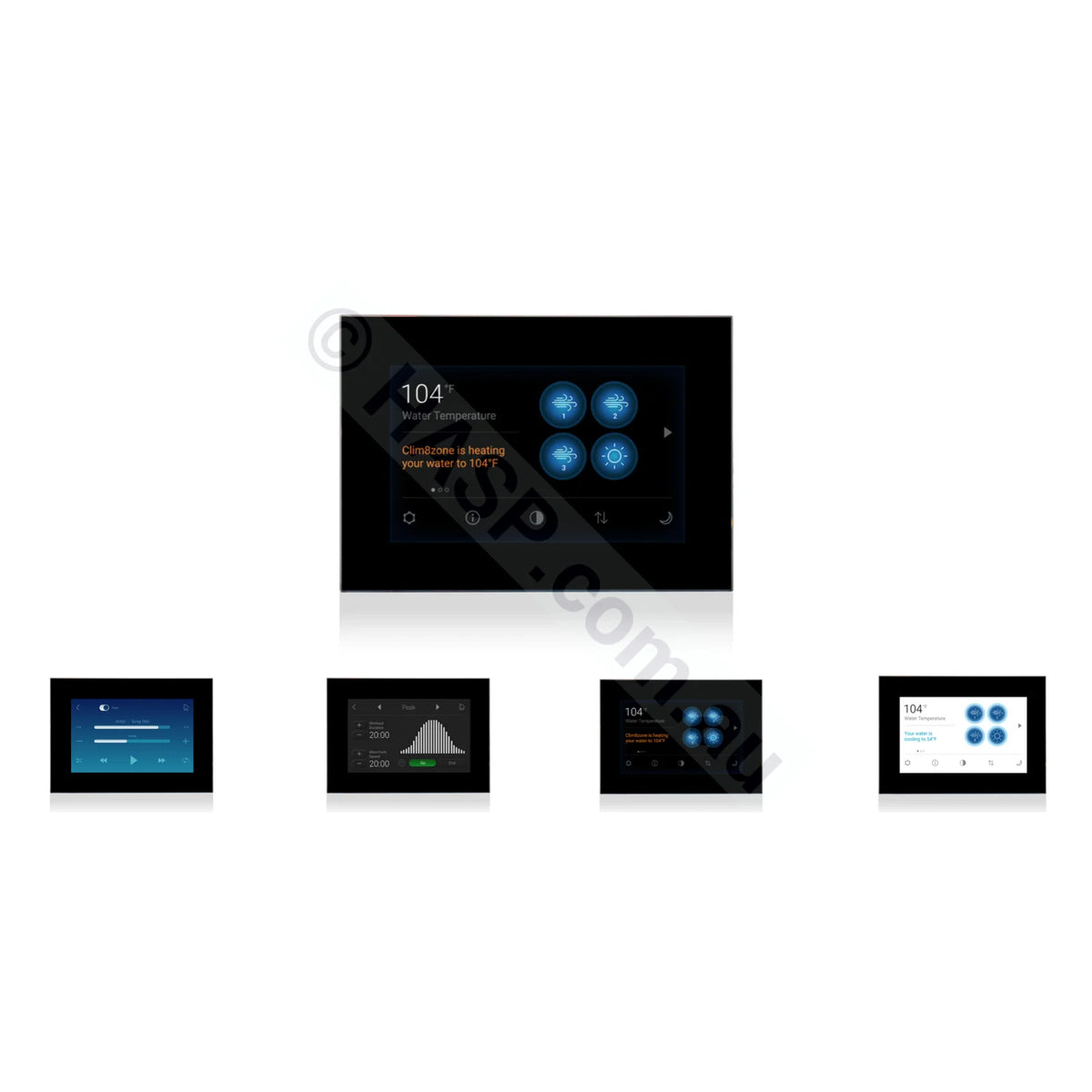

The Balboa SpaTouch 4 is a full-featured touchscreen control panel designed for use with Balboa BP series spa packs. It includes built-in WiFi connectivity via the Balboa ControlMySpa (CMS) system, allowing remote access and control.
Screen Size:
5" diagonal (110mm wide x 67mm high)
Unit Dimensions:
-
Overall size: 144mm x 100mm
-
Cut-out hole required: 128mm x 83mm
-
Glass thickness: 2mm
-
Height above spa shell: 13mm
Important: Touchpad Installation & Warranty
Incorrect installation and physical damage are common causes of touchpad failure. To maximise service life:
- Pressure: Do not install where the spa cover can press against the screen, or where users may stand, fall or lean heavily on it. Avoid repeatedly pressing the screen too hard.

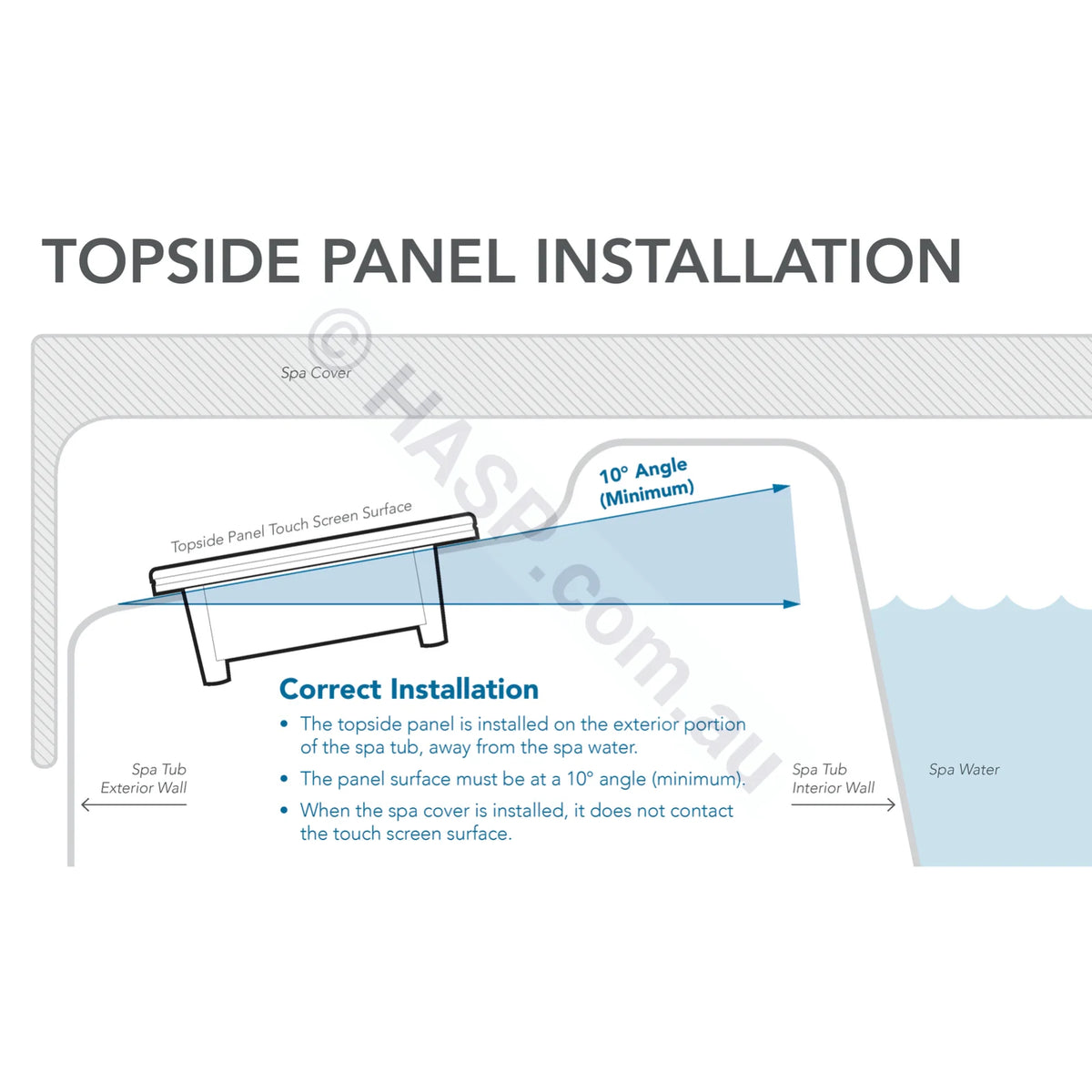

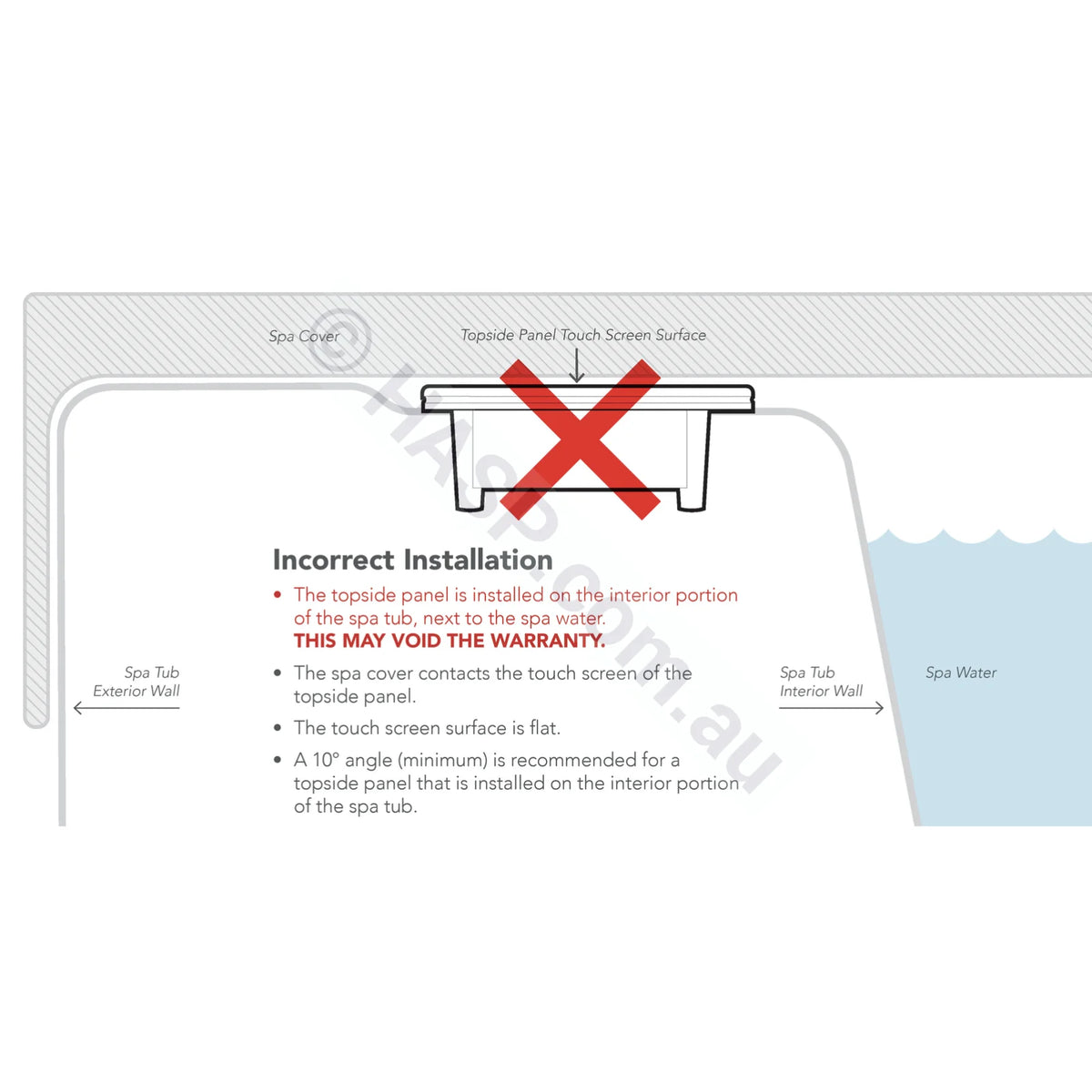

- Water exposure: Balboa recommends mounting the touchpad on the exterior portion of the spa shell, angled away from the water. If mounted internally, the panel face must still be angled away from the water. Flat mounting or angling towards the water is not recommended.
- UV / Sunlight exposure: Avoid prolonged exposure to harsh, direct sunlight wherever practical. Cover touchpad when in sunlight for long periods.
- Existing installations: Some spa manufacturers fitted these touchpads in unsuitable positions against Balboa's specifications. Scroll through images and refer to manual for more information.
Warranty: Damage caused by excessive pressure, incorrect installation, UV exposure or water ingress is not considered a manufacturing defect. Warranty coverage is subject to the manufacturer's conditions
- The spa cut-out hole may need modification when replacing older obsolete touchpads.
- User / Installation Manual
Note: Updated Touchpad Construction

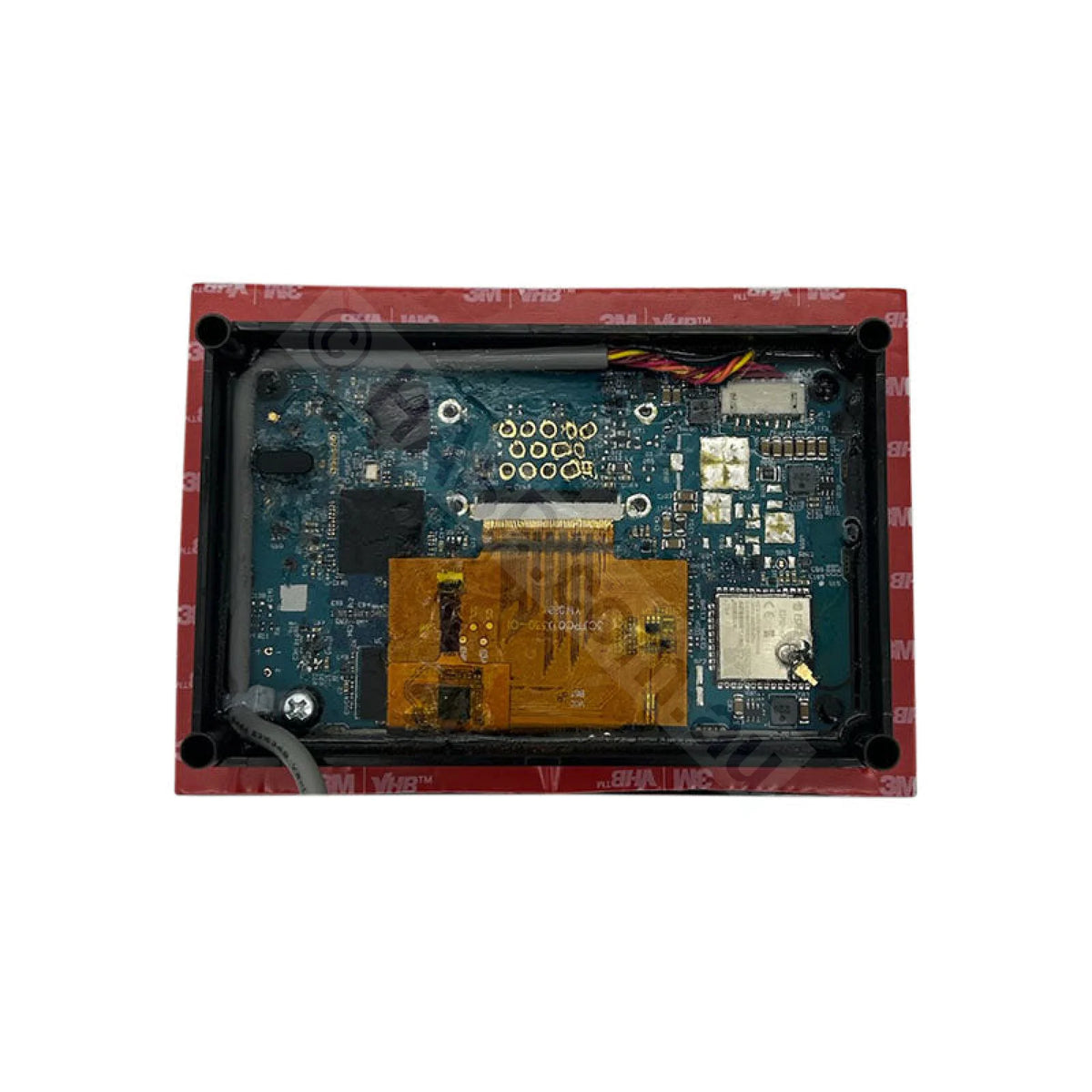

Older Balboa SpaTouch touchpads may have featured a solid plastic rear backing. Newer touchpads are no longer manufactured this way and instead feature a conformal potting gel.
This gel may appear uneven or imperfectly smooth. This is normal and does not indicate a manufacturing defect.
The gel provides a secondary moisture barrier, supplementing the harder protective coating already applied to the circuit board (PCB). This change in construction does not affect the touchpad's intended operation.
b-57542
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
