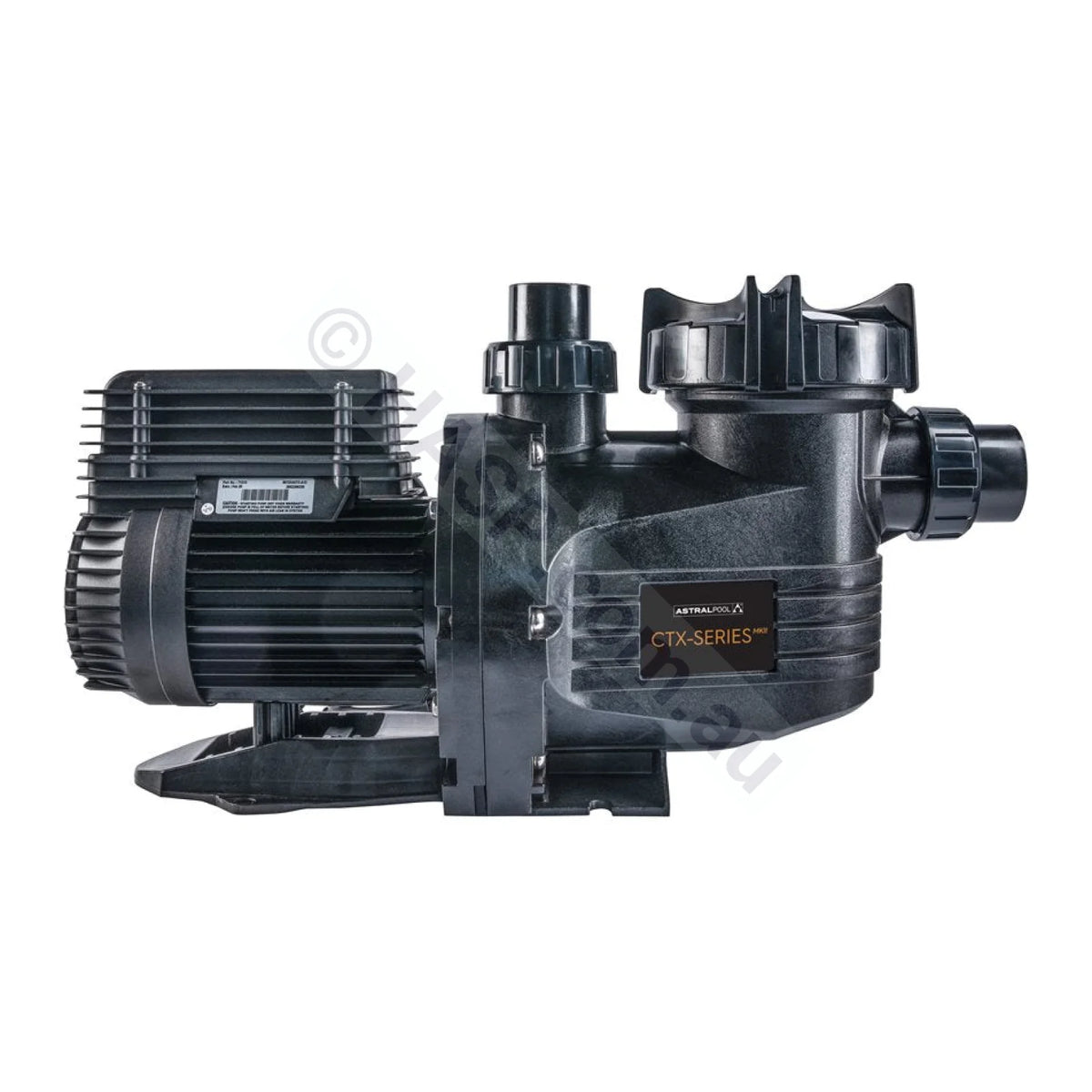

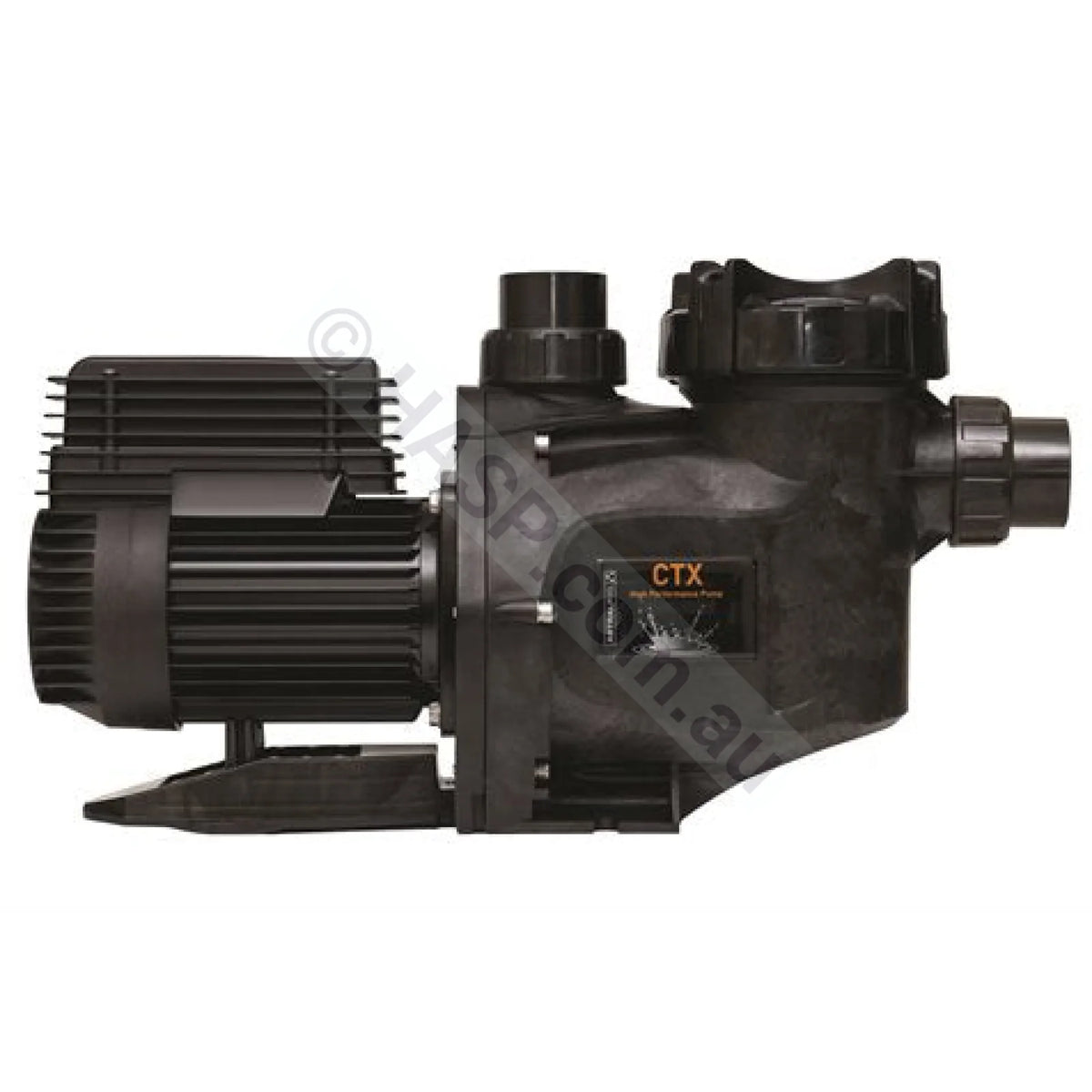

Astralpool CTX 500C 2.0HP Pool Pump

Astralpool CTX 500 C 2.0HP Pool Pump

The Astralpool CTX 500C is the current generation of the CTX 500, a genuine Australian made Astral / Hurlcon pool and spa pump rated at 2.0HP with a maximum flow of 500 litres per minute. The "C" is the latest iteration and it directly replaces older CTX 500 Mk1 and Mk2 versions, plus Hurlcon TX 2.0 pumps in most installations without plumbing changes. Astralpool product code 21500.

• Authorised Astralpool (Fluidra) Dealer and Warranty Agent
• Real stock, physically on our shelves, not ordered in after you buy
• Available for pick up from our Carrum Downs, Vic store: 10 Industry Blvd
• Buying from an authorised dealer and warranty agent means you get genuine Australian supplied product, a valid manufacturer warranty, and warranty work handled by us rather than being sent elsewhere.
• Note: Fluidra does not allow authorised dealers to sell these on eBay or similar marketplaces. Sellers listing them there are not authorised dealers, which can make warranty claims difficult.

Replaces the older CTX 500 Mk1 and Mk2

Astralpool has run the CTX 500 through several generations. The CTX 500C supersedes all of them and is the only version currently manufactured, so it is what you receive when you replace an older unit. It uses the same mounting and plumbing footprint, which is why it is a straight swap for:

• Astral / Hurlcon CTX 500 Mk1 (first generation CTX 500)
• Astral / Hurlcon CTX 500 Mk2 (second generation CTX 500)
• Hurlcon TX 2.0

Important sizing note: older Hurlcon CX and TX ranges used inflated horsepower figures, so HP on its own is not a reliable way to size a replacement. Match on flow rate and head pressure, your plumbing layout, and what the pump actually has to run. If you are unsure, send us your old pump model and we will tell you which CTX suits.

Why the Astralpool CTX 500C is so popular

The Astralpool CTX series has been one of the most proven Australian pump ranges for years. Astral builds the CTX from high quality materials and components for greater efficiency, reduced noise and dependable high pressure performance. It is specifically promoted for in-floor cleaning systems, spa jets, pool filtration and other demanding circulation duties, which is where its reputation comes from.

Features and Benefits

• Genuine Astralpool / Hurlcon CTX 500C, the current production version
• Direct replacement for older CTX 500 Mk1 and Mk2 units
• Australian made
• 40mm and 50mm plumbing fittings included
• High pressure performance suited to filtration, spa jets and in-floor cleaning
• Large lint pot and strainer basket for less frequent maintenance
• Easy remove lid for quicker basket cleaning
• Reduced operating noise
• 3 year warranty

Specifications

• Model: Astralpool CTX 500C
• Product code: 21500
• Nominal power: 2.0HP
• Voltage: 240V single phase
• Full load current: 8.3A
• Maximum flow: 500 litres per minute
• Connections: 40mm and 50mm fittings supplied
• Warranty: 3 years

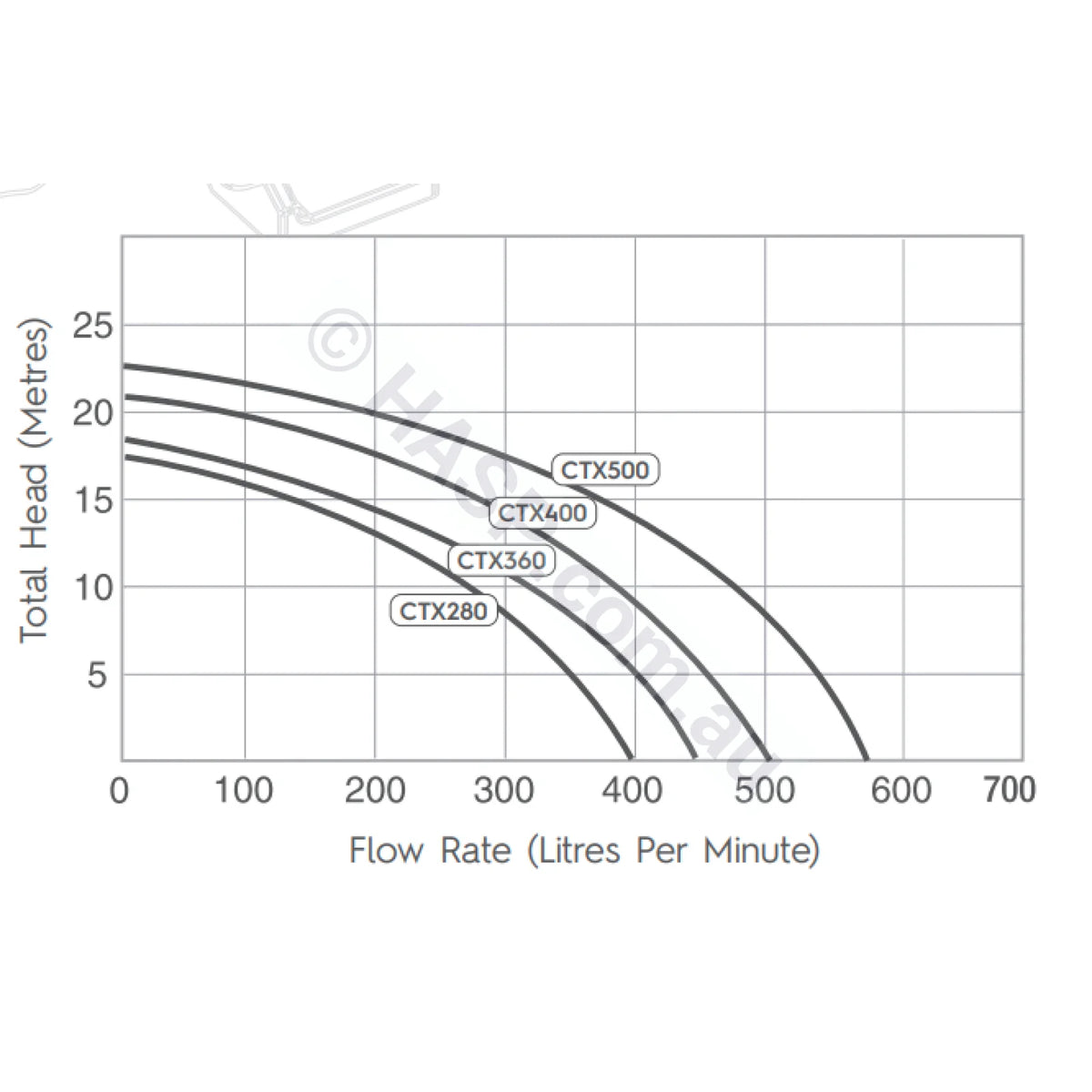

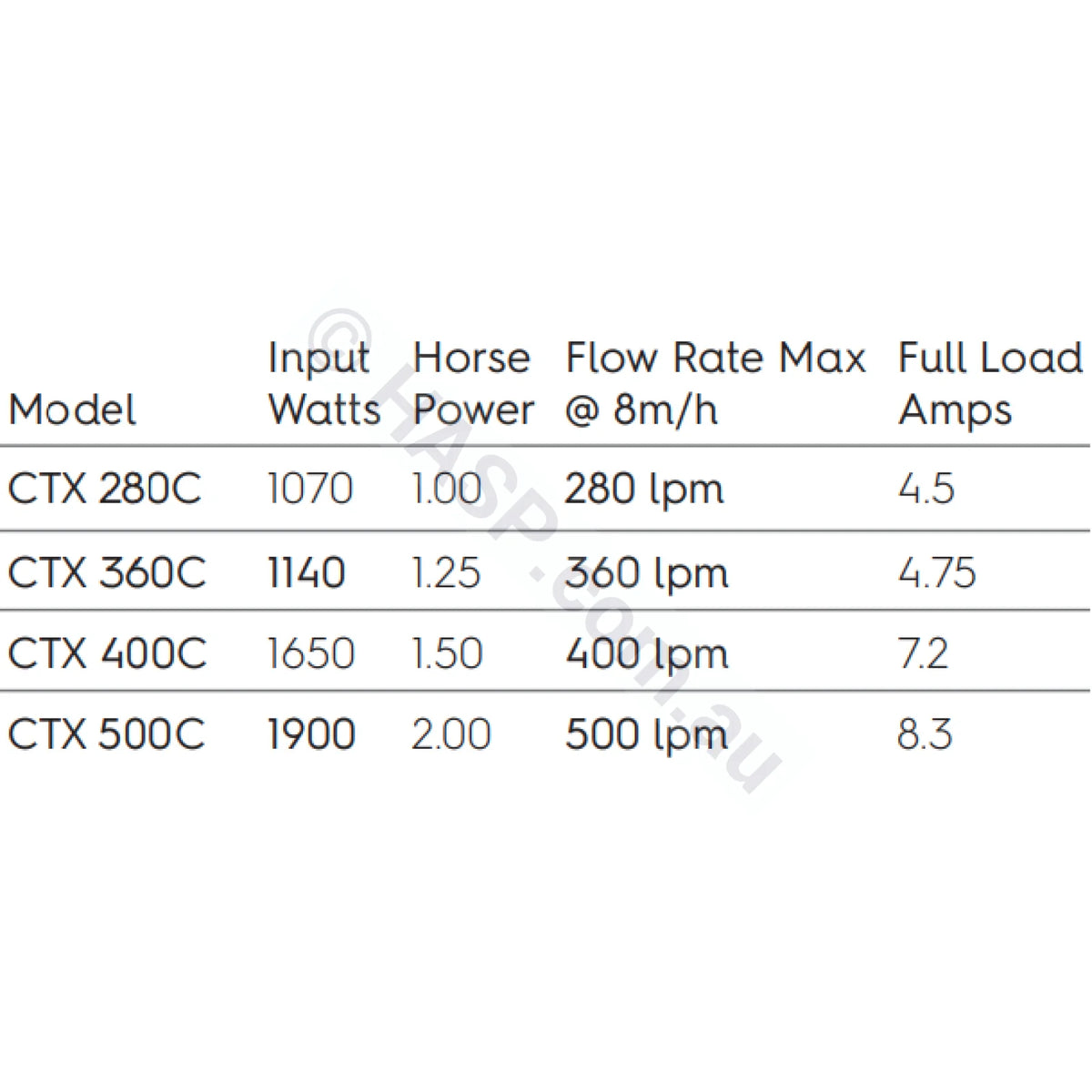

CTX Range at a Glance

• CTX 180 C - 0.75hp / 180lpm max (Obsolete, use E170)
• CTX 280 C - 1.0hp / 280lpm max / 4.5A
• CTX 360 C - 1.25hp / 360lpm max / 4.75A
• CTX 400 C - 1.5hp / 400lpm max / 7.2A
• CTX 500 C - 2.0hp / 500lpm max / 8.3A ← this pump

Common Questions

Is the CTX 500C the same pump as my old CTX 500? It is the current generation of it. The CTX 500C replaces the earlier Mk1 and Mk2 CTX 500 and fits the same plumbing, so no pipework changes are normally needed.

What does the 500 in CTX 500 mean? It is the maximum flow rate, 500 litres per minute. It is not the horsepower. The CTX 500C is a 2.0HP pump.

Can I still get a Mk1 or Mk2 CTX 500? No. Those generations are discontinued. The CTX 500C is the current replacement and Astralpool supplies it as the supersession.

Do I get a genuine warranty? Yes. We are an Authorised Astralpool (Fluidra) Dealer and Warranty Agent, so the pump comes with its full manufacturer warranty and we handle warranty work directly.

Can I see one before I buy? Yes. We hold CTX stock physically at our Carrum Downs, Vic store at 10 Industry Blvd and you are welcome to pick one up in person.

Manufacturer Catalogues, Diagrams and Part Numbers

Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
