Astralpool CTX 400C 1.5HP Pool Pump

Astralpool CTX 400C 1.5HP Pool Pump

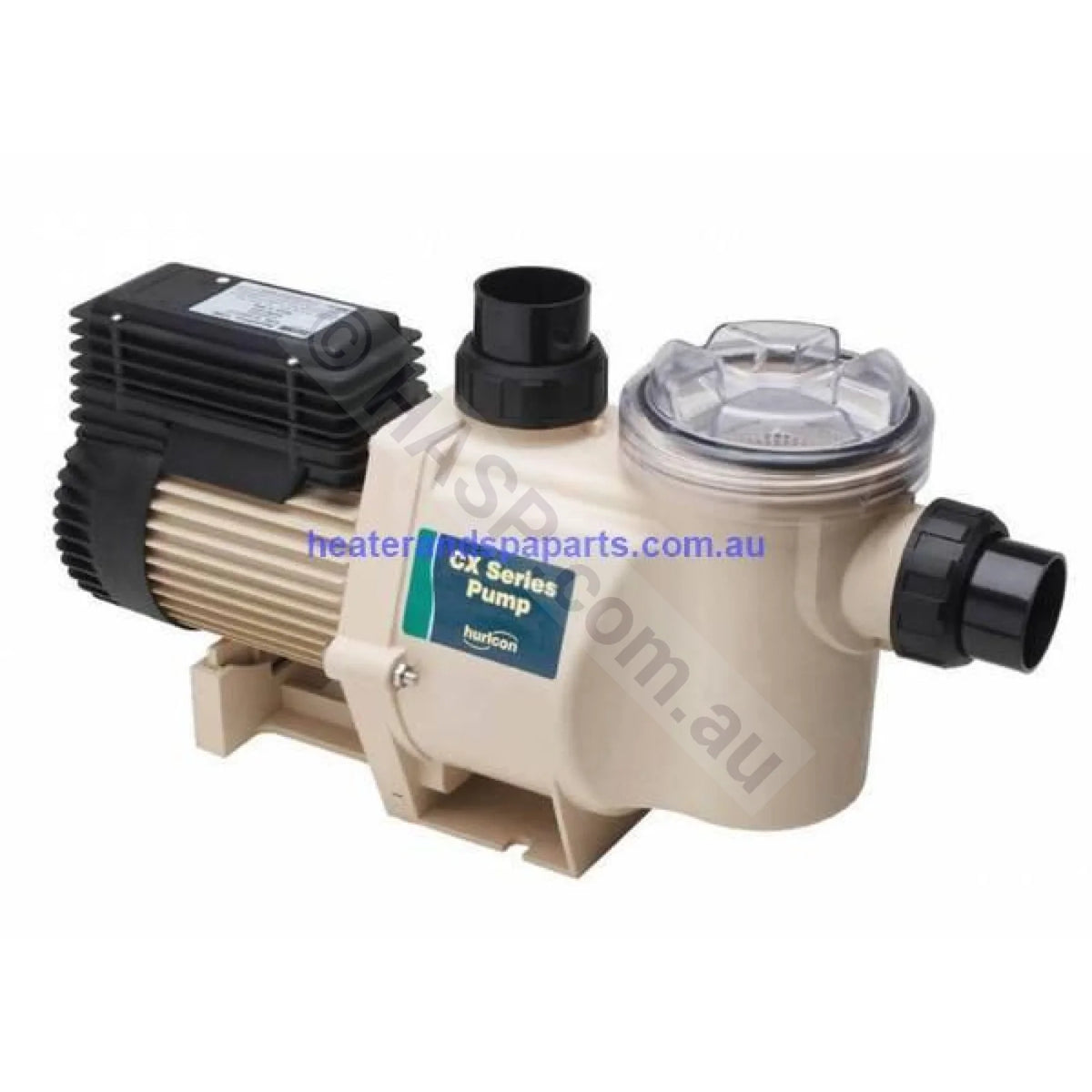

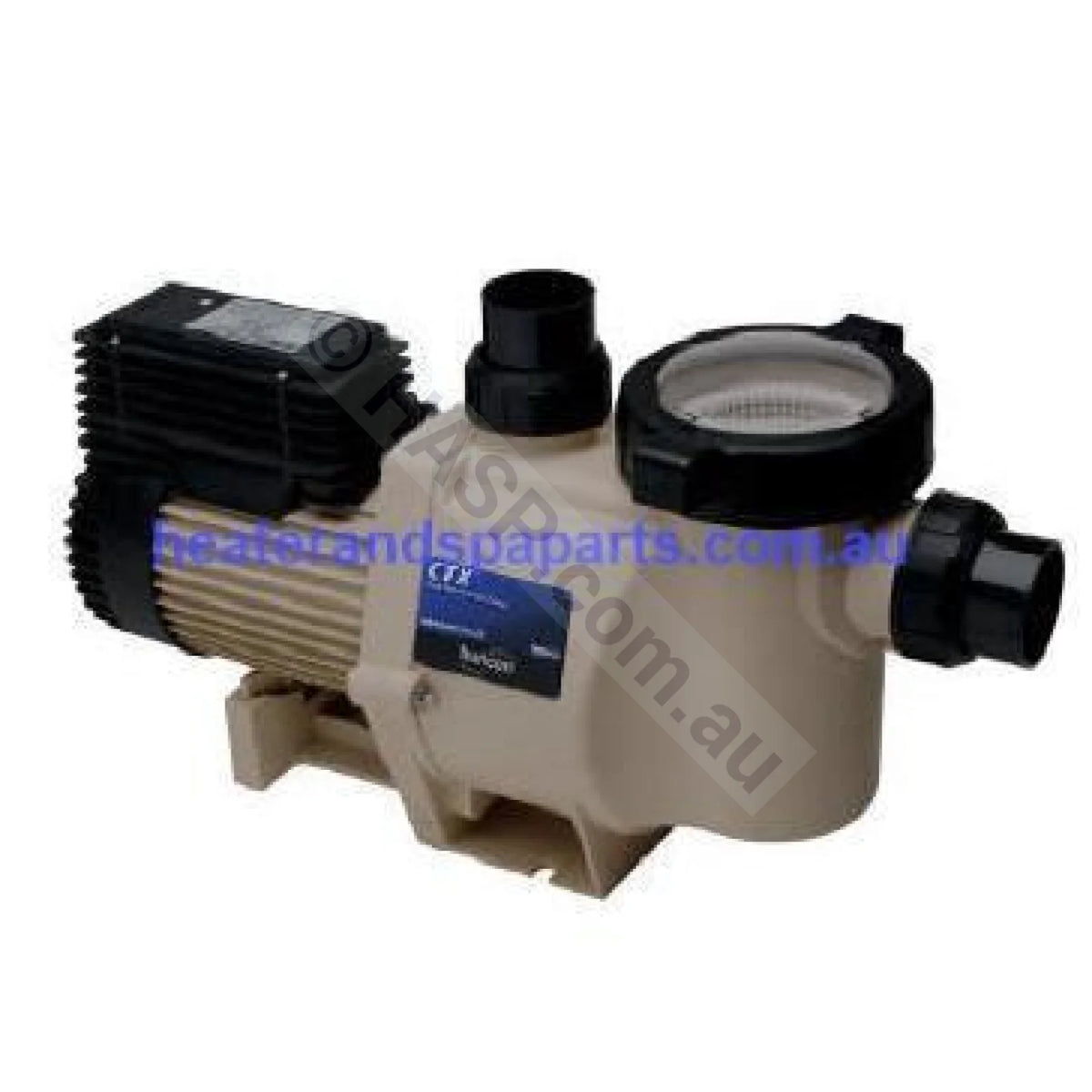

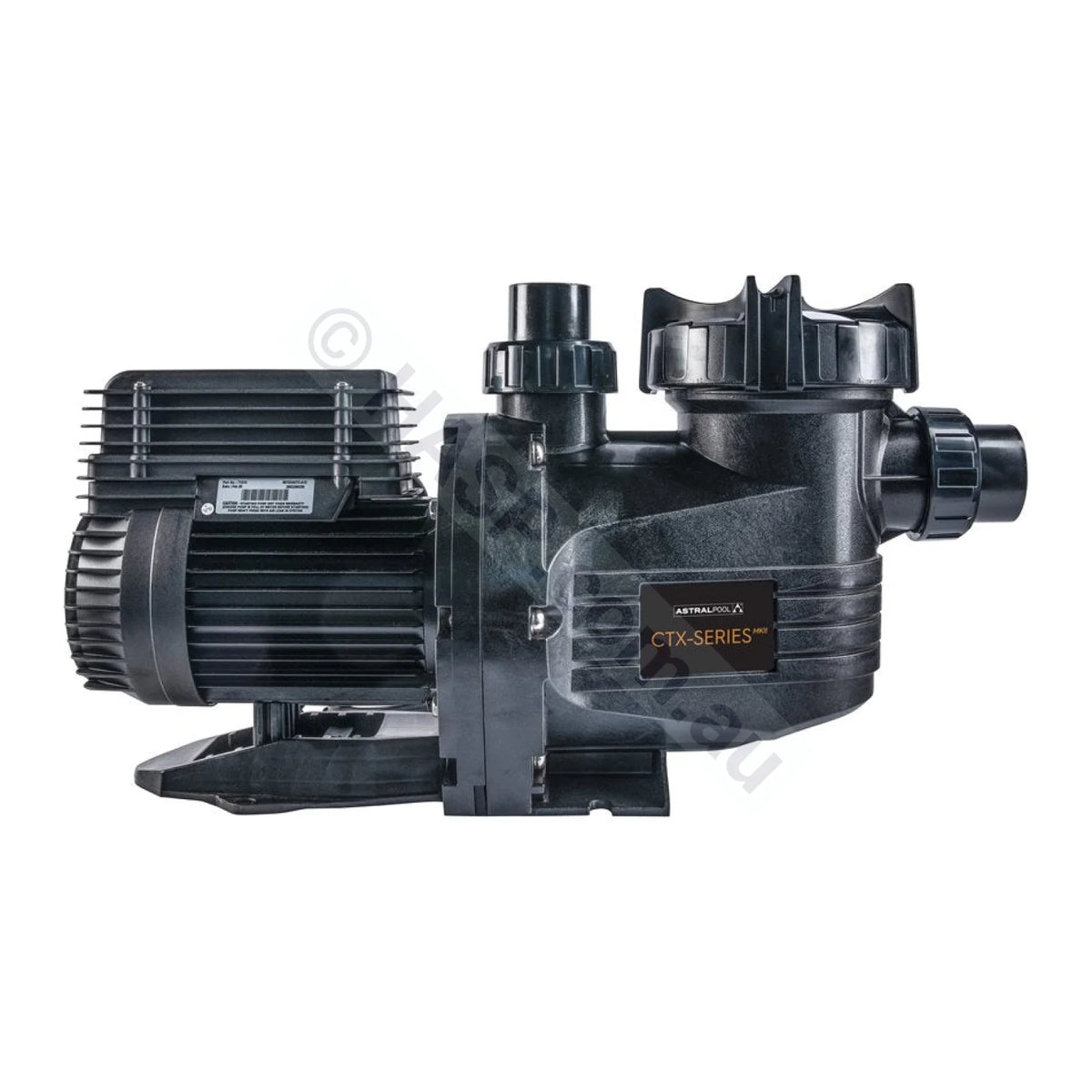

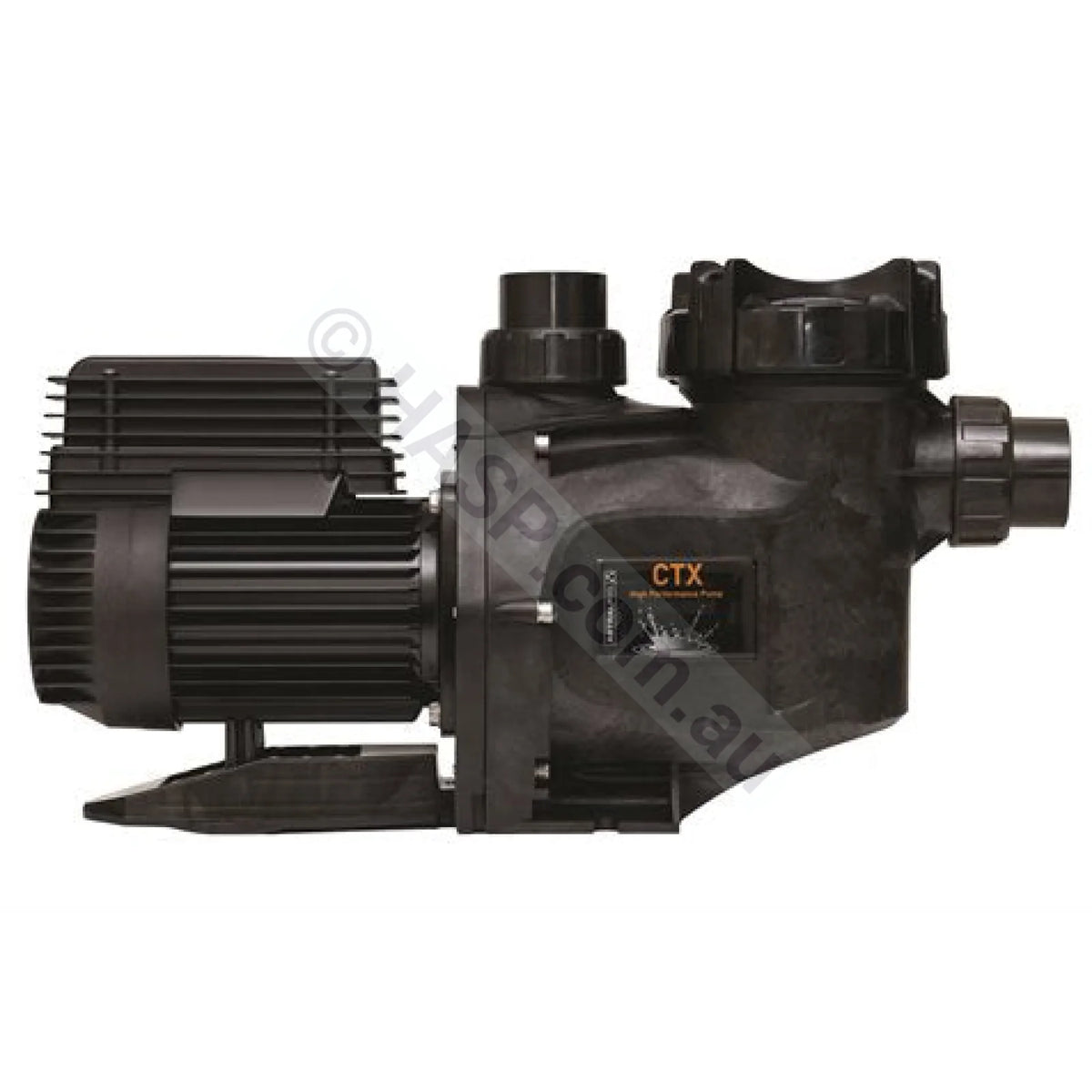

The Astralpool CTX 400C is the current generation of the CTX 400, a genuine Australian made Astral / Hurlcon pool and spa pump rated at 1.5HP with a maximum flow of 400 litres per minute. The "C" is the latest iteration and it directly replaces older CTX 400 Mk1 and Mk2 versions, plus Hurlcon CX 400 and TX 1.5 pumps in most installations without plumbing changes. Astralpool product code 21400.

• Authorised Astralpool (Fluidra) Dealer and Warranty Agent
• Real stock, physically on our shelves, not ordered in after you buy
• Available for pick up from our Carrum Downs, Vic store: 10 Industry Blvd
• Buying from an authorised dealer and warranty agent means you get genuine Australian supplied product, a valid manufacturer warranty, and warranty work handled by us rather than being sent elsewhere.
• Note: Fluidra does not allow authorised dealers to sell these on eBay or similar marketplaces. Sellers listing them there are not authorised dealers, which can make warranty claims difficult.

Replaces the older CTX 400 Mk1 and Mk2

Astralpool has run the CTX 400 through several generations. The CTX 400C supersedes all of them and is the only version currently manufactured, so it is what you receive when you replace an older unit. It uses the same mounting and plumbing footprint, which is why it is a straight swap for:

• Astral / Hurlcon CTX 400 Mk1 (first generation CTX 400)
• Astral / Hurlcon CTX 400 Mk2 (second generation CTX 400)
• Hurlcon CX 400
• Hurlcon TX 1.5

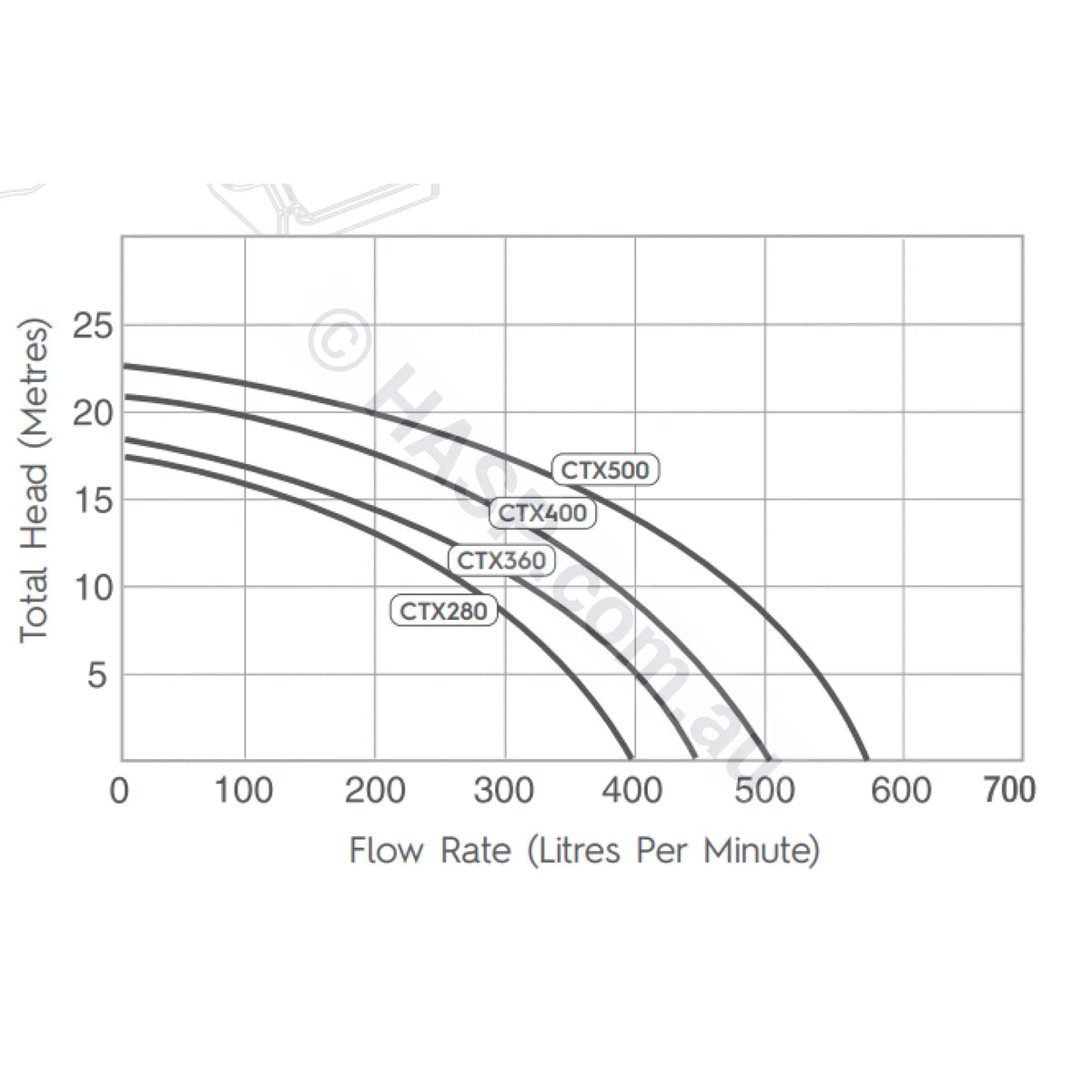

Important sizing note: older Hurlcon CX and TX ranges used inflated horsepower figures, so HP on its own is not a reliable way to size a replacement. Match on flow rate and head pressure, your plumbing layout, and what the pump actually has to run. If you are unsure, send us your old pump model and we will tell you which CTX suits.

Why the Astralpool CTX 400C is so popular

The Astralpool CTX series has been one of the most proven Australian pump ranges for years. Astral builds the CTX from high quality materials and components for greater efficiency, reduced noise and dependable high pressure performance. It is specifically promoted for in-floor cleaning systems, spa jets, pool filtration and other demanding circulation duties, which is where its reputation comes from.

Features and Benefits

• Genuine Astralpool / Hurlcon CTX 400C, the current production version
• Direct replacement for older CTX 400 Mk1 and Mk2 units
• Australian made
• 40mm and 50mm plumbing fittings included
• High pressure performance suited to filtration, spa jets and in-floor cleaning
• Large lint pot and strainer basket for less frequent maintenance
• Easy remove lid for quicker basket cleaning
• Reduced operating noise
• 3 year warranty

Specifications

• Model: Astralpool CTX 400C
• Product code: 21400
• Nominal power: 1.5HP
• Voltage: 240V single phase
• Full load current: 7.2A
• Maximum flow: 400 litres per minute
• Connections: 40mm and 50mm fittings supplied
• Warranty: 3 years

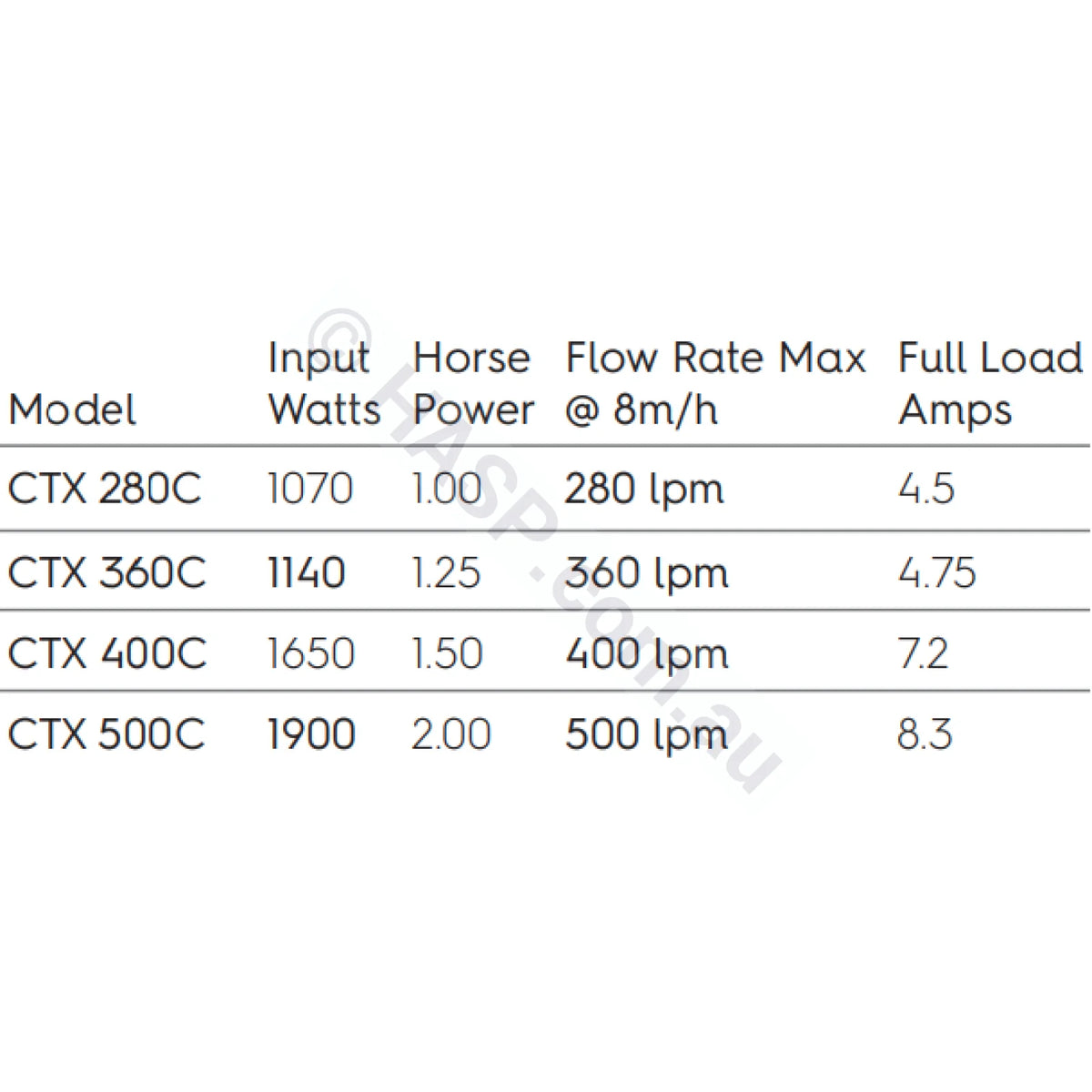

CTX Range at a Glance

• CTX 180 C - 0.75hp / 180lpm max (Obsolete, use E170)
• CTX 280 C - 1.0hp / 280lpm max / 4.5A
• CTX 360 C - 1.25hp / 360lpm max / 4.75A
• CTX 400 C - 1.5hp / 400lpm max / 7.2A ← this pump
• CTX 500 C - 2.0hp / 500lpm max / 8.3A

Alternative retrofit options using the same plumbing footprint

• Sensapool SR430 2.0hp

Common Questions

Is the CTX 400C the same pump as my old CTX 400? It is the current generation of it. The CTX 400C replaces the earlier Mk1 and Mk2 CTX 400 and fits the same plumbing, so no pipework changes are normally needed.

What does the 400 in CTX 400 mean? It is the maximum flow rate, 400 litres per minute. It is not the horsepower. The CTX 400C is a 1.5HP pump.

Can I still get a Mk1 or Mk2 CTX 400? No. Those generations are discontinued. The CTX 400C is the current replacement and Astralpool supplies it as the supersession.

Do I get a genuine warranty? Yes. We are an Authorised Astralpool (Fluidra) Dealer and Warranty Agent, so the pump comes with its full manufacturer warranty and we handle warranty work directly.

Can I see one before I buy? Yes. We hold CTX stock physically at our Carrum Downs, Vic store at 10 Industry Blvd and you are welcome to pick one up in person.

Manufacturer Catalogues, Diagrams and Part Numbers

Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
