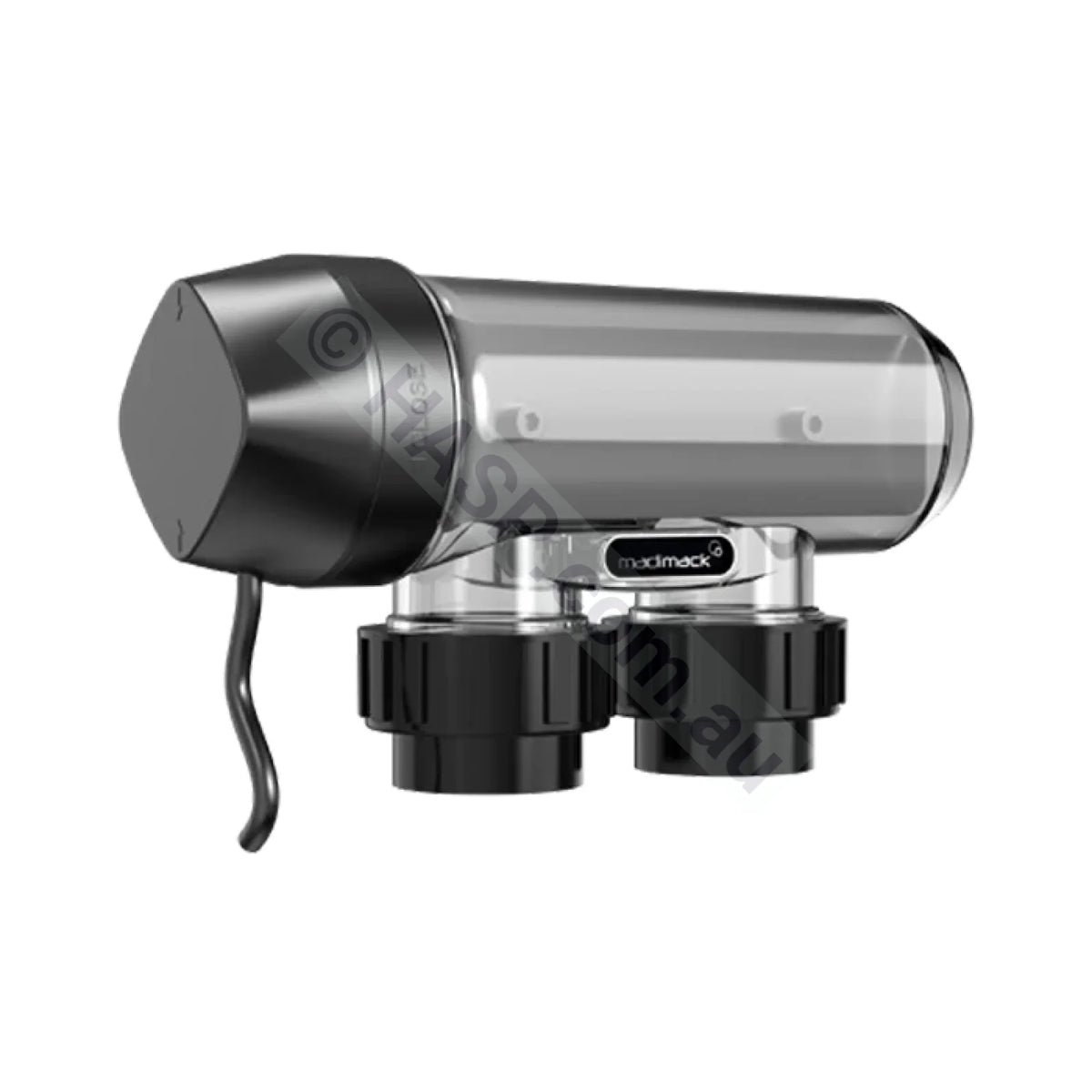

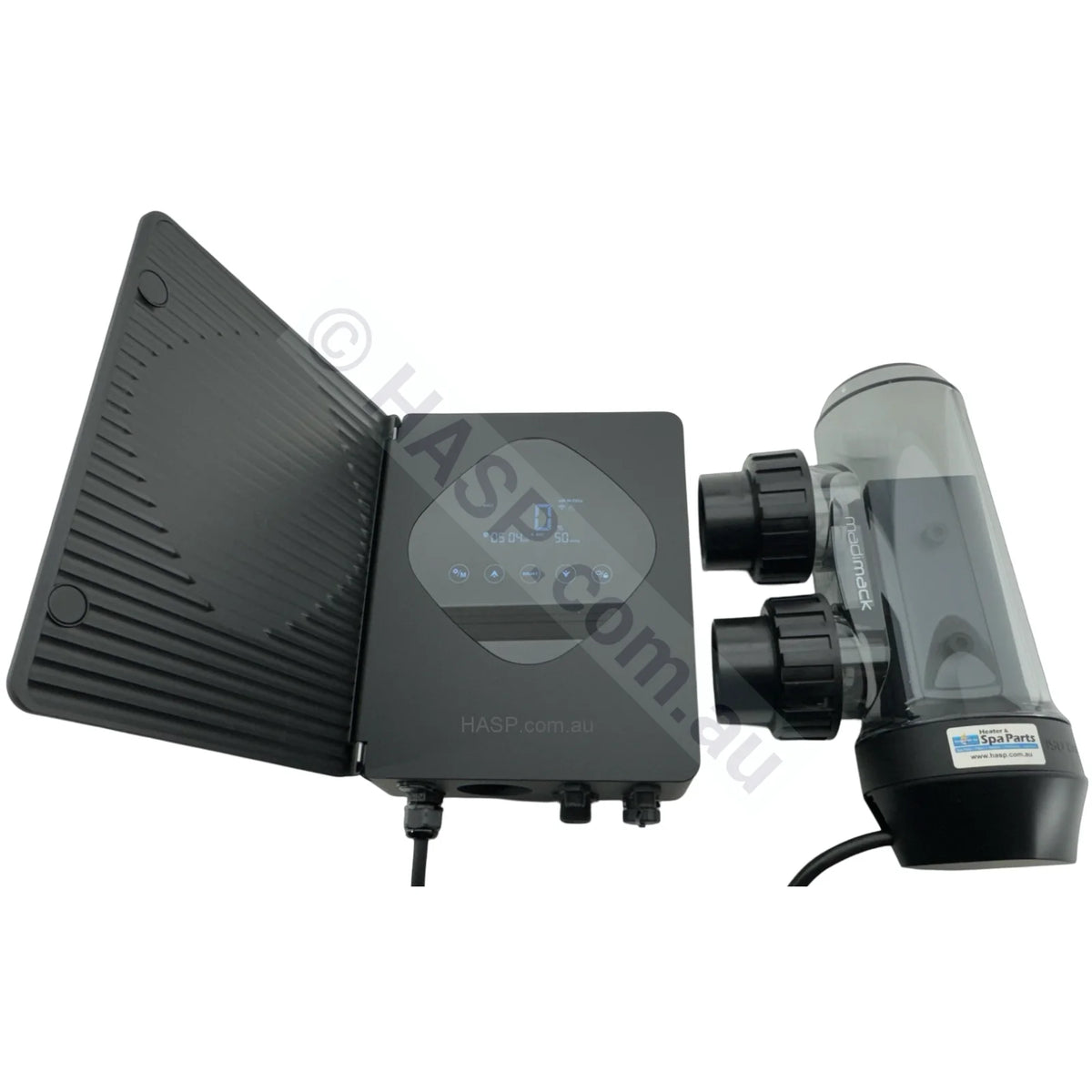

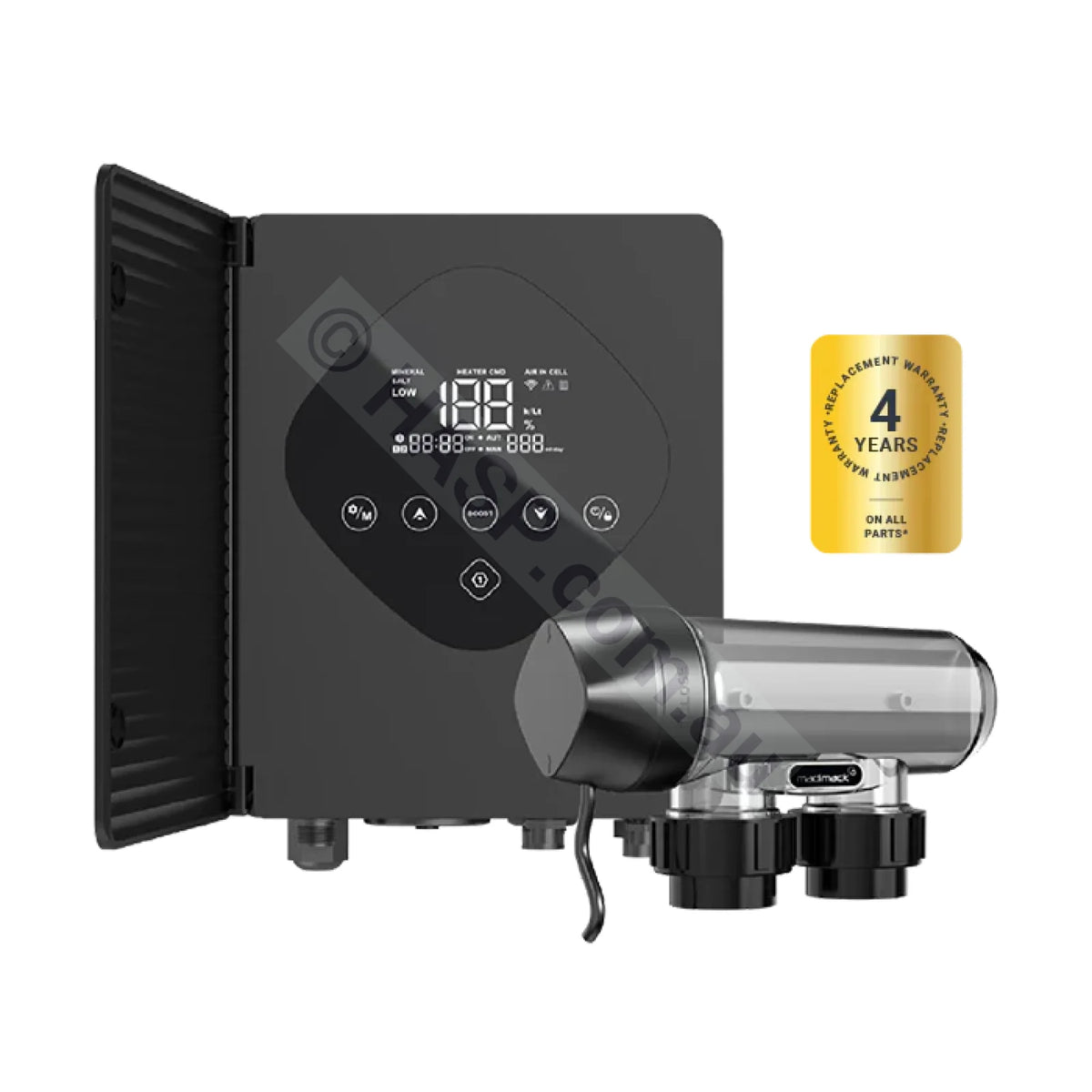

40gm Madimack InverCHLOR 400 Salt & Mineral Chlorinator with WiFi
The Madimack InverCHLOR 400 is a 40gm per hour chlorinator for salt and mineral pools, with WiFi control and a touchscreen LCD interface. It is the highest output model in the range, built for larger residential pools in Australian conditions, and it retrofits many older Astralpool and Hurlcon chlorinators without plumbing changes. Intelligent control and real-time monitoring keep water healthy with less guesswork.
- RRP $2,526.16 is the manufacturer's recommended retail price.
- Warranty: Madimack's published schedule for the InverCHLOR is 4 years on the controller and cell, or 10,000 hours, whichever comes first. Registration within 30 days of installation is required.
- Australian Consumer Law guarantees apply to every purchase, on top of any manufacturer warranty.
- FREE SHIPPING on all Madimack products over $149.00
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
Pool size guide: Handles up to 85,000L in tropical or hot climates, 105,000L in temperate or warm climates, and 125,000L in cool climates.*

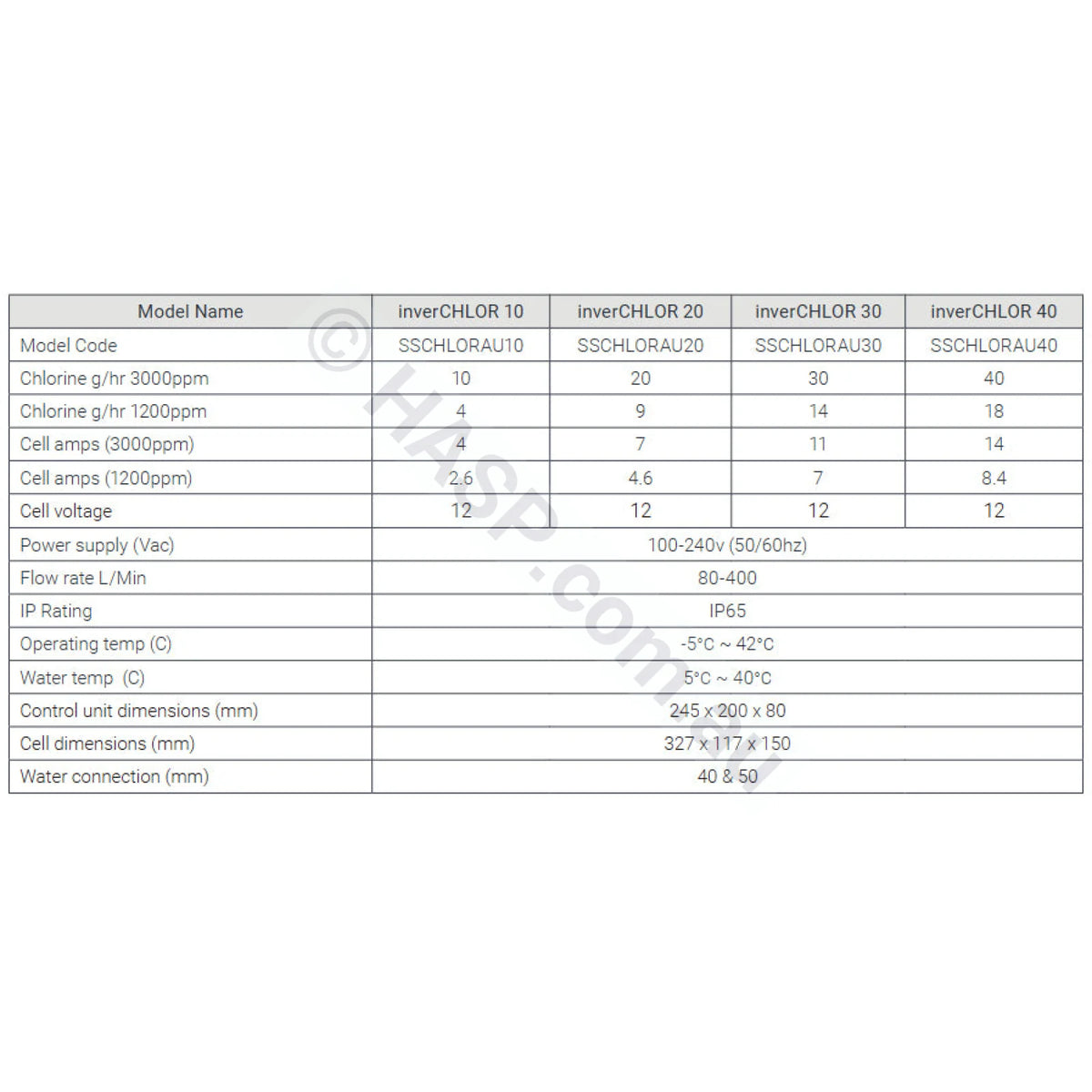

Documentation: Specification Sheets & Updated Manuals | Up-to-Date Madimack Recommended Retail Prices
Startup and operation: Video 1 | Video 2

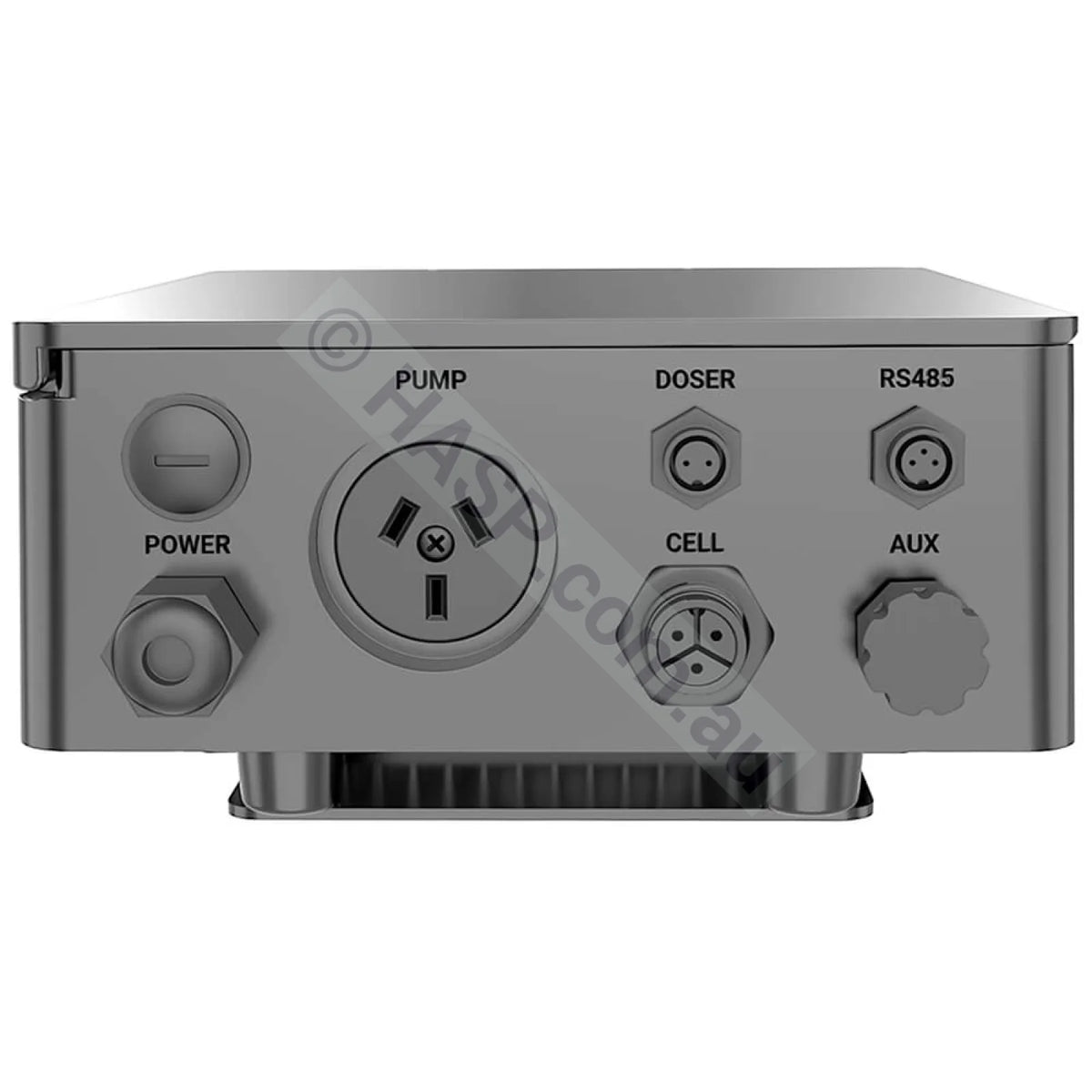

Pump Control Compatibility
Variable speed control is only available with Madimack variable speed pumps. The InverCHLOR will switch a standard pool pump on and off, whatever the brand, but it cannot control the speed of a non-Madimack pump.
Madimack variable speed pumps: The InverCHLOR 400 communicates directly with Madimack Inverflow pumps and is a direct-fit variable speed upgrade option for Inverflow Plus models. It also suits many Astralpool and Hurlcon retrofit situations without plumbing changes.
Other pump brands: A standard pool pump is run as an on and off device only. The InverCHLOR does not communicate with Viron variable speed pumps and cannot set their speed.
Heat pump compatible: The InverCHLOR 400 can run the pump and control Madimack InverEco Plus and Elite V4 heat pumps, letting the heater run outside normal filtration and chlorination times while using the same circulation pump.
Optional add-on: Pair it with the Madimack pH Doser for even better water balance and clearer water.

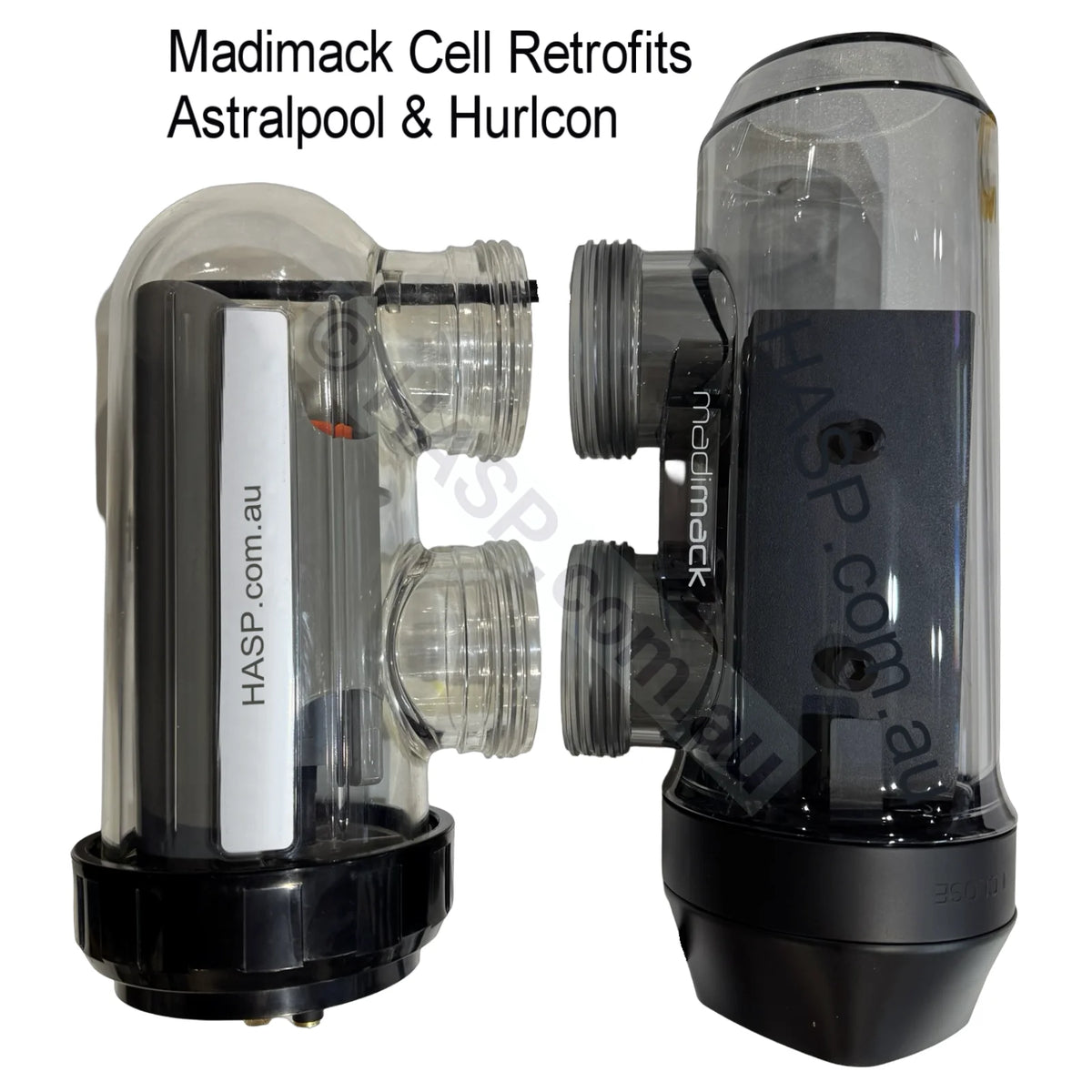

Retrofit Suitability

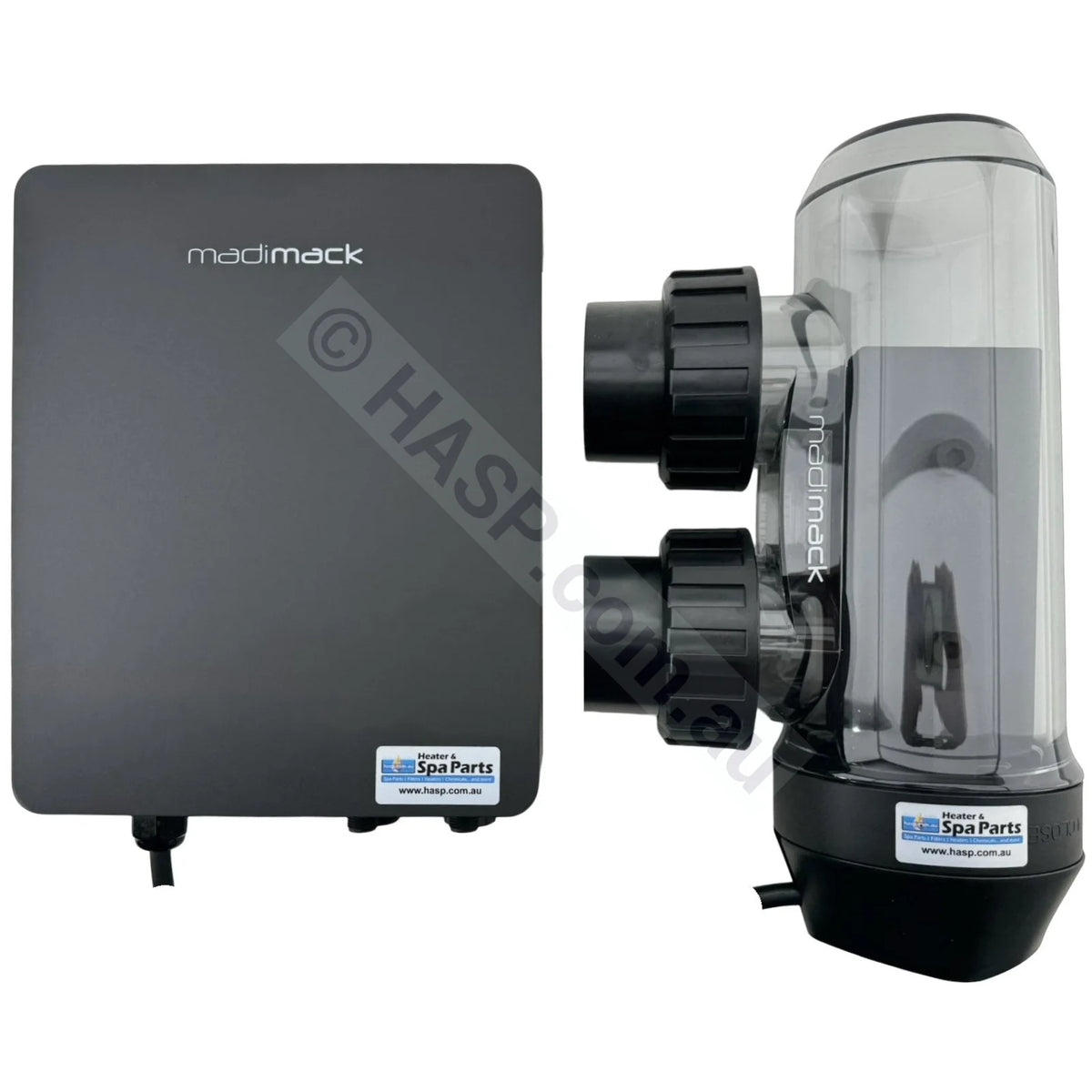

Designed to retrofit many Astralpool and Hurlcon chlorinators without plumbing changes, including E35, VX9, VX11, Viron V35, EQ35 and Halo 35. Please check your existing model, plumbing layout, and connections before ordering.

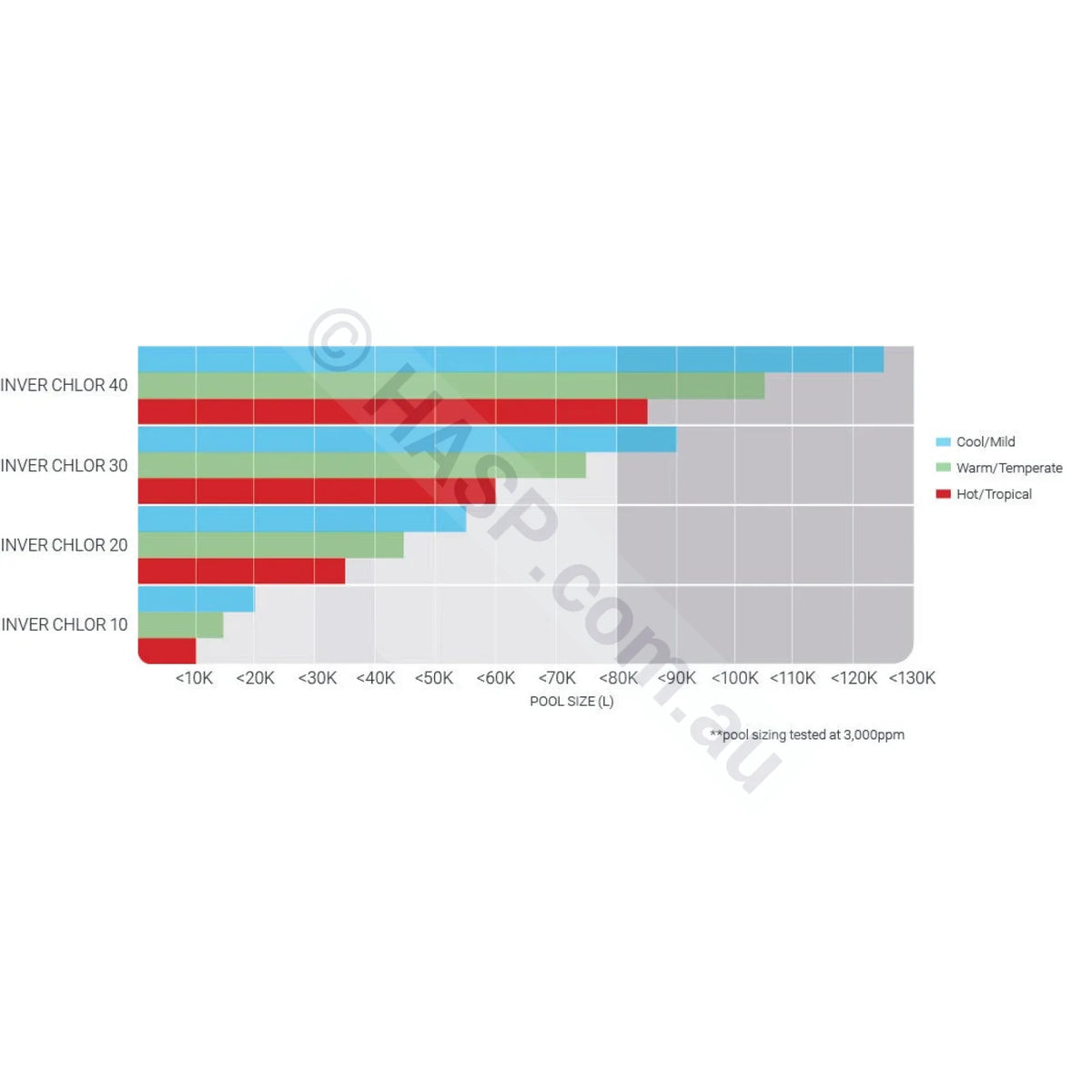

General Sizing Guide*
InverCHLOR 100
Up to 10,000L in tropical or hot climates
Up to 15,000L in temperate or warm climates
Up to 20,000L in cool climates
InverCHLOR 200
Up to 35,000L in tropical or hot climates
Up to 45,000L in temperate or warm climates
Up to 55,000L in cool climates
InverCHLOR 300
Up to 60,000L in tropical or hot climates
Up to 75,000L in temperate or warm climates
Up to 90,000L in cool climates
InverCHLOR 400
Up to 85,000L in tropical or hot climates
Up to 105,000L in temperate or warm climates
Up to 125,000L in cool climates
*Sizing is a guide only. Pool size, climate, bather load, water balance, and environmental conditions all affect chlorinator sizing. We generally recommend going at least one size up.
Key Features
- 40gm per hour chlorine output for salt and mineral pools
- Switches a standard pool pump on and off, whatever the brand
- Variable speed control with Madimack Inverflow pumps
- Can run the pump and control Madimack InverEco Plus and Elite V4 heat pumps

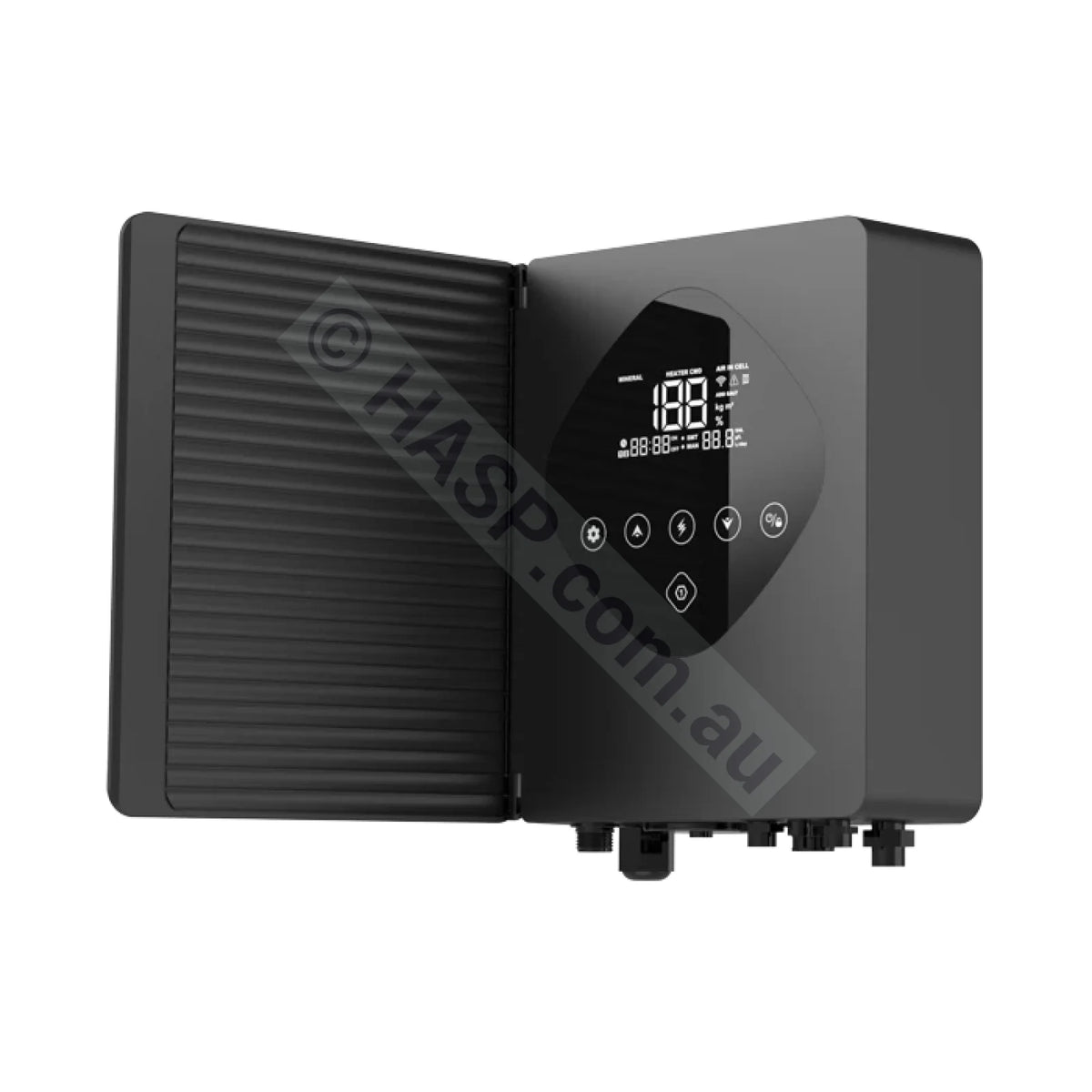

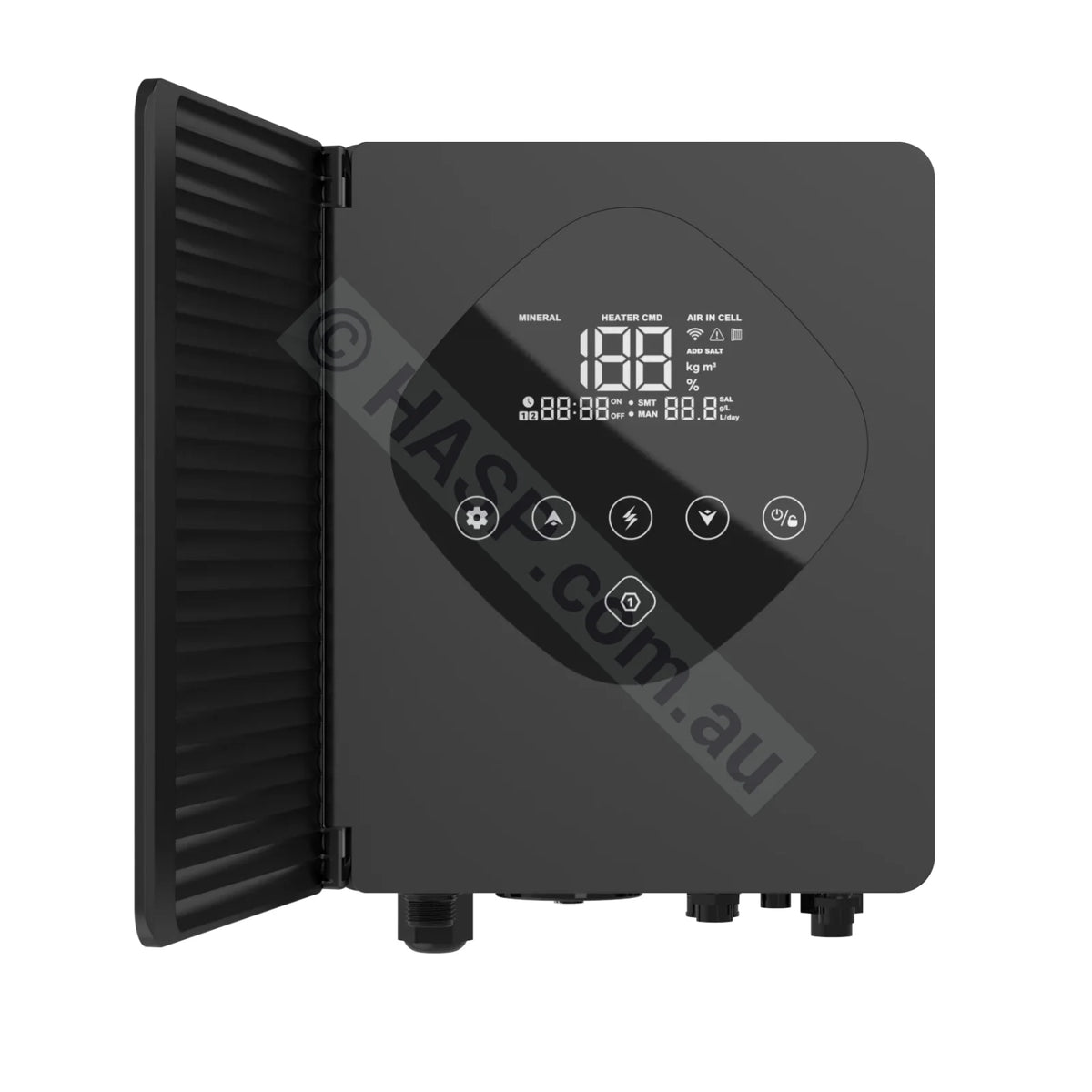

- Touchscreen LCD display with UV-protection cover
- Smart alerts for salt and mineral levels
- Low TDS compatibility, suitable for ultra-low salt or mineral levels from 1,200 to 6,000ppm, with specifications based on around 3,000ppm
- Advanced intelligent control helps optimise operation and extend cell life beyond 10,000 hours
- Compact, space-saving design that replaces many Astralpool and Hurlcon chlorinators without replumbing
- Durable housing with a UV-protected front cover for long service life outdoors
- WiFi connectivity for smart control and real-time monitoring
For a smart, efficient, and easy-to-use chlorinator upgrade, the Madimack InverCHLOR 400 is a strong option for larger residential pools. Not recommended for standalone spas & swim spas.
Warranty
Madimack's published schedule for the InverCHLOR is 4 years on the controller and cell, or 10,000 hours, whichever comes first. Registration within 30 days of installation is required.
Australian Consumer Law guarantees apply to every purchase, on top of any manufacturer warranty.
Frequently Asked Questions
What pool size does the InverCHLOR 400 suit?
It handles up to 85,000L in tropical or hot climates, 105,000L in temperate or warm climates, and 125,000L in cool climates. Sizing is a guide only, and we generally recommend going at least one size up. It is not recommended for standalone spas and swim spas.
Will it run my existing pool pump?
Yes. The InverCHLOR will switch a standard pool pump on and off, whatever the brand. Variable speed control is only available with Madimack variable speed pumps, and the unit does not communicate with Viron variable speed pumps.
Does it work with mineral pools?
Yes. The InverCHLOR 400 is designed for both salt and mineral pools, and it has low TDS compatibility for low salt or mineral operation.
What salt or mineral level does it need?
It is suitable for ultra-low salt or mineral levels from 1,200 to 6,000ppm. Published specifications are based on around 3,000ppm.
Will it fit my old Astralpool or Hurlcon chlorinator?
It is designed to retrofit many Astralpool and Hurlcon chlorinators without plumbing changes, including E35, VX9, VX11, Viron V35, EQ35 and Halo 35. Check your existing model, plumbing layout, and connections before ordering.
What does the warranty cover?
Madimack's published schedule for the InverCHLOR is 4 years on the controller and cell, or 10,000 hours, whichever comes first, and registration within 30 days of installation is required. Australian Consumer Law guarantees apply on top of that.
To the layperson, plumbing sizes and their names can be confusing due to the nominal sizes and naming conventions used.
This is not something we made up. Plumbers and manufacturers have used nominal (meaning ‘by name only’) sizing for decades.
Simply put, in plumbing, named sizes are often not the actual measurements of the pipe, fitting, or part. A PVC pipe called “50mm” or “2"” does not measure 50 mm anywhere. Instead, it follows nominal sizing, an internationally-standardised naming system.
Almost all fittings we use in the pool & spa industry use “pressure PVC” pipe & fittings. Do not confuse with “DWV” or other pipe & fittings and their names and sizes.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
To reiterate, these are nominal sizes and are designed to fit matching fittings — not to measure what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems and other plumbing areas so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate.
Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
