AstralPool XP PUMPS Spare Parts

  • XP PUMPS
AstralPool XP PUMPS Spare Parts

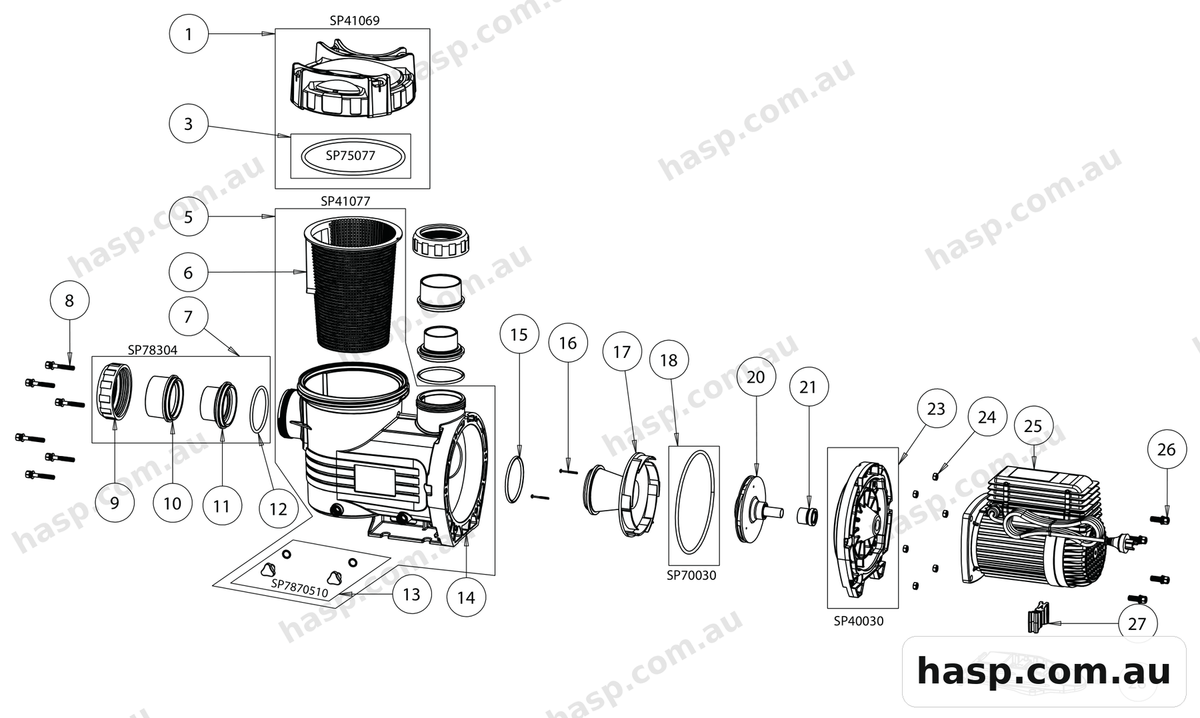

Tap the diagram to enlarge. AstralPool catalogue page 74.
1
Astralpool Lid Assembly XP Pump SP41069LARGE PUMP LID ASSY
SP41069 Qty 1 $186.00
3
Astralpool / Zodiac O-Ring Suit XP Filter Lid SP75077O-RING SUIT XP LID
SP75077 Qty 1 $11.00
5
Astralpool Volute & Basket Black XP Pump SP41077LARGE MKII VOLUTE & BASKET
SP41077 Qty 1 $665.00
6
Astralpool Basket XP/BX Pump 40066BASKET
40066 Qty 1 $86.00
7
Astralpool / Zodiac Component Bag - 65mm Pump TailSP COMP BAG 65MM PUMP TAIL
SP78304 Qty 1 $43.00
8
Astralpool / Zodiac Bolt M8 X 57mm 16mm Washer 40175BOLT - M8
40175 Qty 6 $2.00
9
Astralpool / Zodiac Lock Nut To Suit 65mm Tail 950926LOCK NUT
950926 Qty 2 $38.00
10
Astralpool / Zodiac Tail Union 65mm PVC 950925UNION FITTING 65MM
950925 Qty 2 $38.00
11
Astralpool / Zodiac Tail Union 65-50 Reducer PVC 950924UNION FITTING 65 TO 50MM
950924 Qty 2 $38.00
12
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)ORING
78104 Qty 2 $8.00
13
Astralpool / Zodiac Air Bleed Plug D-Thread & O-RingSP AIR B-PLUG DUALTHR-O-RING
SP7870510 Qty 1 $10.00
14
Astralpool Volute & Basket Black XP Pump SP41077VOLUTE ONLY-XP PUMP-PRODUCTION ONLY
41077 Qty 1 $665.00
15
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)ORING
78104 Qty 1 $8.00
16
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165DIFFUSER RETAINING SCREW
40165 Qty 2 $4.00
-
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER - 1HP, 1.5HP, 2.0HP
40071A Qty 1 $12.00
-
Astralpool Diffuser Large - CTX 500 / 610, Viron XT P520, BX 40071BDIFFUSER 3.0HP, 4.0HP
40071B Qty 1 $97.00
18
Astralpool Pump Body O-ring / Gasket - Various - See ListingSP ORING-SER 3 SEAL PLA-JUL18
SP70030 Qty 1 $48.00
NOT SHOWN
Astralpool / Zodiac Bolt Nylon LH Thread Impeller 78187BOLT-NYLON LH THREAD IMPELLER
78187 Qty 1 $2.00
NOT SHOWN
Astralpool / Zodiac O-Ring BLDC Impeller BS109 78711O'RING - BLDC IMPELLER - BS109
78711 Qty 1 $10.00
20
Astralpool Impeller Ecombie FX340 CTX400 40060GIMPELLER 1.5 HP
40060G Qty 1 $79.00
-
Astralpool / Hurlcon Impeller 1.5HP TX BX 3PHASE 40060GEIMPELLER 1.5HP 3 PHASE
40060GE Qty 1 $83.00
-
Astralpool / Hurlcon Impeller 2.0 HP TX BX Pump 40060HIMPELLER 2 HP
40060H Qty 1 $79.00
-
Astralpool / Hurlcon Impeller 2.0HP TX BX 3 Phase 40060HEIMPELLER 2.0 HP TX / BX PUMP-3 PHASE
40060HE Qty 1 $83.00
-
Astralpool / Hurlcon Impeller 3HP BX TX 610 Pump 40060NIMPELLER 3 HP
40060N Qty 1 $269.00
-
Astralpool / Hurlcon Impeller 3HP BX TX 3 Phase 40060NEIMPELLER 3 HP 3 PHASE
40060NE Qty 1 $271.00
-
Astralpool / Hurlcon Impeller 4.0 HP BX 3 Phase 40060PEIMPELLER 4.0 HP BX 3 PHASE
40060PE Qty 1 $233.00
-
Astralpool Pump Motor 2200W Three-Phase 71335 (Black, 415V) - XP 2.0 and XP 3.0 Three-PhaseMOTOR 2HP 3 PHASE
71335 Qty 1 $2,070.00
-
Astralpool Pump Motor 2200W 3 HP Single Phase 71331 (Black) - XP 3.0, CTX 610, BX 3.0MOTOR 3 HP
71331 Qty 1 $2,195.00
-
Astralpool Pump Motor 2200W Three-Phase 71335 (Black, 415V) - XP 2.0 and XP 3.0 Three-PhaseMOTOR 3 HP 3 PHASE
71335 Qty 1 $2,070.00
21
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMICHANICAL SEAL - 316 VITON
PS3868 Qty 1 $28.00
23
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE 3-CTX-VIRON- E SERIES NOV 20
SP40030 Qty 1 $74.00
24
Astralpool / Zodiac Brass Hex Nut M8 - TX / CX / CTX / E-Series 40272M8 HEX BRASS NUT
40272 Qty 6 $4.00
27
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
28
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
