AstralPool VIRON XT MKII P320C & P520C Spare Parts
- VIRON XT MKII P320C & P520C

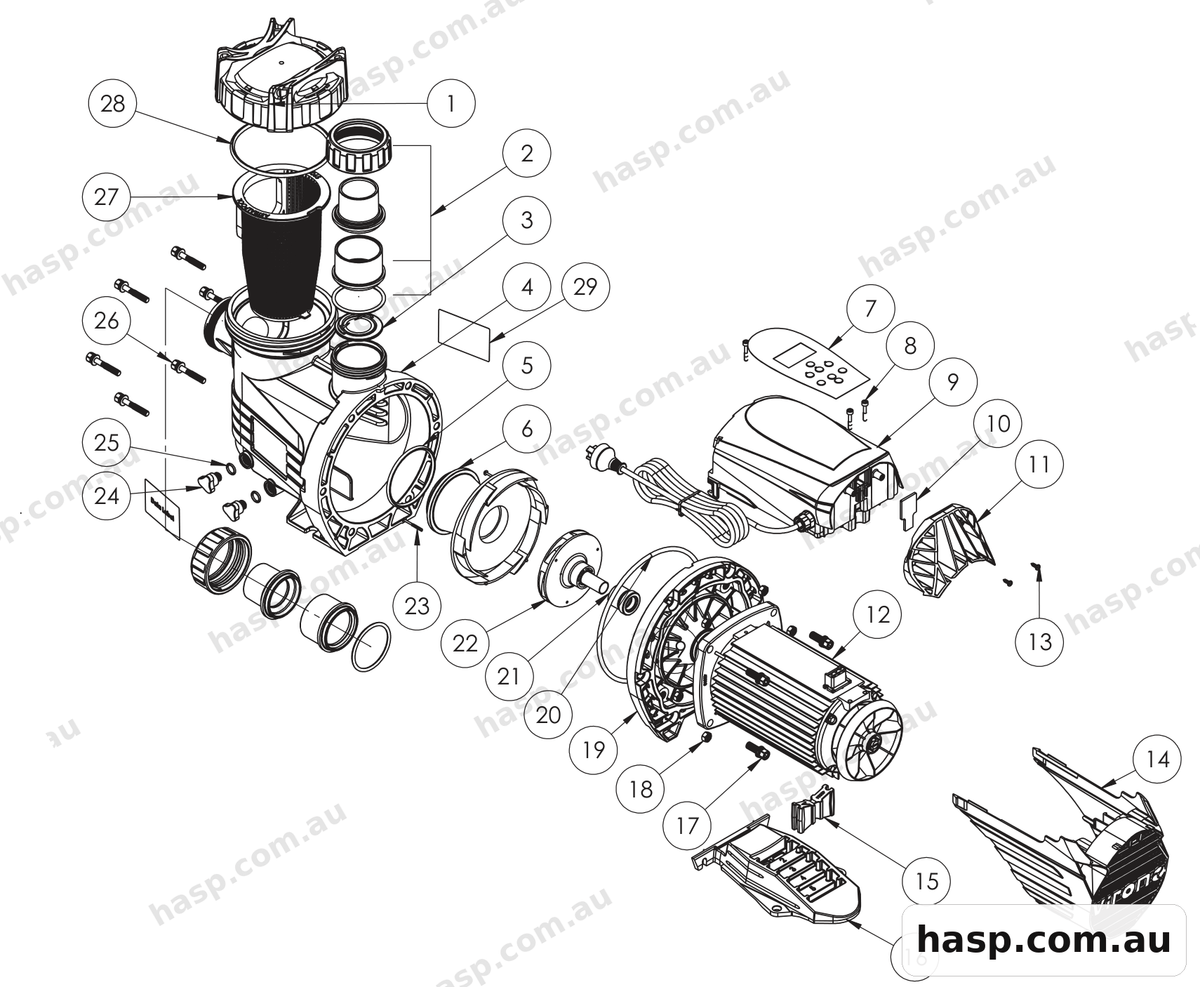

- P320C

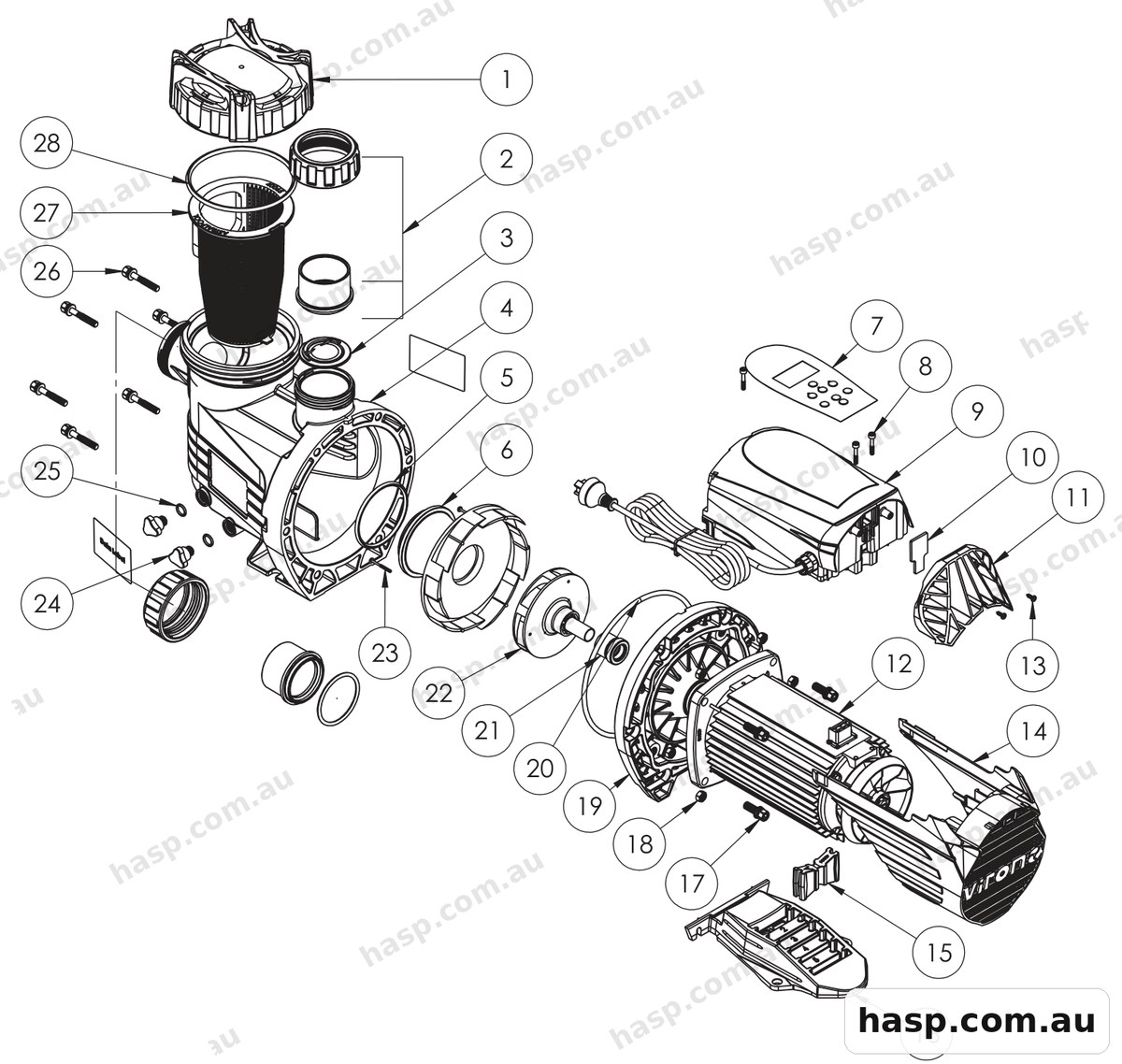

- P520C
1
Astralpool Lid Assembly - CTX, Viron XT1/2 TURN PUMP LID ASSY
2
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303COMPONENT BAG - 50MM PUMP TAIL
3
Astralpool Pump Check Valve AssemblyCTX Check Valve Complete Assembly
4
Astralpool Volute (Wet End) - CTX / E-Series MkII, Nov 2020 SP40031VOLUTE3-VIRON-CTX-E-SERIES NOV 20
5
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O RING-TAIL UNION 65MM-BX/FX/CTX/P3
6
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ABX/CTX/E DIFFUSER SMALL
7
Astralpool Label Viron BLDC Prem Control LABEL311LABEL - VIRON BLDC PREM CONTROLLER
8
Astralpool / Zodiac Bolt M5 X 28mm Refer SP78715BOLT-M5 X 28MM-PRODUCTION ONLY-REFER SP78715 FOR SPARE PARTS
9
Astralpool Controller Viron P320C & Label SP21488CONTROLLER P320 VIRON XT PUMP-REFER SP21488 SPARE PART
10
Astralpool / Zodiac Gasket Viron Evo Pump RJ12 70562VIRON EvO PUMP RJ12 GASKET
11
Astralpool / Zodiac Cover Rear Viron Evo RJ12 70603VIRON EVO REAR COVER RJ12
12
Astralpool Viron XT P320 Pump Motor with Slinger SP71660 - Viron P320 XT and P320C XTMOTOR-VIRON XT P320 1.0HP WITH SLINGER
13
Astralpool / Zodiac Screw 8G X 1/2 Stainless Steel 402348G X 1/2" S/STEEL SCREW
14
15
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056RUBBER INSERT-V2-PUMP MOTOR FOOT
16
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT - GRAPHITE PEARL
17
Astralpool / Zodiac Motor Foot Bolt M10 x 25 Hex Washer Head 40173BOLT-HEX WASHER HEAD-M10 X 25 HEX INT & EXT DRIVE
18
19
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE3-CTX-XP-BX VIRON E SERIES NOV 20
20
Astralpool Pump Body O-ring / Gasket - Various - See ListingO-RING SUIT SERIES 3 SEAL PLATE - 07-2018
21
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECH SEAL-316 VITON- MADE UP OF WA0580501 & WA0580502
22
Astralpool Impeller Viron XT P320 40060XIMPELLER - VIRON P320 XT
23
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165SCREW-PAN HEAD 6g X 35 S/TAP S/STEEL
24
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG GRAPH PEARL - PUMP WETEND, ZX FILTER,QUAD FILTER
25
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O RING-DRAIN PLUG-AIR BLEED
26
Astralpool / Zodiac Bolt M8 X 57mm 16mm Washer 40175BOLT-M8 X 57MM INT/EXT HEX DRIVE 16MM WASHER
27
28
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006O RING- LID-CTX-E SERIES PUMP
1
Astralpool Lid Assembly - CTX, Viron XT1/2 TURN PUMP LID ASSY
2
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303COMPONENT BAG - 50MM PUMP TAIL
3
Astralpool Pump Check Valve AssemblyCTX Check Valve Complete Assembly
4
Astralpool Volute (Wet End) - CTX / E-Series MkII, Nov 2020 SP40031VOLUTE3-VIRON-CTX-E-SERIES NOV 20
5
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O RING-TAIL UNION 65MM-BX/FX/CTX/P3
6
Astralpool Diffuser Large - CTX 500 / 610, Viron XT P520, BX 40071BBX/CTX/E DIFFUSER LARGE
7
Astralpool Label Viron BLDC Prem Control LABEL311LABEL - VIRON BLDC PREM CONTROLLER
8
Astralpool / Zodiac Bolt M5 X 28mm Refer SP78715BOLT - M5 X 28MM SHCD + WASHER - BLDC COVER
9
Astralpool Controller Viron P520C BT SP21489PCB CONTROL-2 HP VIRON XT SERIES
10
Astralpool / Zodiac Gasket Viron Evo Pump RJ12 70562VIRON EvO PUMP RJ12 GASKET
11
Astralpool / Zodiac Cover Rear Viron Evo RJ12 70603VIRON EvO REAR COVER WITH RJ12
12
Astralpool Viron XT P520 Pump Motor with Slinger SP71662 - Viron P520 XT and P520C XTMOTOR - VIRON XT P520 2.0HP - SLINGER
13
Astralpool / Zodiac Screw 8G X 1/2 Stainless Steel 402348G X 1/2" S/STEEL SCREW
14
15
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056RUBBER INSERT-V2-PUMP MOTOR FOOT
16
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT - GRAPHITE PEARL
17
Astralpool / Zodiac Motor Foot Bolt M10 x 25 Hex Washer Head 40173BOLT-HEX WASHER HEAD-M10 X 25 HEX INT & EXT DRIVE
18
19
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE3-CTX-XP-BX VIRON E SERIES NOV 20
20
Astralpool Pump Body O-ring / Gasket - Various - See ListingO-RING SUIT SERIES 3 SEAL PLATE - 07-2018
21
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECH SEAL-316 VITON- MADE UP OF WA0580501 & WA0580502
22
Astralpool Impeller for Viron XT P520 - 40060Z - All VariantsIMPELLER - VIRON XT P520
23
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165SCREW-PAN HEAD 6g X 35 S/TAP S/STEEL
24
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792AIR/DRAIN PLUG GRAPHITE PEARL
25
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O RING-DRAIN PLUG-AIR BLEED
26
Astralpool / Zodiac Bolt M8 X 57mm 16mm Washer 40175BOLT-M8 X 57MM INT/EXT HEX DRIVE 16MM WASHER
27
28
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006O RING- LID-CTX-E SERIES PUMP
Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
