AstralPool VIRON IHP283 28KW INVERTER HEAT PUMP R32 Spare Parts

VIRON IHP283 28KW INVERTER HEAT PUMP R32
IHP283
R32

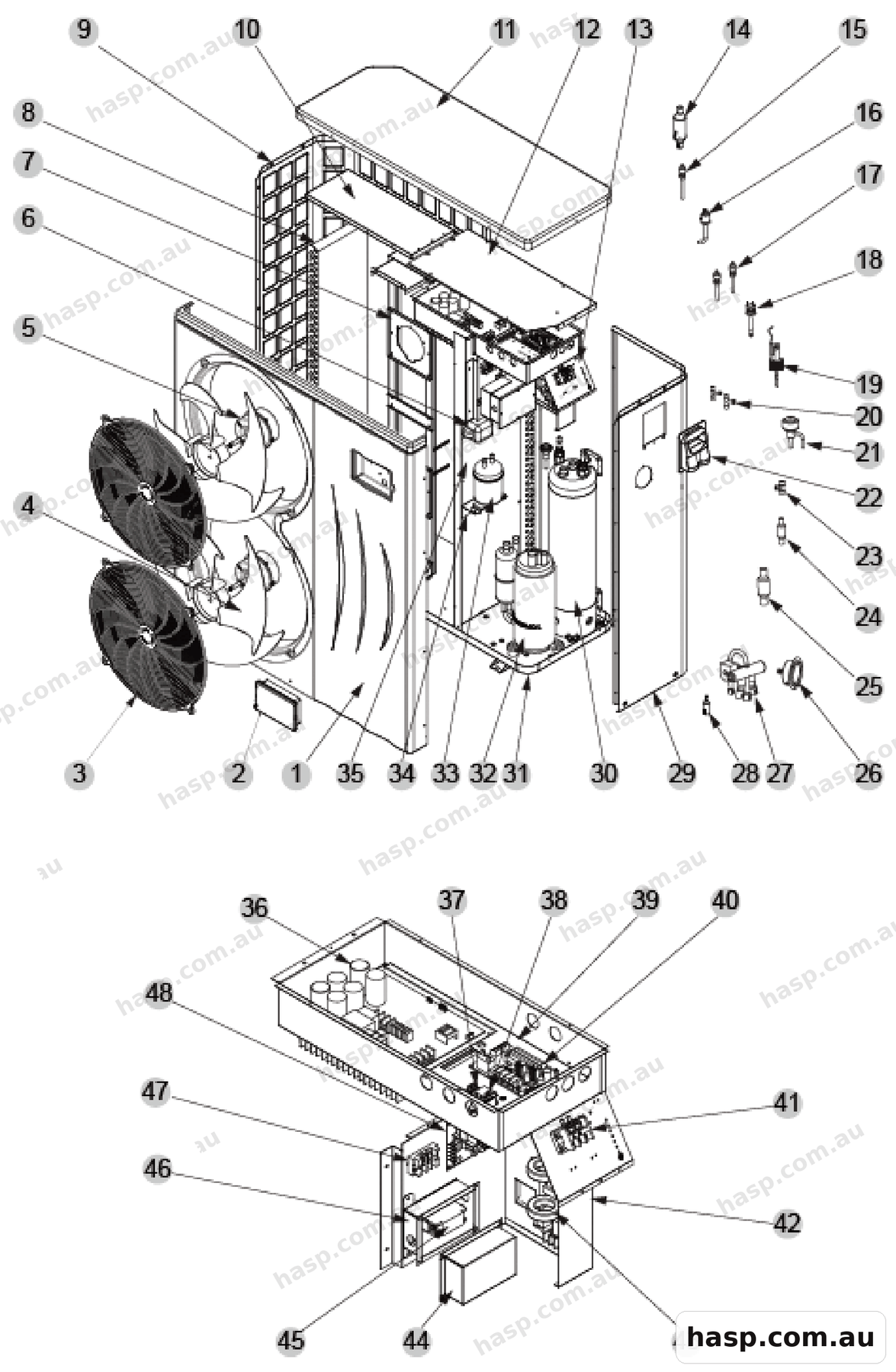

AstralPool VIRON IHP283 28KW INVERTER HEAT PUMP R32 Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 204.

2

Astralpool Colour Display Screen for Inverter Heat Pumps 95005-310565CP302 DISPLAY

95005-310565 Qty 1 $749.00

5

Astralpool / Zodiac Fan Motor 78542-43-44-45 20000-330132DC MOTOR

20000-330132 Qty 1 $367.00

11

Astralpool Top Ext Cover 785757677 80900108TOP COVER

80900108 Qty 1 $275.00

16

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

17

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 1 $7.00

18

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

32

Astralpool Compressor 301010-00000006COMPRESSOR

301010-00000006 Qty 1 $2,139.00

36

Astralpool Drive PCB Inverter Suit 78577 302010-00000012DRIVER MODULE

302010-00000012 Qty 1 $5,755.00

38

Astralpool Relay For Phnix H/Pumps 20000-360297RELAY

20000-360297 Qty 1 $19.00

43

Astralpool Filter Plate 302010-00000013FILTER PLATE

302010-00000013 Qty 1 $389.00

44

Astralpool Cover Of Explosion Proof Box 80701839COVER OF EXPLOSION-PROOF BOX

80701839 Qty 1 $43.00

45

Astralpool Three Phase Ac Monitor 20000-360023THREE-PHASE AC CONTACTOR

20000-360023 Qty 1 $138.00

47

Astralpool 3 Bit Wiring Block 20000-3902233-BIT WIRING BLOCK

20000-390223 Qty 1 $18.00

48

Astralpool ZL10 V3 72200052ZL10 V3

72200052 Qty 1 $223.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
