AstralPool IHP120 INVERTER SIDE DISCHARGE HEAT PUMP Spare Parts

IHP120 INVERTER SIDE DISCHARGE HEAT PUMP
IHP120

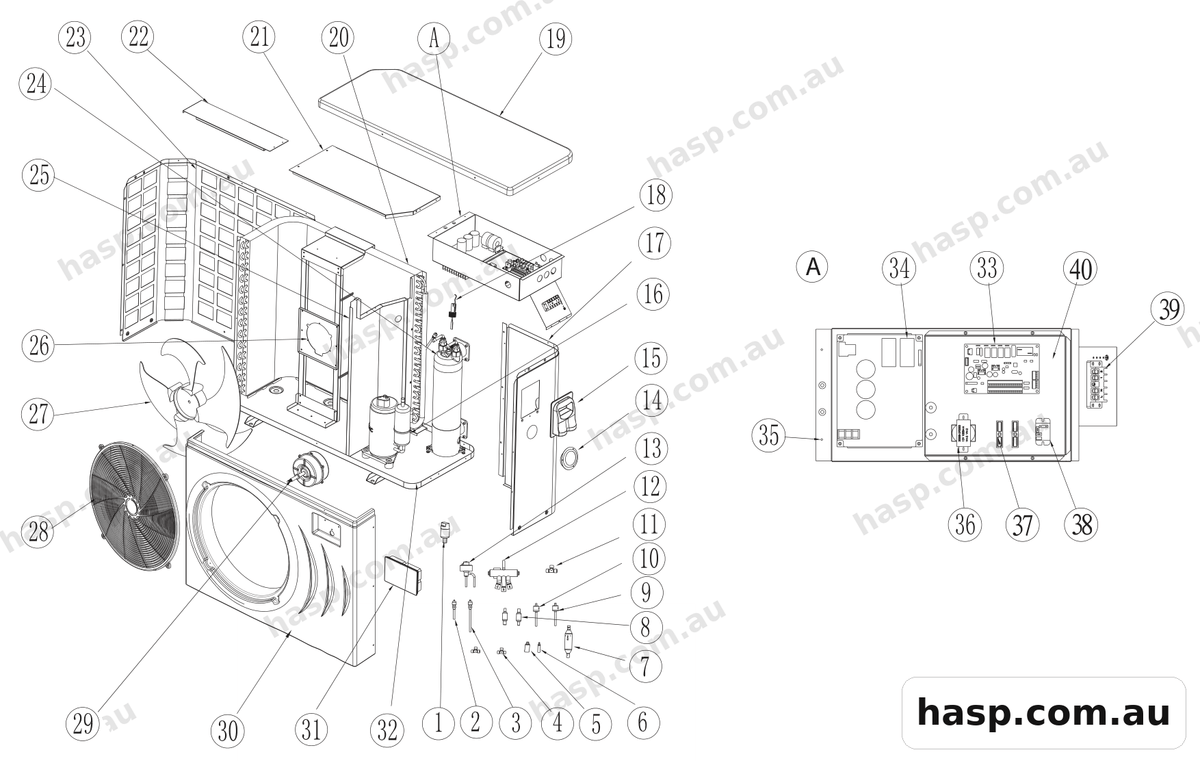

AstralPool IHP120 INVERTER SIDE DISCHARGE HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 213.

9

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

10

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

18

Universal Pool & Spa Flow Switch - Heat Pumps, Chlorinators, Dosing Systems, etc - 3/4"FLOW SWITCH

20000-360005 Qty 1 $72.00

29

Astralpool / Zodiac Fan Motor 78542-43-44-45 20000-330132FAN MOTOR

20000-330132 Qty 1 $367.00

31

Astralpool Colour Display Screen for Inverter Heat Pumps 95005-310565LCD DISPLAY

95005-310565 Qty 1 $749.00

34

Astralpool / Zodiac Drive Module 78543 78544 78561 20000-310170INVERTER DRIVE MODULE

20000-310170 Qty 1 $2,647.00

38

Astralpool / Zodiac Relay Suit Inverter 78543 20000-360203RELAY

20000-360203 Qty 1 $17.00

39

Astralpool 4 Bit Connection Seat 4000-3901TERMINAL BOARD (5 BIT)

4000-3901 Qty 1 $873.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
