AstralPool ECO LITE 12KW INVERTER HEAT PUMP Spare Parts

ECO LITE 12KW INVERTER HEAT PUMP

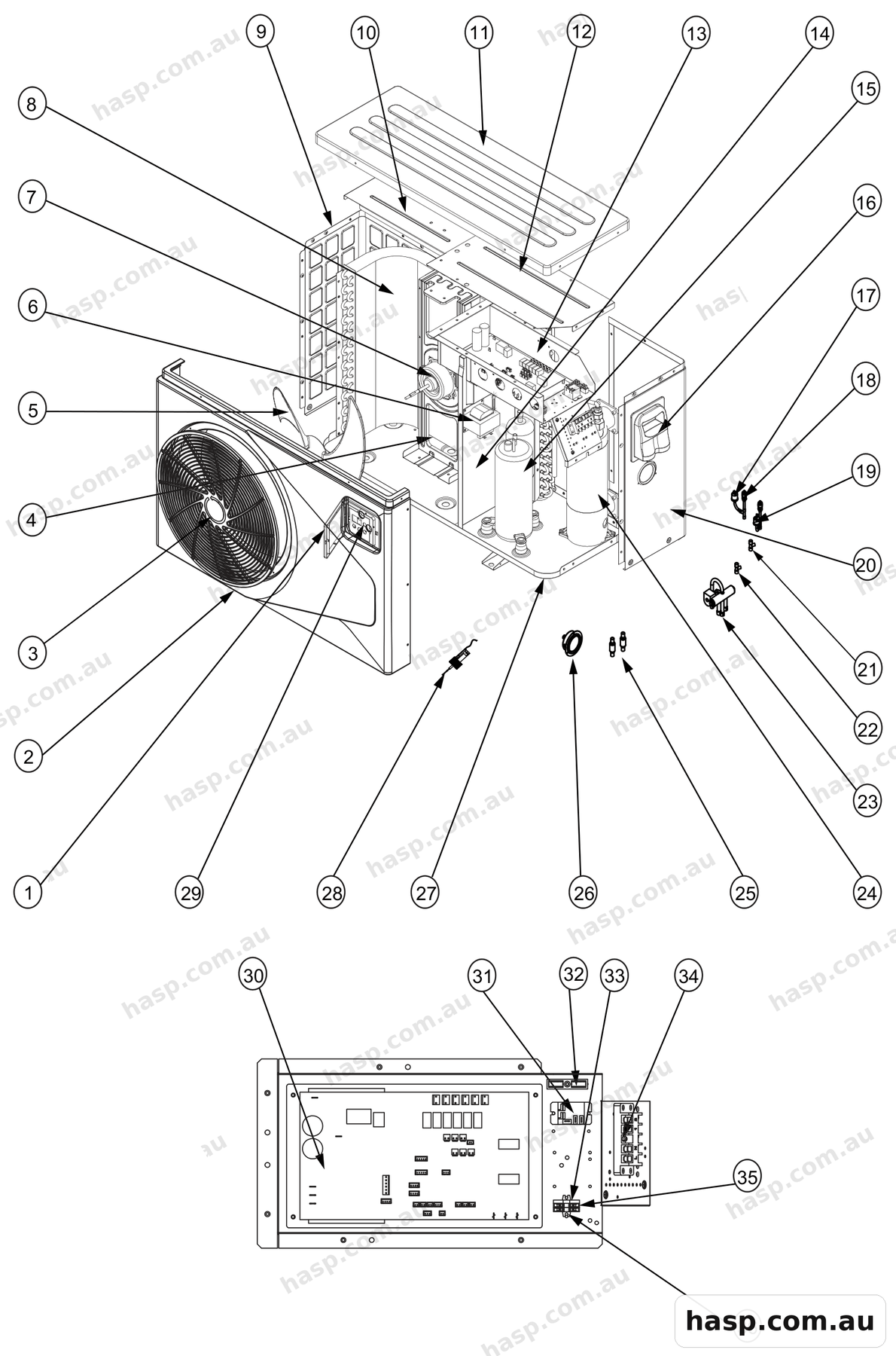

AstralPool ECO LITE 12KW INVERTER HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 116.

1

Astralpool Water Proof Box WH000618-619 20000-220068WATERPROOF COVER

20000-220068 Qty 1 $29.00

3

Astralpool Fan Guard WH000641 80900375FAN GUARD

80900375 Qty 1 $52.00

4

Astralpool Fan Motor Bracket Assembly WH000641 80718437MOTOR BRACKET ASSEMBLY

80718437 Qty 1 $31.00

6

Astralpool Reactor For HP WH000618-19 82500020REACTOR

82500020 Qty 1 $43.00

7

Astralpool DC Motor 80200018DC FAN MOTOR

80200018 Qty 1 $327.00

8

Astralpool Heat Exchanger WH000641 80601798FIN HEAT EXCHANGER

80601798 Qty 1 $745.00

9

Astralpool Rear Guard WH000641 80716184BACK GUARD

80716184 Qty 1 $175.00

11

Astralpool Top Cover WH000641 80901463TOP COVER

80901463 Qty 1 $83.00

12

Astralpool E Box Cover WH000641 80719069ELECTRICAL BOX COVER

80719069 Qty 1 $38.00

15

Astralpool Compressor Gree WH000641 80100140ROTORY COMPRESSOR

80100140 Qty 1 $611.00

17

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

18

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 1 $7.00

19

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

20

Astralpool Right Panel Assembly WH000641 80716183RIGHT SIDE PANEL

80716183 Qty 1 $58.00

23

Astralpool 4 Way Valve Assembly WH000618-20 20000-1404844-WAY VALVE ASSEMBLY

20000-140484 Qty 1 $73.00

24

Astralpool Titanium Exchanger WH000641 72300197TITANIUM HEAT EXCHANGER

72300197 Qty 1 $386.00

25

Astralpool Filter WH000641 2000-1494FILTER

2000-1494 Qty 2 $13.00

27

Astralpool Base Plate WH000641 80716185CHASSIS ASSEMBLY

80716185 Qty 1 $110.00

29

Astralpool Water Proof Box WH000618-619 20000-220068WATERPROOF COVER

20000-220068 Qty 1 $29.00

31

Astralpool Relay For Phnix H/Pumps 20000-360297ELECTROMAGNETIC RELAY

20000-360297 Qty 1 $19.00

33

Astralpool / Zodiac Terminal For 78547 20000-390047TERMINAL BLOCK

20000-390047 Qty 1 $1,900.00

34

Astralpool 4 Bit Connection Seat 4000-3901WIRING TERMINAL BLOCK

4000-3901 Qty 1 $873.00

-

Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Inverter 8, 12, 18kW Heat Pumps 72200452DISPLAY CONTROLLER ASSEMBLY

72200452 Qty 1 $281.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
