AstralPool ECO INVERTER 18KW INVERTER HEAT PUMP Spare Parts

ECO INVERTER 18KW INVERTER HEAT PUMP

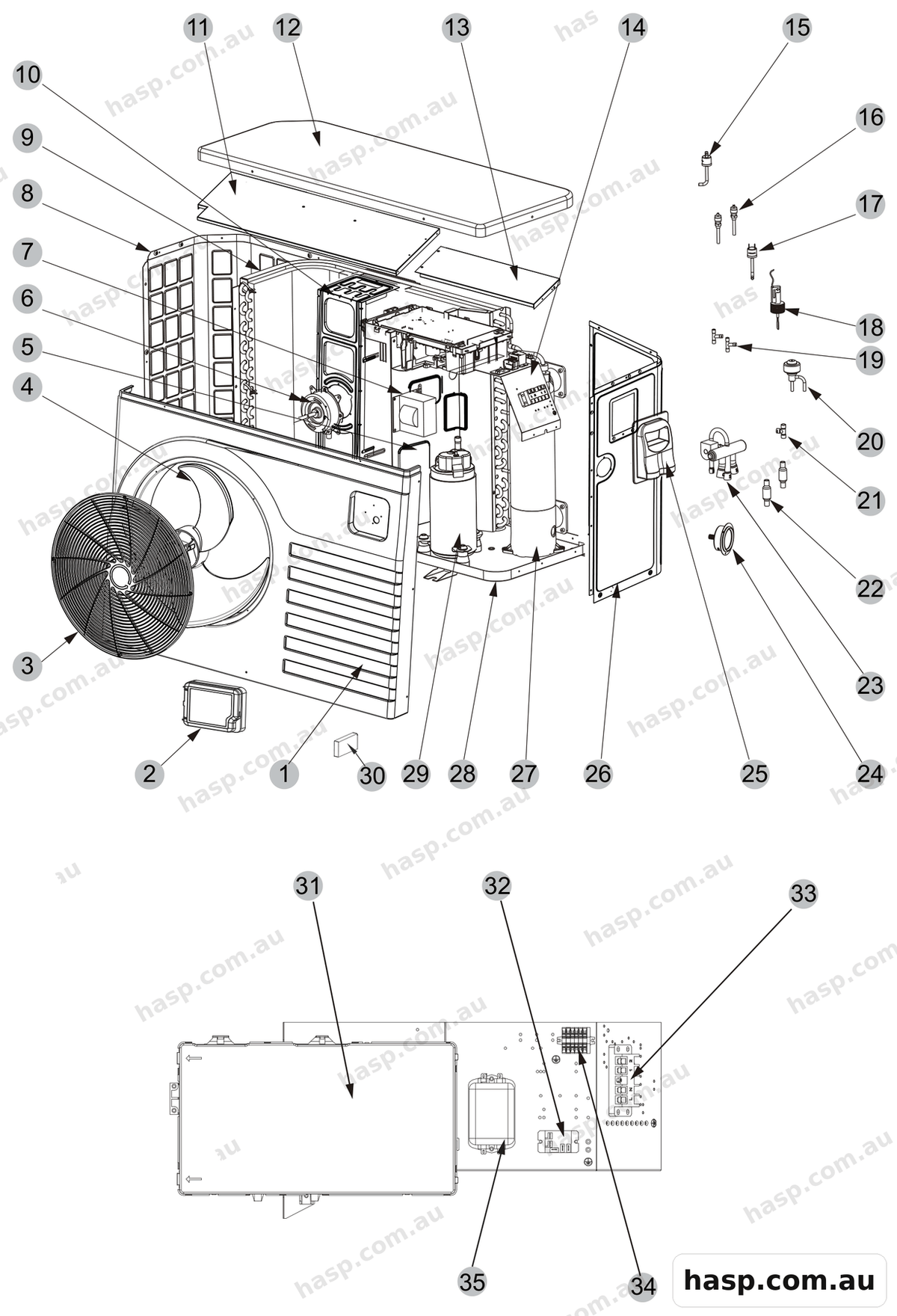

AstralPool ECO INVERTER 18KW INVERTER HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 188.

2

Astralpool Water Proof Box WH000618-619 20000-220068WATERPROOF COVER

20000-220068 Qty 1 $29.00

3

Astralpool Fan Cover WH000642-643 20000-220369FAN GUARD

20000-220369 Qty 1 $38.00

4

Astralpool Axial Fan Blades 78581-78582 301030-00000001AXIAL FLOW FAN BLADE

301030-00000001 Qty 1 $56.00

6

Astralpool / Zodiac Fan Motor 78542-43-44-45 20000-330132DC FAN MOTOR

20000-330132 Qty 1 $367.00

7

Astralpool Reactor For HP WH000620 82500021REACTOR

82500021 Qty 1 $53.00

15

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

16

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 2 $7.00

17

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

20

Astralpool Expansion Valve 78579 81000013ELECTRONIC EXPANSION VALVE

81000013 Qty 1 $90.00

30

Astralpool Inverter Board For WH000620 72200743INTEGRATED DRIVER BOARD

72200743 Qty 1 $851.00

31

Astralpool Display Screen for ECOLite 12, 16, 18kW & ECO Inverter 8, 12, 18kW Heat Pumps 72200452DISPLAY CONTROLLER

72200452 Qty 1 $281.00

32

Astralpool Relay For Phnix H/Pumps 20000-360297ELECTROMAGNETIC RELAY

20000-360297 Qty 1 $19.00

33

Astralpool 4 Bit Connection Seat 4000-3901WIRING TERMINAL BLOCK

4000-3901 Qty 1 $873.00

35

Astralpool Filter Board For HP WH000620 2000-3257POWER SUPPLY FILTER

2000-3257 Qty 1 $105.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
