AstralPool E-SERIES PUMPS Spare Parts

  • E-SERIES PUMPS
AstralPool E-SERIES PUMPS Spare Parts

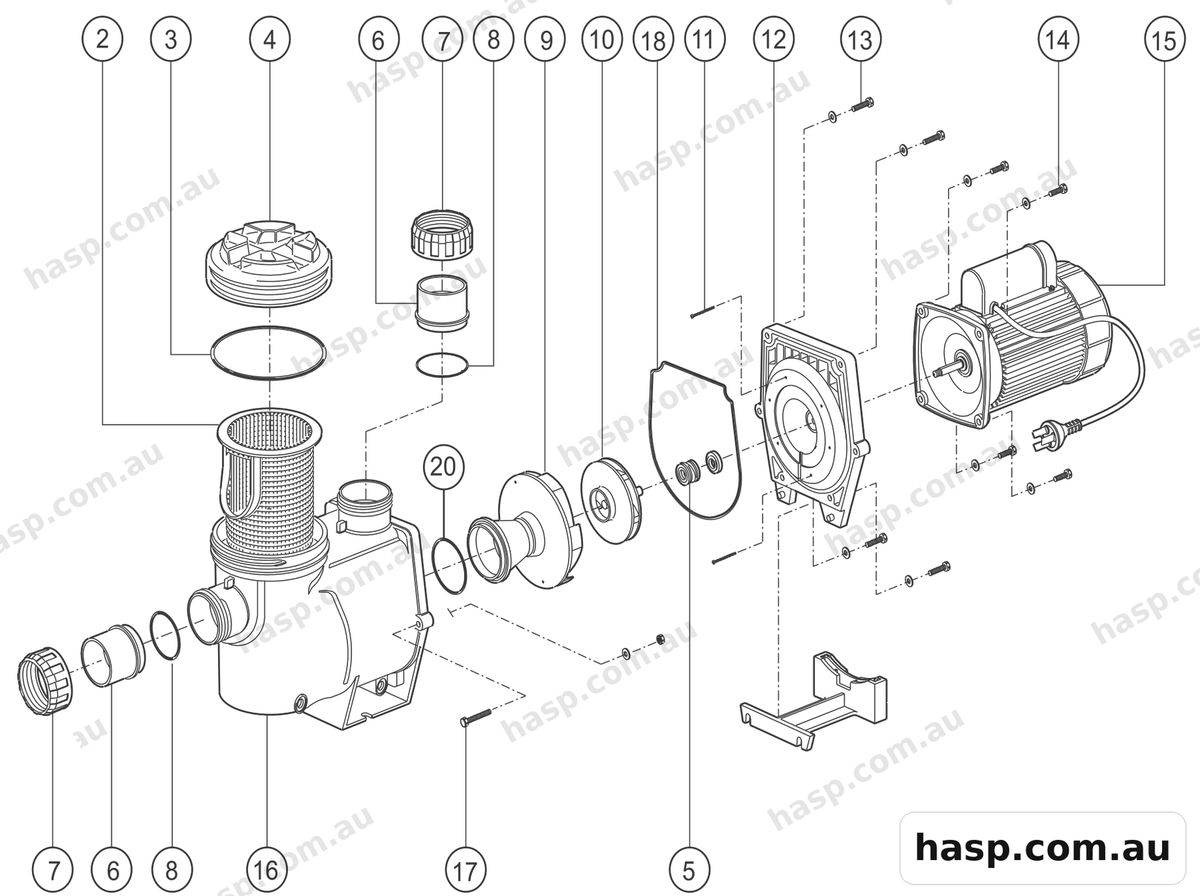

Tap the diagram to enlarge. AstralPool catalogue page 164.
2
Astralpool Pump Basket - CTX, E-Series, VironBASKET CTX
40065 Qty 1 $67.00
-
Astralpool / Zodiac Lid Assembly E-Series With O-Ring 400733, 4 E-SERIES PUMP LID ASSEMBLY WITH O-RINGS
40073 Qty 1 $123.00
5
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL-316 VITON
PS3868 Qty 1 $28.00
6
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboTAIL UNION - 50MM ABS
950920 Qty 2 $25.00
-
Astralpool / Zodiac Tail Union 50/40mm PVCTAIL UNION 50MM-40MM REDUCER
950918 Qty 2 $8.00
7
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT UNION - 50MM
950919 Qty 2 $31.00
8
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO RING - 50MM UNION
70003 Qty 2 $6.90
9
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER - SMALL - BX/CTX/E/P300
40071A Qty 1 $12.00
10
Astralpool / Hurlcon Impeller FX 140 Pump 40060LIMPELLER - E 140 PUMP
40060L Qty 1 $79.00
-
Astralpool / Hurlcon Impeller E 140 170 Pump 40060MIMPELLER - E 170 PUMP
40060M Qty 1 $79.00
-
Astralpool / Hurlcon Impeller E230 Pump 40060KIMPELLER - E230 PUMP
40060K Qty 1 $79.00
-
Astralpool / Hurlcon Impeller P280 P320 eVo FX290 E290 CTX360 40060FIMPELLER - E290 PUMP
40060F Qty 1 $79.00
11
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165BOLT - PAN HEAD 6g X 35 S/TAP S/STEEL
40165 Qty 2 $4.00
12
Astralpool Seal Plate - CTX Series 2, Aug 2014 40098SEAL PLATE - BLACK (NEW STYLE AUG 2014 ONWARDS)
40098 Qty 1 $228.00
12
Astralpool / Zodiac Seal Plate Ser 1 G Pearl 4009002SEAL PLATE - BLACK (OLD STYLE)
4009002 Qty 1 $224.00
13
Astralpool Seal Plate Bolt M8 x 50mm with 16mm Washer - CTX / Viron / E-Series 78772BOLT M8X50 CAP SCREW
78772 Qty 6 $5.00
15
Astralpool Pump Motor 750W Mini 71310 (Black) - CTX 180, FX 190, E-SeriesMOTOR - 750W - MINI BLACK
71310 Qty 1 $845.00
16
Astralpool Volute (Wet End) - CTX Series 2, Aug 2014 40097VOLUTE (NEW STYLE AUG 2014 ONWARDS)
40097 Qty 1 $116.00
16
Astralpool Volute (Wet End) & Basket - CTX Series 1 4007502VOLUTE (OLD STYLE)
4007502 Qty 1 $665.00
17
Astralpool / Zodiac Bolt M8 X 55mm Ind Hex Sem 40160BOLT - M8 X 55 IND HEX SEMS S/STEEL
40160 Qty 2 $8.00
18
Astralpool Pump Body O-ring / Gasket - Various - See ListingSEAL - SEAL PLATE (NEW STYLE AUG 2014 ONWARDS)
70022 Qty 1 $48.00
18
Astralpool Pump Body O-ring / Gasket - Various - See ListingSEAL - SEAL PLATE (OLD STYLE)
70004 Qty 1 $48.00
20
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O RING - TAIL UNION 65MM - BX/FX/CTX
78104 Qty 1 $8.00
-
Astralpool Pump Check Valve AssemblyCHECK VALVE ASSEMBLY - ALL PUMPS
598770 Qty 1 $24.00
22
Astralpool / Zodiac Brass Hex Nut M8 - TX / CX / CTX / E-Series 40272M8 HEX BRASS NUT
40272 Qty 6 $4.00
23
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG
7820702 Qty 2 $10.00
24
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O RING - AIR BLEED
78103 Qty 2 $4.00
-
Astralpool Volute (Wet End) - CTX / E-Series MkII, Nov 2020 SP40031WETEND (NEW STYLE JULY 2018 ONWARDS)
SP40031 Qty 1 $116.00
-
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE (NEW STYLE JULY 2018 ONWARDS)
40030 Qty 1 $74.00
-
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303COMPONENT BAG
78303 Qty 1 $165.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
