AstralPool E-SERIES MKII PUMPS Spare Parts

  • E-SERIES MKII PUMPS
AstralPool E-SERIES MKII PUMPS Spare Parts

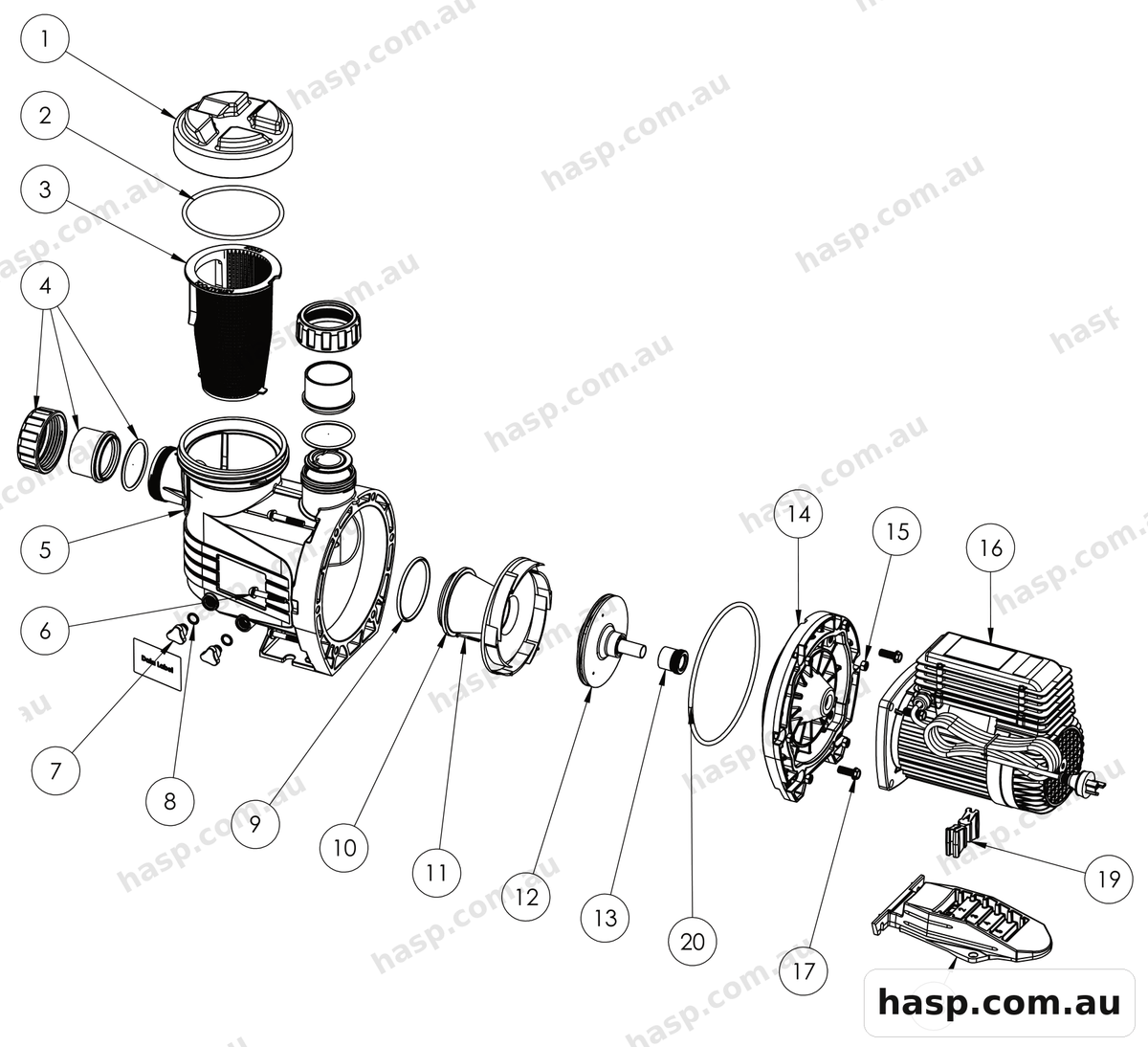

Tap the diagram to enlarge. AstralPool catalogue page 73.
1
Astralpool Lid Pump-E-Series - E140, E170, E230PUMP LID (INTERNAL SCREW)
40085 Qty 1 $116.00
2
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006O RING- LID-CTX-E SERIES PUMP
70006 Qty 1 $21.95
3
Astralpool Pump Basket - CTX, E-Series, VironBASKET CTX
40065 Qty 1 $67.00
4
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - Combo50mm PUMP UNION
78308 Qty 2 $25.00
5
Astralpool Volute (Wet End) - CTX / E-Series MkII, Nov 2020 SP40031VOLUTE SERIES 3 & BASKET-CTX/E- SERIES (JUN-2018)
SP40031 Qty 1 $116.00
6
Astralpool Seal Plate Bolt M8 x 50mm with 16mm Washer - CTX / Viron / E-Series 78772BOLT - M8 X 50MM PHCS DRIVE WITH 16MM WASHER"
78772 Qty 6 $5.00
7
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792CL/ZX AIR/DRAIN PLUG GRAPHITE PEARL
7820702 Qty 2 $10.00
8
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O RING-AIR BLEED SOCKET-GX / ZX FIL
78103 Qty 2 $4.00
9
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O RING-TAIL UNION 65MM- BX/FX/CTX/P3
78104 Qty 1 $8.00
10
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ABX/CTX/E DIFFUSER SMALL
40071A Qty 1 $12.00
11
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165BOLT-PAN HEAD 6g x 35 S/TAP S/S
40165 Qty 2 $4.00
12
Astralpool / Hurlcon Impeller FX 140 Pump 40060LE140 IMPELLER
40060L Qty 1 $79.00
12
Astralpool / Hurlcon Impeller E 140 170 Pump 40060ME170 IMPELLER
40060M Qty 1 $79.00
12
Astralpool / Hurlcon Impeller E230 Pump 40060KE230 IMPELLER
40060K Qty 1 $79.00
12
Astralpool / Hurlcon Impeller P280 P320 eVo FX290 E290 CTX360 40060FE290 IMPELLER
40060F Qty 1 $79.00
13
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL-316 VITON
PS3868 Qty 1 $28.00
14
Astralpool Seal Plate - CTX / E-Series MkII & XP, Nov 2020 SP40030SEAL PLATE SERIES 3-CTX- E SERIES (JUN- 2018 )
40030 Qty 1 $74.00
15
Astralpool / Zodiac Brass Hex Nut M8 - TX / CX / CTX / E-Series 40272M8 BRASS NUT
40272 Qty 6 $4.00
16
Astralpool Pump Motor 750W Mini 71310 (Black) - CTX 180, FX 190, E-SeriesMOTOR 750W BLACK
71310 Qty 1 $845.00
18
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
19
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056RUBBER INSERT-V2-PUMP MOTOR FOOT
40056 Qty 1 $7.00
20
Astralpool Pump Body O-ring / Gasket - Various - See ListingO-RING SUIT SERIES 3 SEAL PLATE - 07-2018
70030 Qty 1 $48.00
21
Astralpool Pump Check Valve AssemblyCTX Check Valve Complete Assembly
598770 Qty 1 $24.00
-
Astralpool / Zodiac Pump Motor Bearings 6203 - Front & Rear Pair 71300BEARING
71300 Qty 1 $19.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
