AstralPool 50MM MULTIPORT WITH GAUGE Spare Parts

50MM MULTIPORT WITH GAUGE

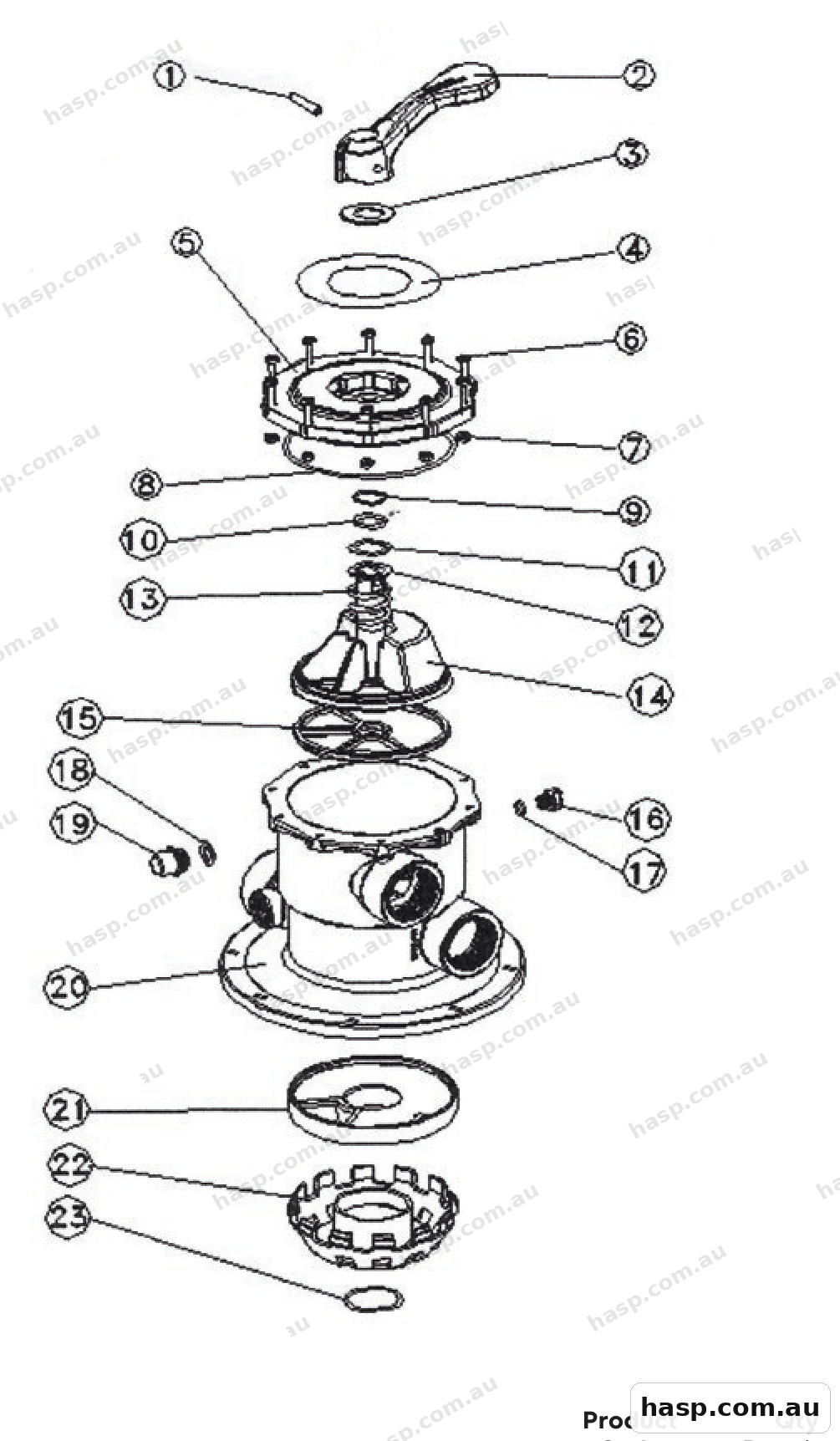

AstralPool 50MM MULTIPORT WITH GAUGE Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 82.

1

Astralpool / Zodiac Handle Pin Astral Multiport Valve 75911STAINLESS STEEL PIN

75911 Qty 1 $8.00

2

Astralpool Multiport Valve Handle 40mm & 50mm - 759032” HANDLE BLACK

75903 Qty 1 $29.00

3

Astralpool / Zodiac Washer AstralPool Multiport Valve Handle 75904WASHER FOR HANDLE

75904 Qty 1 $5.00

4

Astralpool / Zodiac Label 50mm Multiport Valve Valve Ningbo 75932DECAL (LINYA)

75932 Qty 1 $16.00

5

Astralpool / Zodiac Top Cover Astral 50mm Multiport Valve 75924VALVE COVER BLACK

75924 Qty 1 $91.00

6

Astralpool / Zodiac Screw Astral Multiport Valve 75915BOLT

75915 Qty 10 $5.00

7

Astralpool / Zodiac Nut M6 To Suit Astral 40mm Multiport Valve 75913NUT

75913 Qty 10 $5.00

8

Astralpool / Zodiac O-Ring Astral 50mm Multiport Valve Top 75930O RING FOR COVER

75930 Qty 1 $5.00

9

Astralpool / Zodiac Washer Cover Astral Multiport Valve Di 75918WASHER FOR COVER

75918 Qty 1 $5.00

10

Astralpool Multiport Valve Shaft O-Ring 40mm & 50mm - CA & ECA Filters - 75905O RING

75905 Qty 1 $5.00

11

Astralpool / Zodiac Washer Spring AstralPool Multiport Valve 75907PLASTIC SPRING WASHER

75907 Qty 1 $12.00

12

Astralpool / Zodiac Metal Washer Spring Astral 50mm Multiport Valve 75928METAL SPRING WASHER

75928 Qty 1 $5.00

13

Astralpool Multiport Valve Spring - 75912SPRING

75912 Qty 1 $38.24

14

Astralpool / Zodiac Diverter Astral 50mm Multiport Valve 75925DIVERTER

75925 Qty 1 $97.00

15

Astralpool / Zodiac Spider Gasket 50mm Multiport Valve Astral 75929SPIDER GASKET 50MM

75929 Qty 1 $44.00

16

Astralpool / Zodiac Plug AstralPool Multiport Valve 40 & 50mm 75908PLUG

75908 Qty 1 $8.00

17

Astralpool / Zodiac O-Ring Astral Multiport Valve Plug 75920O RING FOR PLUG

75920 Qty 1 $5.00

18

Astralpool Multiport Valve Sight Glass 40mm & 50mm - Post Sept 2009 - 75906OBSERVE LID

75906 Qty 1 $24.00

19

Astralpool Multiport Valve Sight Glass O-Ring 40mm & 50mm - Post Sept 2009 - 75917WASHER FOR OBSERVE LID

75917 Qty 1 $5.00

20

Astralpool / Zodiac Body Astral 50mm Multiport Valve 75923VALVE BODY

75923 Qty 1 $147.00

23

Astralpool / Zodiac O-Ring Stem Pipe 50mm Multiport Valve 75931WASHER FOR DIFFUSER

75931 Qty 1 $5.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
