Zodiac VX55 4WD + SWIVEL Spare Parts

  • VX55 4WD + SWIVEL
  • VX55
Zodiac VX55 4WD + SWIVEL Spare Parts

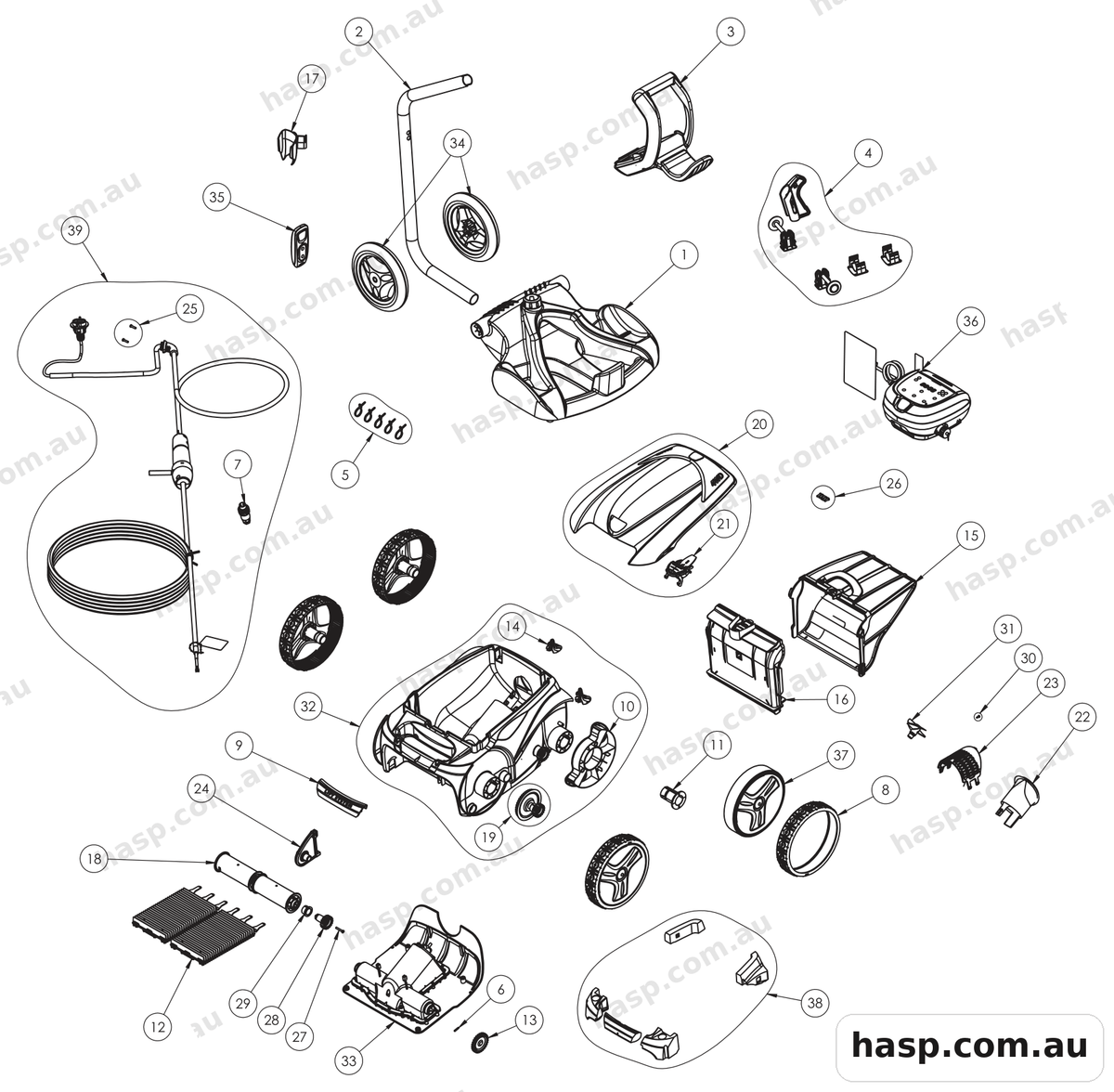

Tap the diagram to enlarge. Zodiac catalogue page 164.
1
Zodiac Cady Base For Vortex R0564800Caddy Base
R0564800 Qty 1 $104.00
2
Zodiac Caddy Tube R0565200Caddy Tube
R0565200 Qty 1 $67.00
3
Zodiac Caddy Handle R0565000Caddy Handle
R0565000 Qty 1 $88.00
4
Zodiac Caddy Accessories R0564900Caddy Accessories
R0564900 Qty 1 $38.00
5
Zodiac Floating Cable Clamp 5PK R0567900Floating Cable Clamp, 5PK
R0567900 Qty 1 $8.00
6
Zodiac Motor Block Shaft Pin 5PK R0567800Motor Block Shaft Pin, 5PK
R0567800 Qty 1 $8.00
7
Zodiac Floating Cable Plug R0565600Floating Cable Plug
R0565600 Qty 1 $59.00
8
Zodiac Tire Large RAL9022 Zodiac R0636200Tire Large RAL9022 Zodiac
R0636200 Qty 1 $54.00
10
Zodiac Wheel Cover R0540300Wheel Cover
R0540300 Qty 1 $16.00
11
Zodiac Bearing Wheel Vortex R0636700Wheel Bushing Zodiac
R0636700 Qty 1 $9.00
14
Zodiac Roller Set Of 2 R0518100Roller (set of 2)
R0518100 Qty 1 $17.00
15
Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 SportLarge Filter (200 Micron)
R0643700 Qty 1 $127.00
-
Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 Sport100 MICRON FILTER CANISTER
R0636600 Qty 1 $127.00
16
Zodiac Filter Canister Support R0517700Filter Canister Support
R0517700 Qty 1 $48.00
18
Zodiac Brush Roller Vortex Set Of 2 R0517400Brush Roller Vortex (set of 2)
R0517400 Qty 1 $49.00
19
Zodiac Transmission Kit R0517200Transmission Kit
R0517200 Qty 1 $21.00
20
Zodiac Hood Blue Spoiler R0596000Hood Blue Spoiler
R0596000 Qty 1 $109.00
21
Zodiac Cover Latch Grip PMS108 R0638700Cover Latch Grip
R0638700 Qty 1 $6.00
22
Zodiac Flow Outlet Kit R0517500Flow Outlet
R0517500 Qty 1 $17.00
23
Zodiac Motor Screen R0517600Motor Screen
R0517600 Qty 1 $11.00
24
Zodiac Brush Seperator Support R0518700Roller Support
R0518700 Qty 1 $6.00
25
Zodiac Screw 4 16mm Set Of 5 R0608500Screw 4*16 mm A4 (sef of 5)
R0608500 Qty 1 $4.00
26
Zodiac Screw 4-12 Set Of 5 R0516700Screw 4*12 (set of 5)
R0516700 Qty 1 $4.00
27
Zodiac Screw 4-25mm Set Of 5 R0638900Screw 4*25mm (set of 5)
R0638900 Qty 1 $4.00
28
Zodiac 17 Teeth Gear Pack Of 2 R063900017 Gear (set of 2)
R0639000 Qty 1 $7.00
29
Zodiac Bearing Outer Bearing 2 R0639100Outer Bearing (set of 2)
R0639100 Qty 1 $8.00
30
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200Screw 2.9*9.5mm (set of 5)
R0639200 Qty 1 $4.00
31
Zodiac Propeller Zodiac R0517000Propeller
R0517000 Qty 1 $13.00
34
Zodiac Caddy Wheel R0565100Caddy Wheel (set of 2)
R0565100 Qty 1 $56.00
38
Zodiac Complete Float R0539700Float
R0539700 Qty 1 $12.00
39
Zodiac 21M Swivel Cable R0726700CSwivel Floating Cable 21M
R0726700C Qty 1 $510.00
-
Zodiac Vortex Trolley Complete R0609100VORTEX CADDY COMPLETE
R0609100 Qty 1 $344.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
