Zodiac VX45 4WD Spare Parts

VX45 4WD
VX45

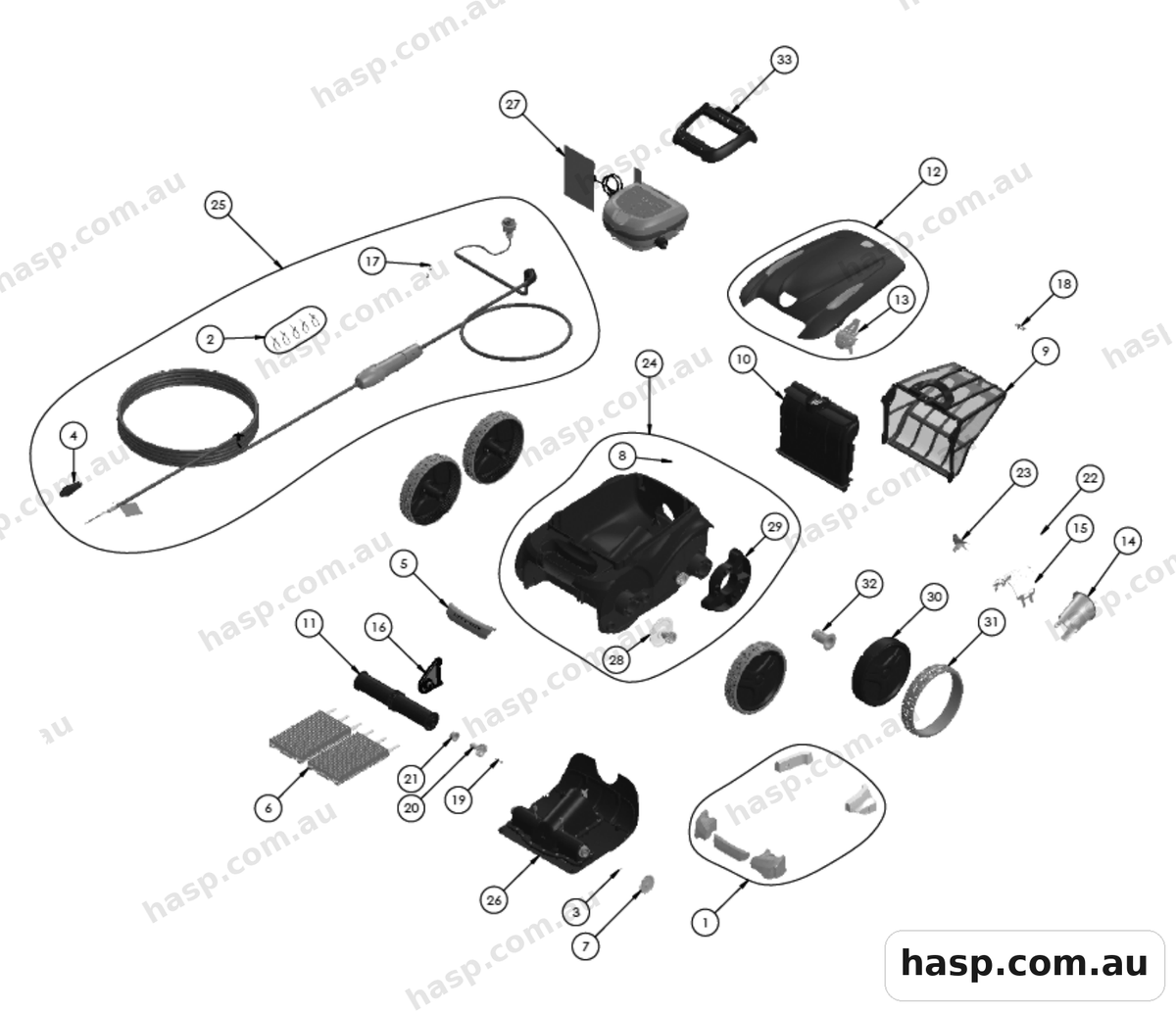

Zodiac VX45 4WD Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 168.

1

Zodiac Complete Float R0539700FLOAT

R0539700 Qty 1 $12.00

2

Zodiac Floating Cable Clamp 5PK R0567900FLOATING CABLE CLAMP (SET OF 5)

R0567900 Qty 1 $8.00

3

Zodiac Motor Block Shaft Pin 5PK R0567800MOTOR BLOCK SHAFT PIN (SET OF 5)

R0567800 Qty 1 $8.00

4

Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG

R0565600 Qty 1 $59.00

8

Zodiac Roller Set Of 2 R0518100ROLLER (SET OF 2)

R0518100 Qty 1 $17.00

9

Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 SportLARGE FILTER V

R0643700 Qty 1 $127.00

10

Zodiac Filter Canister Support R0517700FILTER CANISTER SUPPORT

R0517700 Qty 1 $48.00

11

Zodiac Brush Roller Vortex Set Of 2 R0517400BRUSH ROLLER

R0517400 Qty 1 $49.00

12

Zodiac Hood Blue Spoiler R0596000HOOD BLUE SPOILER

R0596000 Qty 1 $109.00

13

Zodiac Cover Latch Grip PMS108 R0638700COVER LATCH GRIP PMS108

R0638700 Qty 1 $6.00

14

Zodiac Flow Outlet Kit R0517500FLOW OUTLET

R0517500 Qty 1 $17.00

15

Zodiac Motor Screen R0517600MOTOR SCREEN

R0517600 Qty 1 $11.00

16

Zodiac Brush Seperator Support R0518700ROLLER SUPPORT

R0518700 Qty 1 $6.00

17

Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16MM (set of 5)

R0608500 Qty 1 $4.00

18

Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)

R0516700 Qty 1 $4.00

19

Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)

R0638900 Qty 1 $4.00

20

Zodiac 17 Teeth Gear Pack Of 2 R063900017 GEAR (*2)

R0639000 Qty 1 $7.00

21

Zodiac Bearing Outer Bearing 2 R0639100OUTER BEARING (*2)

R0639100 Qty 1 $8.00

22

Zodiac Screw 2.9 9.5mm Set Of 5 R0639200SCREW 2.9*9.5 MM (SET OF 5)

R0639200 Qty 1 $4.00

23

Zodiac Propeller Zodiac R0517000PROPELLER

R0517000 Qty 1 $13.00

25

Zodiac Cable Swivel Floating 15M R0799500SWIVEL FLOATING CABLE KIT 15M

R0799500 Qty 1 $430.00

28

Zodiac Transmission Kit R0517200TRANSMISSION

R0517200 Qty 1 $21.00

29

Zodiac Wheel Cover R0540300COVER WHEELS PROTECTION

R0540300 Qty 1 $16.00

31

Zodiac Tire Large RAL9022 Zodiac R0636200TIRE LARGE RAL9022 ZODIAC

R0636200 Qty 1 $54.00

32

Zodiac Bearing Wheel Vortex R0636700WHEEL BUSHING ZODIAC

R0636700 Qty 1 $9.00

33

Zodiac Control Unit Base R0662600CONTROL UNIT BASE

R0662600 Qty 1 $14.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
